2 3 4 5 layers laminated air bubble film wrap roll sheet making machine
2 3 4 5 layers laminated air bubble film wrap roll sheet making machine
2 3 4 5 layers laminated air bubble film wrap roll sheet making machine
2 3 4 5 layers laminated air bubble film wrap roll sheet making machine
2 3 4 5 layers laminated air bubble film wrap roll sheet making machine
2 3 4 5 layers laminated air bubble film wrap roll sheet making machine
2 3 4 5 layers laminated air bubble film wrap roll sheet making machine

2 3 4 5 layers laminated air bubble film wrap roll sheet making machine

Share on (62184535649):


Price:$39,800.00

Quantity:


Product Overview

Description



Machine Description

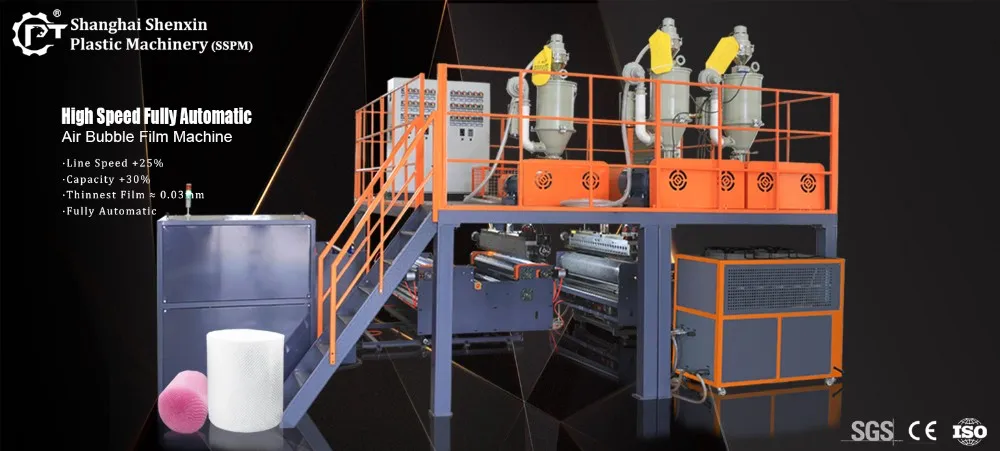

A full set of machine includes:

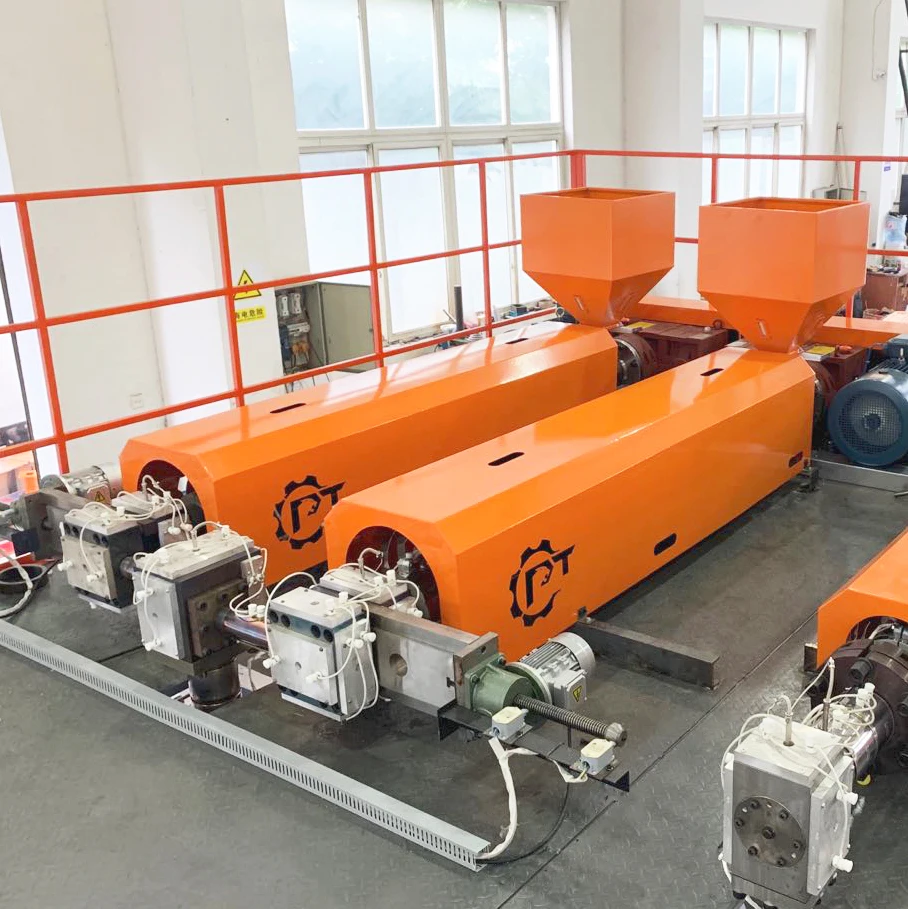

· One double-screw main extrusion set.

· One single-screw sub extrusion set.

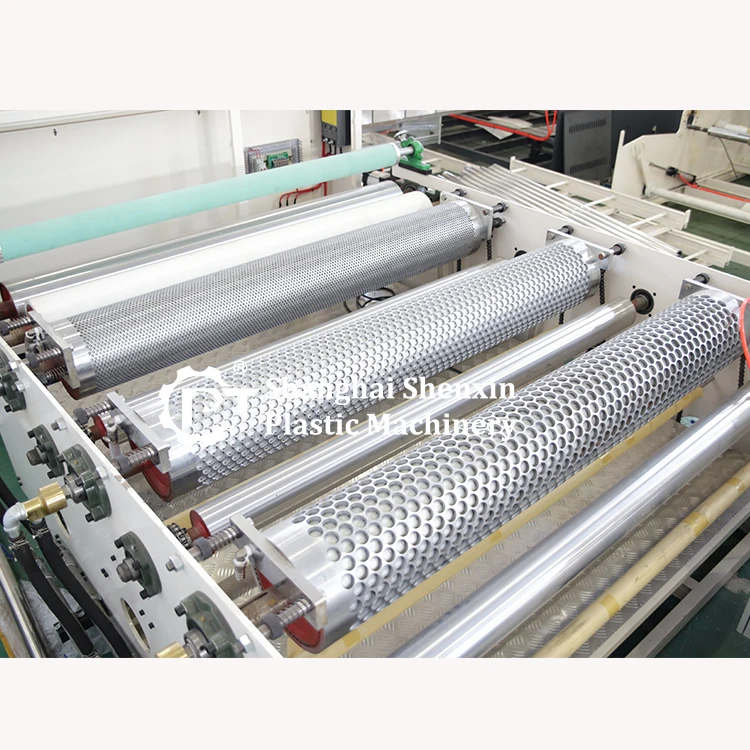

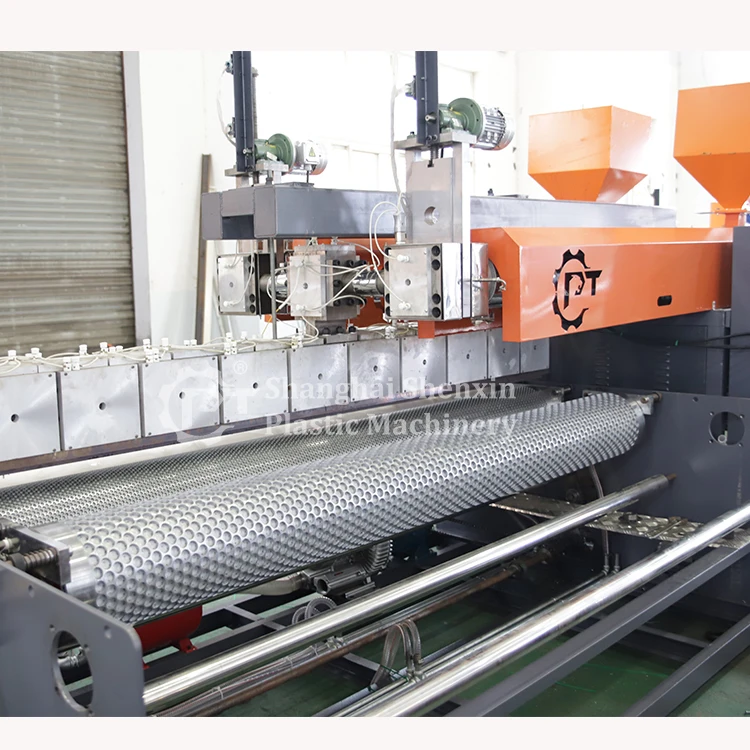

· One air bubble film forming roller (air bubble shape and size can be customized).
· One set of air bubble film forming frame with vertical dividers.
· Three automatic raw material feeder, reducing labor cost.
· One roll rewinding system, with a fixed-length meter control and a smart alarm.



Optional upgrades:

· High speed screw (capacity +20%)
· Water chiller (capacity +20%)

· Adjustable T-die (control film width)
· Online waste edge recycler (save material)

· Perforator (easy to tear bubble film)

· Automatic cutter, rewinder and unloader

  (Cut rewind and unload automatically)

· PLC control (Delta/Siemens)
· Fast eletrical filter changer (hydraulic)
· Safety devices (prevent injuries)



Machine Parameters


Film width (mm)
1200
1600
2000
2600
3000
Model
SXDS-L5-W1200
SXDS-L5-W1600
SXDS-L5-W2000
SXDS-L5-W2600
SXDS-L5-W3000
Line speed (m/hr)
600 - 2100
600 - 2100
600 - 2100
600 - 2100
600 - 2100
Capacity (kg/hr)
85- 140
100 - 170
125 - 200
145 - 220
180 - 260
Thickness (mm)
0.04 – 0.3
0.04 – 0.3
0.04 – 0.3
0.04 – 0.3
0.04 - 0.4
Film weight (g/m2)
38 - 200
38 - 200
40 - 200
45 - 200
45 - 200
Screw Diameter (mm)
Φ65x2
Φ65x2
Φ75x2
Φ80x2
Φ90x2
Sub screw Diameter (mm)
Φ45
Φ45
Φ65
Φ75
Φ80
Power (kw)
40 - 68
59 - 82
68 - 95
78 - 110
92 - 130
Dimension L×W×H (m)
10×5.5×2.5
10×6.5×2.5
11×7.0×2.5
12×8.0×2.5
12×8.7×2.5
Weight (kg)
5500
6200
7500
9500
12000


Ideal Solution


Find your ideal machine

What do you want to produce? Please click the products to see the machines you need.
If your products are not listed below, please contact us immediately.

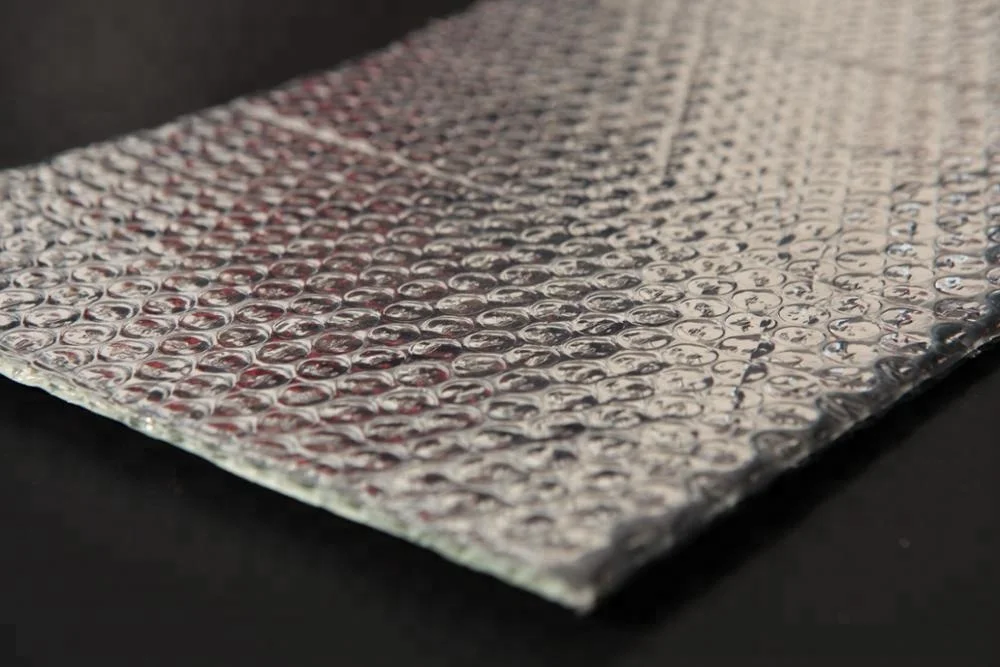

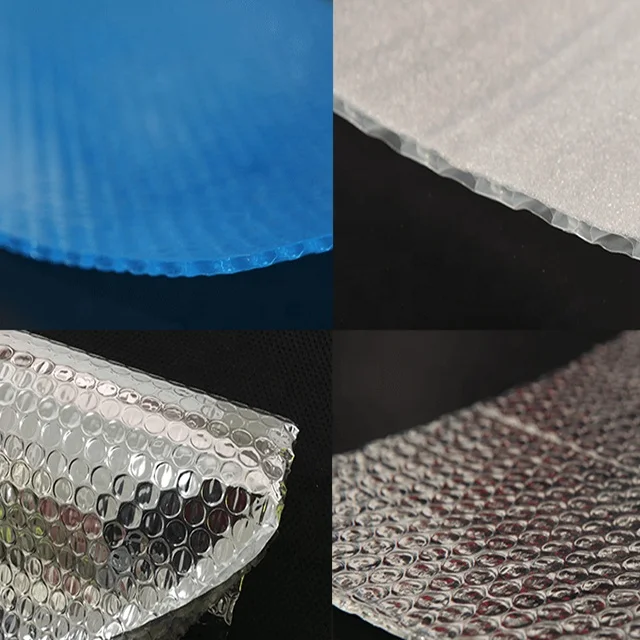

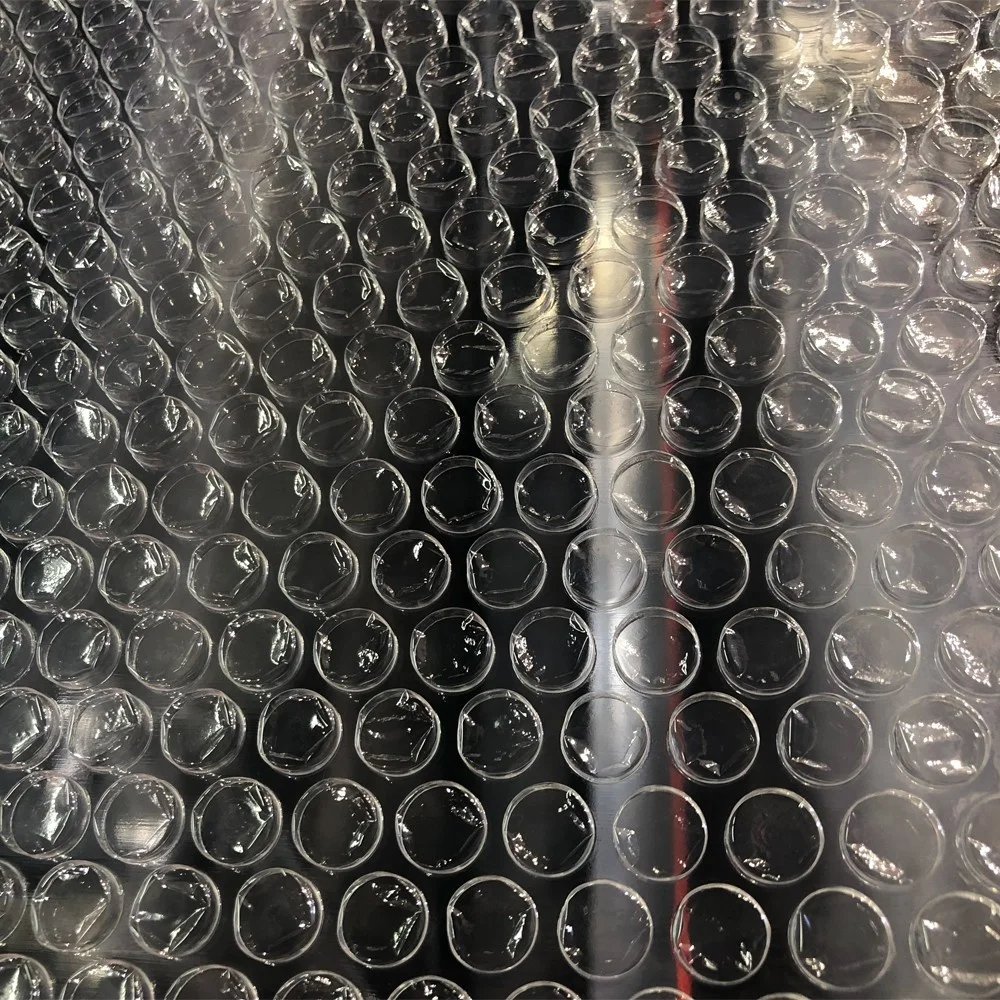

Air bubble wrap

Air bubble bags

Kraft paper laminated

air bubble bags

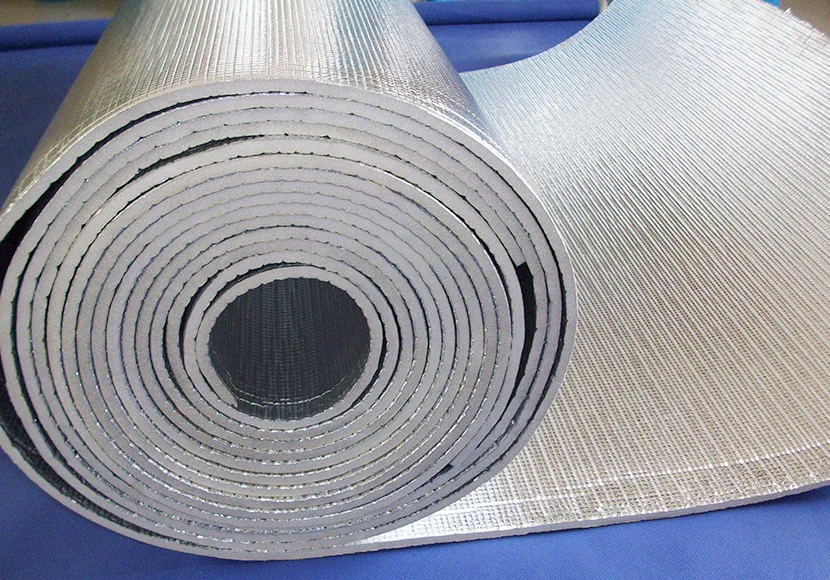

Aluminum laminated

 air bubble wrap

Aluminum laminated

air bubble bags

Two- side- flat

air bubble wrap



Foam(EPE) laminated

 air bubble wrap

Foam(EPE) laminated

air bubble bags

Harden air bubble warp

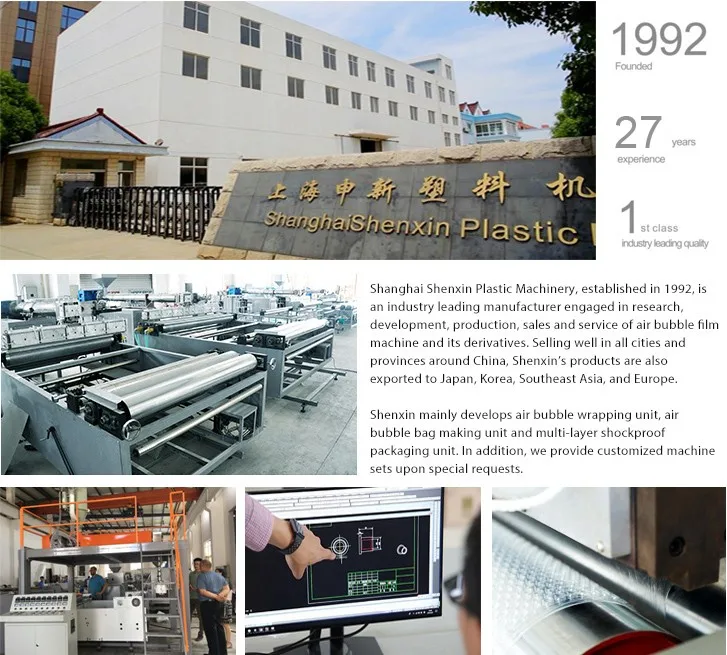

Company Profile


Certificates

We are one of the few verified suppliers passed SGS,CE, ISO 9001 and other certificates.


Different from gold suppliers, verified suppliers are officially examined by Alibaba.com, and proved to be solid and reliable manufacturers.





Manufacture Process




Service




Pre-sale Service

· Free consulting about machine type and size.

· Videos in details to show you everything you want to know.

· Anything else based on your production needs.



After-sale Service

· Well experienced engineer avaliable to provide oversea service at your place.

· Installing, testing and training service.

· Lifelong technical support.

· 1 year warranty.

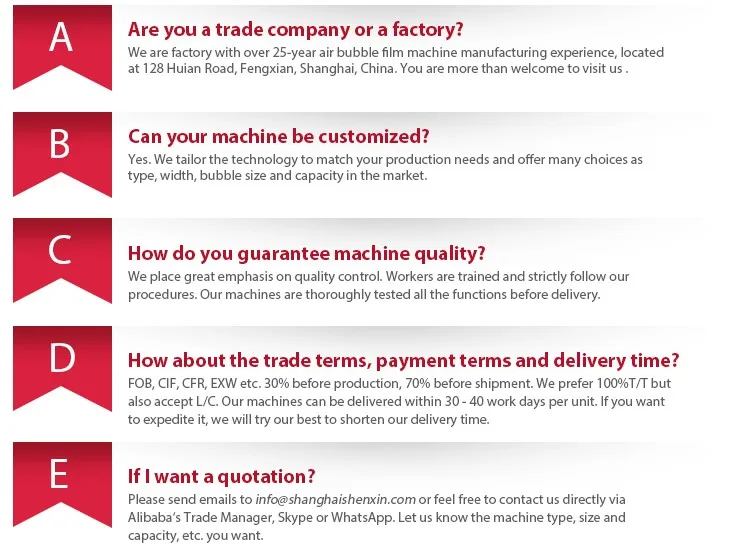

FAQ
