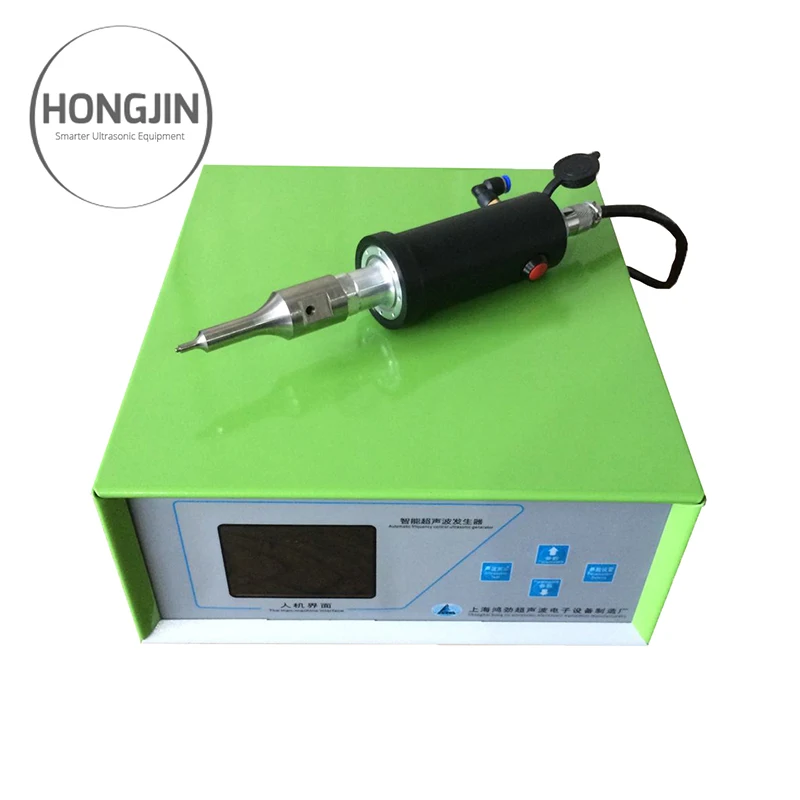

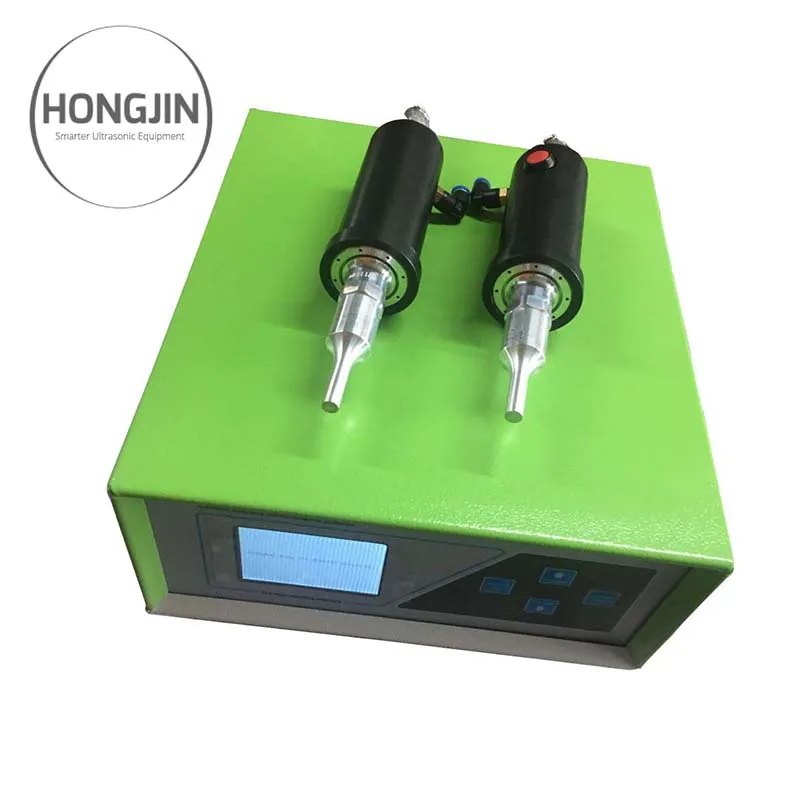

Chinese Brand Hongjin Portable Ultrasonic Spot Welding Machine Price

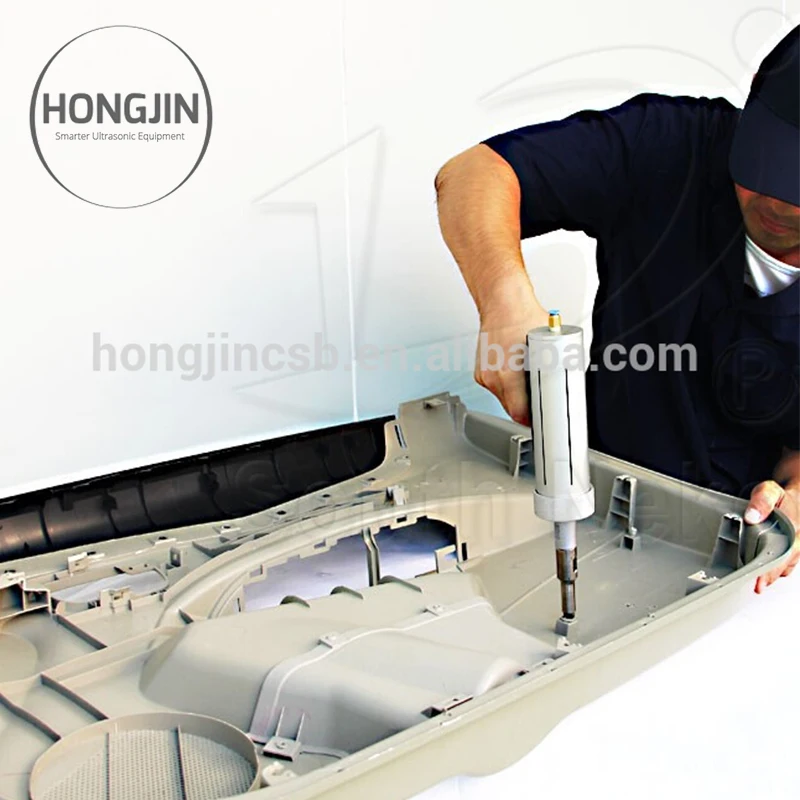

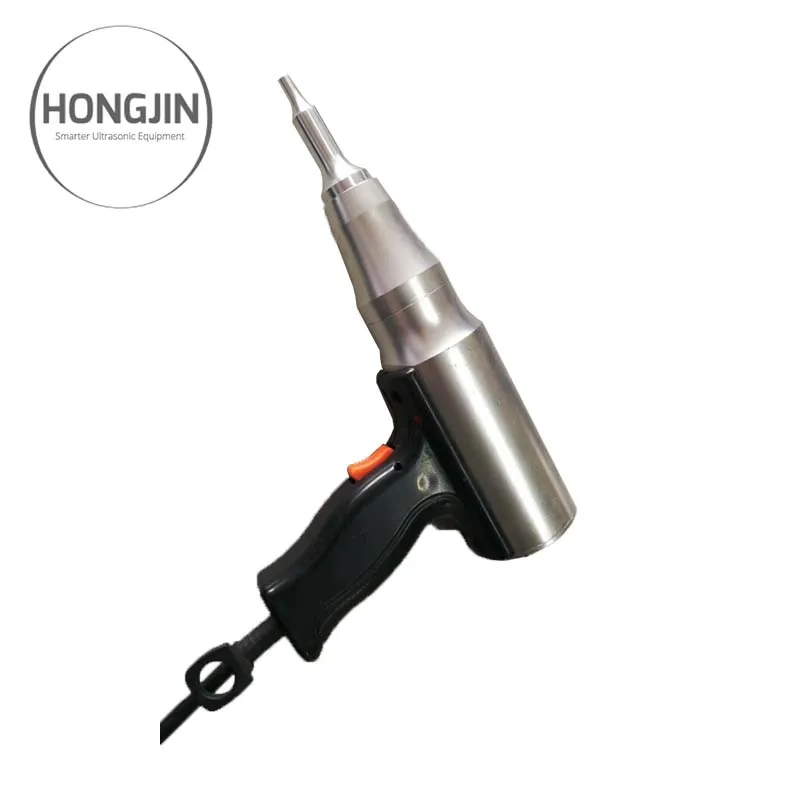

Hongjin Small Portable Ultrasonic Spot Welding Machine is an assembly technique for joinging two thermoplastic components at localised points without the necessity for performed holes or an energy director. Spot welding produces a strong structural weld, which is particularly suitable for the large parts, the sheets of extruded or cast thermoplastic, and the parts with complicated geometry and the hard-to-reach joining surfaces. It is widely used for welding the various plastic or fabrics products.

Ultrasonic generator USES the USA DSP chip control circuit, Japan's Panasonic capacitor and the Japanese Toshiba high power amplifier output.

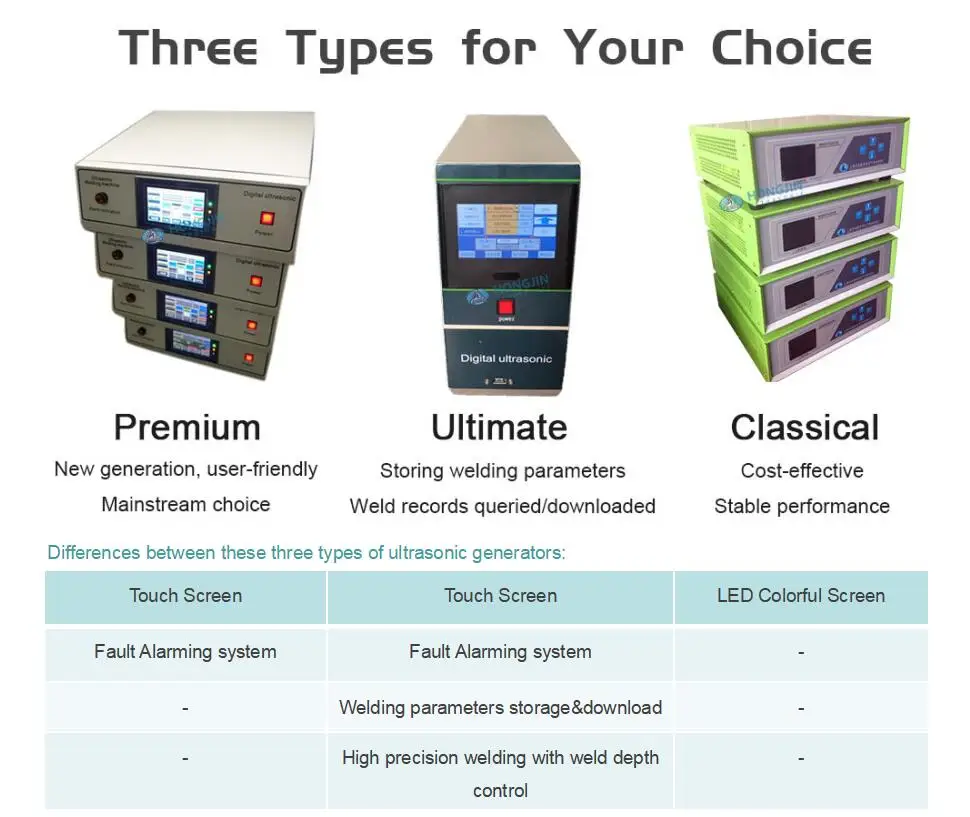

If you need the premium type or ultimate type, please contact us.

















2. We Focus on WHAT YOU NEED

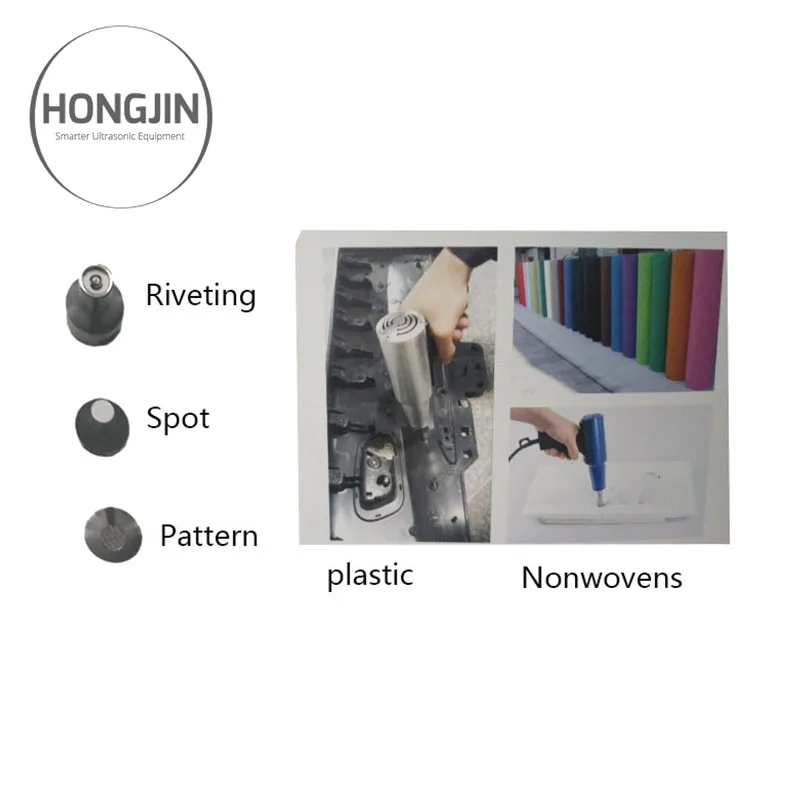

The ultrasonic/ultrasound spot welding machine can weld various plastic products and fabrics.



Supported Materials:

1. Plastics: ABS, PC, PVC, PE, PP, PS, HDPE, LDPE, ACETAL, ACRTLICS, CELLULOSICS, CYCOLOY-800, CYCOVIN, KYDEX, POLYSULFONE, SAN, POLYESTER, XT-POLYMER, etc.

2. Fabrics: Nylon, polyester, non-woven, etc.







______________________________________________________________________________________________________________



How we choose the suitable model?



Usually, the model can be choosen accroding to the welding area of your products.

For confirmation, warmly welcome you to contact us to help you choose the suitable model.

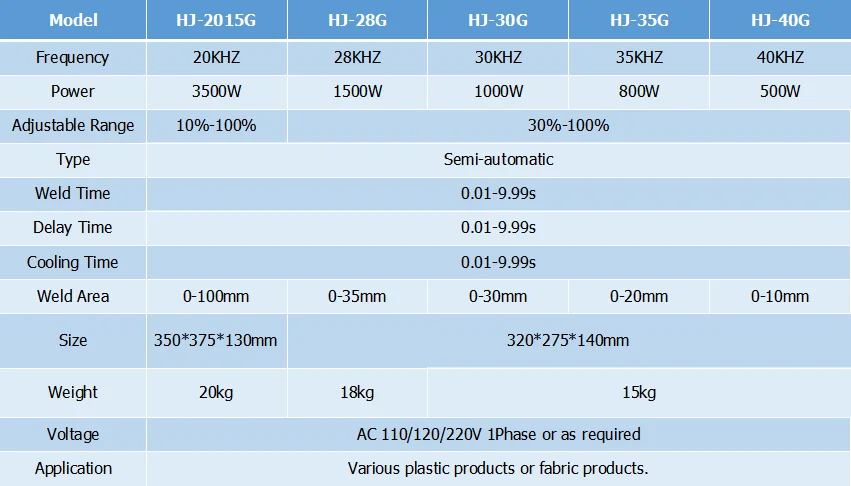

Frequency : 15KHZ- 40KHZ
Output Power: 100 - 3500W (30% - 100% adjustable)
Welding time : 0.01~9.99s/time
Weling Area: 0-100MM
Mold Material : Special Steel/Aluminum/ Titanium alloy













______________________________________________________________________________________________________________



Looking for the ULTRASONIC HORN? Click  HERE :

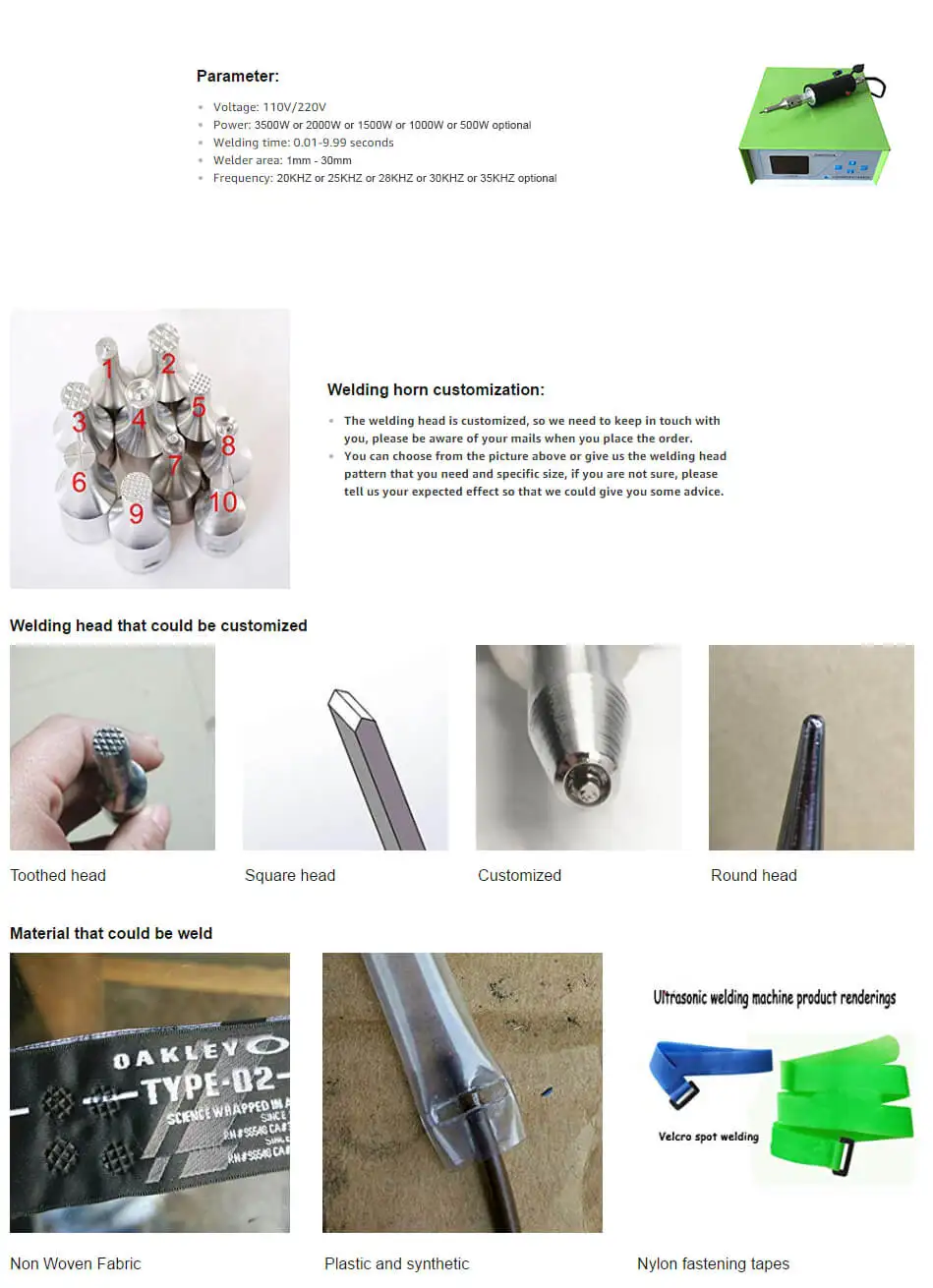

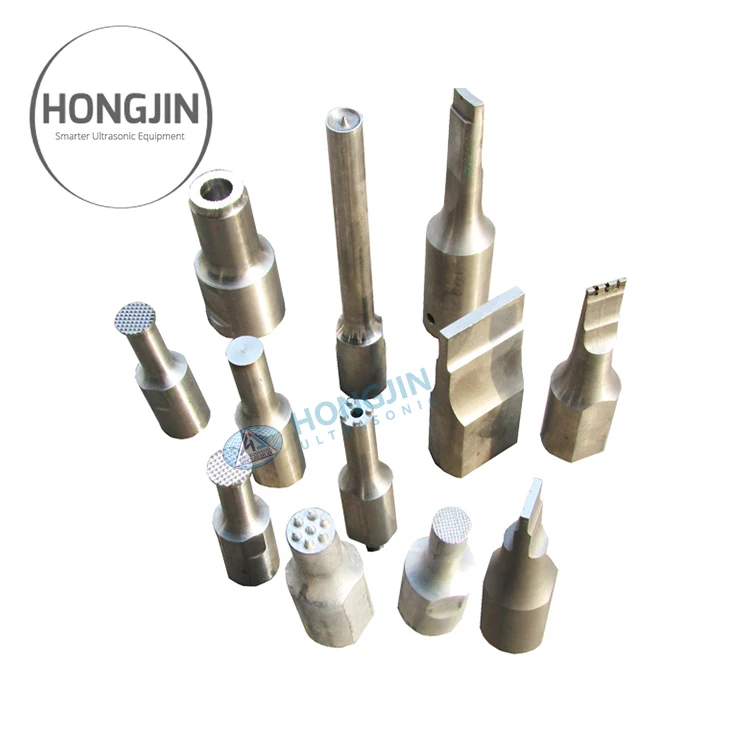

Custom Horn(Sonotrode) is Designed According to Products

(We use the Imported Arconic/Constellium/AMAG brand 7075 T651 Aluminum Alloy to make the horn)















It owns these CHARACTERISTICS that you may be interested in:



1. Frequency automatic tracking tuning, real-time display the current frequency, no need manual tuning, automatic tracking the best working state.
2. Overheating,overloading double protection function.

3. Automatically adjust the output power according to load.

4. Adaptive various parameters of the transducer.

5. Working mode is digital parameters setting.

6. Frequency automatic scanning, automatic tracking.

7. Equipped with Shanghai Hongjin professional control system; time mode, continuous mode, energy model and broken mode four functions;
8. LED digital display.

9.Touch screen: easy to operate and easy to learn;

10. Power can be adjustable from 30% - 100%.









The ultrasonic spot welding machines are WIDELY USED in:



1. Plastic toys, water cannons and aquatic animals kind of game, children's dolls, SuZhi gifts, etc.
2. Electronic products: the recording, the tape box and core wheel, disk shell, mobile phone panels and rectifier transformer, switch socket, remote control, electronic mosquito swatter, imitation pseudo cap, etc.
3. Household appliances, electric clock, electricity ChuiGuShou hair dryers, steam iron water tank, electric pot of gas, including computer, etc.
4. Stationery commodity: writing case, aquatic animals, folder ZhongFeng ruler and shell, pen holder, cosmetic box shell, toothpaste tube seals the tail, make up lens, temperature lighter, flavor and bottles sealed containers.
5. Automobile, motorcycle, battery, the former corner lamp, lamp, after instruments, reflector, etc.
6. Sports industry applications: table tennis, table tennis shoot, badminton racquet, golf clubs, a billiard table tennis racket, drum machine is running, skip rope handle step machine, running machine parts, TiaoXiang, gymnastics pad, boxing gloves, boxing sandbags, sanda equipment maintenance, path ShiYiPai, X exhibition frames and other sports equipment widely used in ultrasonic plastic welding machine for plastic point welding, etc.























We use the plywood case to pack the ultrasonic Generator so that it can be safely shipped. We hope you will receive a good machine after long shipping.













SHANGHAI HONGJIN ULTRASONIC ELECTRONIC EQUIPMENT FACTORY is a professional ultrasonic welding machines manufacturer with more than 10 years experiences offering Ultrasound plastic welder ultrasonic plastic welding machine ultrasonic sewing machine Ultrasonic spot welding machine spot welder ultrasonic metal welding machine geocell production line geogrid production line non woven bag making machine etc.



As a professional manufacturer of ultrasonic machines HONGJIN is integrated by R&D manufacturing distribution and relative service as well. we insist the principle of 'quality the first customers the highest' and ensure high quality excellent service and sincere cooperation with customers all over the world. In order to serve our customers much better our overseas after-sales department can provide fast after sale service all over the world after machines arrive customers' factory. In the past 10 years we have exported over 5000 sets ultrasonic machines to different customers around the world and got great reputation from them. In the face of honor and achievement HONGJIN people will Keep clear mind and work much harder we hope HONGJIN can grow up with our customers welcome to visit and cooperate with us.
