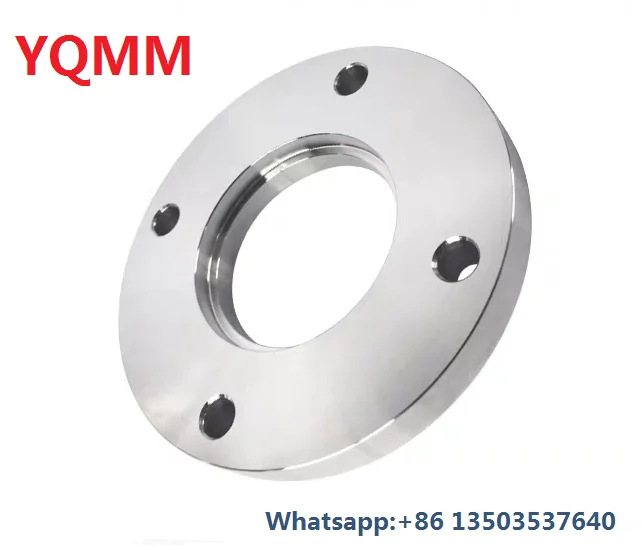

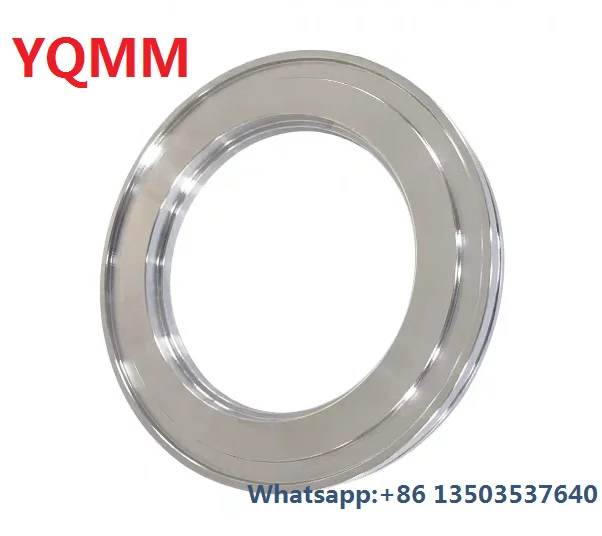

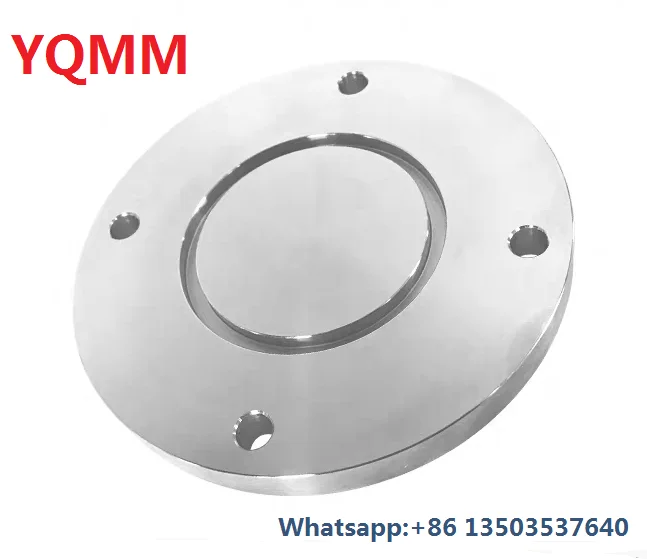

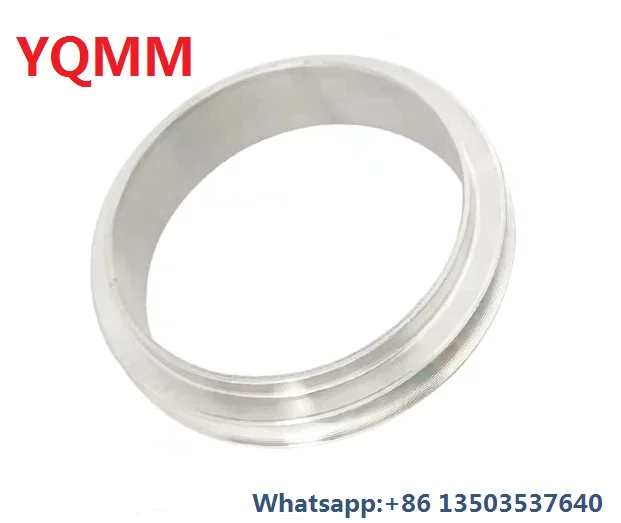

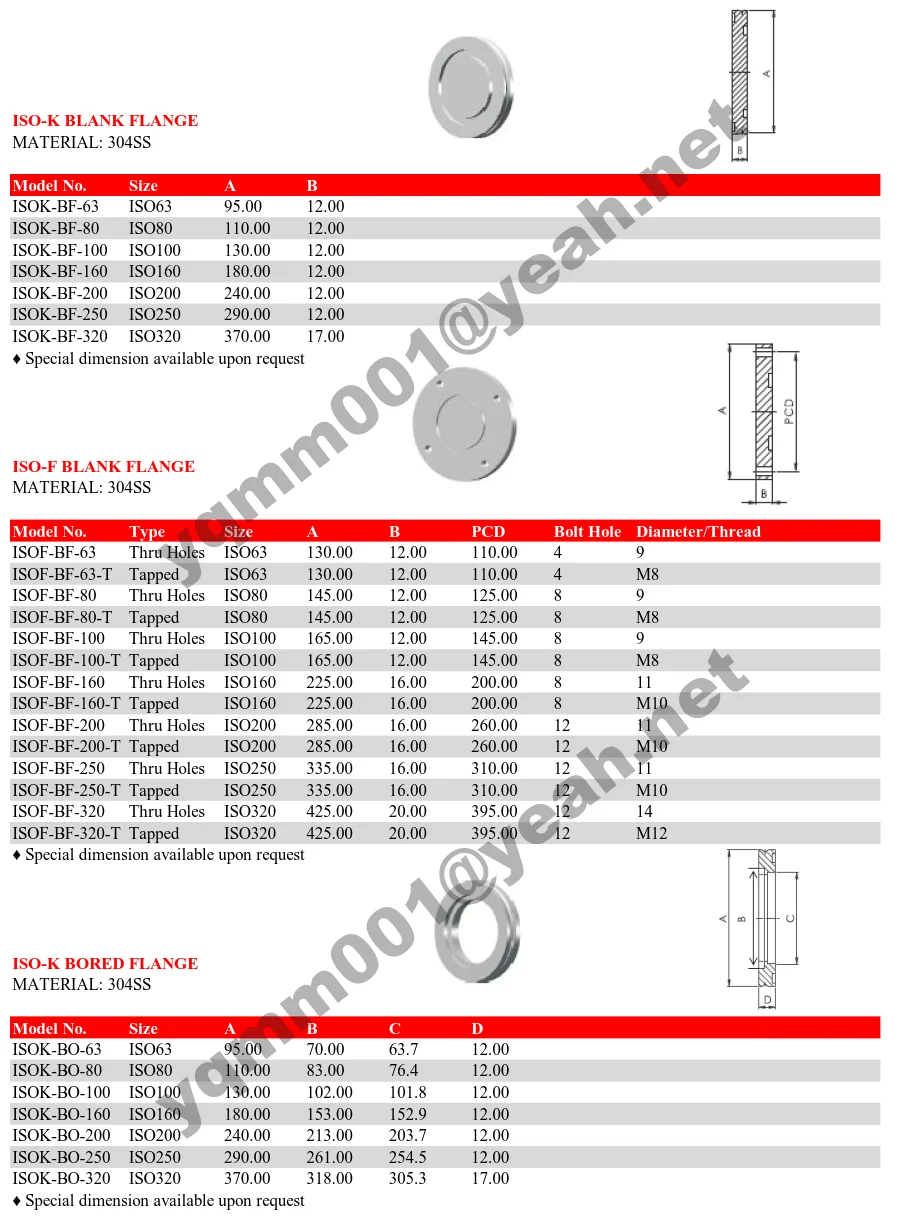

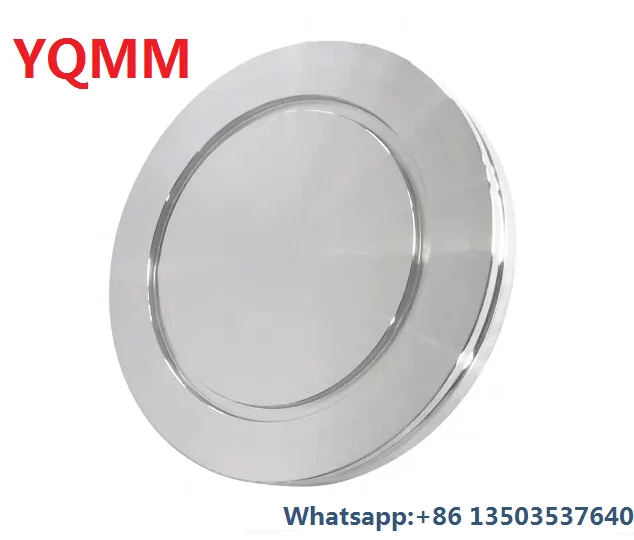

Stainless steel ISO vacuum fitting and flange ISO63 ISO80 ISO100 ISO160 ISO200 ISO250

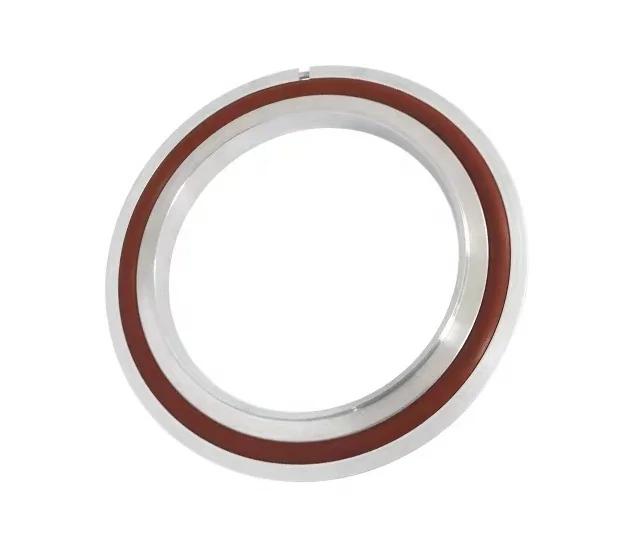

1.The components of ISO universal flange system are defined by the International Standards Organization(ISO). The construction of ISO flange series includes two smooth-faced sexless flanges clamped together with a combination metal centering ring and O-ring between them.

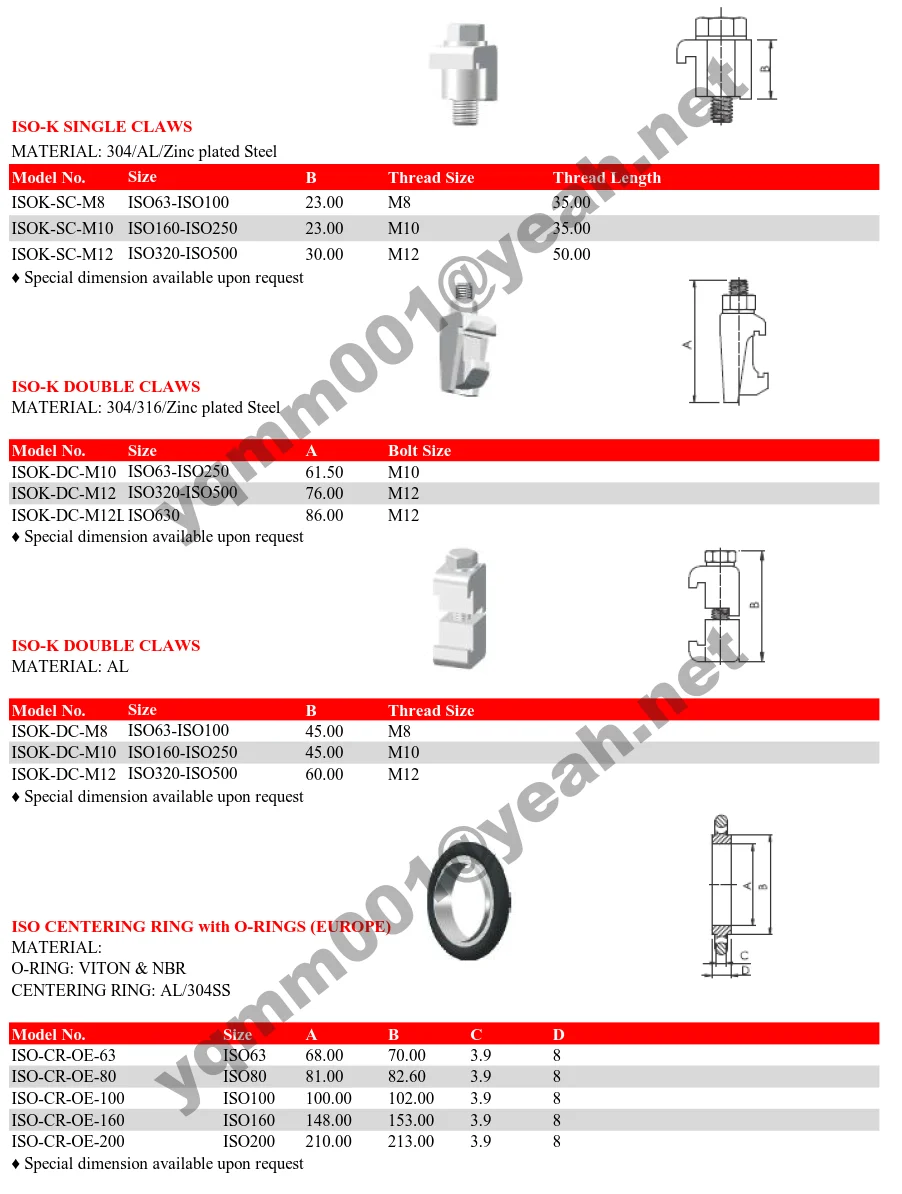

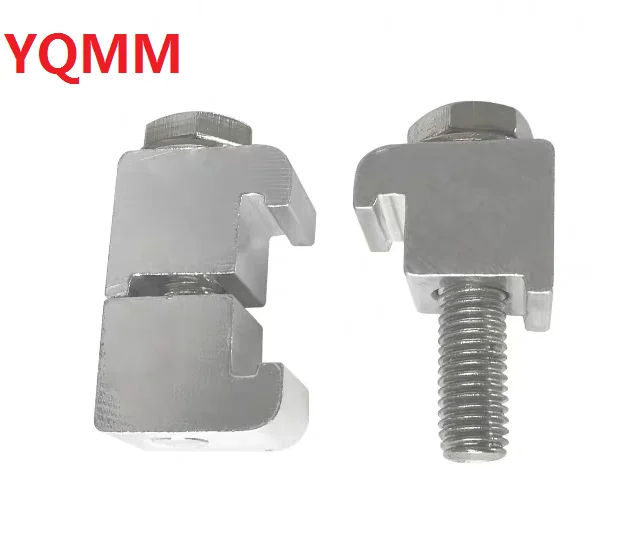

2. There are 4 Ways to Connect ISO flanges. Double claw clamp connect ISO-K to ISO-K; Bolts and nuts connect ISO-F to ISO-F; Bolts and nuts connect ISO-F to ISO-K use a rotatable bolt ring; Single claw clamp connect ISO-K to ISO-F(tapped).

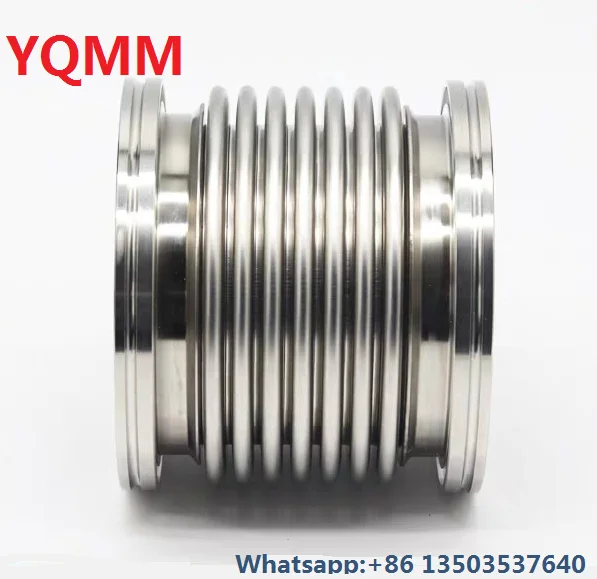

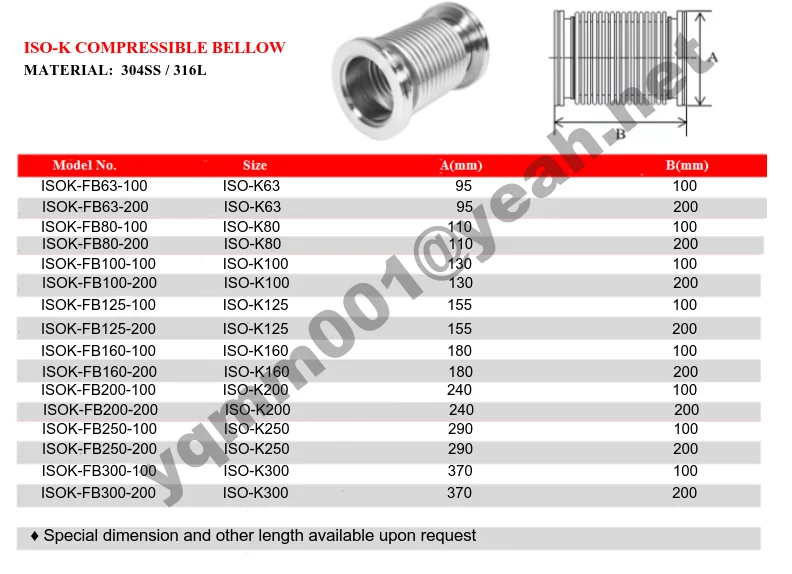

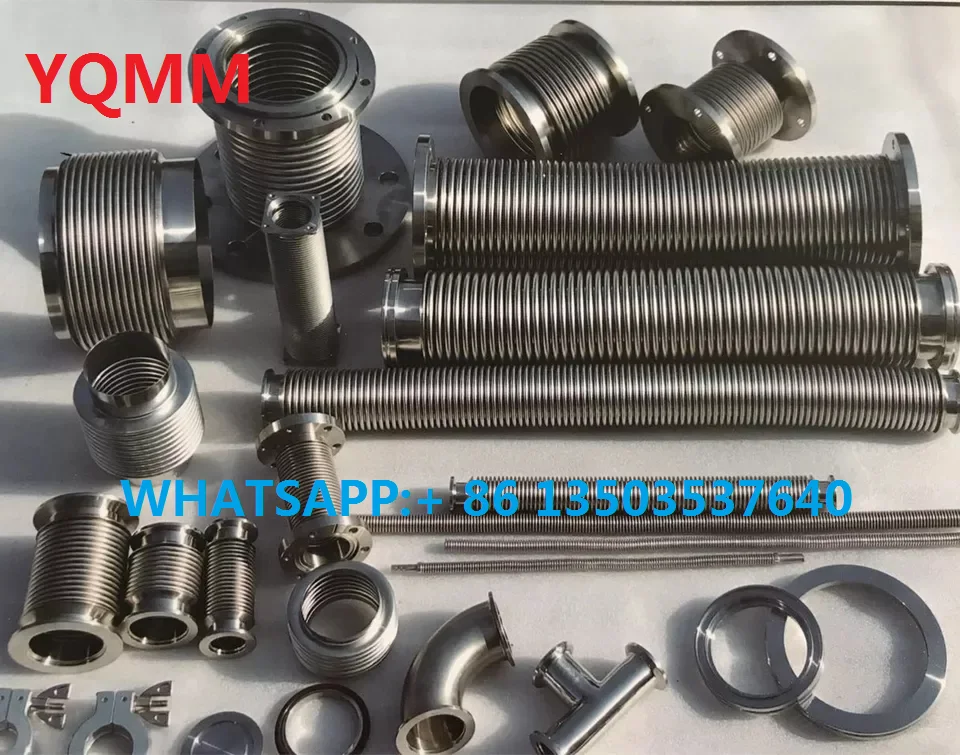

KF/CF/LF Stainless Steel Flexible Vacuum Bellow, Flexible bellow and Compressible

1.Stainless steel vacuum bellow with KF flange, CF flange and LF flange.Also we supply welding bellow.

2.Material can be 304SS and 316L

3.Size:KF16~50/CF16~200/LF63~250,Length:50~3000mm

4.The standrad length is in the catalog. Other lengths avalible upon request.
5. Also supply the vacuum flexibel bellow without flange.

6.Every bellow is tested by helium leak detector.

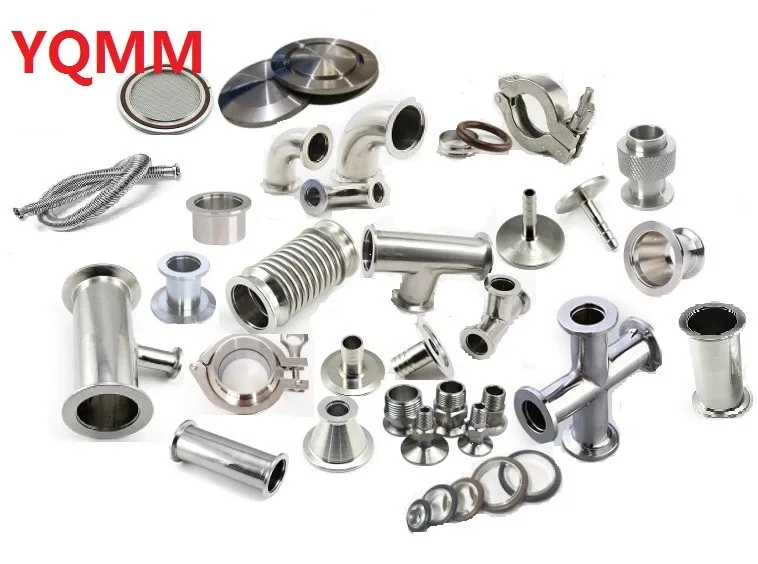

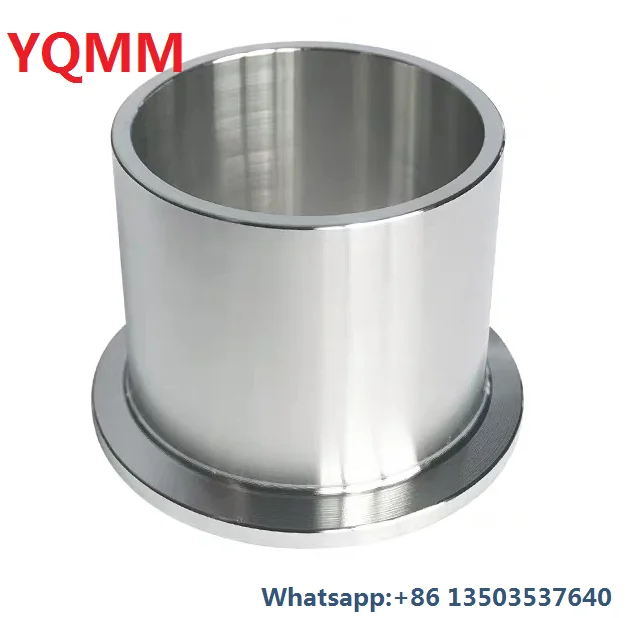

KF High Vacuum Fittings and Flanges

CF Vacuum Fittings and Flanges

1.Consist of two identical flanges with a flat gasket made of oxygen free copper, bolts and nuts. Because the applications are UHV environments, so the preparation work is very import before installation. Surface cleaning guarantees the lowest possible outgassing and leak rates.
2. Offered in both rotatable and non-rotatable versions with through holes and tapped bolt holes. 3.The standard size for CF flange fittings are CF-16, CF-35, CF-50, CF-63, CF-100, CF160, CF-200 and CF-250.

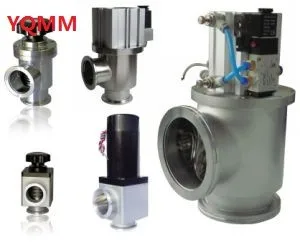

High Vacuum Angle Valve
Driven: Manual, Pneumatic, Electromagnetic
Material: 304SS, Aluminum
Flange: KF, CF, LF, GB-LP
Sealed: Bellow sealed, O-ring sealed
Size: KF (DN16~DN50)
CF (DN16~DN50)
LF (DN63~DN250)
GB-LP (DN63~DN250)

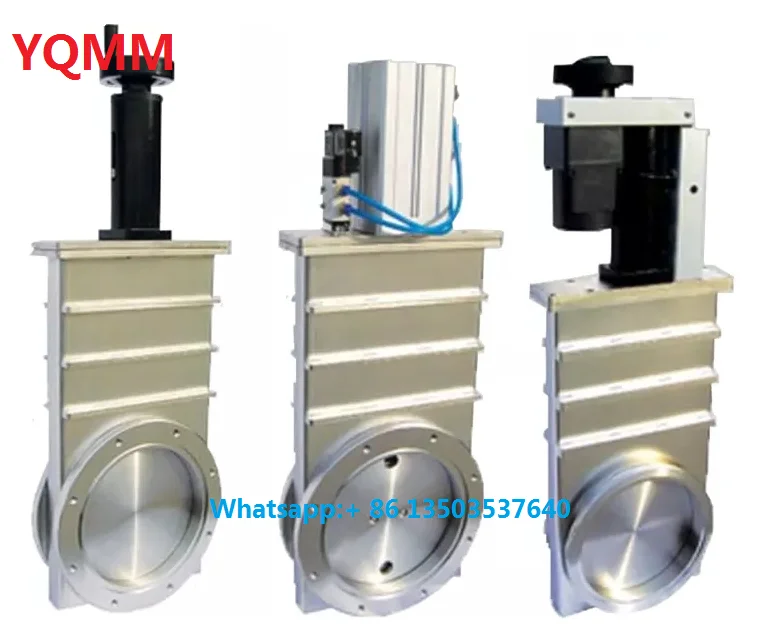

High Vacuum Gate Valve

Driven: Manual, Pneumatic, Motor-driven
Material: 304SS
Flange: KF, CF, LF, ISO-F, GB-LP
Size: KF (DN25~DN50)
CF (DN25~DN320)
LF (DN63~DN400)
ISO-F (DN63~DN400)
GB-LP (DN63~DN400)

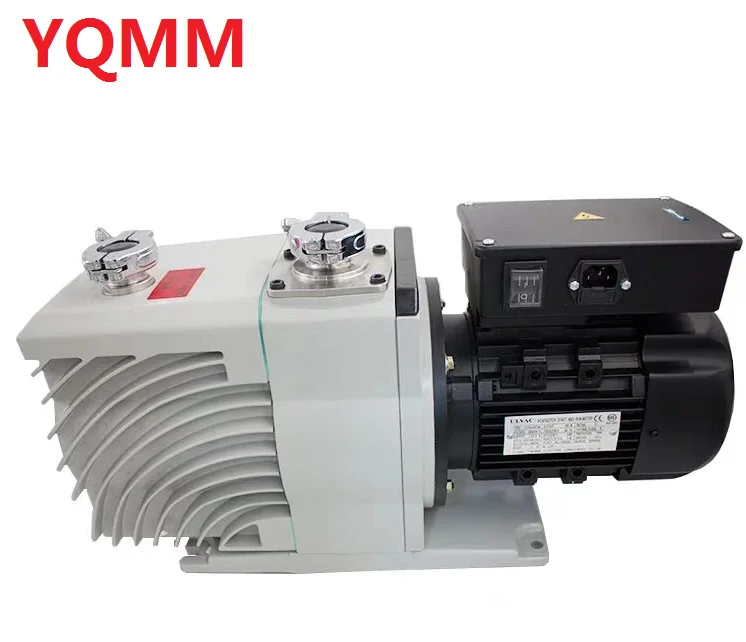

TRP SERIES ROTARY VANE VACUUM PUMP

1. TRP series is high speed two-stage oil sealed rotary vane vacuum pump. It is a new concept out of conventional design to satisfy customer's needs.
2. It consists of pump housing, oil casing, motor housing, pump base and pump module. It occupies oil anti-suckback-valve and gas ballast for protecting pump and vacuum system.

Model:  TRP-6   TRP-12   TRP-24   TRP-36

              TRP-48    TRP-60    TRP-90

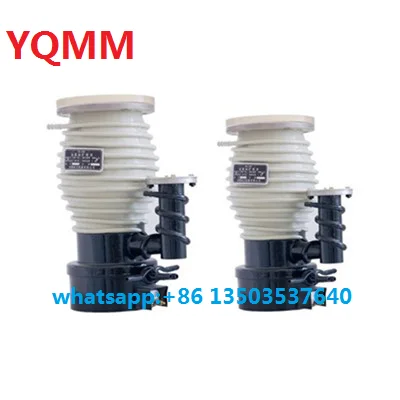

K/KT SERIES OIL DIFFUSION VACUUM PUMP

KT /K high vacuum diffusion pump are the equipment mainly used for getting the high vacuum condition(10-2-10-5 Pa)

Application: Mainly used in vacuum coating, vacuum furnace, electron, chemical industry, aviation, metallurgy, aerospace, materials, biomedicine, atomic energy andspace probe and other Hi-tech fields etc.

Model: KT100/160/200/250/300/320/400/500/600/630/800/900/1000/1100/1200/1400/1600

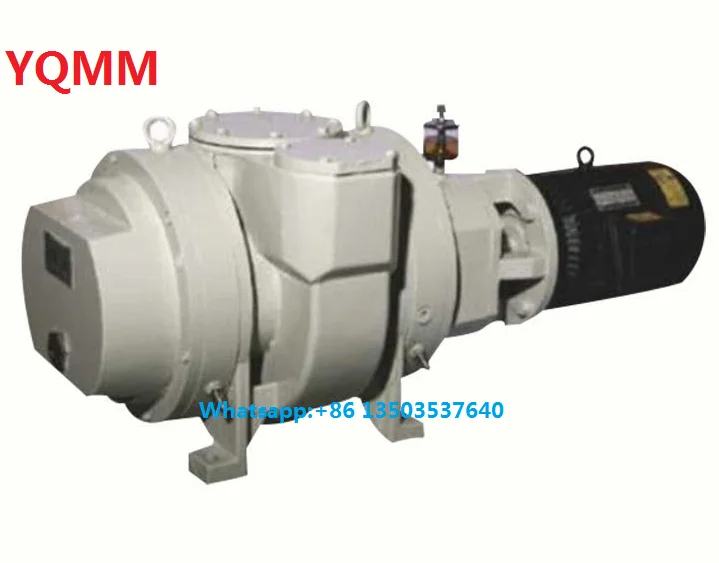

ROOTS VACUUM PUMP

Application:

Model: ZJP-30,ZJP-70,ZJP-150,ZJP-300,ZJP-600,ZJP-1200

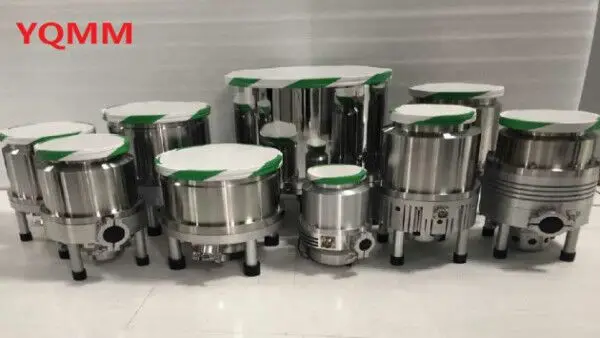

MOLECULAR VACUUM PUMP

We supply compound molecular pump and grease lubrication molecular pump.

Due to the high compression ratio of gases with large molecular weights, the pump does not require cold traps and oil baffles to achieve high vacuum and ultra-high vacuum.

Model: YQFB-600,YQFB-1200,YQFB-1600,YQFB-3600,

             YQFB-300Z,YQFB-650Z,YQFB-1300Z,YQFB-2000Z

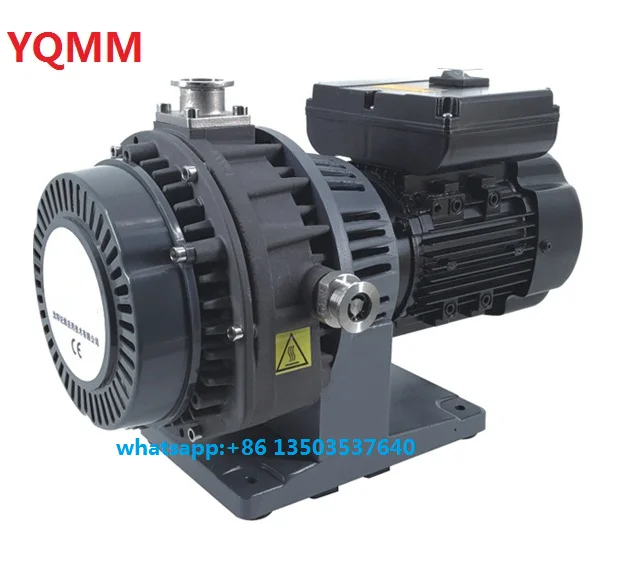

YQSP OIL-FREE SCROLL VACUUM PUMP

YQSP oil free scroll vacuum pump is constructed with fixed scrolls, orbiting scroll, main shaft, cooling fans, crank shaft kits, and bracket.

Application:Medical instrument,analysis instruments,biological products and pharmaceutical preparation,food and medicine packaging,gasline vapour recycle,film preparation,high science engineering and chemical analysis,solar energy,semiconductor,micro-electronics,deal with materials,industrial and R&D labs,etc.

Model: YQSP75,YQSP150,YQSP300,YQSP600,YQSP1000,

For the details of YQSP OIL-FREE SCROLL VACUUM PUMP,please check the following:
