colorful upvc 4 head seamless welding machine for pvc window pvc plastic window welding machine

Product Overview

Description

Equipment Features:

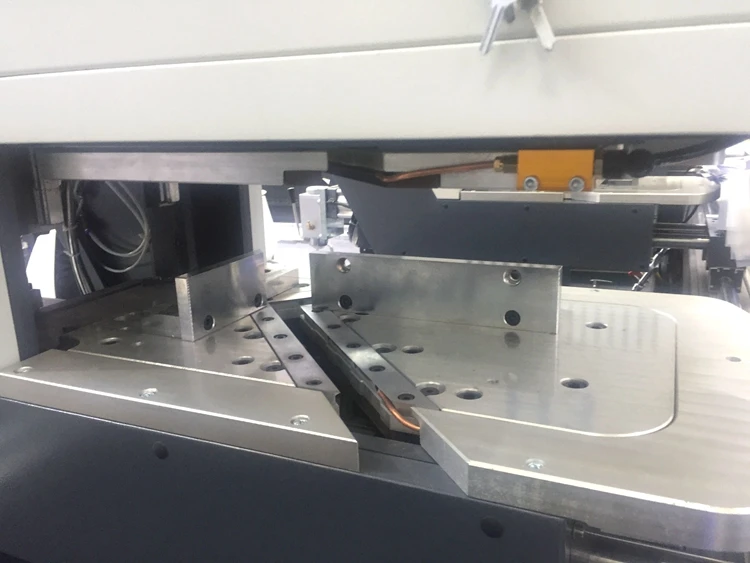

1. The lower workbench is one-piece plate structure instead of the conventional five-row structure, and the lower pressure pliers are operated on the precision square rail.( The only manufacturer in China that uses a one-piece structure, by national patent)

2. Independent auxiliary compression can effectively prevent the material from running, which makes the diagonal melting more accurate.

3. Because the PVC plastic profile itself has some variability such as a deformation,angular instability,non-perpendicular,etc., this model is especially designed with a variety of profiles to design a simple and convenient combination type plate, which can nit only effectively assist the machine,but also ensure the weld flatness, angle and size of the doors and windows. And no need to customize the backup plate to achieve almost all the world’s door and window profiles welding.

4. Each heads has a separate lubrication system to lubricate all the rail parts in the head.

5. The locking of the machine head is automatic locking, which is convenient and quick.

Parameter
Air Pressure	0.6~0.8MPa
Air consumption	200L/min
Input Voltage	380V 50Hz or As Customer need
Input Power	4.5kw
Welding range	480-4500MM
Welding height	20-120MM
Overall size	5300*1100*2000MM
Weight	2000kg

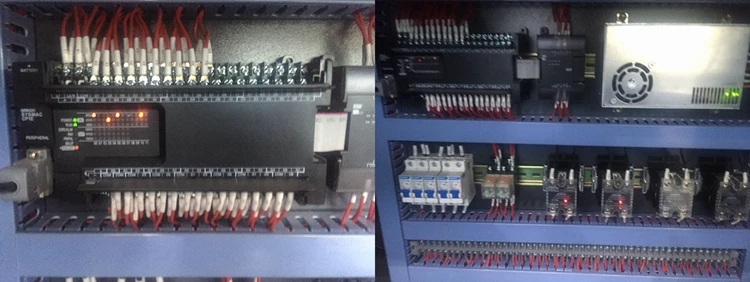

Main accessory
PLC	Taiwan Delta
Solenoid valve	STNC
Cylinder	PC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	Schneider and Delixi

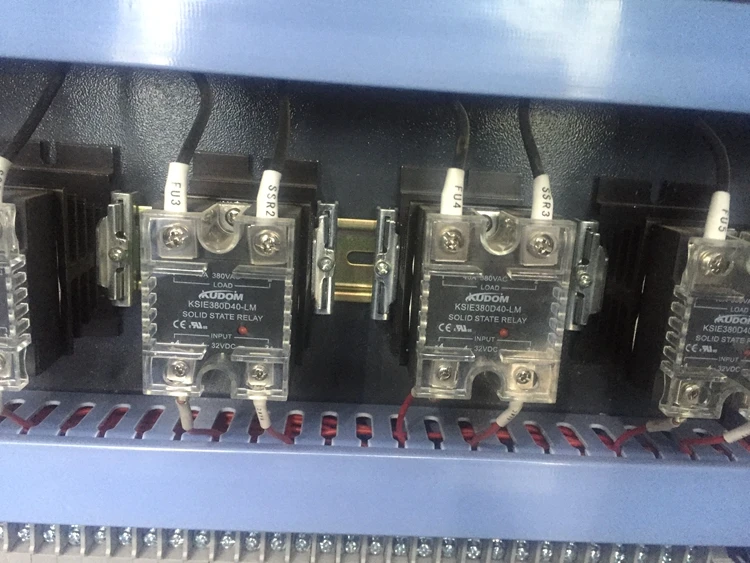

AC Contactor and Circuit Breaker	Schneider and Delixi
Approach Switch	Taiwan Delta
Linear bearing system	Linear (South Korean brand)



Standard accessory
Cutters	4pcs
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc

Remarks

1. All the electrical elements, Circuit breaker protection and AC contactors are schneider or other world famous brand.

2. International CE standard high flexibility, high shielding cables.

3. Warranty time: 1 year

4. Quotation Valid: 90 days

5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T

6. Delivery time: 30 days upon receipt of 30% deposit by T/T

7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)

8. After sales service:

1)24 hours service on Internet and Telephone, free instructions and problem solving

2) Free training to make sure a master of the operating of this machine for the person who come to our factory

3)User-friendly English manual or operating video for machine using and maintaining

4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 60USD/DAY Salary)

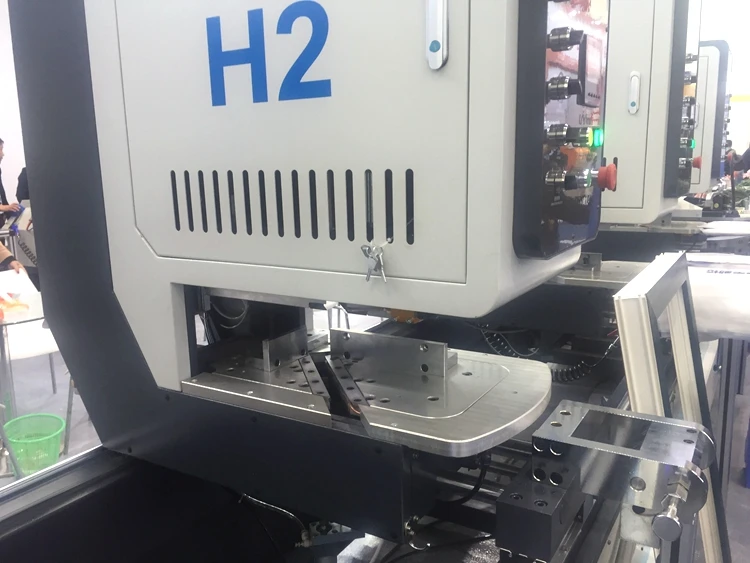

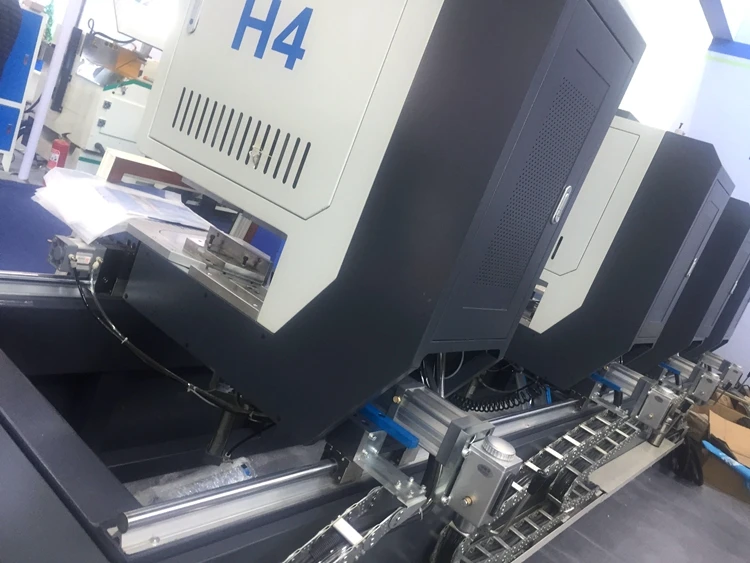

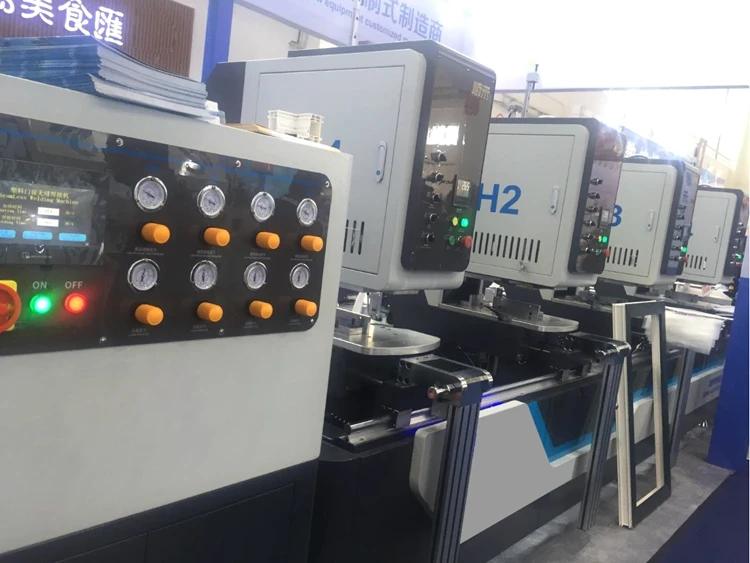

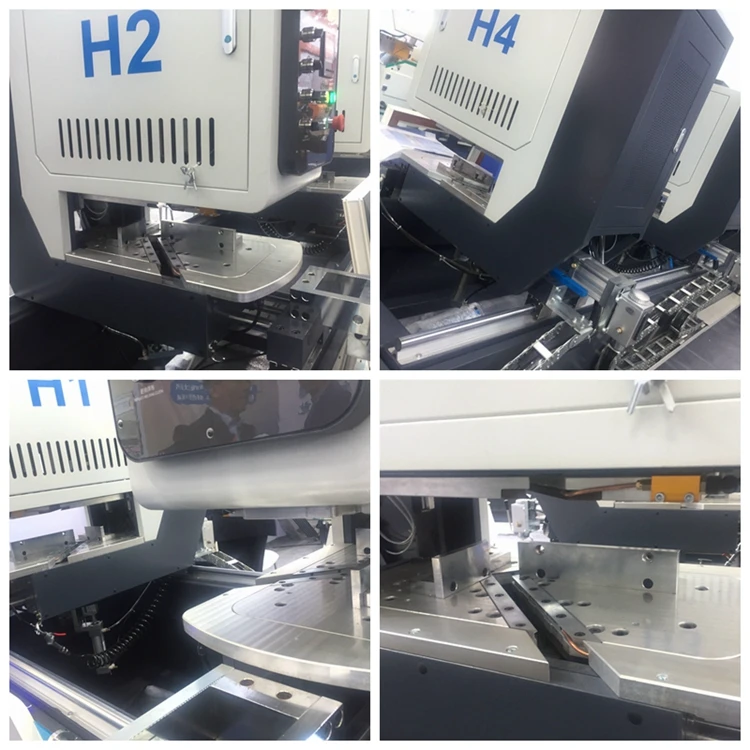

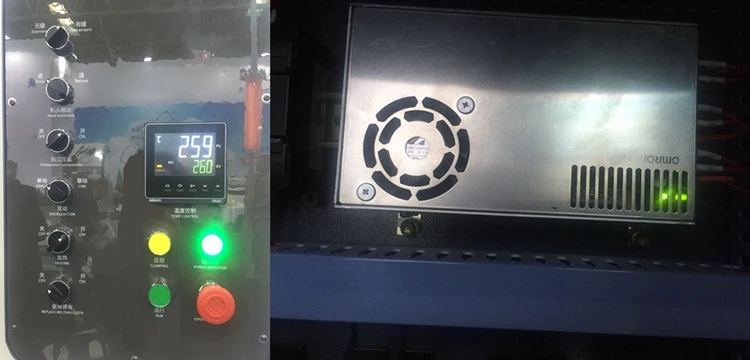

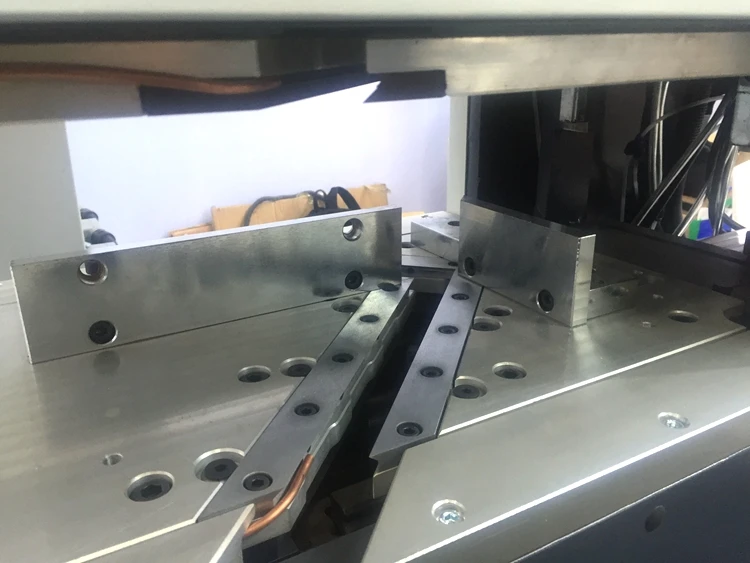

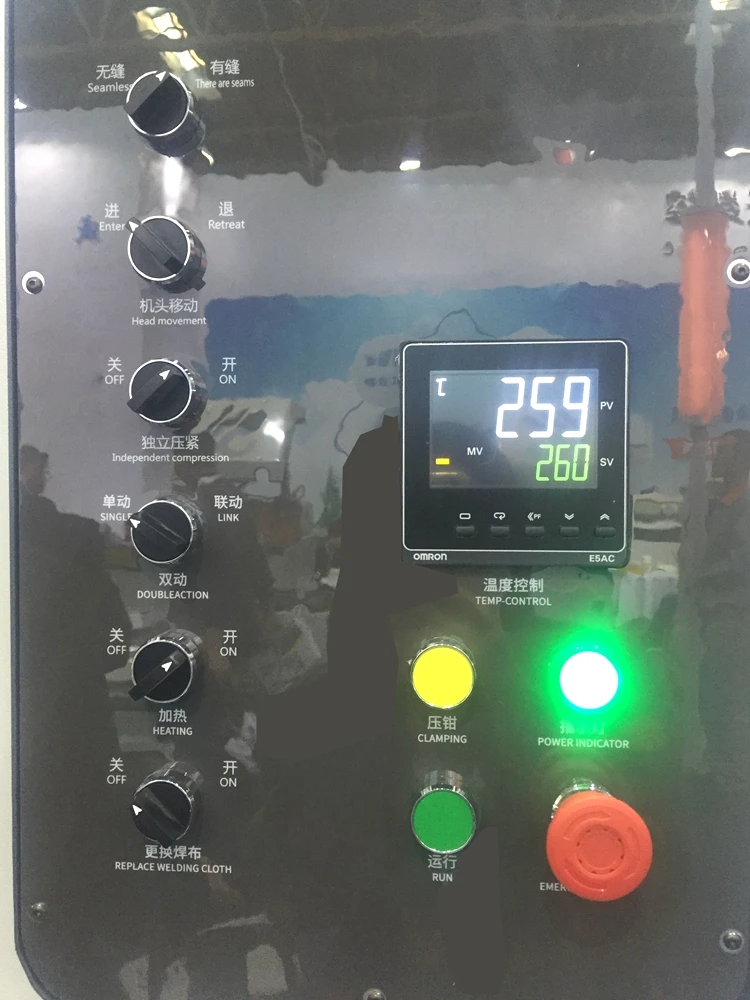

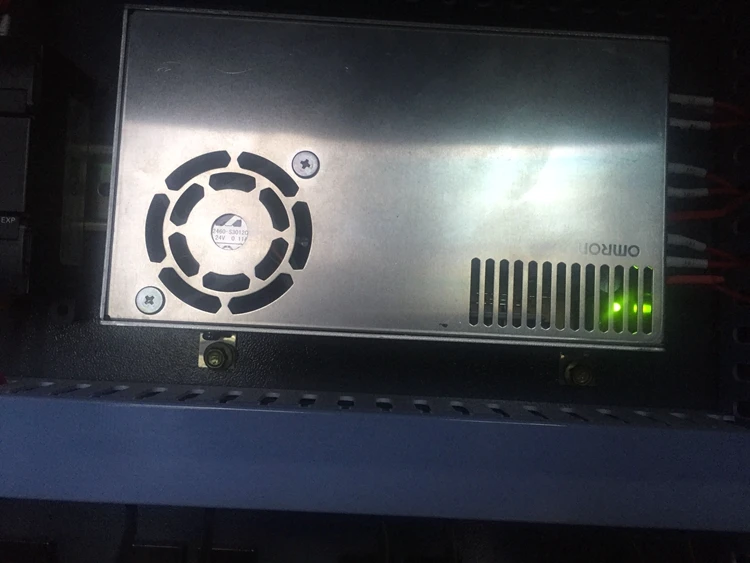

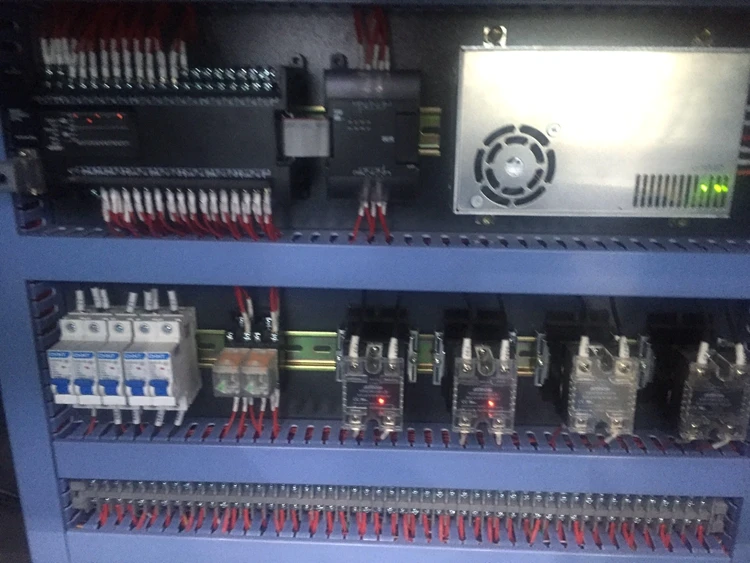

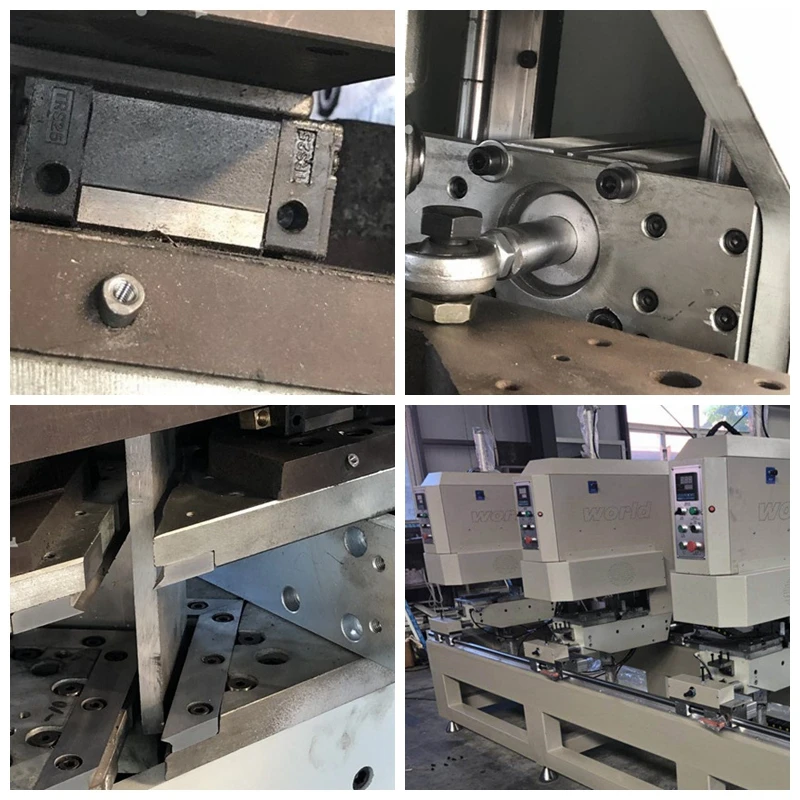

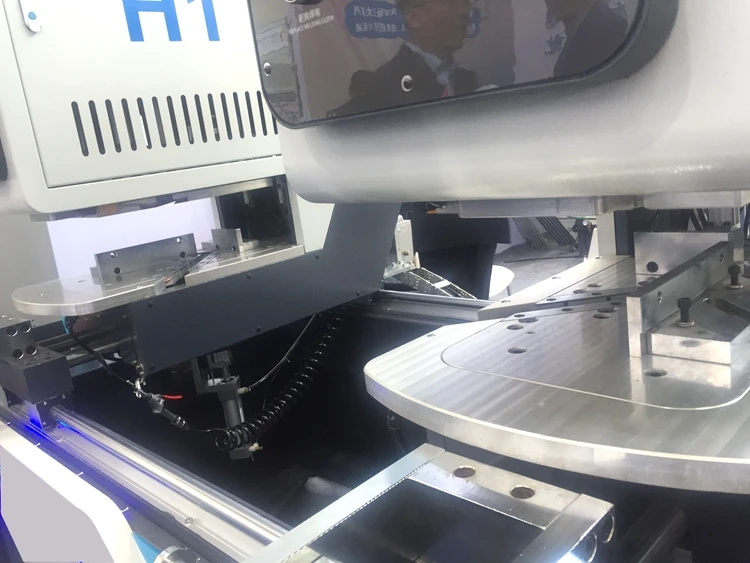

products' details:

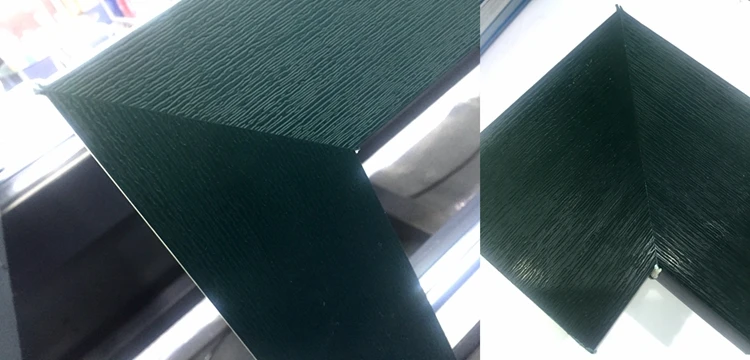

Effect pricture:

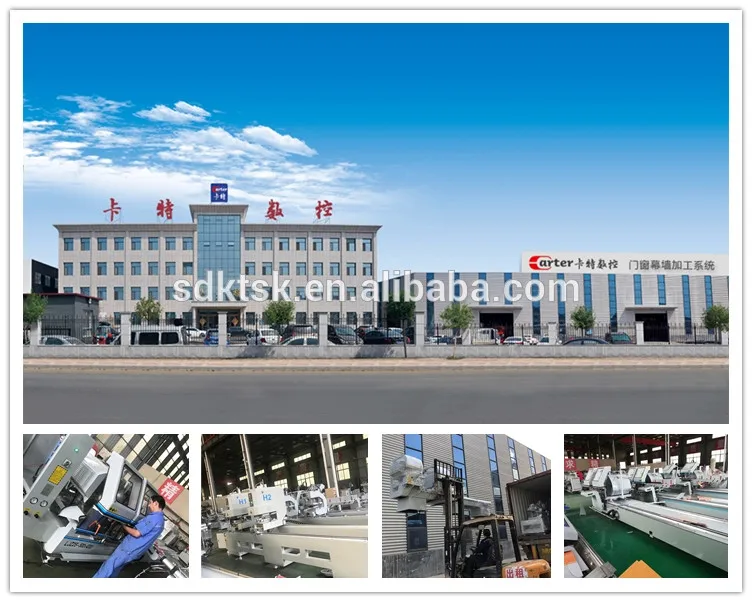

Factory details:
