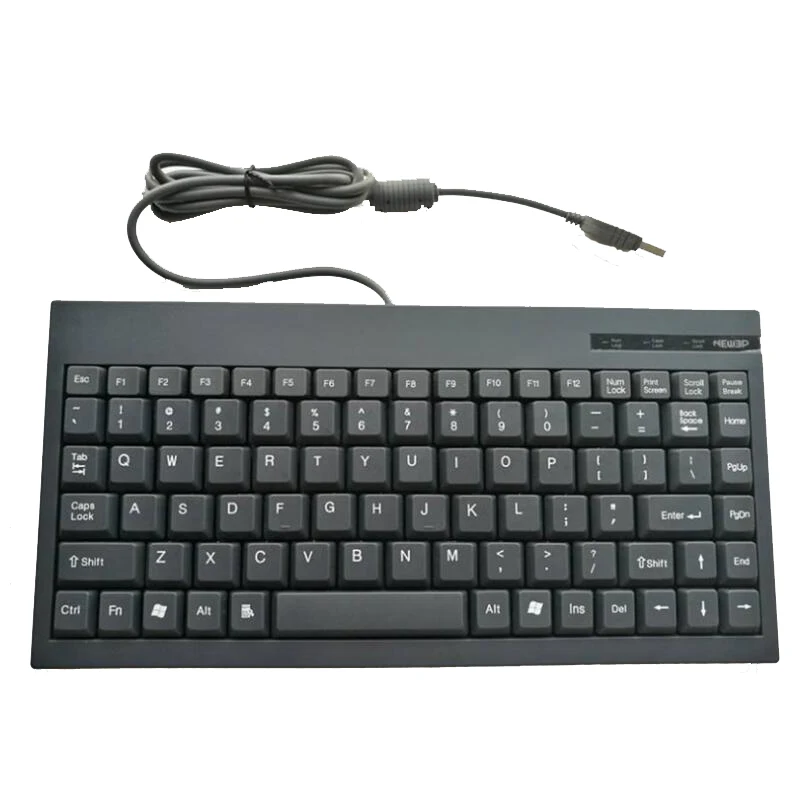

Compact Industrial Keyboard with Rugged PC/ABS Keys and USB or PS/2 interface

Items

Specifications

Key Features

- This compact keyboard is built with laptop-style key technology,embracing both the comfort of laptop keyboards and the ruggedness of industrial keyboards

- It has a small foot-print thus save space

- 88 keys

- Silkscreen key legend

- Cable length:1.5m

Material

- PC/ABS for the case and keys

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: <=100 mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force: 50 ±10g
- Key travel: 2.2mm ±0.5mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

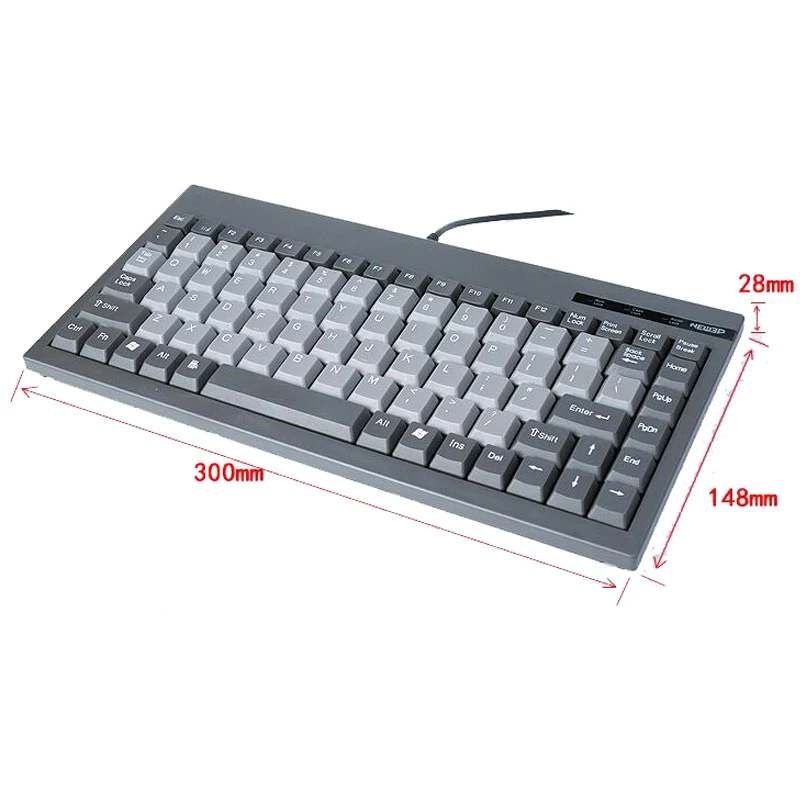

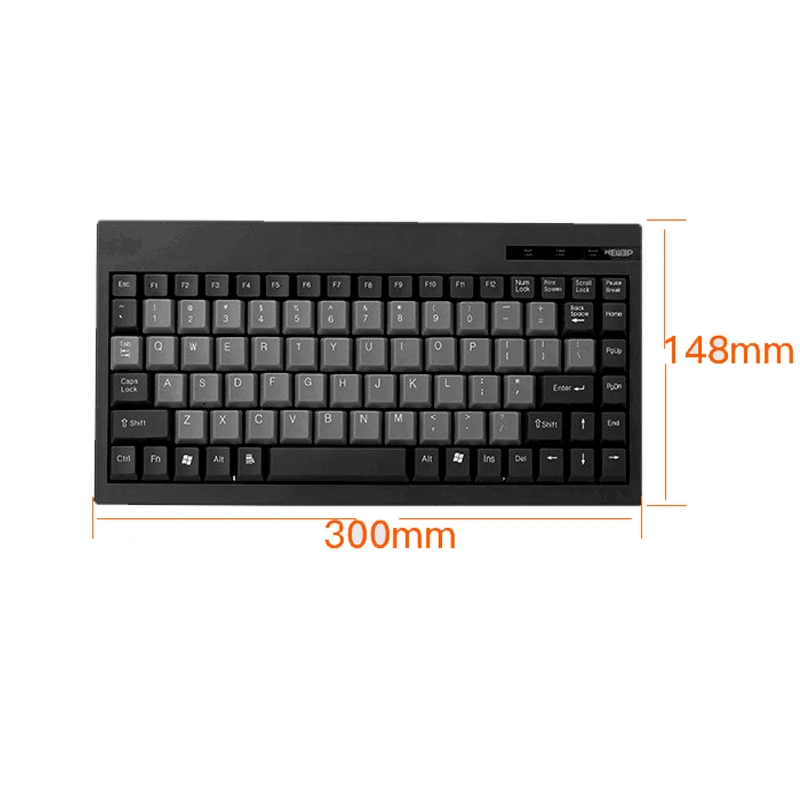

Dimension

-300 x 148 x 28mm(L x W x T)

Weight

0.50 kgs
