3ton RC Diesel Forklift Truck CPCD30 Fork Lift 37kW Engine Solid/Pneumatic Tyres with Kinds of Attachments
3ton RC Diesel Forklift Truck CPCD30 Fork Lift 37kW Engine Solid/Pneumatic Tyres with Kinds of Attachments
3ton RC Diesel Forklift Truck CPCD30 Fork Lift 37kW Engine Solid/Pneumatic Tyres with Kinds of Attachments
3ton RC Diesel Forklift Truck CPCD30 Fork Lift 37kW Engine Solid/Pneumatic Tyres with Kinds of Attachments
3ton RC Diesel Forklift Truck CPCD30 Fork Lift 37kW Engine Solid/Pneumatic Tyres with Kinds of Attachments

3ton RC Diesel Forklift Truck CPCD30 Fork Lift 37kW Engine Solid/Pneumatic Tyres with Kinds of Attachments

Share on (62185267625):


Price:$11,000.00 - $13,000.00

Quantity:


Product Overview

Description


Product Description

3ton RC Diesel Forklift Truck CPCD30 Fork Lift 37kW Engine Solid/Pneumatic Tyres

*Power system: The forklift is equipped with Chinese powerful and reliable engine with excellent environmental performance; Original imported ISUZU, Mitsubishi and Cummins engine are optional.

*Security system: Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

*Electro-hydraulic reversing handle to ensure easy operation, reducing the labor intensity effectively.


*New design overhead guard, enlarging the operation space and expanding visual field, reducing the driving fatigue.


*Original imported German U-steel as optional together with advanced welding process and technology make the mast more stable and durable.


\t
SPECIFICATIONS FOR 3TON DIESEL FORKLIFT TRUCK
\t
BASIC PARAMETER
\t
Model
\t
-
\t
CPCD30
\t
Power type
\t
-
\t
Diesel
\t
Rated capacity
\t
kg
\t
3000
\t
Load center
\t
mm
\t
500
\t
Operator type
\t
-
\t
Drive in seat
\t
SIZE
\t
Max. lift height of mast with load-backrest
\t
mm
\t
4250
\t
Max. lift height of fork(standard)
\t
mm
\t
3000
\t
Height of mast(standard)
\t
mm
\t
2085
\t
Free lift height(standard)
\t
mm
\t
160
\t
Height of load-backrest
\t
mm
\t
1240
\t
Distance from seat to overhead guard
\t
mm
\t
1005
\t
Overhead guard height
\t
mm
\t
2090
\t
Overall length without fork
\t
mm
\t
3800/2730
\t
Front overhang
\t
mm
\t
479
\t
Rear overhang
\t
mm
\t
498.5
\t
Wheel base
\t
mm
\t
1740
\t
Height of traction pin
\t
mm
\t
310
\t
Min. ground clearance
\t
mm
\t
135
\t
Overall width
\t
mm
\t
1225
\t
Distance between forks
\t
mm
\t
1060/250
\t
Tread(front/rear)
\t
mm
\t
1000/970
\t
Min. turning radius(outside)
\t
mm
\t
2400
\t
Min. turning radius(inside)
\t
mm
\t
200
\t
Min. intersecting aisle
\t
mm
\t
2380
\t
Mast tilt angle
\t
deg
\t
6°/12°
\t
Fork size
\t
mm
\t
1070x125x45
\t
PERFORANCE
\t
Max. drive speed(with/without full load)
\t
km/h
\t
18/20
\t
Lifting speed(with/without full load)
\t
mm/s
\t
470/520
\t
Lowering speed(with/without full load)
\t
mm/s
\t
550/520
\t
Max.tractive force(with/without full load)
\t
KN
\t
20/16
\t
Max. grade ability(with/without full load)
\t
%
\t
20/20
\t
WEIGHT
\t
Total weight
\t
kg
\t
4380
\t
Weight distribution full load(front/rear)
\t
kg
\t
6543/727
\t
Weight distribution zero load(front/rear)
\t
kg
\t
1708/2562
\t
WHEELS AND TYRES
\t
Quantity of wheels
\t
-
\t
4
\t
Type of tyres
\t
-
\t
Pneumatic tyres
\t
Front tyres
\t
-
\t
28X9-15-12PR
\t
Rear tyres
\t
-
\t
6.50-10-10PR
\t
Driving brake
\t
-
\t
Hydraumatic pedal
\t
Parking brake
\t
-
\t
Machanical manual
\t
CONTROL DEVICE FOR DRIVING AND TRANSMITTING
\t
Battery
\t
V/AH
\t
12/80
\t
Engine model
\t
-
\t
4D30G31
\t
Rated power
\t
kw/rpm
\t
36.8/2650
\t
Rated torque
\t
N.m/rpm
\t
174/1800~1900
\t
No. of cylinder
\t
-
\t
4-95x105
\t
Displacement
\t
L
\t
2.98
\t
Fuel tank capacity
\t
L
\t
60
\t
No. of speed transmission
\t
-
\t
1-1 hand shift transmission/2-3 power shift transmission

1) Engine optional: China Xinchai Quanchai 490/ 498, optional Euro 3 standard; Japan Isuzu C240/4JG2, Mitsubishi S4S, Yanmar TNE92/TNE98, Cummins, etc.;
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;

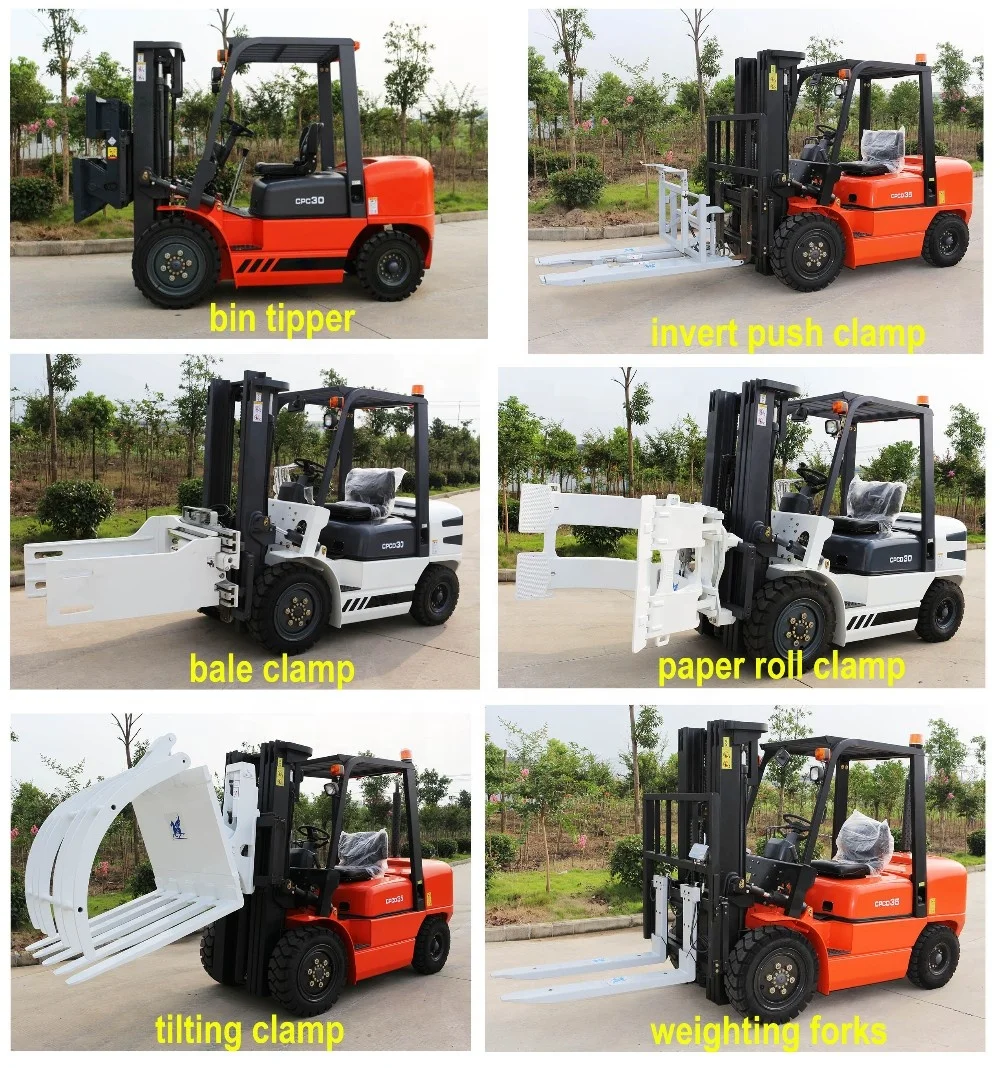

6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps, push/pull, etc..
7) Additional: cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..

Detailed Images
Attachments
