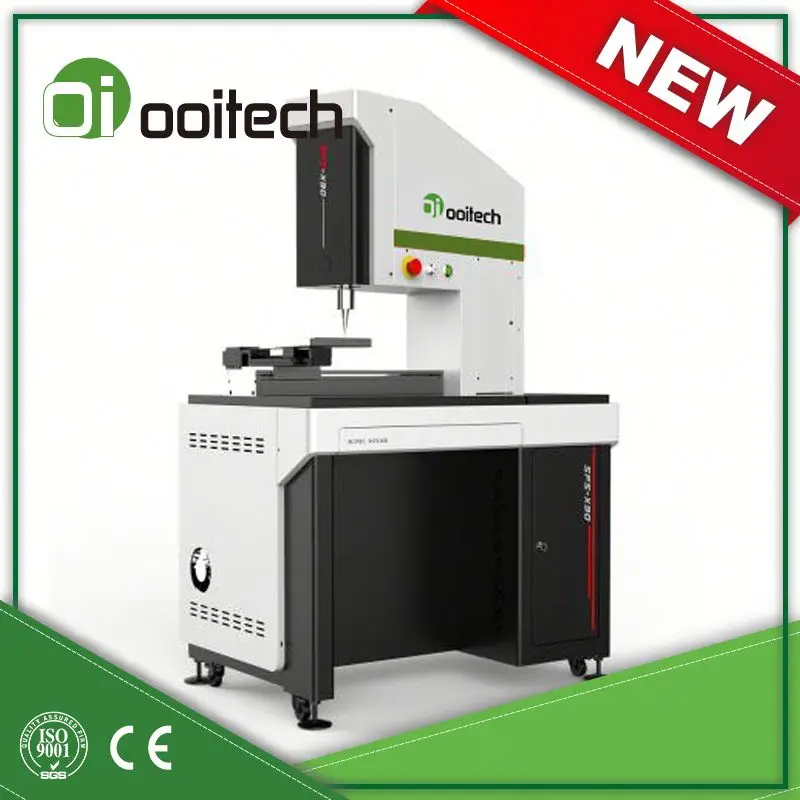

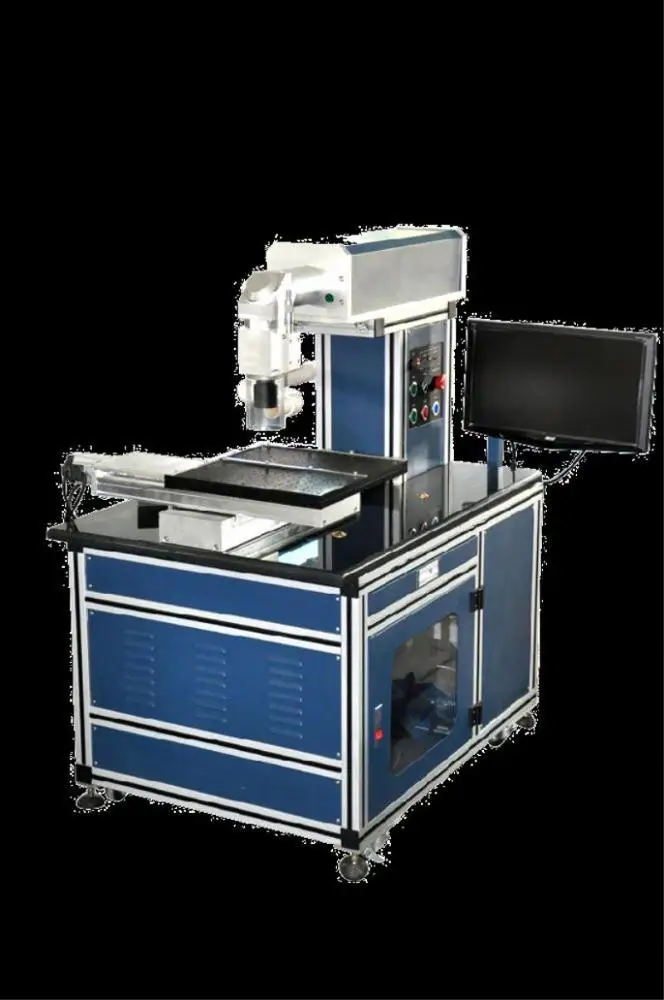

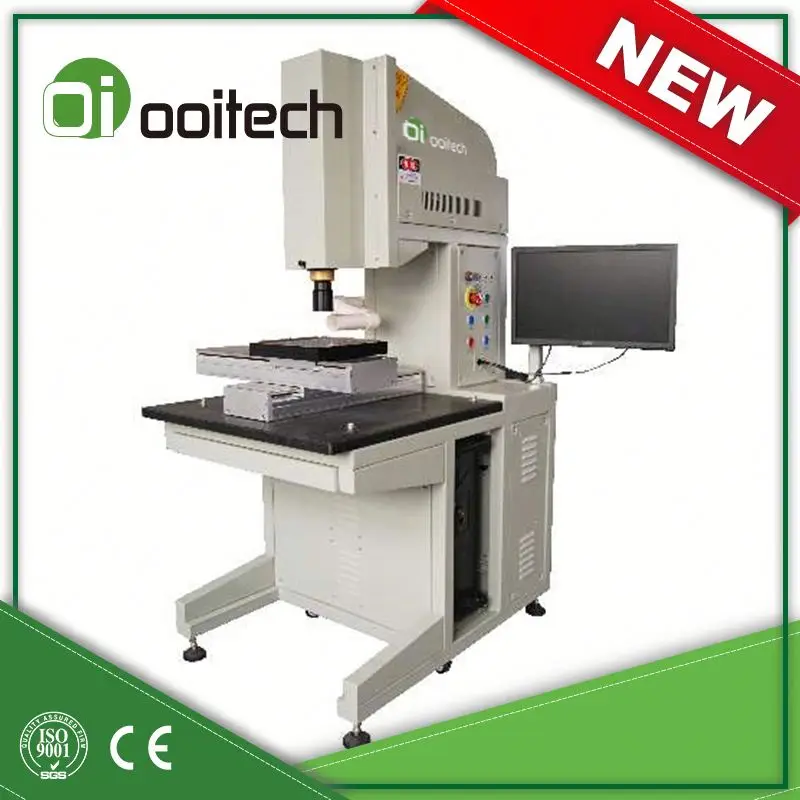

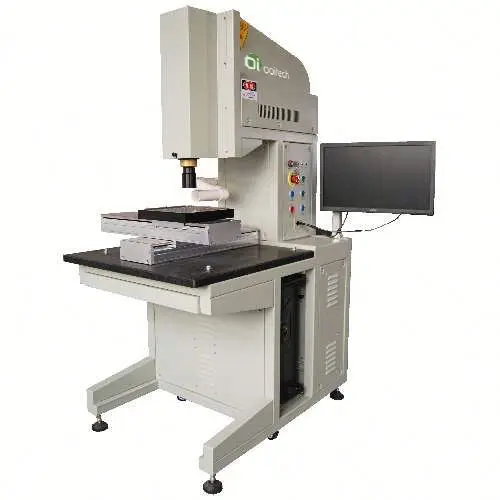

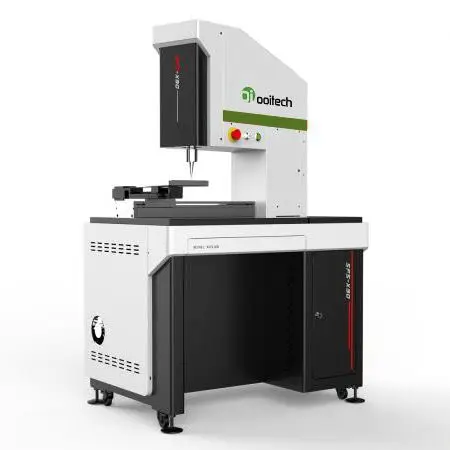

Solar cell laser Germany ipg silicon wafer/solar cutting machine
Product Description
[ Technical Parameters ]
Model
OLS-20F
Laser wavelength
1064nm
Laser power
20W
Scribing width
30μm
Scribing speed
200-300mm/s
Scribing accuracy
±10μm
Working area
245x245mm
Temperature control precision
0.5°C
Working power
220V/50Hz/1kvA
Working table
negative pressure absorbing and dust elimination
Cooling method
Forced air cooling
Scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon)solar cells and silicon wafer.
1. Using the Germany IPG FIBER laser or China Raycus Fiber laser or Max fiber laser
service time over 100,000hours.
Stronger adaptability to enviroment
better beam quality and higher speed than Diode Pump and YAG Krypton type.
No need to replace the laser module and Krypton lamp.
2. Work table: X-Y movable
Solar cell can be automatic absoption
3. Air cooling, compact structure, small size
4. Higher conversion efficency,
lower operating cost, save power consumption, cost and shorter maintenance time;
5. Laser Pulse width is more narrow,
Higher peak power, faster scribing cutting speed
6.Long time uninterrupted continuous maintenance-free operation,
no consumable wearing parts to replace
7. Stepper motor or servo motor different cost.
Packaging & Shipping
Company Information
FAQ
Q: Equipment Quality,Reliability Warranty?
1) Every machine in the detection process, through specialized testing equipment and facilities, before machine out of our factory machine text 24 hours. 2) All of our machine have 1 year quality Warranty from customer receive machine.Company have built life-long correspondence files.
Q: Why choose us ?
A: Doing business with Ooitech is SAFE and BENEFICIAL. Ooitech qualified Alibaba Trade Assurance
project,Which mean Alibaba will refund if there is any quality problem after your buying. We are onsite checked by Alibaba. The supplier assessment report can be download on our company
profile site. Reliable supplier ensures safety of your fund.CE and UL approved machines bring good
quality,and reasonableprice help you making profits from our machine.
Q: Do you have Training to Customer?
A: We will supply with the machine operation manual in English version. For installation and operation, including introduction for the composing of equipment, working principle of equipment, common knowledge of computer, controlling principle of electric devices, daily maintenance measures of equipment. Personal demonstration for installation and adjusting of equipment, operation of equipment, programming of computer. User can dispatch representatives to our factory for 2-3 days for training.We are responsible for training them free of charge. While all the charges including traveling charge and accommodation will be afford by the user.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
