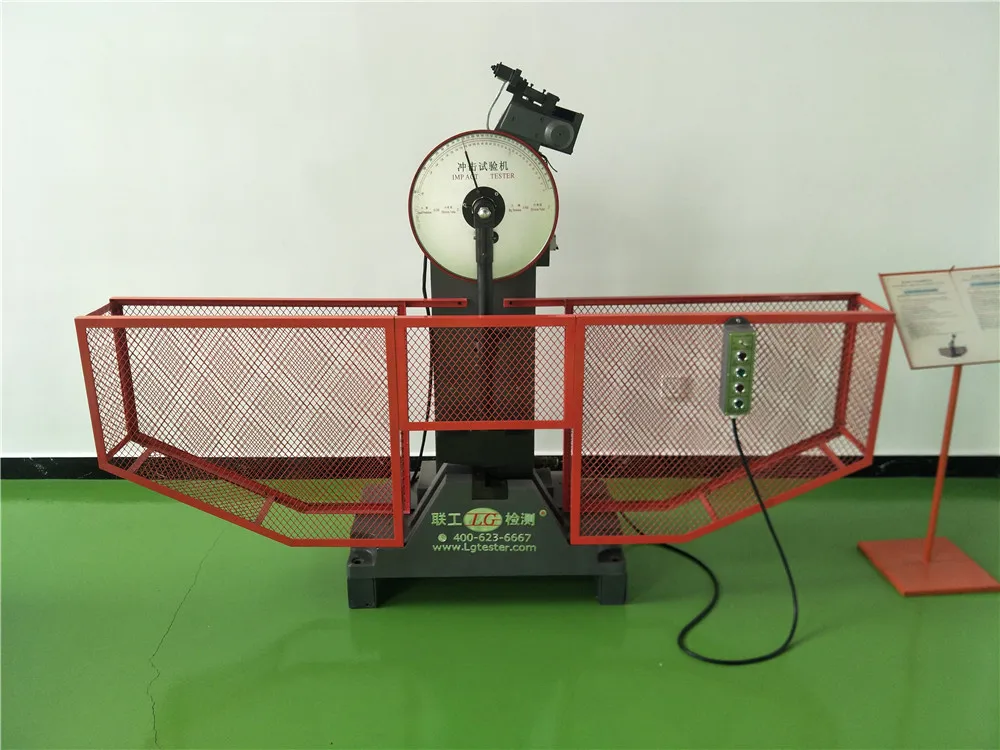

JB-300B dial display semi-automatic charpy impact tester for sale |
Product Description
The testing machine is used to determine the resistance of metal materials to impact under dynamic load in order to judge the properties of the material under dynamic load. The absorption work of the sample is obtained by using the difference between the front energy of the pendulum impact and the remaining potential energy after the impact on the dial. The maximum impact energy is 150J, and a 75J pendulum is attached. The sample used is (10×10) mm. This machine has a large impact energy and is suitable for ferrous metals with high impact toughness, such as steel and its alloys.
The machine is controlled by automatic electric swing, impact and swing, easy to operate and high in work efficiency. After the sample is broken, the remaining energy is automatically lifted and ready for the next impact test. Therefore, the superiority can be demonstrated in the laboratory where the impact test is continuously performed and the metallurgical and mechanical manufacturing plants that perform a large number of impact tests.
Main technical specifications
1. Impact energy: 150J, 300J
2. The graduation range and division range of the scale
Energy range: 0-150J, 0-300J
Each small grid pointing value: 1J, 2J
3. Pendulum hammer moment:
0-300J M=160.7695N.m
0-150J M=80.3848N.m
4. The pre angle of swinging hammer: 150 °
5. The distance between the center of rotation and the impact point (specimen center): 750mm
6. The net weight testing machine: 450kg
7. The external form dimension of the testing machine: 2150 × 640 × 1400mm
Company Information
Liangong Group, a well-known enterprise in testing machines industry as well as a state-level high-tech enterprise which specialized in R & D production and sales fo testing equipment for metal and nonmetal materials. Liangong Group include Jinan Liangong Testing Technology Co., Ltd, Shandong Liangong Testing Machine Co., Ltd, ASTM Testing Equipment Co.,Ltd. Our company covers an area of 30,000 square meters, construction area of 10,000 square meter, with a total investment of 80 million yuan. Our company has a well experienced, strong and large-scale R & D team and is based on high-quality technical personnel. By means of advanced science and technology, strong production capacity and financial support, we cooperate with many domestic and foreign well-known educational institutions and research institutions closely to make our company be in domestic leading position in research and development of new products.
Our service objective: reliable quality, Credit and Reputation First, and service in time!
We promise to provide each customer with timely, efficient and high-quality service!
www.lgtester.com www.jnliangong.com www.testermachine.com
https://youtu.be/eV36YIy20fY
LIANGONG GROUP:
CUSTOMER VISITS AND INSTALLATION & TRAINING AT SITE
Our Services
Warranty:
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training:
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer's company when you need.
Maintenance services:
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Our main Products
Our main products are materials testing machine, inclduing broaching machine, temperature champer, impact tester, bending testing machine, compression testing machine, universal testing machine, hardness tester, cupping testing machine, metallographic machines. and other OEM customized testing machine etc.
1, Comupter Control Electro-hydraulic Servo Universal Testing Machine
2, GW-40B/50B Steel Bar Bending and Recerse Bending Testing Machine
3, High Strength Bolts Tensile and Torsion Testing machine
4. low temperature cooling chamber/freezing chamber for charpy impact test
5. laboratory equipment hydraulic 100ton steel bar tensile testing machine
6.concrete compression testing machine price
7. computer control cement compression testing machine
8. JB-300B Impact Testing Machine/izod impact testing machine/Charpy Pendulum Impact Tester
9. 50J plastic chapry and Izod impact tester
10. CSL-Y-type Impact Specimen Gap Hydraulic Broaching Machine
