JQ 75Y Mini X ray machine can realize image and video collection on computer directly
- Category: >>>
- Supplier: Shanghai Jaqi International Trade Co. Ltd.
Share on (62185495901):
Product Overview
Description
Product Series
Product Description

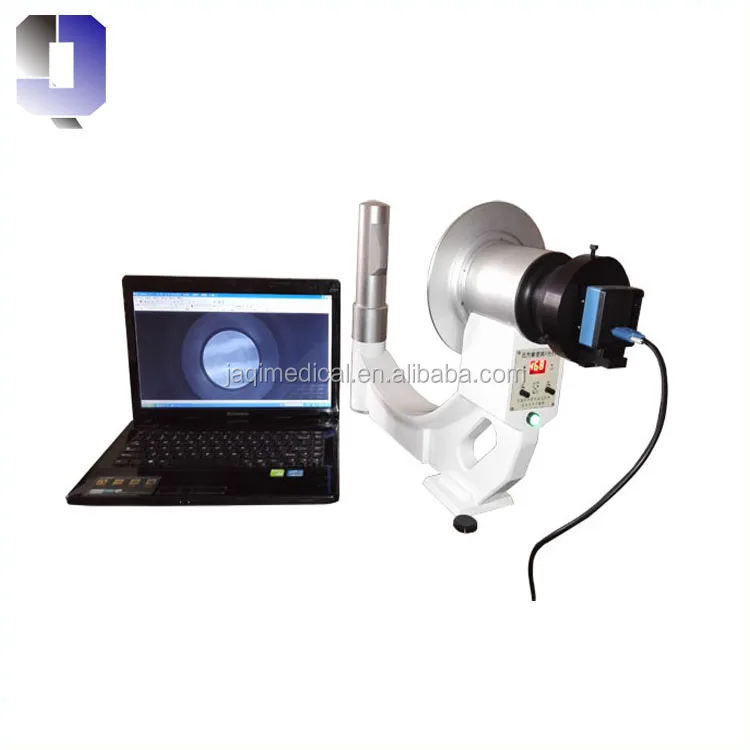

JQ-75Y Mini X-ray machine can realize image and video collection on computer directly
Features
1. Small size, light weight, easy to carry2. Low radiation dose, no need for protection, user safety
3. Adopt High-performance vacuum ceramic image intensifier work out high resolution and clear image
4. No need darkroom, direct perspective, instant observation
Technical performance
Effective view field:105mm×75mm
Output Screen Brightness≥25cd/㎡
X-ray Tube Voltage:45-90kv adjustable
Tube Voltage error ±10%
X-ray Tube Current:0.25~0.5mA continuously adjustable
Deviation of focus position from reference axis ±1mm
Tube current error ±20%
Image resolution ≥ 20lp/cm
Gray level ≥7
Contrast :4%
X-ray Leakage Rate ≤1.0 mgy/h
Environmental conditions
Temperature 10℃~40℃
Relative humidity ≤75%
Atmospheric pressure 700hpa~1060hpa
Power conditions
Power supply : AC220V/50Hz
Power consumption ≤200W
Max allowable value of the power supply network resistance is 0.5Ω
Power supply network overcurrent release 1 A

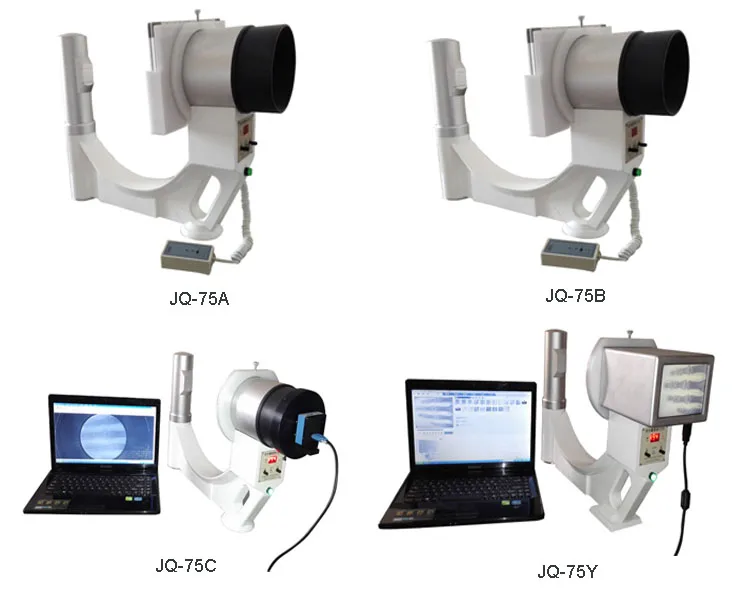

JQ-75A | Perspective | only direct Perspective function |
JQ-75B | Perspective + Filming | The B-type machine is equipped with a cassette (5*7 piece) at the position of the A-type lead plate, which has a film-making function |
The C-type machine is equipped with a German imported industrial camera on the basis of the A-type machine. The camera is equipped with a USB interface. It can be connected to the computer through the data cable to realize image and video acquisition on the computer; image processing; storage and printing functions. | ||

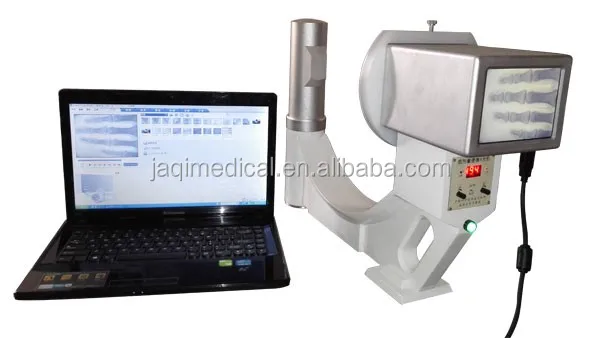

JQ-75Y | Could connect to computer | LCD image, built-in industrial camera, with fixing function; equipped with USB interface, connected with computer through data cable, can realize image and video collection on computer |
Product application
1. Apply to Orthopaedics, Hand and Foot Surgery, Pediatrics Departments,immediate diagnosis of surgery in the emergency ward,The immediate diagnosis in the emergency ward and surgery;especially suitable for the closure of orthopedic patients with closed reduction, needle insertion and external fixation;It is also suitable for direct fluoroscopy when taking foreign bodies in the muscle.
2. On-site diagnosis for athletes and field workers and military field personnel at the time of injury.for Field work, earthquake rescue and other injuries.
3. Non-destructive testing of industrial sectors, such as aluminum castings, manifolds, and high-pressure packages.
4. Security and anti-terrorism security inspections by the security department, customs, post and telecommunications departments.
5. Detection of foreign bodies in precious Chinese herbal medicines.
6. Animal inspections at zoos, farms, pet hospitals, etc
Other Products
Delivery Bed
Electric Type or Hydraulic power available,color optional
Surgical light
LED surgical light
Halogen surgical light
Operating Table
Electric type
Hydraulic Type
Electric&hydraulic power
Hospital furniture
Include a series of ABS and stainless steel trolley and instrument
Patient Monitor
Apply for ICU operating room and patient ward rooms
Patient bed
Include Multi-function nursing bed
and general patient bed
Certifications

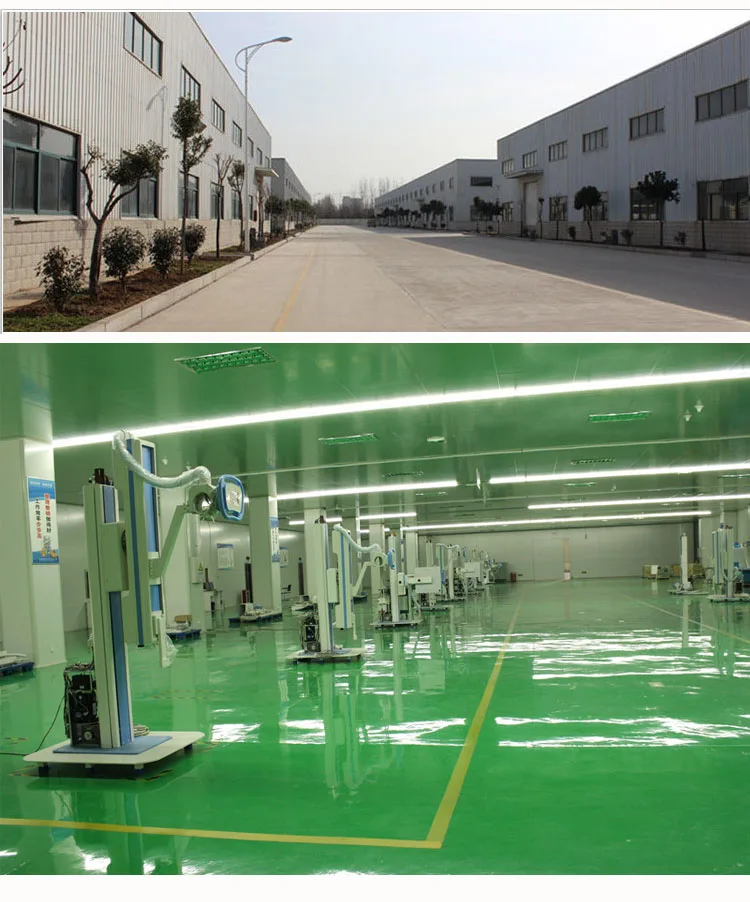

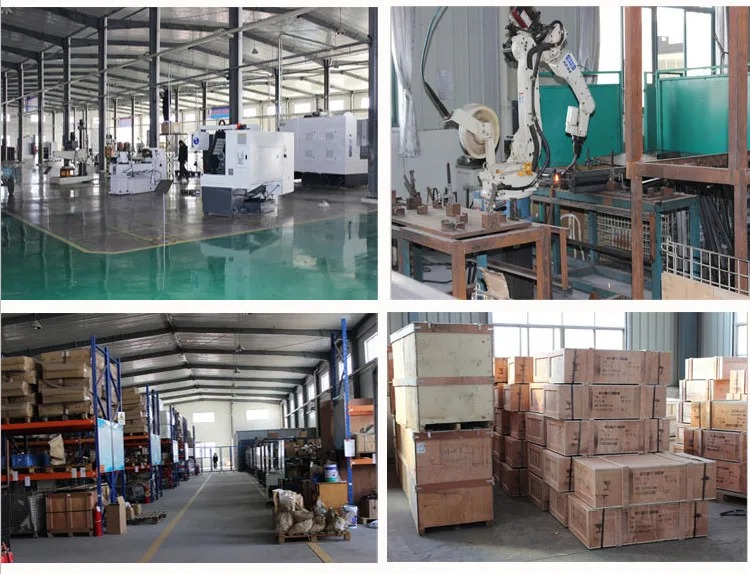

About Factory
