Product Overview
Description
Product Description

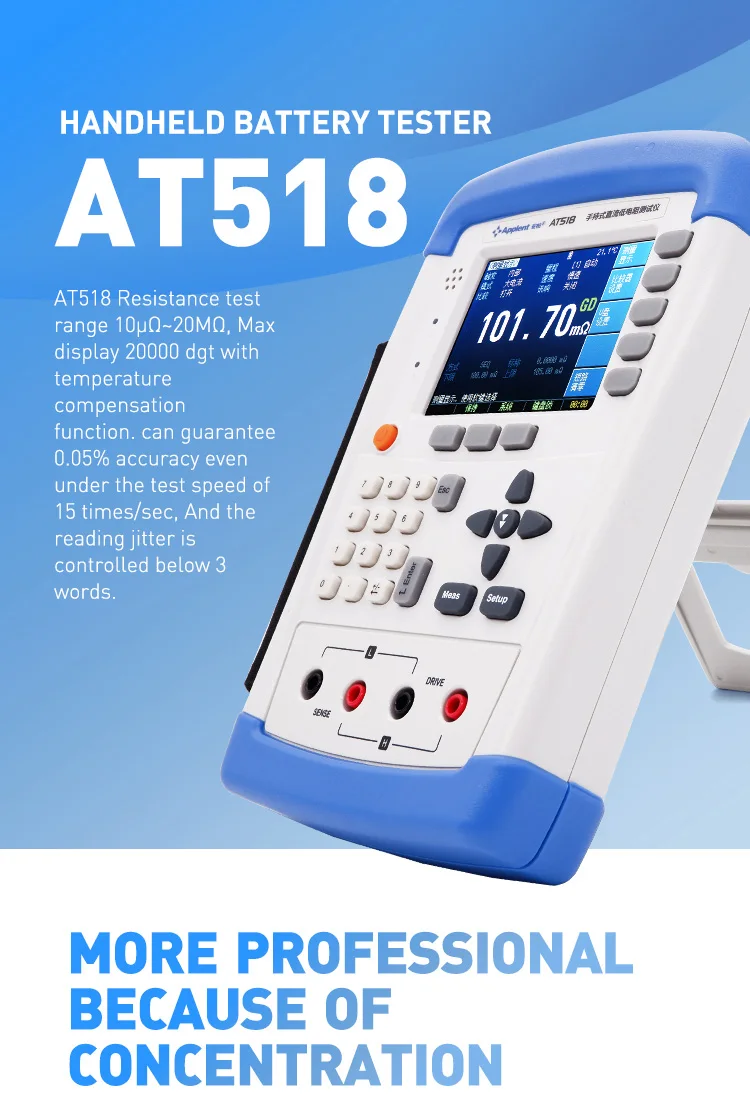

AT518 handheld DC low Resistance meter is a high precision with wide-range, adopt high preformance 32 -bit ARM micro processor control, can make measurement on real time automatically. can make precision measurement to power supply devices at any place.
Resistance test range 10μΩ~20MΩ, Max display 20000 dgt with temperature compensation function. can guarantee 0.05% accuracy even under the test speed of 15 times/sec, And the reading jitter is controlled below 3 words.
AT518 can test all kinds of high, medium, low value resistors, all kinds of switch contact resistances, connector plug resistance; relay coil package and contact resistance; transformer, inductor, motor,deflection coil winding resistance; conductor resistancel; metal riveting resistors for cars, boats and airplanes, printed circuit board lines and hole resistance etc.
Product Effects
Product parameter
| SPECIFICATIONS | |
| AT518 Handheld DC low Resistance Meter | |
| Parameter | DC resistance |
| Accuracy | 0.05% |
| Measurement | 10μΩ ~ 20MΩ |
| range | |
| Signal source | Max current:<1A current mode:high , low |
| current | |
| Range | auto,manual, nominal with 10 ranges |
| Speed | 30 times/sec,15 times/sec,3 times/sec |
| R e s u l t | compare way: ABS |
| display | PER |
| SEQ | |
| Max display | 20000 dgt |
| Adjustment | Short-circuit zero-adjust for each range |
| Comparator | build in sorting record, OK/NG sorting result |
| display | |
| Trigger | Internal |
| Manual | |
| Remote | |
| Test lead | 4 terminal shielding (2 check and 2 driving termi- |
| nal)External shielding ground section | |
| T e m p e r a t u r e | Accuracy:0.2 ° C Temperature:0 ~ 80° C |
| compensation | |

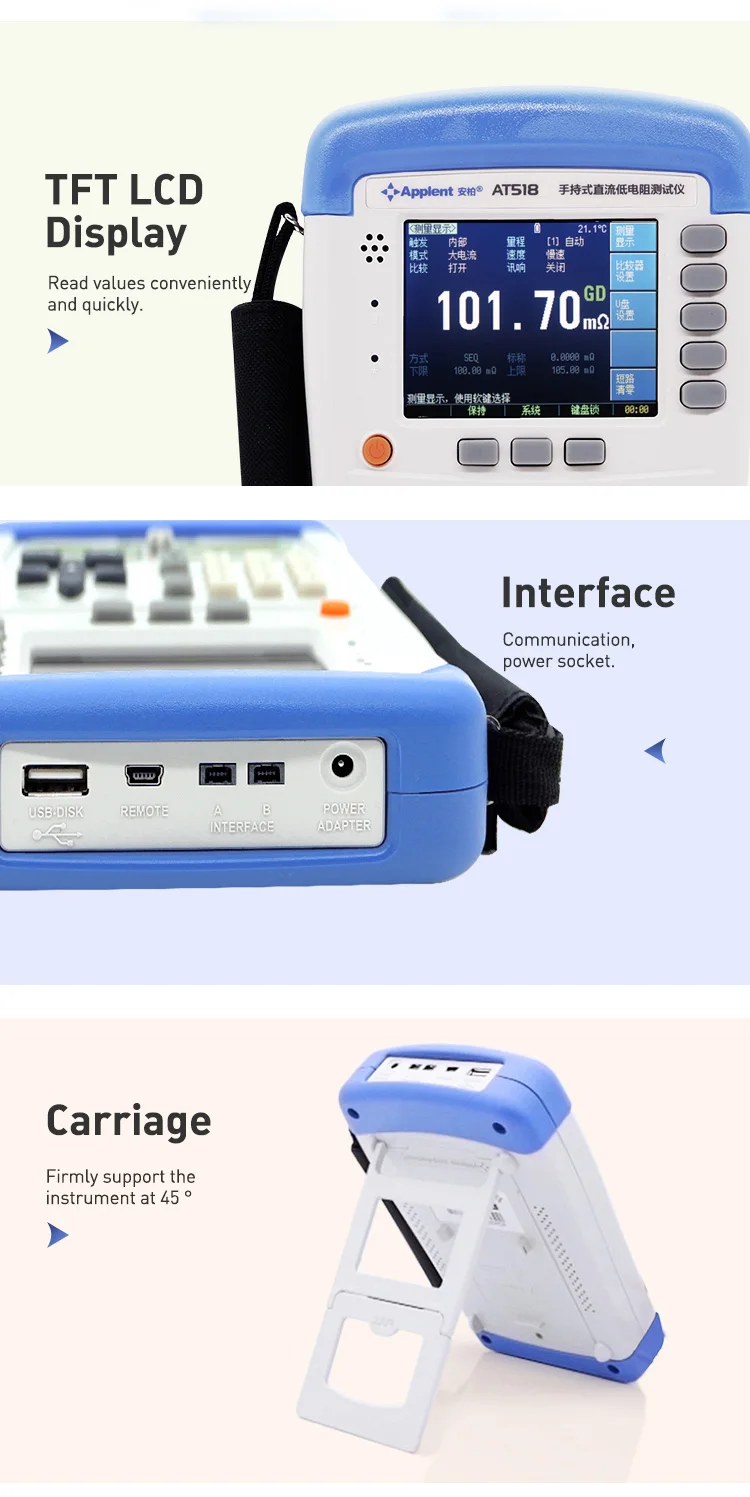

| Interface | Build -in Mini-USB (VCP) |

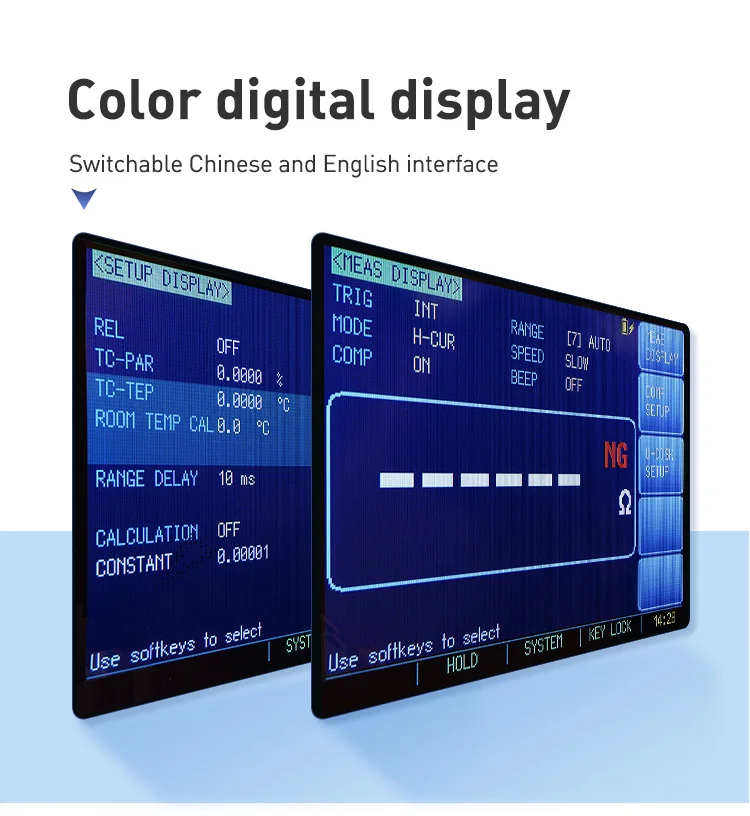

| Others | 3.5 inch color 16M TFT-LCD display |
| keypad lock,data hold function; Compatible SCPI order set; Switch in Chinese/English; Adjustable background display; Auto power-off; | |
| U disk recording function . | |
| Power supply | input:100-240V~50/60Hz 0.35A |
| output:9V 1A DC | |
| B a t t e r y | 8.4V,Li, 2200mAh rechargeable battery |
| parameters | |
| C h a r g i n g | Max charging time:300Min |
| time | |
| working time | ≥ 8 hours |

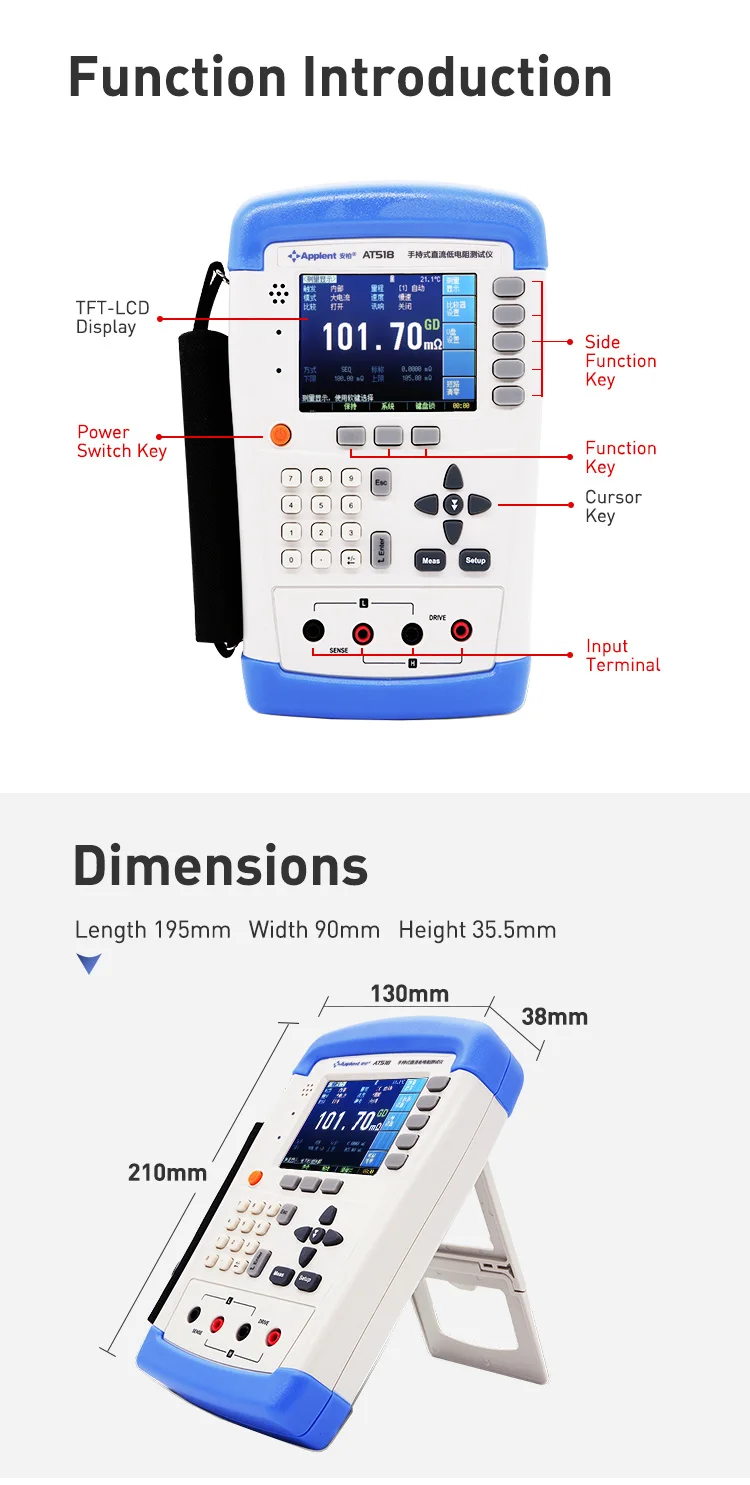

| Sizes | 130.23 x210.76 x37.88 mm |
| Weight | 650g |

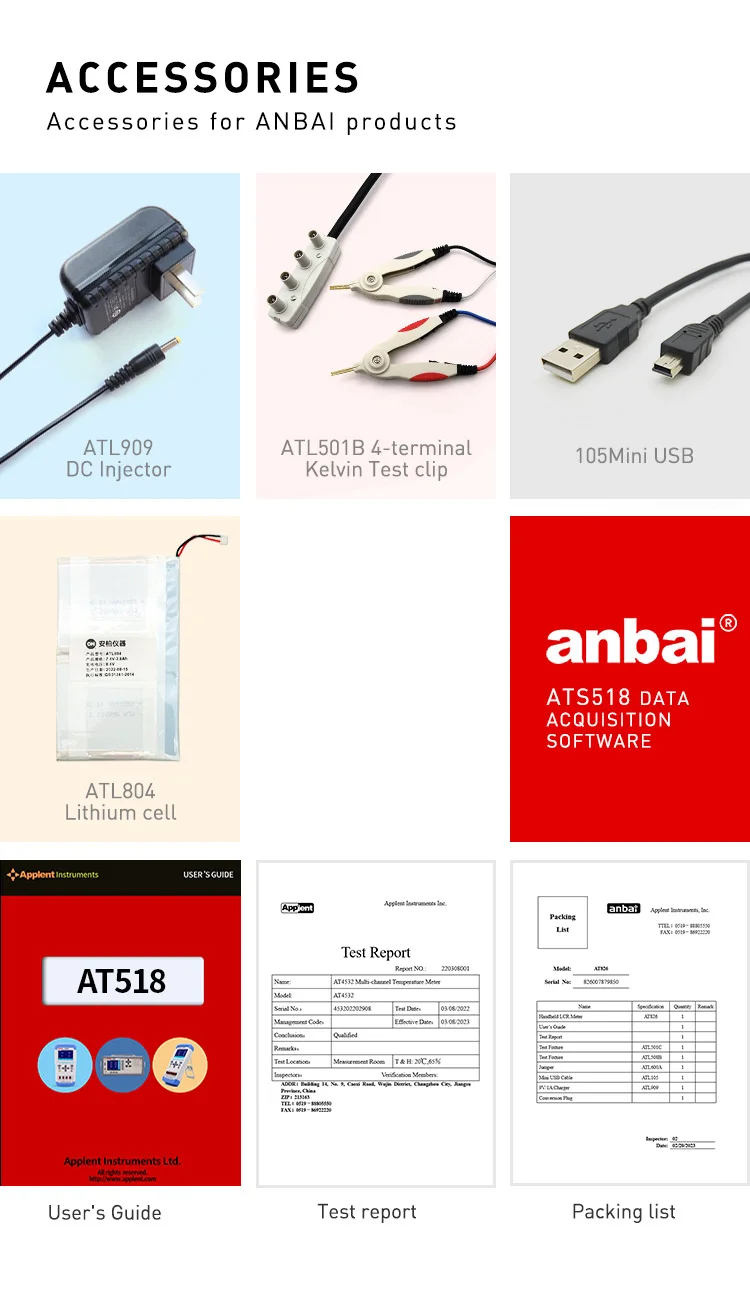

| Accessories | ATL501B four-terminal kelvin test clip |
| ATL909 DC power adaptor ATL202 carrying bag ATL804 Li- battery | |
| ATL105Mini-USB communication cable | |
| ATS518 data collection software | |
Packaging & Shipping
Certifications
Trade Shows
Company Information
Our main advantages:
A. we have strong technical team and focus on designing,researching and developing
B. we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc
C. we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
