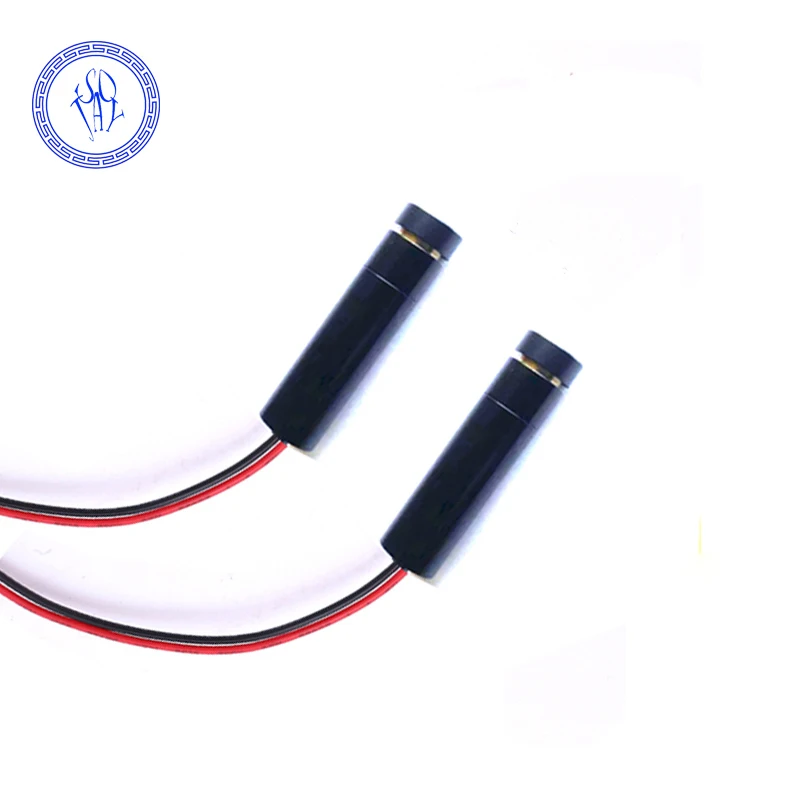

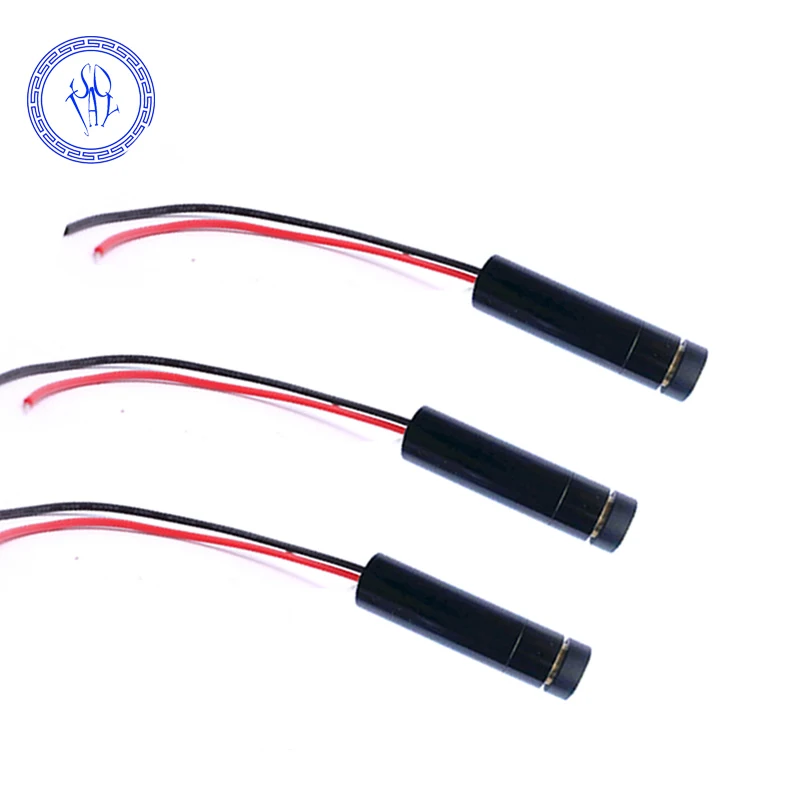

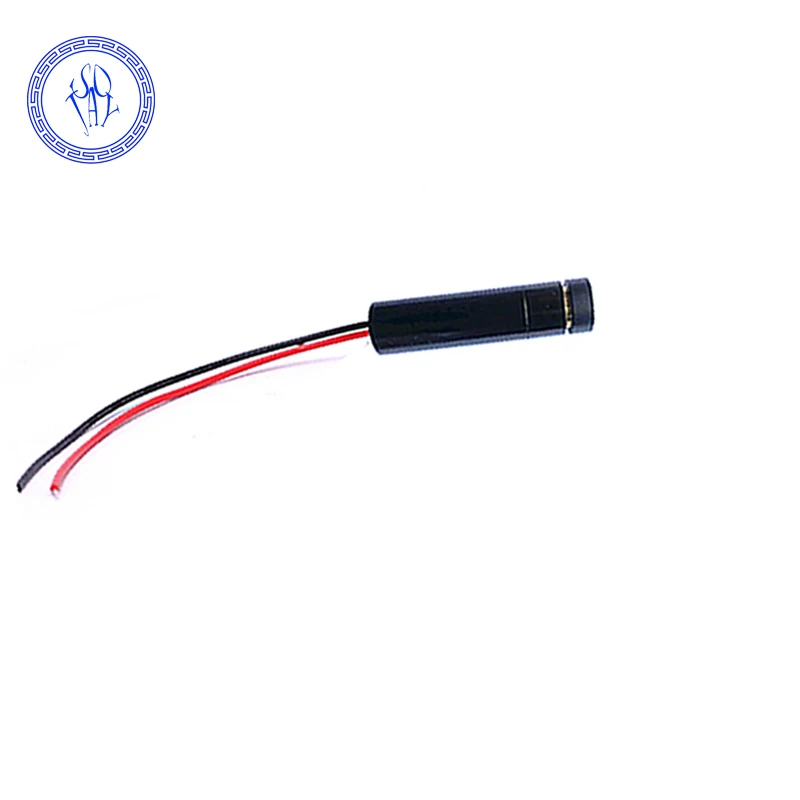

Mini Dot Industrial 3v 650nm 20mw D12mm Red Laser

Product Overview

Description

Mini Dot Industrial 3v 650nm 20mw D12mm Red Laser



SPECIFICATION		650nm
1	Dimensions	12x35mm/12x45mm
2	Operating voltage (Vop)	3-5DCV
3	Operating current (Lop)	≤35mA
4	Output power (Po)	20mW
5	Collimating lens	Aspherical plastic lens
6	Spot size at 1m	<1mm
7	Divergence (Half Angle)	0.5 mRad
8	Operating temp.rage	-10~50°C
9	Storage temp.range	-40~75°C
10	Housing	Aluminum
11	Mean time to failure(MTTF)	≥8000h





Basic module, compact size with APC Driver Circuit inside, ideal for industrial Laser.



APPLICATIONS:

-Industrial laser - for positioning, measuring, pointing and laser sighting device.

-Wood processing.

-Metal processing.

-Stone processing.

-Textile industry.

-Food industry.

-Automotive industry

-Medical science





Note : Laser module housing is an electrical positive surface, it is imperative that contact between the laser moduleand the machine be avoided. This is to prevent damage from the machine electrical leakage. Surge protected power supply to the laser module is strongly recommended.
