By air suction cup Multi models slab lifter sheet metal laser cutting loading lifting equipment for granite

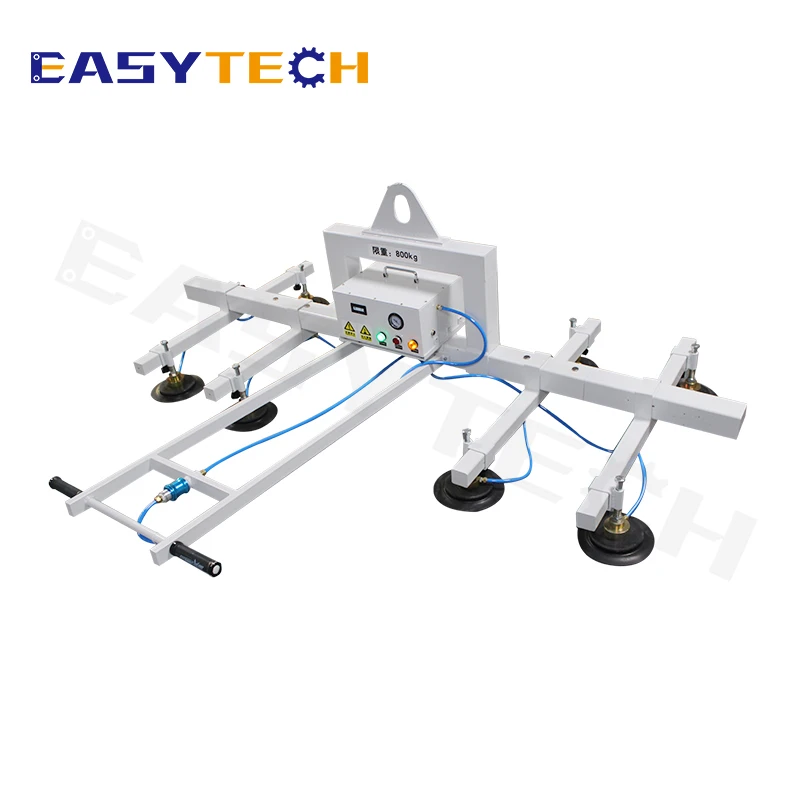

Product Overview

Description

Type	Lifterboy -Telescopic heavy load (Powered)				Lifterboy -Telescopic heavy load (Plug-in)
Model	ETJS-J600-2m	ETJS-J800-2m	ETJS-J800-3m	ETJS-J1000-5m	ETJS-C600-2m	ETJS-C800-2m	ETJS-C800-3m	ETJS-C1000-5m
Capacity	600kg	800kg	800kg	1000kg	600kg	800kg	800kg	1000kg
Suction pad dia.	200mm	200mm	200mm	200mm	200mm	200mm	200mm	200mm
Suction pad qty.	6pcs	8pcs	8pcs	12pcs	6pcs	8pcs	8pcs	12pcs
Dimension (L*W*H)mm	2200*1360*820	2200*1360*820	3100*1360*820	4900*1360*820	2200*1360*820	2200*1360*820	3100*1360*820	4900*1360*820
Turnover	/	/	/	/	/	/	/	/
Rotation	By manual 360 degree	By manual 360 degree	By manual 360 degree	By manual 360 degree	By manual 360 degree	By manual 360 degree	By manual 360 degree	By manual 360 degree
Net weight	90kg	99kg	106kg	181kg	84kg	94kg	101kg	175kg
Max Workpiece Size*(mm)	3000*1500	3000*1500	4000*2000	6000*2000	3000*1500	3000*1500	4000*2000	6000*2000
Supply power	220/380/460V	220/380/460V	220/380/460V	220/380/460V	220/380/460V	220/380/460V	220/380/460V	220/380/460V
Battery	12V	12V	12V	12V	/	/	/	/
Air Pressure supply(Mpa)	/	/	/	/	/	/	/	/
Package Size (L*W*H)mm	1400*700*480	1400*700*500	1400*700*500	1400*700*550	1400*700*480	1400*700*500	1400*700*500	1400*700*550
Gross weight	118kg	128kg	136kg	214kg	112kg	122kg	130kg	208kg
*Considering the effect of plate span and gravity, for reference only

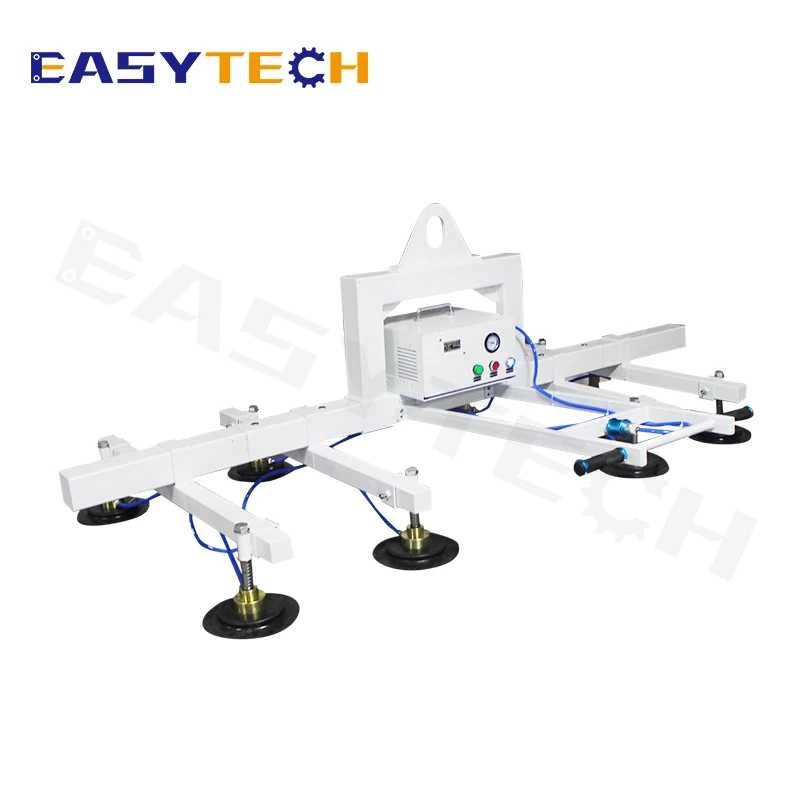

 General Descriptions:

Lifterboy vacuum lifter is specially designed for metal sheet logistics and transportation. They are mainly used for loading and unloading of metal processing equipment such as laser cutting machine and laser machine, as well as warehouse transportation of metal plates, installation of new composite materials such as metal cold storage panels, etc. It can be used with crane, forklift, manipulator, outdoor crane and other equipment, the scope of application is very wide.



Basic Parameters:

Voltage: 220V/380V/460V

Pressure holding time: When cut-off the power supply, with holding pressure, vacuum pressure declines from 85% to 60% over 20 minutes.

Control mode: manual valve controls vacuum to suck in or drop down.

Absorption time: less than 5 seconds (the initial absorption time is about 10 seconds at first start-up)

Release time: less than 5 seconds;

Safety factor: 2.0;

Noise Index: less than 65 decibels;



We use high-quality reliable vacuum pump negative pressure station as vacuum power source. Vacuum level is fully controlled automatically.

The vacuum pump is easy to maintain. The vacuum lifter equipment is equipped with 4 or 8 vacuum suckers and multi-point adsorption vacuum surfaces to ensure the lifting force on workpieces. Meanwhile lifterboy has equipped with vacuum accumulator, can hold vacuum pressure to promise also safe in case of power failure.

Flexible suction pad position by adjust the rectangular clamp. A variety of structure suction cups layout is realizable for different sizes of workpiece and all kinds of vacuum surfaces.



Applications:

# for feeding and unloading to laser cutting machine, flame cutting machine,

shearing machine, etc.

# for stainless copper sheet,aluminum sheet,metal sheet transportation and logistics.

# for stone plate, glass elements, acrylic plate and so on, in-door and out-door use.

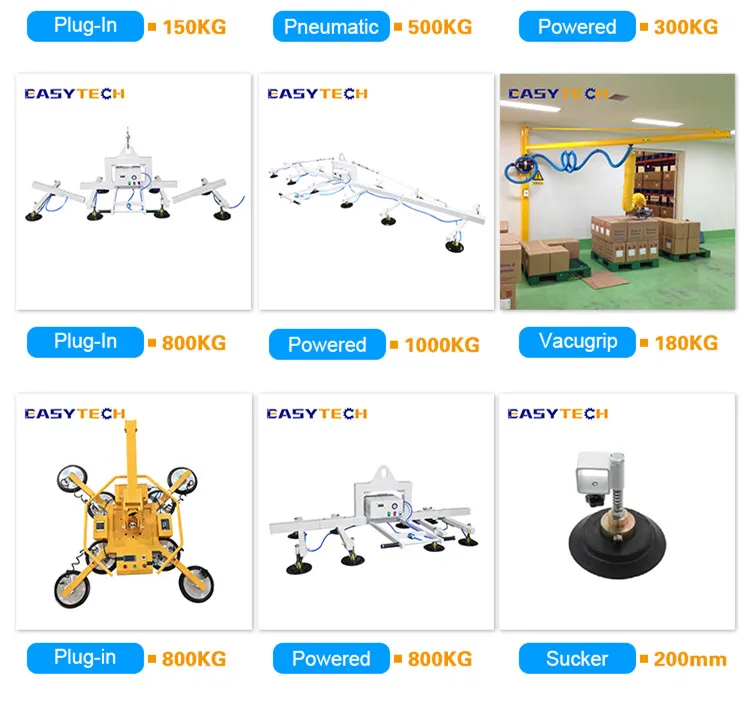

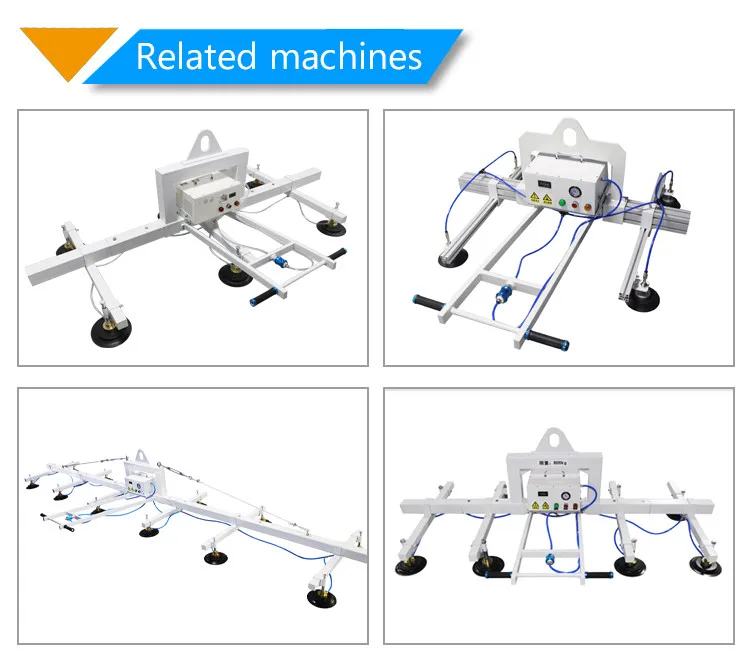

So far, we got 3 models of lifterboy vacuum lifter to cover lifting capacity from 150kg to 1000kg.

l Lifterboy Basic, capacity 100kg~200kg

l Lifterboy Light-Load, capacity 300kg

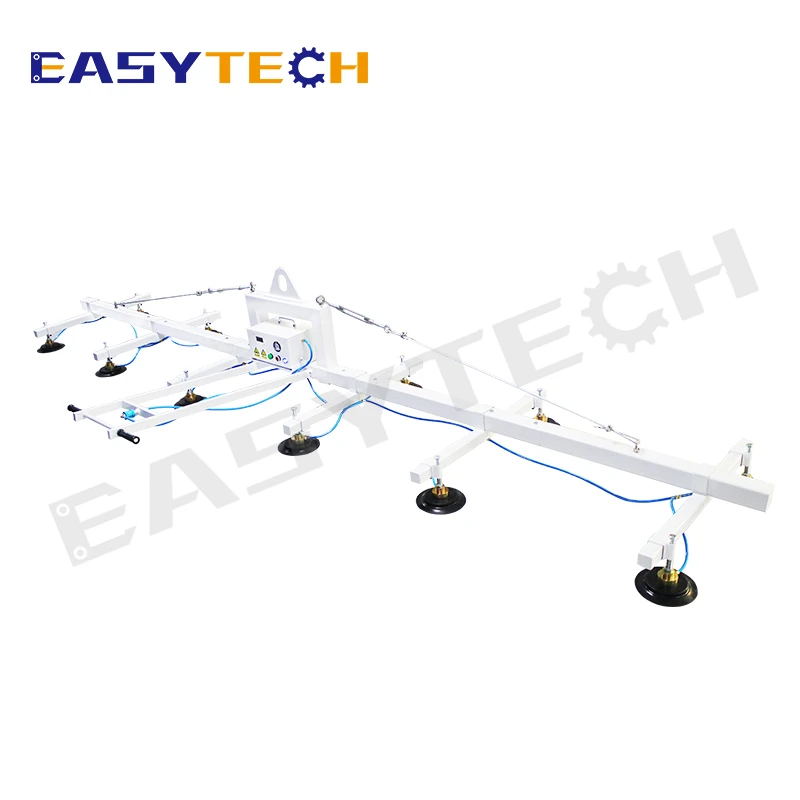

l Lifterboy Heavy-Load, capacity 600kg~1000kg

And each model has 3 supply modes to choose,

-Plug-in type, sustainable use, stable

-Rechargeable, easy to use, good mobility

-Pneumatic, energy saving and environmental protection (need air compressor)



How to choose a vacuum lifter?

l What are you going to lift, size and weight of the workpiece?

l What are you going to do with your workpiece? To lift, turnover or rotation?

l What the vacuum lifter shall be equipped with? Crane, forklift, manipulator?

l Which power supply model do you prefer? Normally, plug-in for in-door use, powered for out-door use, pneumatic needs an air compressor for air supply.
