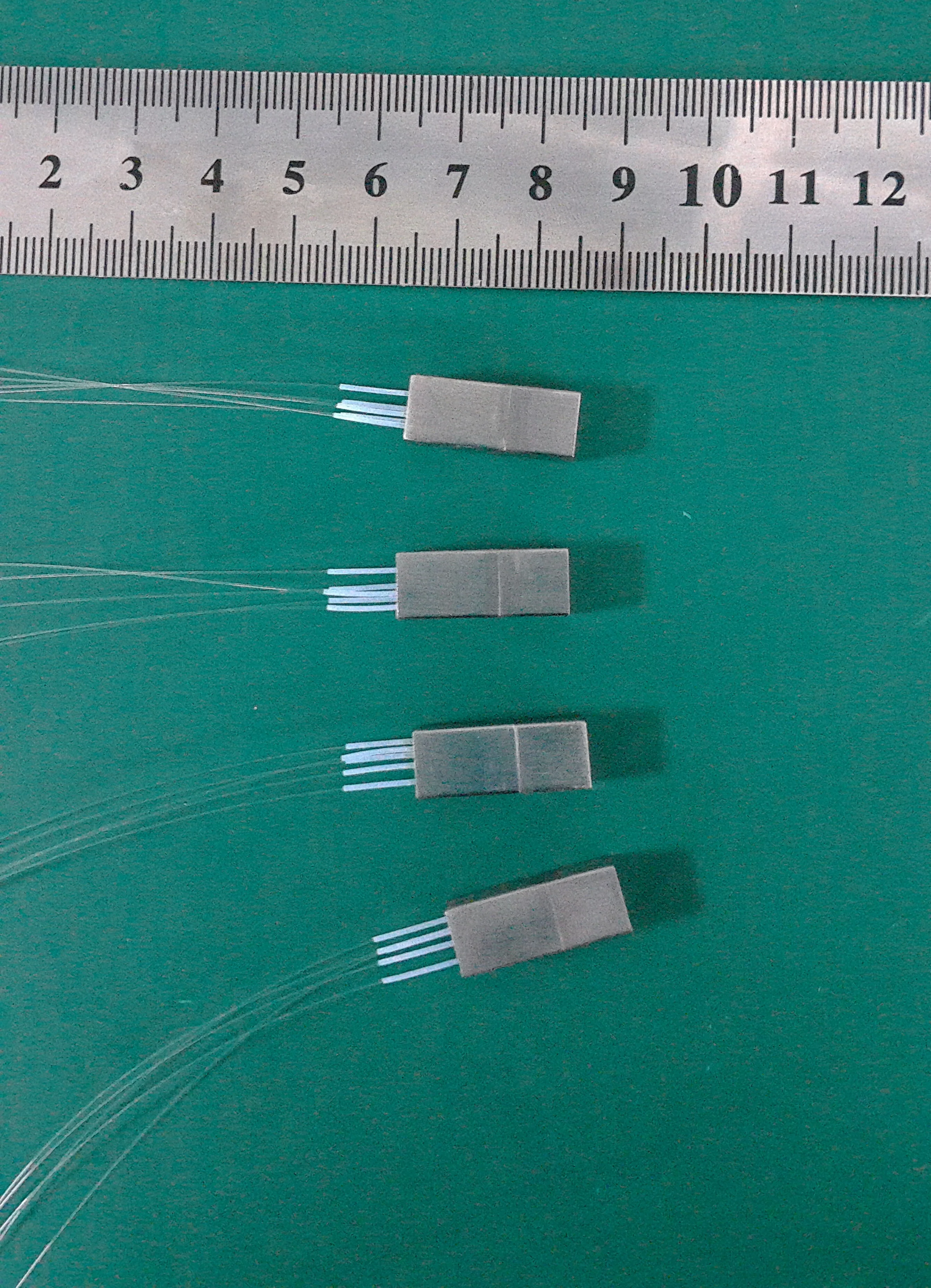

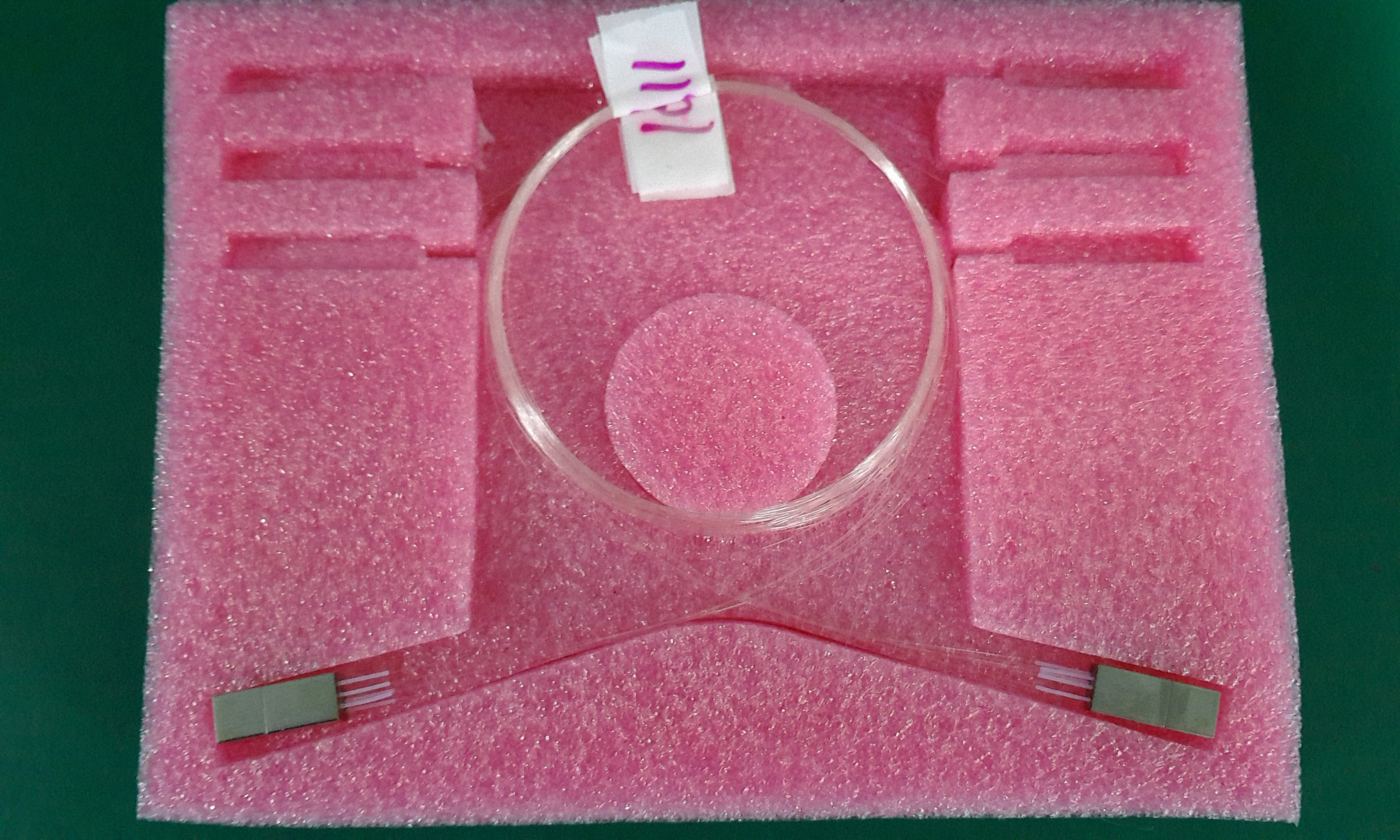

Ultra Compact 1X4 CWDM based on thin film filtering technology with Low insertion loss for transceivers
- Category: >>>
- Supplier: Hangzhou Future Optics Sci & Tech Co. Ltd.
Share on (62186326180):
Product Overview
Description
roducts description:

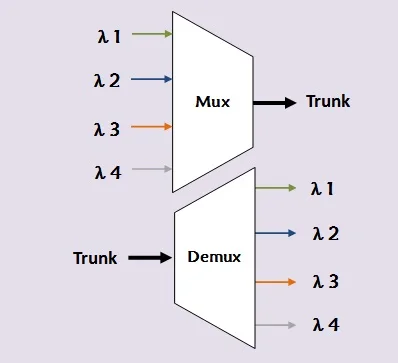

Future Optics’ UC-LAN-WDM Module series products are based on thin film filtering technology and free space optical path compression technology Future Optics’ Ultra compact CWDM products are of ultra-small size, ultra-low insert loss, ultra-high reliability and ultra-wide operating temperature range, which are widely applied in transceivers and CWDM network system. With the capability of optical simulation, finite element analysis and fine manufacturing, Future Optics can not only provide products with excellent performance, but also provide customers with unique solutions.
Features:
Low insertion loss.
Excellent thermal stability
Extremely small
RoHS compliant
Excellent thermal stability
Extremely small
RoHS compliant
Applications:
High speed transceivers
CWDM systems
Metro and Access networks
CATV network
Specifications
Parameters | Value | Unit | |
Channel Center Wavelengths (nm) | 1270~1610 | nm | |
Operating Wavelength | 1260~1620 | nm | |
Channel Passband | ±6.5 nm | nm | |
Insertion Loss | <=1.5 | dB | |
Ripple over Pass Band | ≤0.5 | dB | |
Isolation | Adjacent | >= 30 | dB |
Non-adjacent | >= 40 | dB | |
Polarization Dependent Loss | <= 0.2 | dB | |
Return Loss | >= 45 | dB | |
Operating Temperature | -40 ~ +85 | °C | |
Storage Temperature | -40 ~ +85 | °C | |

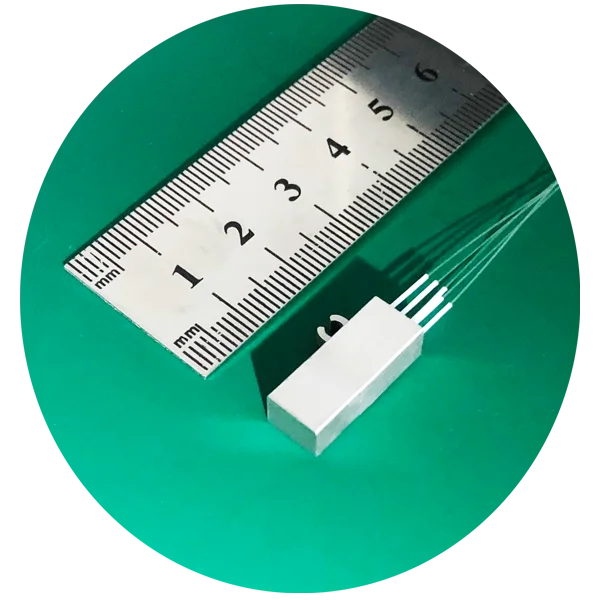

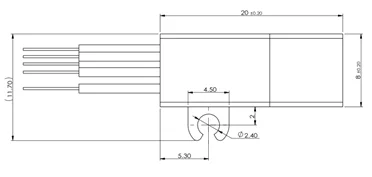

Dimension | 20x8x6.5 | mm | |
Fiber | 250um Corning ClearCurve Fiber, Or 0.9mm loose tube |
| |

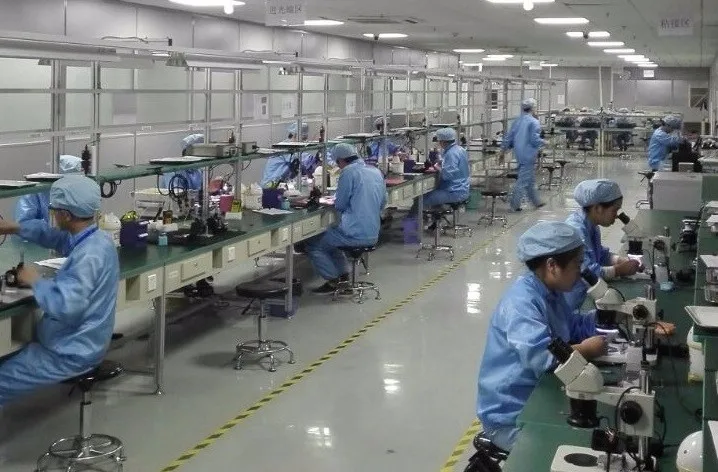

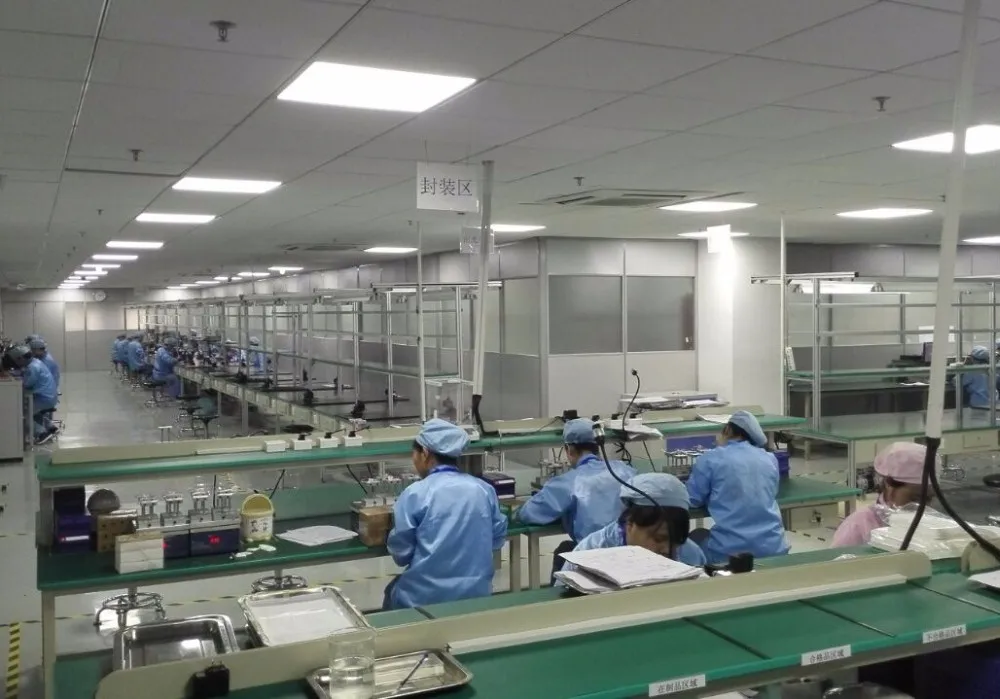

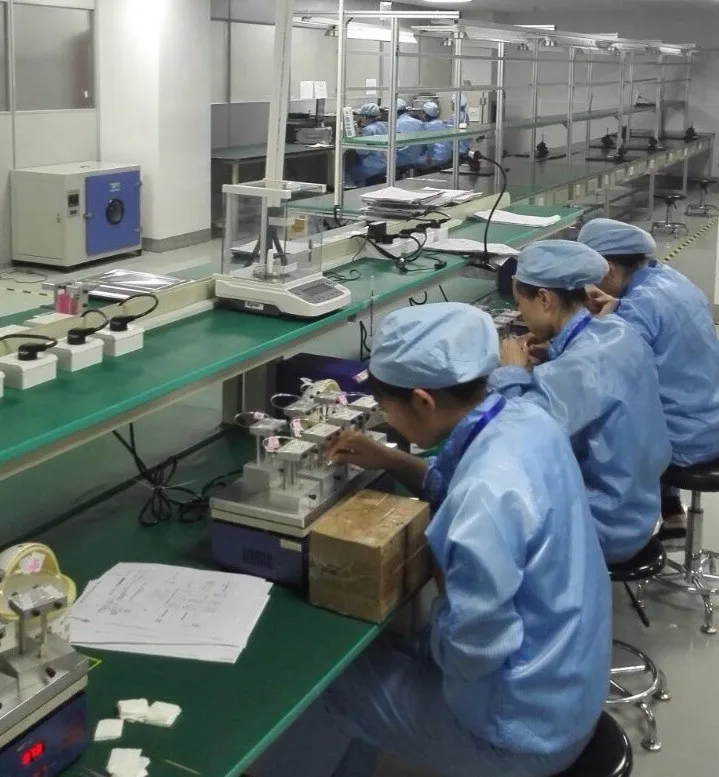

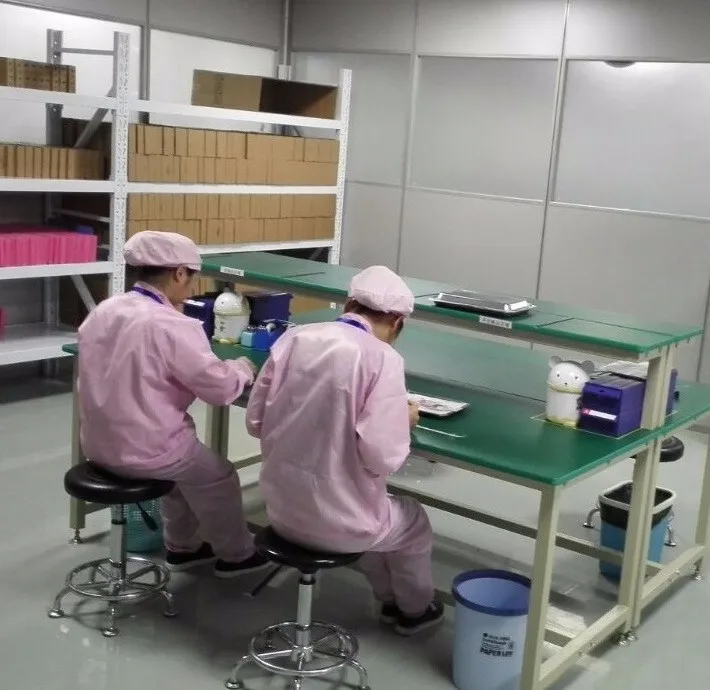

production line
product test

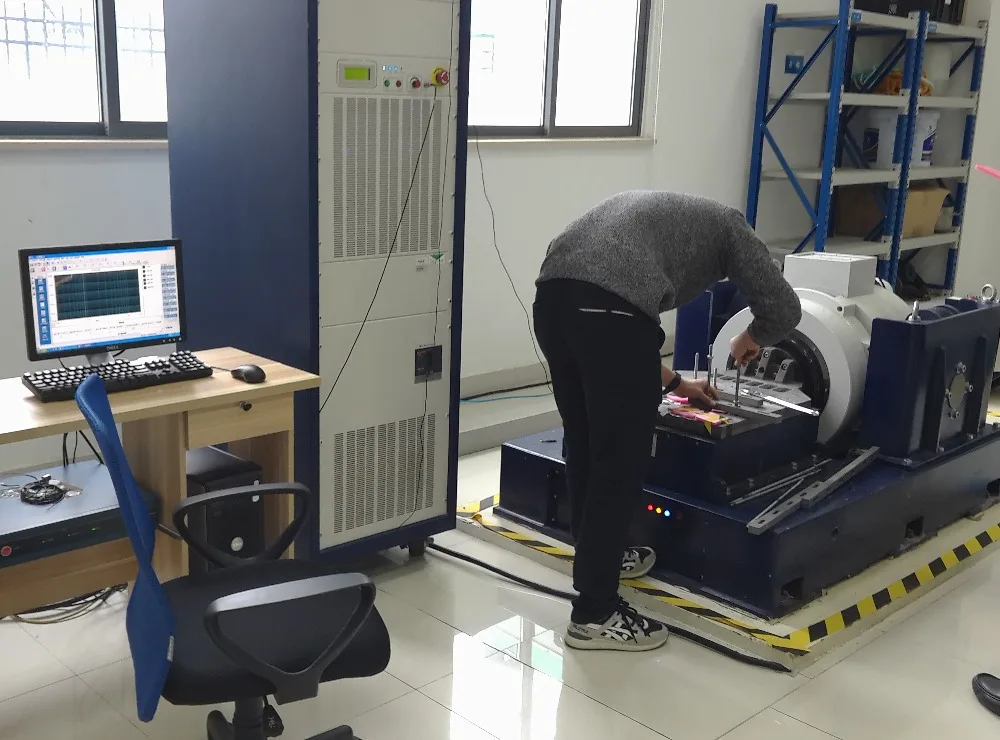

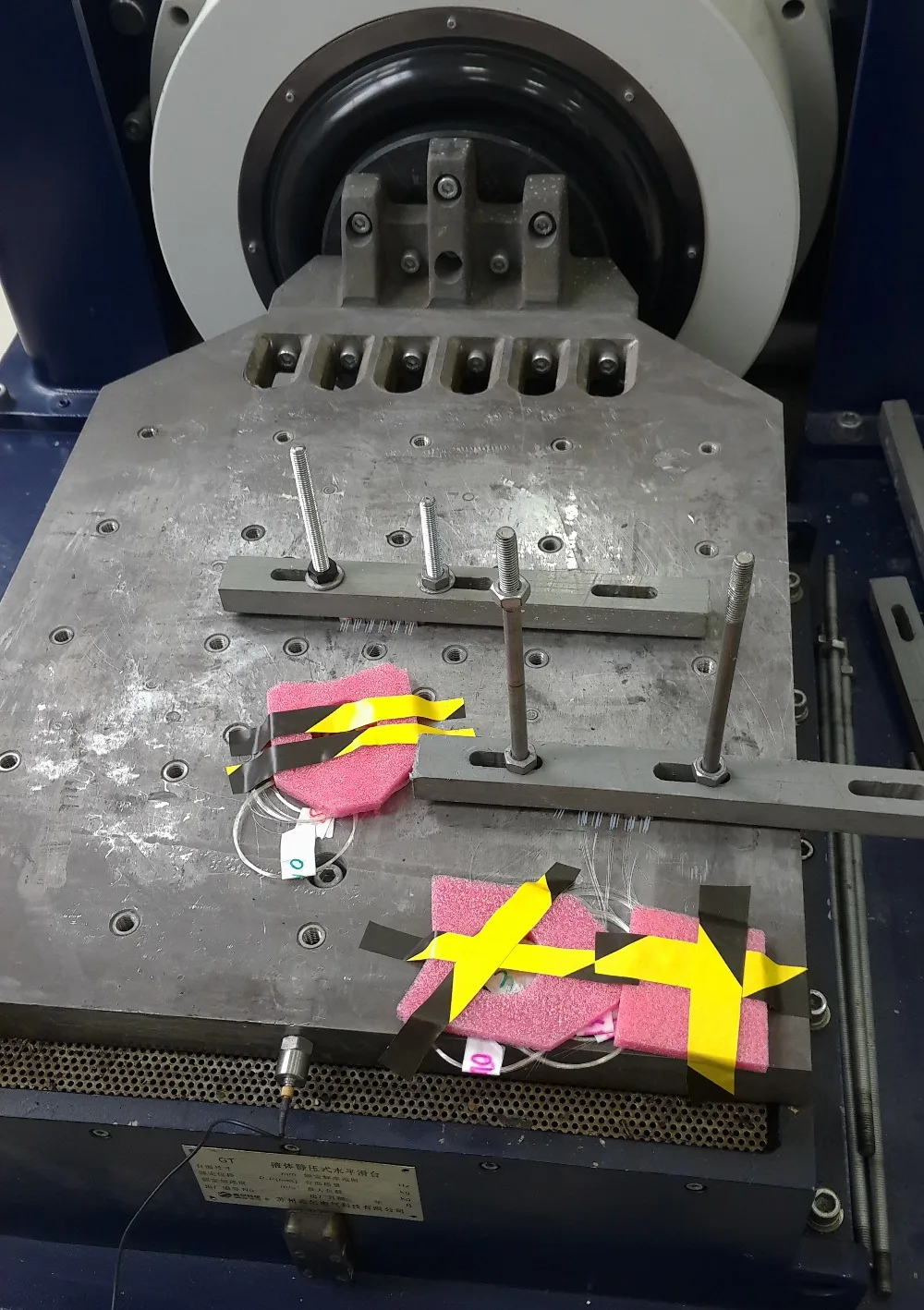

vibration test

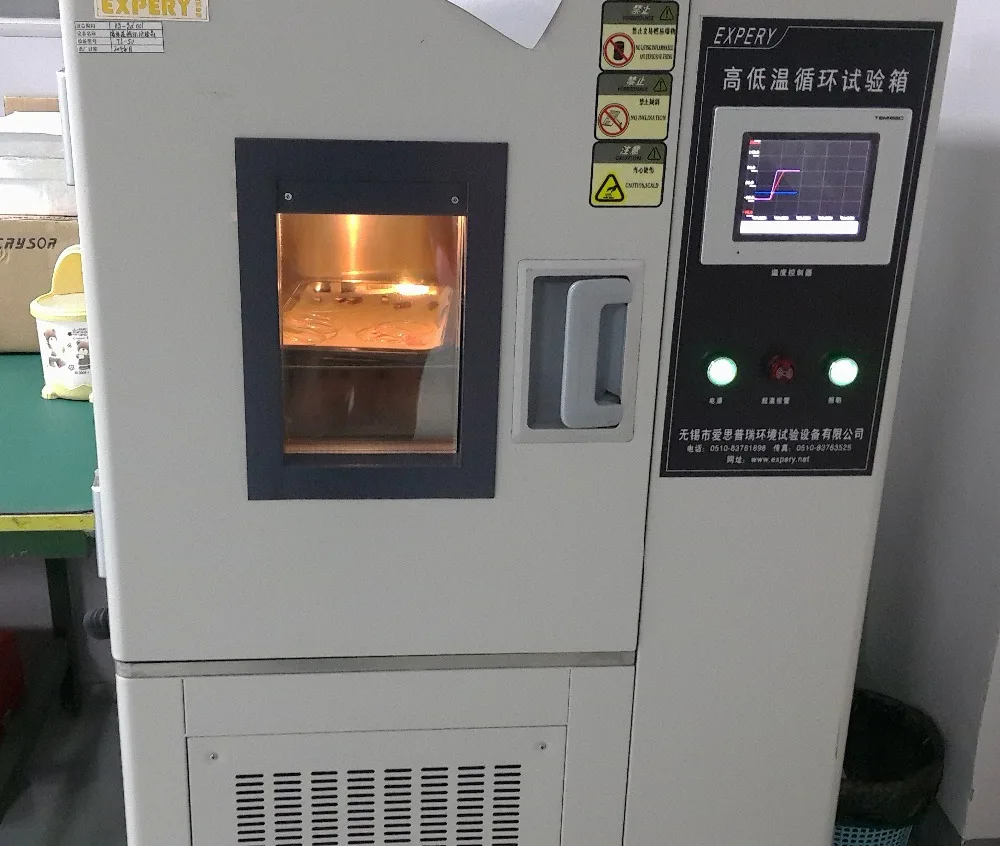

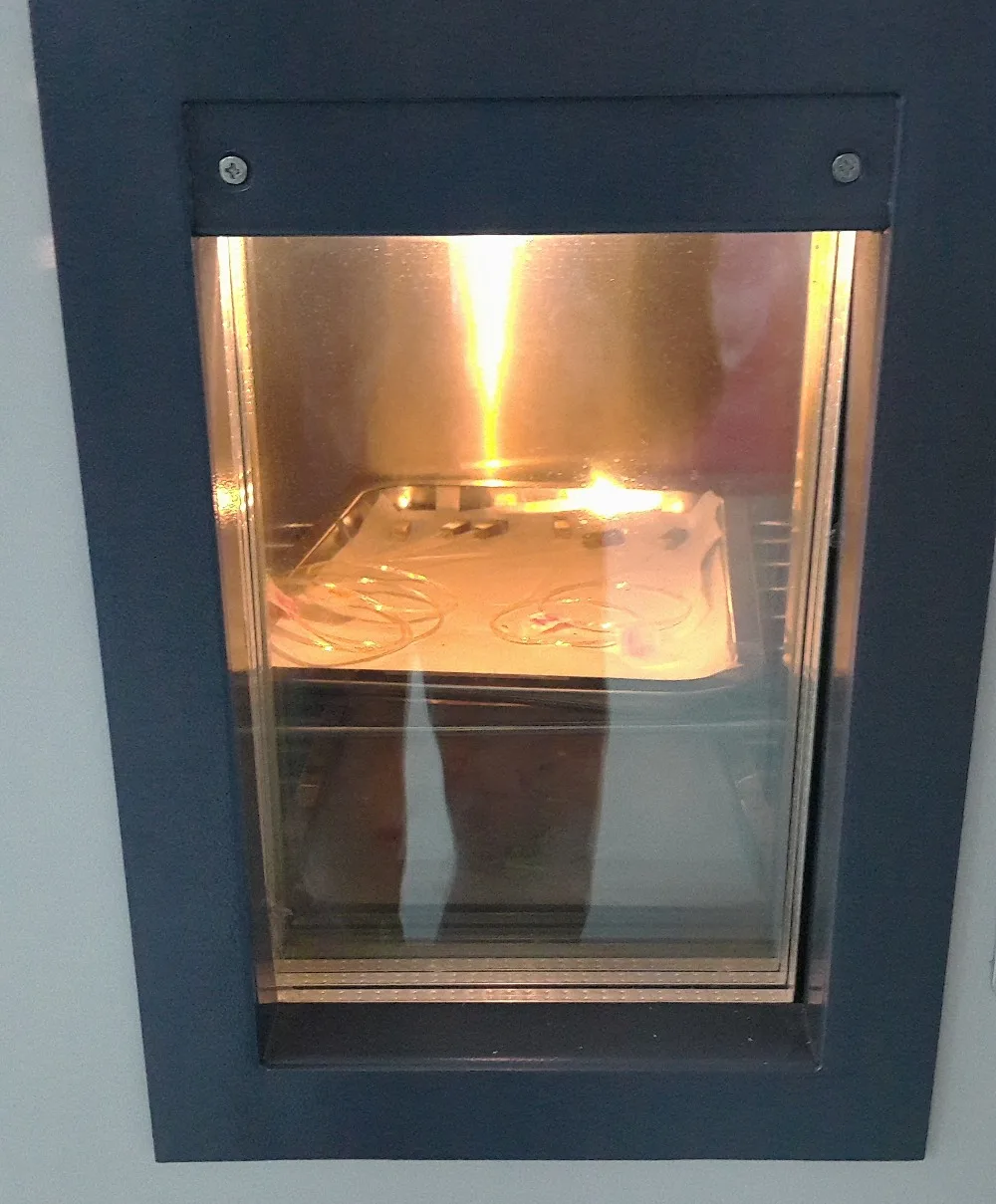

temperture test

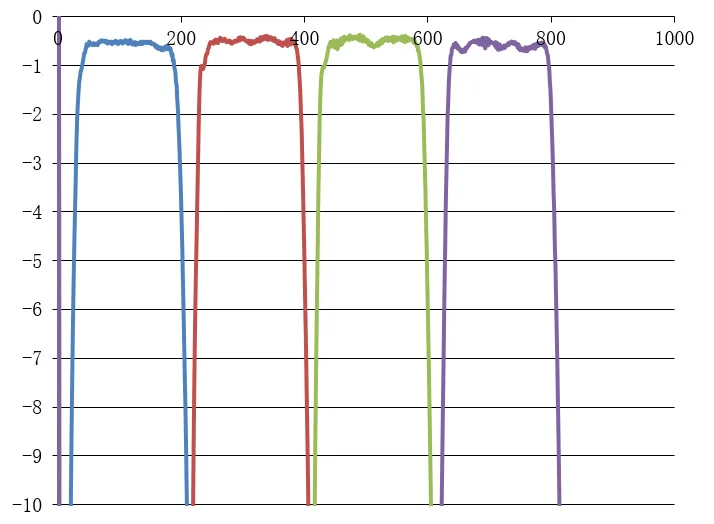

spectrum test
