1.5T intermediate frequency induction Ferromolybdenum melting furnace manufacturer
- Category: >>>
- Supplier: Henan Rongke Electrical Manufacturing Co. Ltd.
Share on (62186419746):
Product Overview
Description
Company Introduction
Our factory products Induction furnace.
Furnace body working simultaneously 20 minutes once molten with highest efficiency and have patent of Mixed Hertz induction stirring melting furnace for alloy casting. Series inverter steel melting 550KWH per ton. New design billet induction heating equipment can be less than 300KWH per ton. Graphene new materials manufacturing furnace with technology can be supplied.
After 30 years development, upgraded to Henan Rongke Electrical Manufacturing CO., LTD. new factory more than 7000 square meters.
Certifications
Product Description

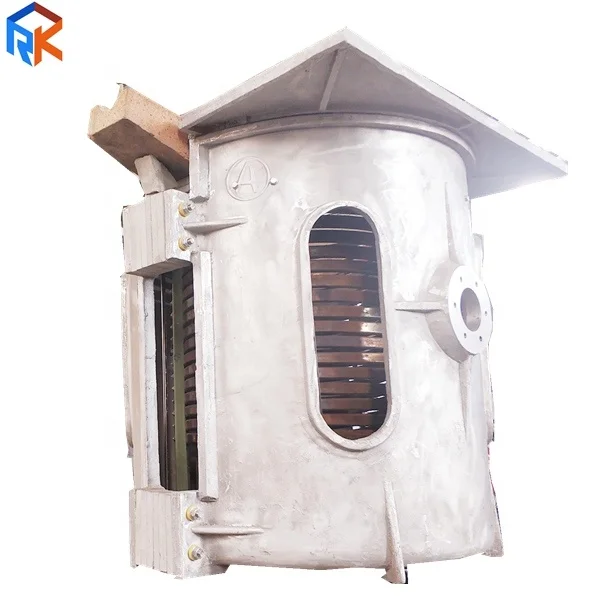

aluminium shell induction furnace less cost , this type furnace with aluminium shell have same melting speed compared to steel frame furnace.
FEATURES:
1.High quality aluminium shell cover, the aluminium shell cover has small weight and can be easily installation and operate, maintenance.
Description of application effect
使用效果描述
使用效果描述
2. easy installation and maintenance for aluminium shell induction furnace set. Even though simple weld steel structure can support the aluminium shell furnace body for melting.

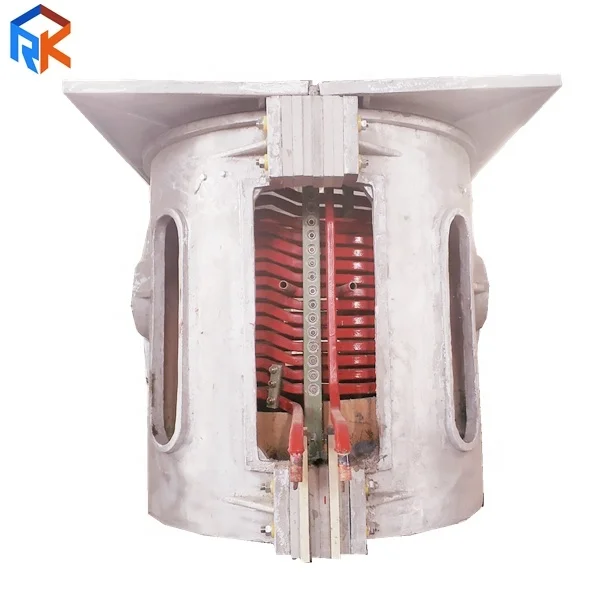

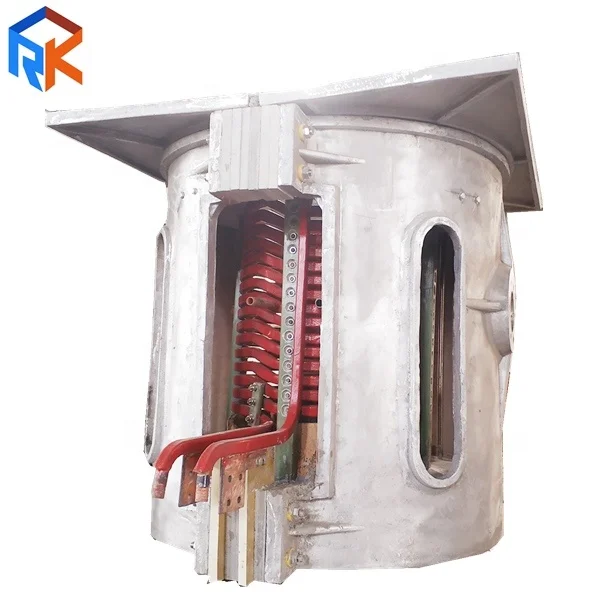

5.Induction copper coil:
It is assembled from solid, durable and highly conductive T2 copper tube. Water-cooled coil and the effective coil are integrally formed by a copper tube without segmentation. Two adjacent copper tubes of the induction coil are strictly insulated and uses advanced segmentation technology. An insulating sheet is implanted between adjacent induction coils. After the insulating varnish sprayed, it becomes a complete structure, and is pressed by the upper and lower steel structures in the furnace body, the overall structure is firmed has no deformation problem. The coil turns are appropriate to achieve maximum electrical efficiency.
The coil is supplied with cooling water from a plurality of water paths and evenly distributed. Outside of the coil tightly wound with an insulating material. The inter-turn arc-shaped insulating spacers ensure uniform coil spacing and facilitate moisture removal.
The coil is supplied with cooling water from a plurality of water paths and evenly distributed. Outside of the coil tightly wound with an insulating material. The inter-turn arc-shaped insulating spacers ensure uniform coil spacing and facilitate moisture removal.
Detailed Images
Product Items:
NO. | Quantity | ITEM | ||||

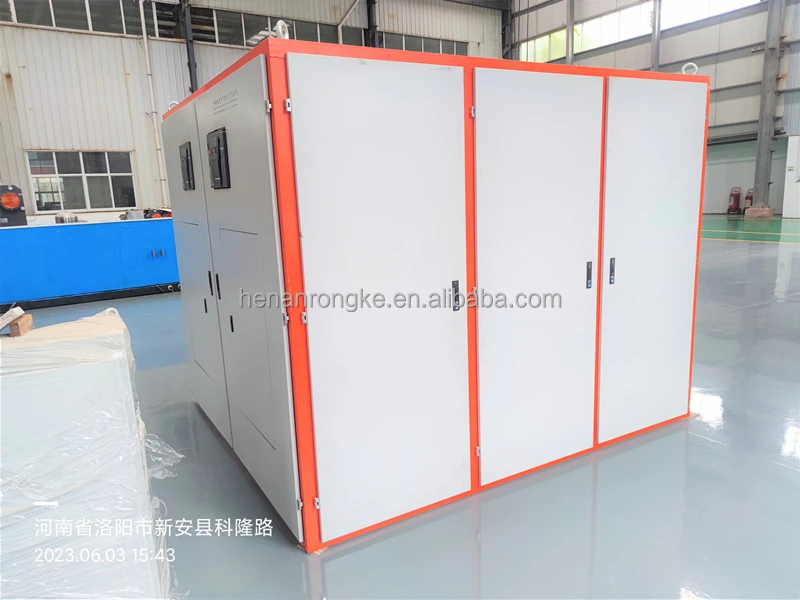

1 | one set | 2000KW(One set), 500HZ output power supply cabinet | ||||
2 | Two | Induction melting Furnace body with reducers | ||||
3 | one set | Capacitor Assembly bank(Water cooling) | ||||
4 | one set | Water cooled cables | ||||
5 | one set | Technical documents, drawings and operation manuals | ||||
6 | one set | Necessary spare parts for power supply cabinet | ||||

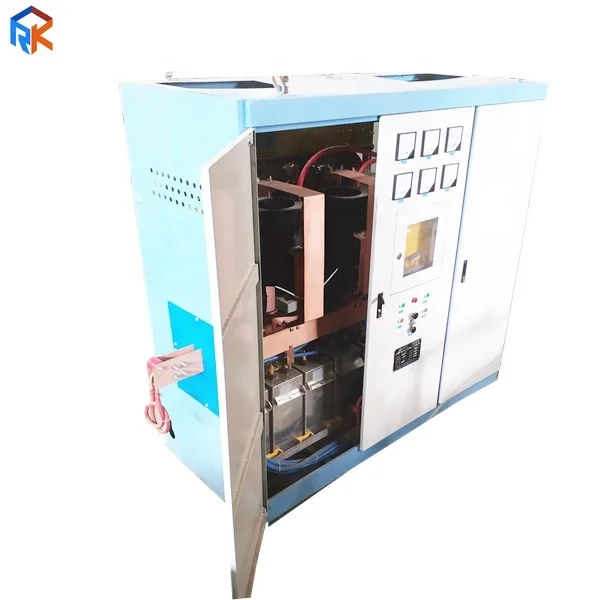

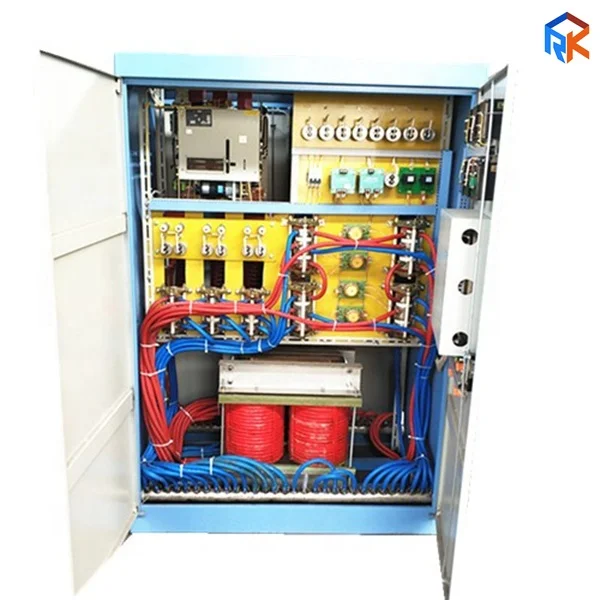

Power Supply Features
NO. | ITEM | SUPPLIERS AND MANUFACTURERS |
1 | thyristor | TECH SEMICONDUCTORS |
2 | capacitors | XADR Company WEIWEI Brand |
3 | Coil tube T2 | Chinalco Luoyang Copper Co., Ltd |
4 | Copper bar T2 | Chinalco Luoyang Copper Co., Ltd |
5 | Power cabinet main switch | Zhejiang TENGEN |
1.Advanced electronic circuit control, with over-voltage, over-current, limiting pressure, current limiting, lack of phase, undervoltage, underwater pressure, phase sequence automatic identification, cooling water temperature alarm protection and many
other protection features. Power factor automatic adjustment function. From the cold charge to the heating temperature during the
cycle, automatically maintain full power to the furnace, so the maximum amount of
molten metal per kilowatt, the shortest same power heating time, increased labor productivity.
other protection features. Power factor automatic adjustment function. From the cold charge to the heating temperature during the
cycle, automatically maintain full power to the furnace, so the maximum amount of
molten metal per kilowatt, the shortest same power heating time, increased labor productivity.
2. Control line dedicated integrated box and high pressure area are fully isolated, keep the control room clean and cool. Greatly improve the control circuit board life and system reliability.
3.High-power converter parts preferred from international and domestic well-known manufacturers, and parts design to run at 50%
rated capacity, so with 100% design safety factor, increase the overall system reliability.
rated capacity, so with 100% design safety factor, increase the overall system reliability.
4.The equipment uses large air cooling copper bars, compared with the water-cooled copper, more energy for heating, increased
efficiency, don't need maintenance.
5.Power start using zero voltage sweep start, no impact, in the state of empty-load, heavy load, cold material and others can be reliable
start, stable and reliable, no breakdown for long time and facilitate to maintenance.
efficiency, don't need maintenance.
5.Power start using zero voltage sweep start, no impact, in the state of empty-load, heavy load, cold material and others can be reliable
start, stable and reliable, no breakdown for long time and facilitate to maintenance.

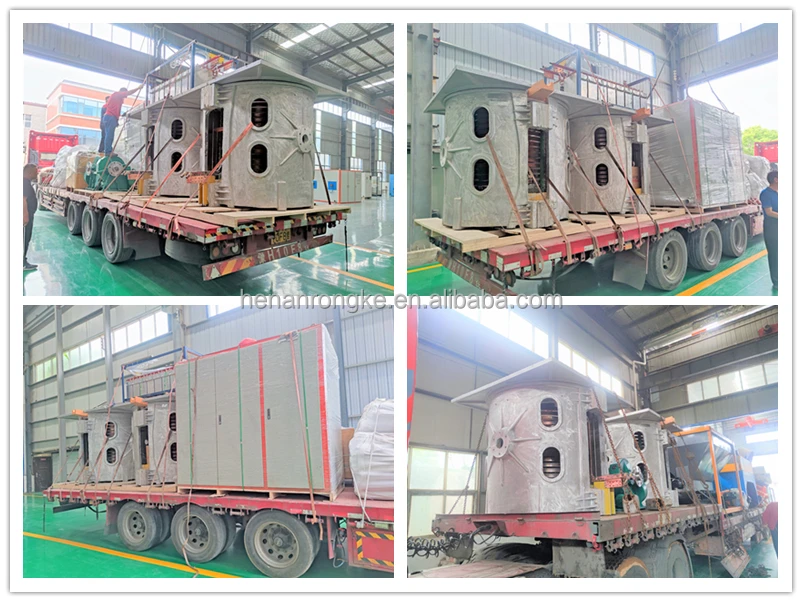

Packing&Shipping
The whole equipment finished full and completely covered by container to delivery. The equipment will fixed by our factory in container to prevent damaged by crash in the delivery process.
Small capacity furnace packaged by Plywood Case or as customers' request.
Small capacity furnace packaged by Plywood Case or as customers' request.
After Sales Service
Installation and commissioning
We send engineers to guide equipment installation, and responsible for Commissioning, When training and installation
need pay wage to engineers.The user should first according to our foundation for the building, in accordance with the drawings and
use the instructions to install the furnace and prepare the power supply in place, water, circuit materials prepared completely.
need pay wage to engineers.The user should first according to our foundation for the building, in accordance with the drawings and
use the instructions to install the furnace and prepare the power supply in place, water, circuit materials prepared completely.
FAQ
1. How many sets induction furnace your factory have produced?
After thirty years passed, produced more than 5000 sets induction furnace sets in the worldwide.Tremendous experiences accumulated
2. Do you have engineer overseas service?
Engineer overseas service available.
3. Where are your factory located?
Our factory located in Luoyang city, Henan Province.
