25U 19inch outdoor telecom cabinet waterproof metal electrical enclosure two doors with air conditioner SK 80104

Product Overview

Description

25U 19inch outdoor telecom cabinet waterproof metal electrical enclosure two doors with air conditioner SK-80104



Technical Specification



Specification of SK-80140
Model No.	SK-80140
Type	Outdoor cabinet/outdoor telecom cabinet

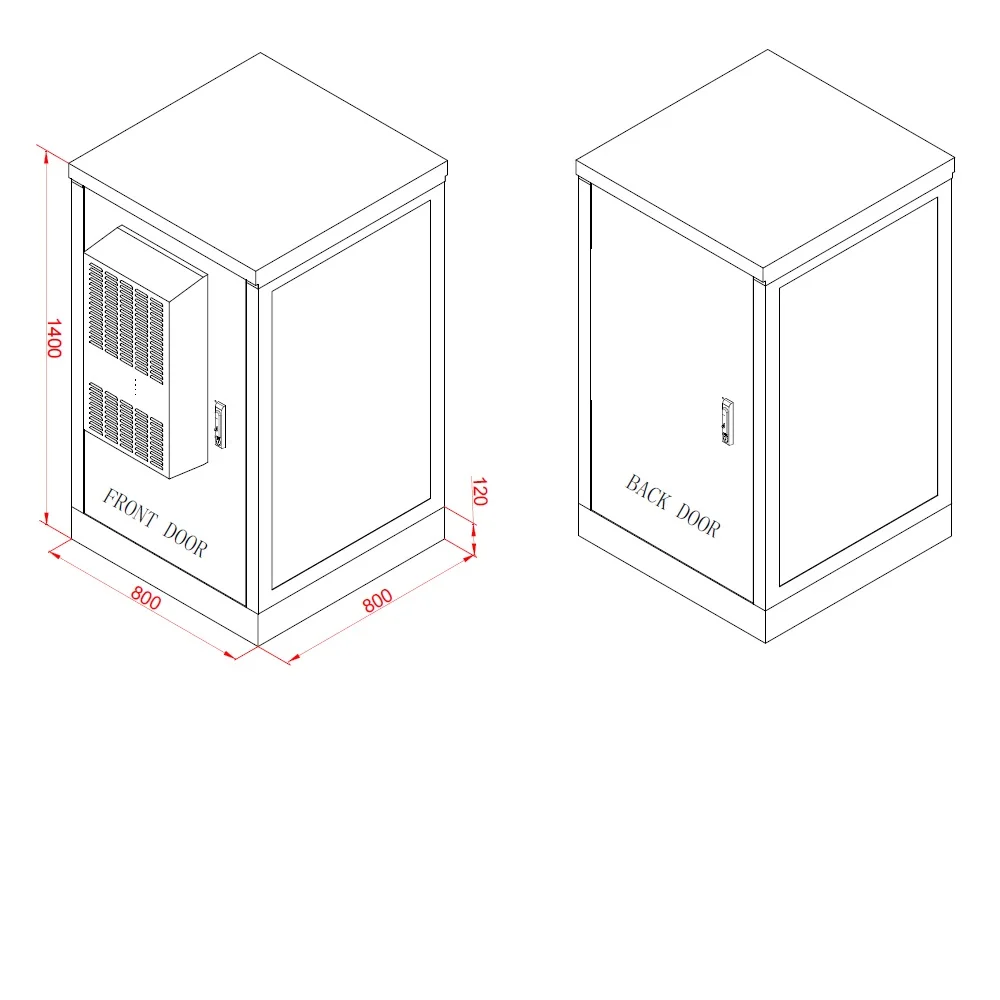

External Size	W800*D800*H1400mm, (The maximum depth of the cabinet is 950mm, including air conditioner on door)
Internal Capacity	25U 19 inch rack
Cooling system	500W Refrigerating capacity Air conditioner (with heater, use of 220VAC power supply).   Heat dissipation is by emergency ventilation, an axial flow fan is installed on the upper part of the front door, and a filter window is installed on the bottom plate of the cabinet.
Material	Main structure material is galvanized steel sheet, the main sheet metal thickness is  1.5mm, base thickness is 2.5mm.

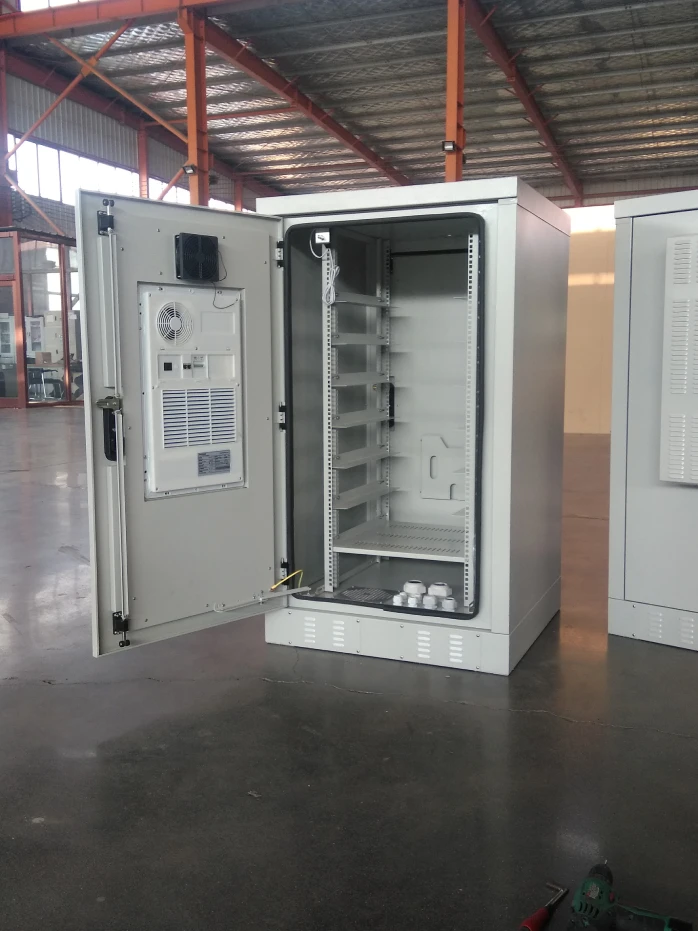

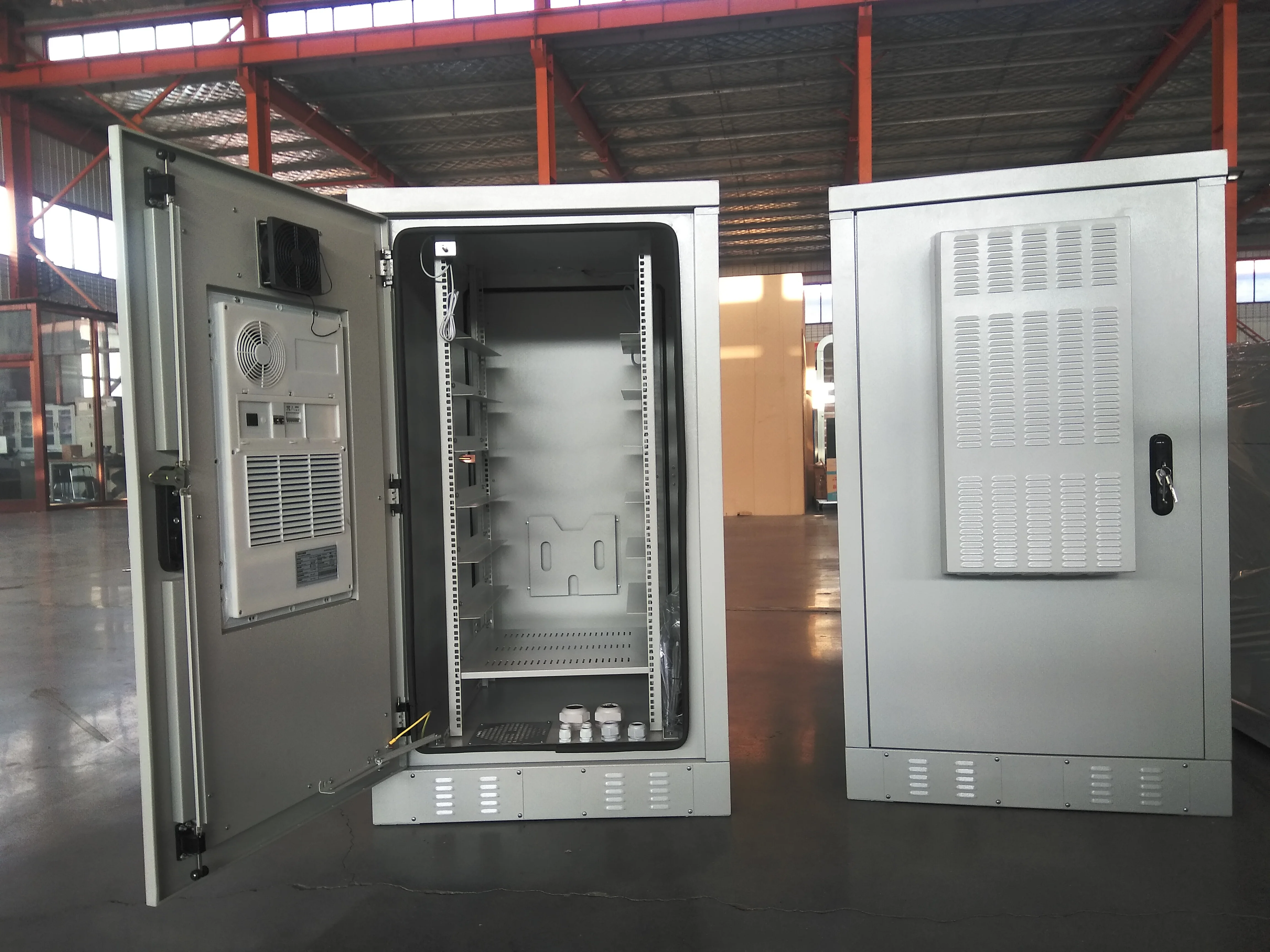

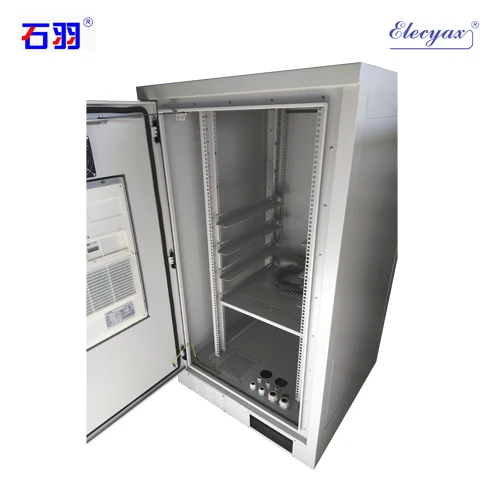

Structure	The cabinet is insulated structures of double-layer steel plates, in which is filled with foamed polyester insulation board, called sandwich structure. The insulation material thickness is 45mm. There are 2 sets of L bracket, 1 pc of shelf equipped in inside. The cabinet has two doors, front and rear door, air conditioner and connecting rod lock are equipped on front door. At the cable entrance, the bottom plate is loaded with 3pcs of PG11, 2pcs of PG29 and 2pcs of PG19 plastic cable heads
Internal lighting	4W-LED lamp tube is controlled by the door control sensor switch.
Color	RAL7035
Weight	130kg
Mount method	On the ground
Protection grade	IP55
Surface treatment	Outdoor powder coating

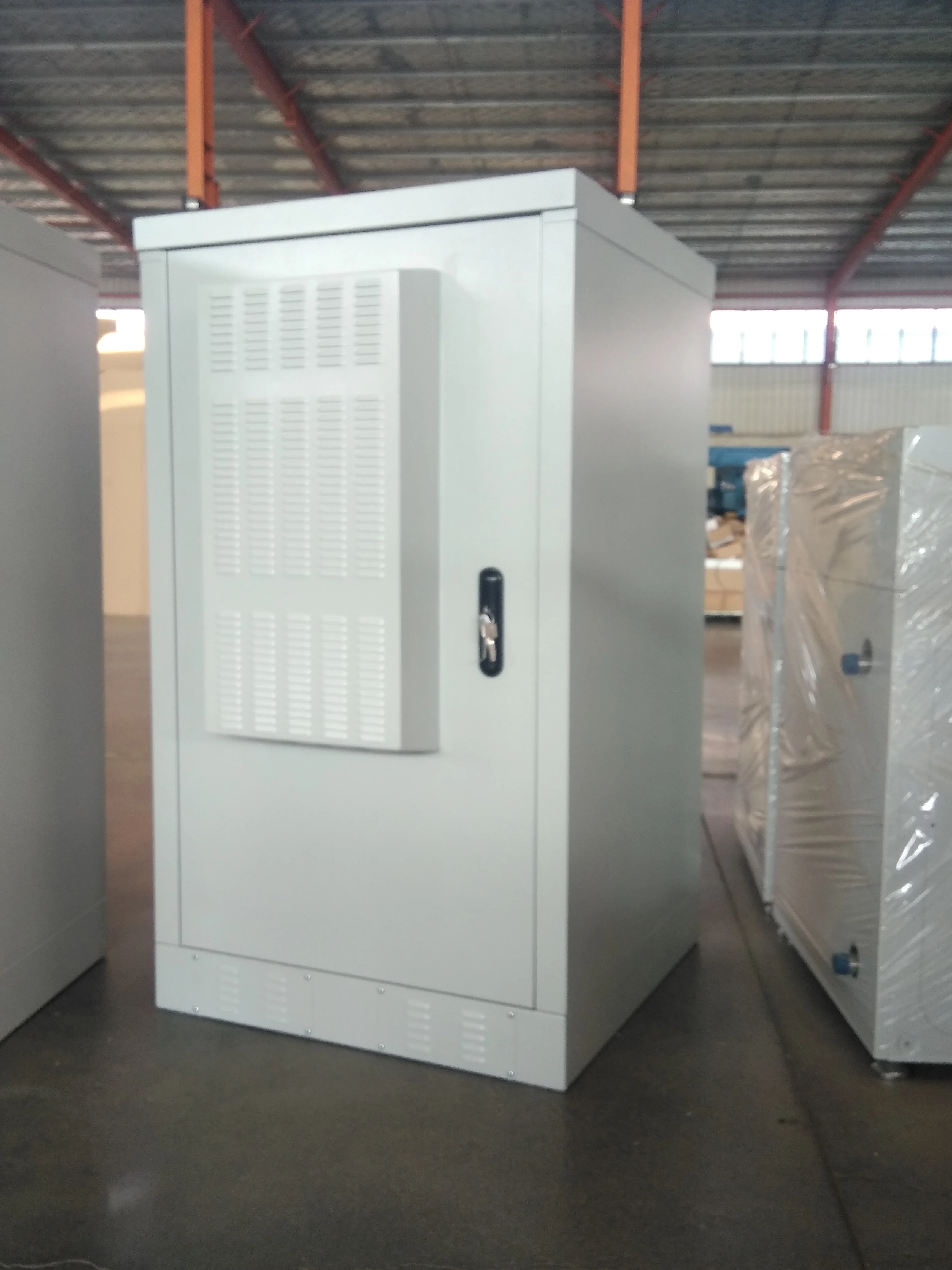

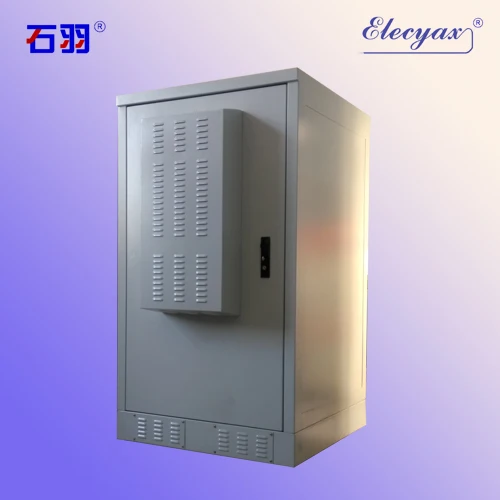

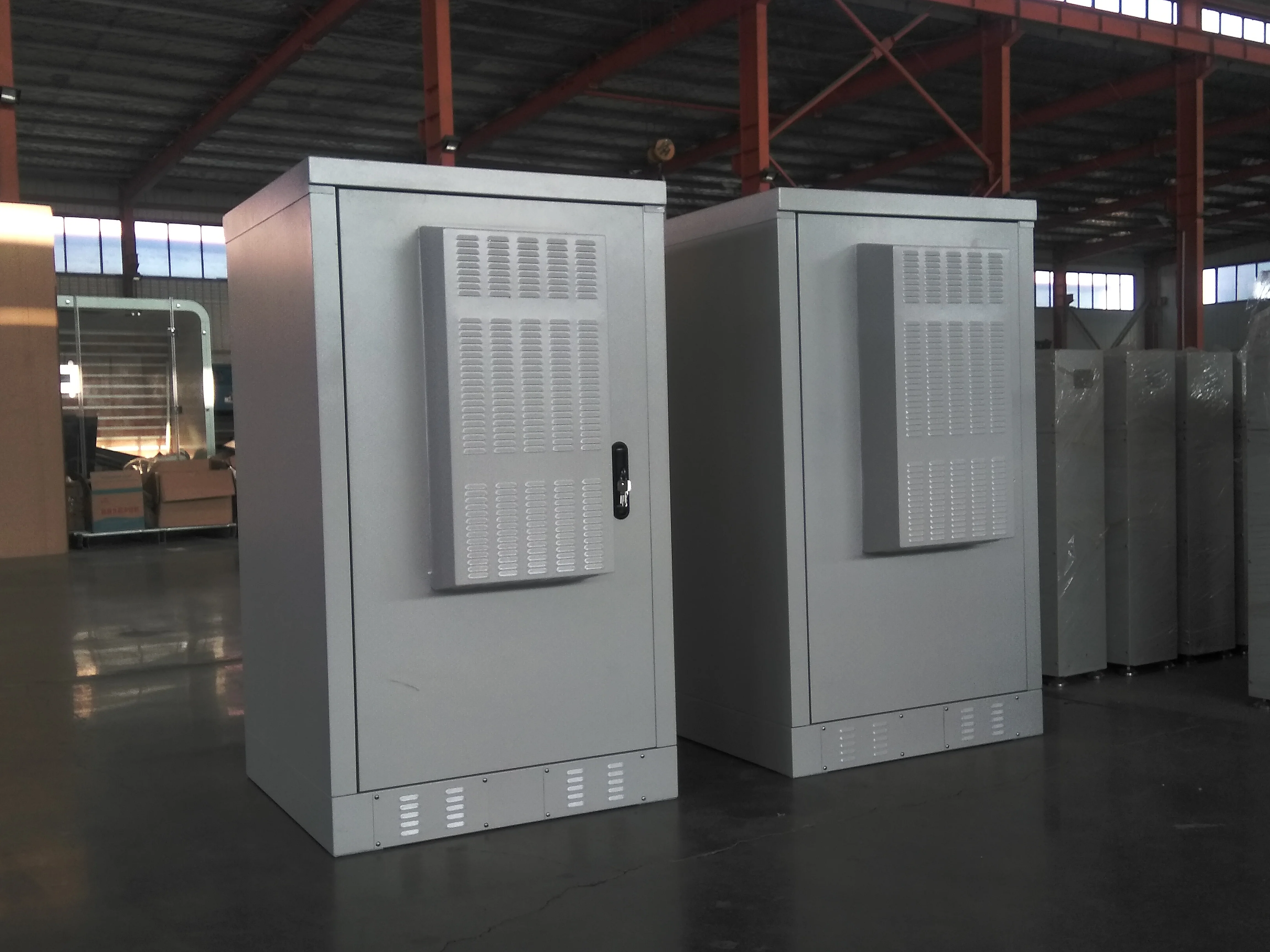

Product Picture







General information

Application of Outdoor Telecommunication Cabinet

Outdoor telecommunication cabinet is widely used in the industries of power and energy,

communication, broadcasting, traffic, climate and advertising and so on.

Waterproof outdoor telecommunication cabinet is composed of outer metal enclosure or

rack and inner base station equipment or power equipment or temperature control

equipment or transmission equipment or other assorted equipment.



Company Profile

Tianjin Yanxiang Electronic Science and Technology Co.,Ltd. which combined R&D, production and sales together is established in 2001. Its occupation is more than 3000 square meters, and there are 5 Production lines. ISO9001:2008 certificate has been granted in 2004. Products covers heat exchanger, heat exchanger communication cabinet, air conditioner battery cabinet, outdoor integrated communication base station, network communication cabinet and so on. We are not only a qualified supplier of well-known domestic enterprises, such as Huawei Technology Company, Tianjin Broadcasting Network System, TT&C Network of China etc. but also trustworthy manufacturer for clients from USA, Russia, Vietnam, Peru, South Africa and more. Welcome to receive your comments and inquiries.







Why choose us?

1. 13 years manufacturer selling

2. Wholesale/ Customize sample/OEM ODM are available

3. Competitive price

4. High product quality ,Strict quality control

5. Best service !



Trade tips:

Price Terms : FOB Tianjin, others can discuss

Payment Terms : T/T, at sight LC, others can discuss

Valid : 30 days

Lead time :15-20 days

Package: wooden case

Remark: The price will change with any requirement changes



Certification and patent

Each unit of outdoor telecommunication cabinet shall be inspected before delivery;

The third party inspection is welcomed as well;

Independent Intellectual Property Rights especially for integrated outdoor telecommunication cabinet and air conditioner
