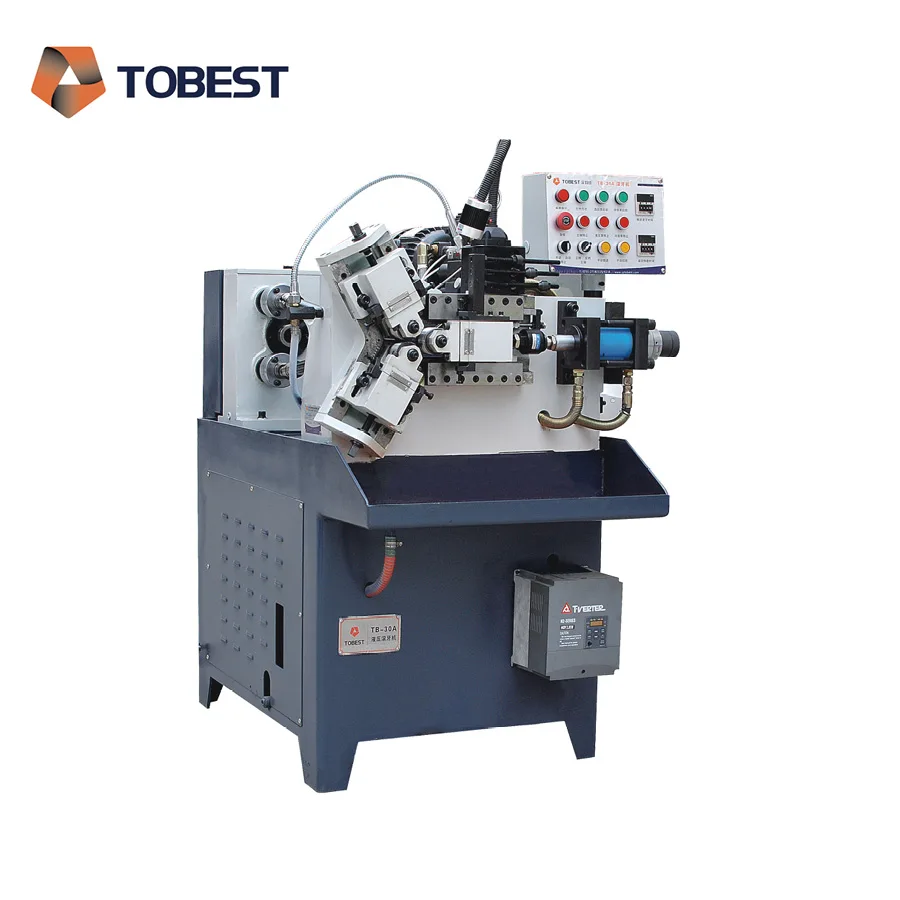

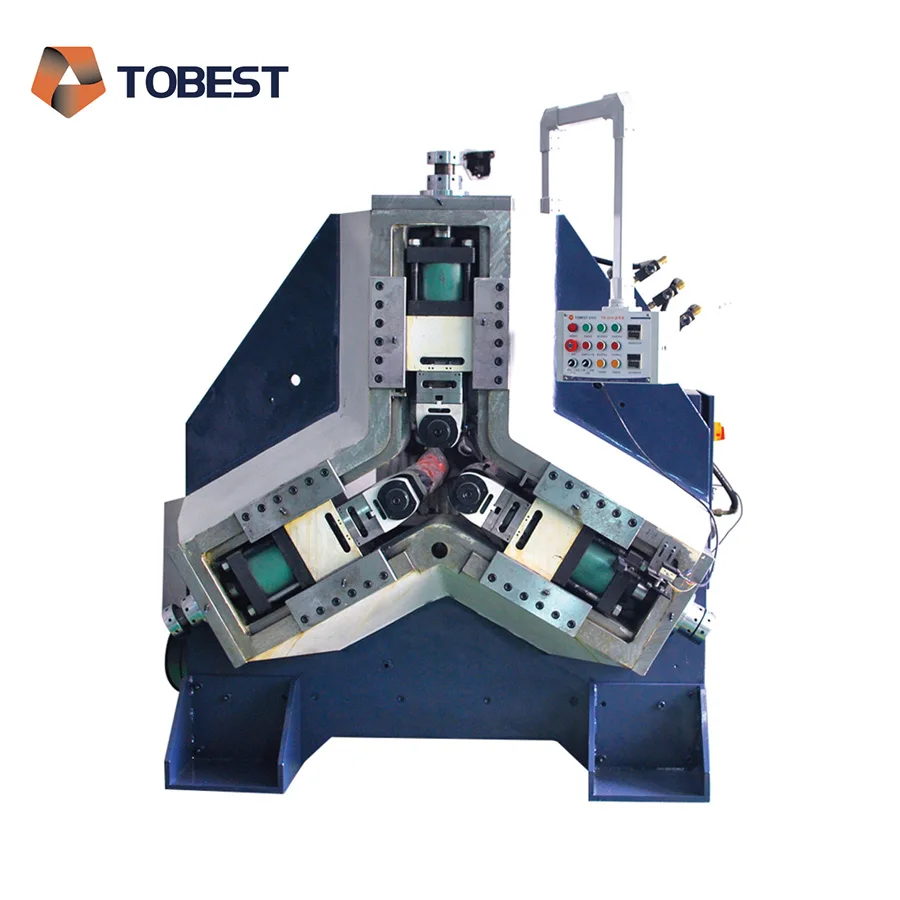

scaffolding pipe thread rolling pipe nipple tube Thread and profile rolling machines knurling machine threading machine pipe
- Category: >>>
- Supplier: Shenzhen Tobest Industry Co. Ltd.
Share on (62186578255):
Product Overview
Description
Product Overview
Advantages
1.Designed specially for small full-thread tube-type parts, easy to operate.
2.The spindle is controlled by frequency converter, the rotation speed can be adjusted as you want.
3.Adopt hydraulic circuit control for feeding, so the tool forward smoothly,easy to operate.
4.With heating treatment for driving gear with lower noise and high wear resistance
5.Suitable for the industries like connector, bicycle, auto fittings and oil tube joint, etc
2.The spindle is controlled by frequency converter, the rotation speed can be adjusted as you want.
3.Adopt hydraulic circuit control for feeding, so the tool forward smoothly,easy to operate.
4.With heating treatment for driving gear with lower noise and high wear resistance
5.Suitable for the industries like connector, bicycle, auto fittings and oil tube joint, etc
FEATURES AT A GLANCE
HIGH PRECISION
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
Application
PRODUCT SPECIFICATIONS
Diameter rang | 18-60mm | Outside diameter of rolling dies | 90-130mm |
Pitch rang | 10.-4.0p | Inside diameter of rolling dies | 40mm |
Max length of the threads | 50mm and thru-feed | Max thickness of rolling die | 50mm |
Rotation speed | 90/160/235/340 r/min | Output | 4-25pcs/min |
Machine motor | 3.75KW | Hydraulic motor | 2.2kw |
Max rolling pressure | 12tons | Machine weight | 1270KG |
Gross weight | 1350KG | Packing size | 1700*1600*1700mm |
Max center distance between die spindles | 190mm | Min center distance between die spindles | 105mm |
