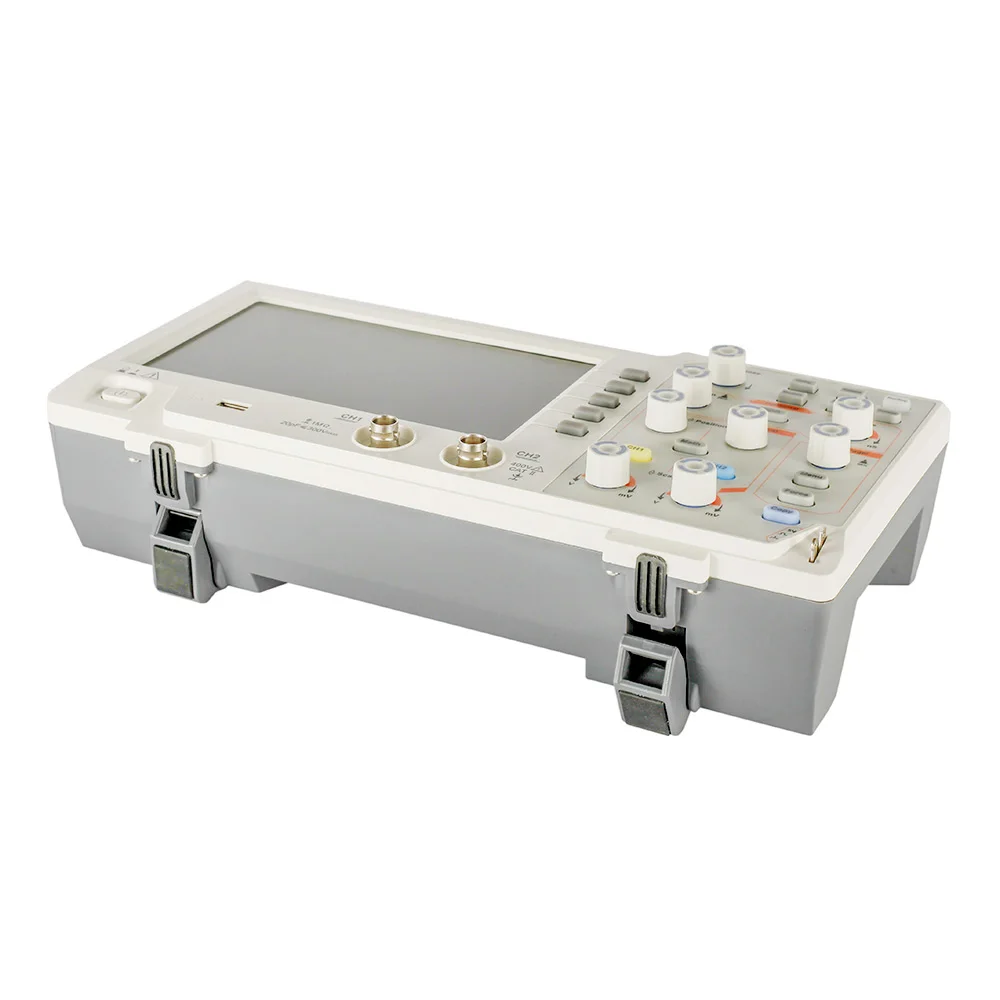

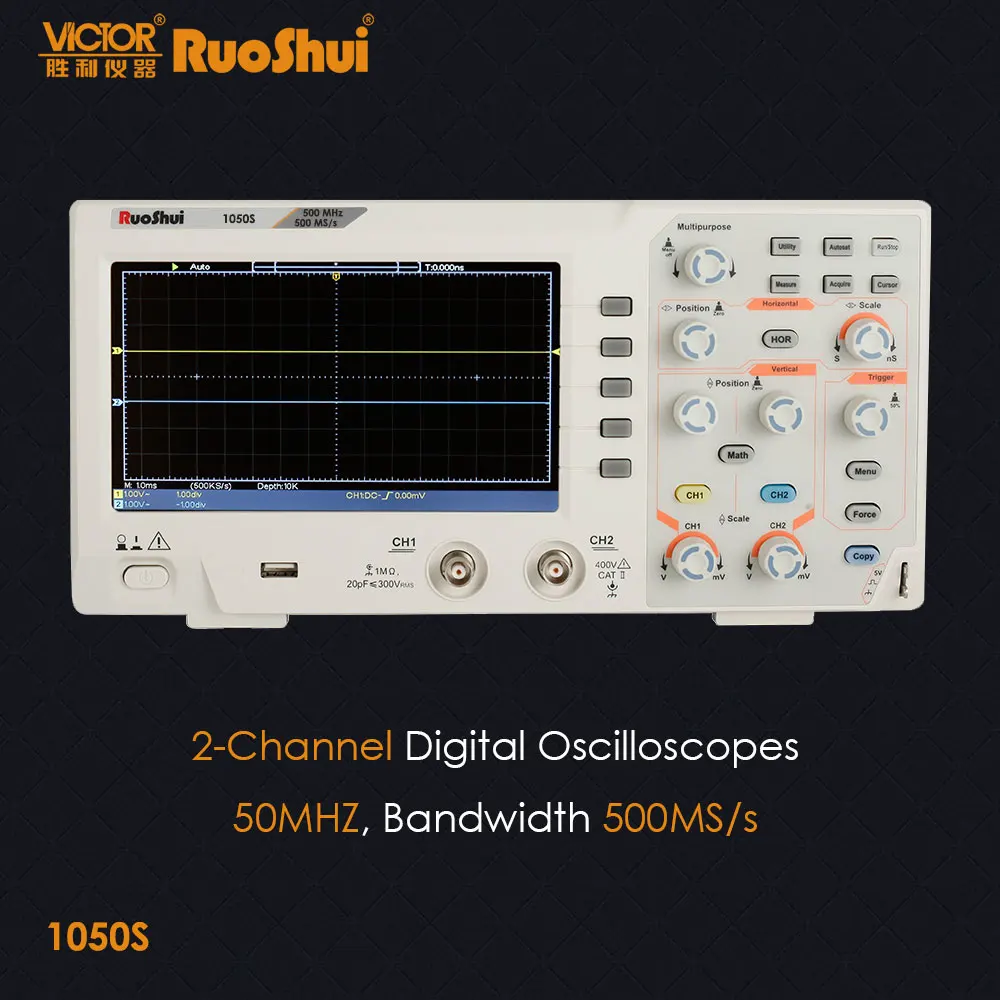

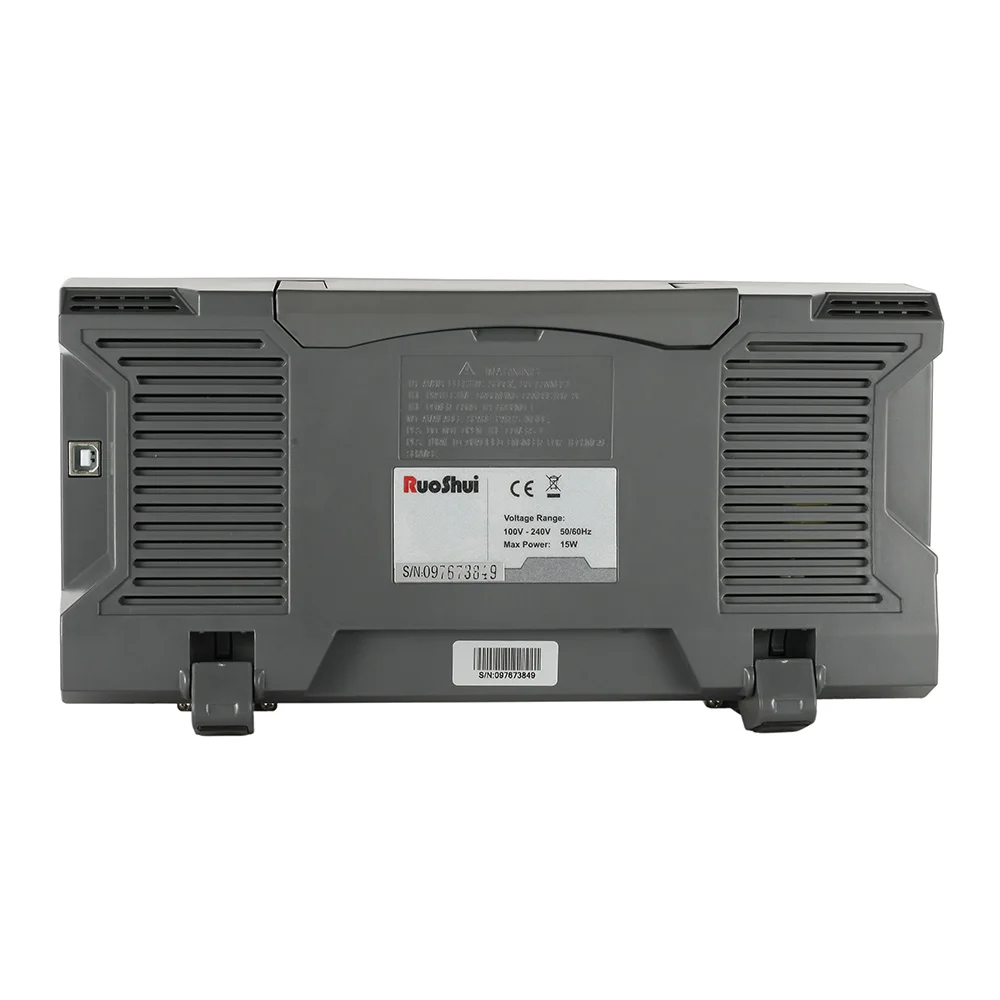

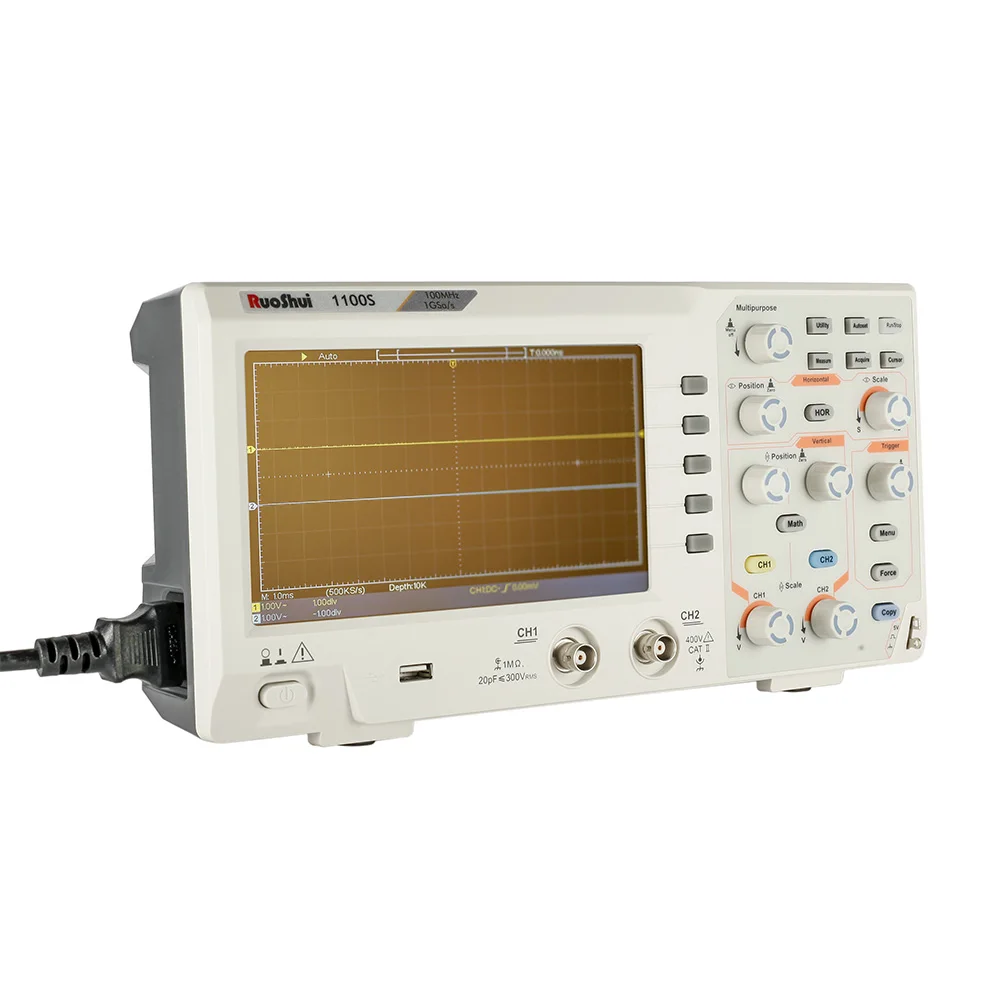

1050S RuoShui 50MHz 2 Channels Benchtop Digital Storage Oscilloscope

Model No.

1050S

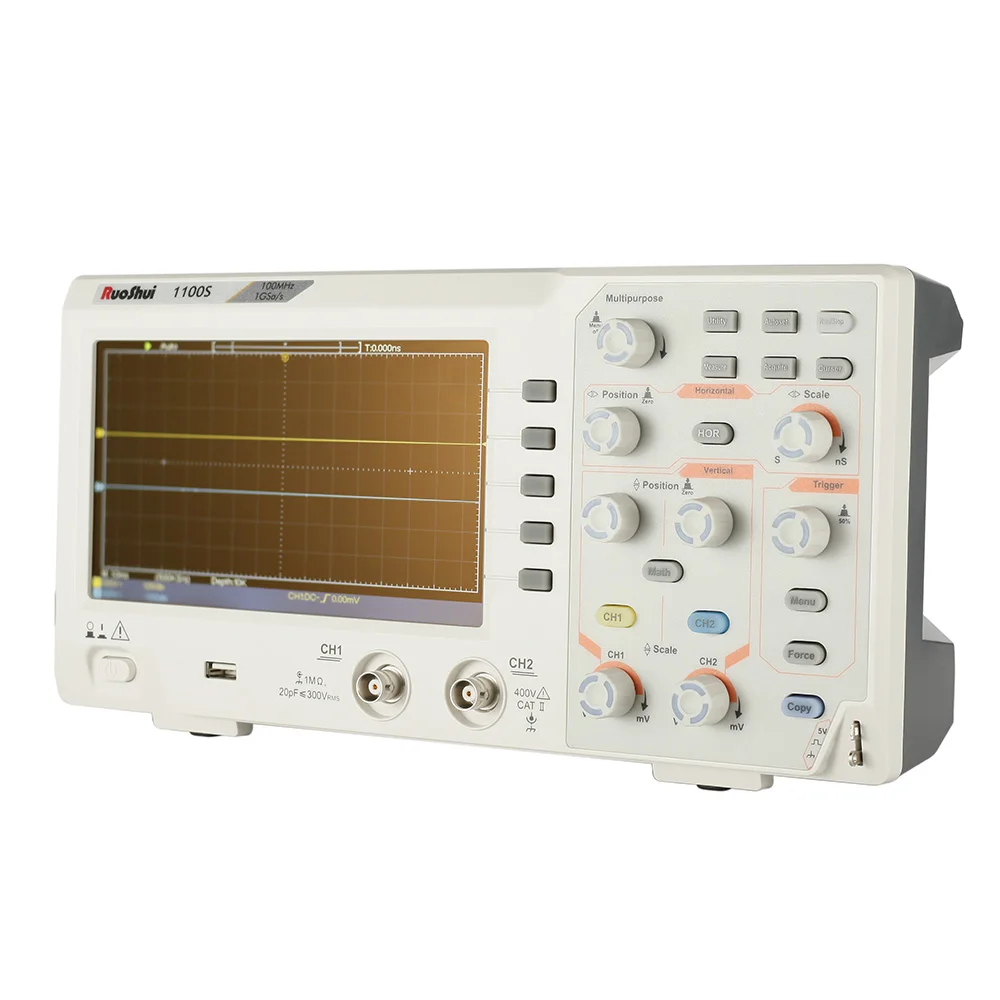

1100S

Bandwidth

50MHz

100MHz

Channel

2

2

Acquisition

Mode

Normal, Peak detect, Averaging

Sampling Rate (real time)

500 MS/s

1 GS/s

Input

Input coupling

DC,  AC ,  Ground

Input impedance

1 MΩ±2%, in parallel with 20 pF±5 pF

Input coupling

1X,10X,100X,1000X

Max. input voltage

400V (DC+AC, PK - PK)

Channel –channel isolation

50Hz:  100 : 1  / 10MHz:  40 : 1

Time delay between channel(typical)

150ps

Bandwidth limit

Not support

20 MHz, full bandwidth

Horizontal System

Sampling rate range

0.5 S/s~500 MS/s

0.5 S/s~1 GS/s

Interpolation

(Sinx)/x

Max Record length

10K

Scanning speed  (S/div)

2 ns/div – 1000 s/div, step by 1 – 2 - 5

Sampling rate / relay time accuracy

±100 ppm

Interval(T) accuracy

(DC -100MHz)

Single:±(1 interval time+100 ppm×reading+0.6 ns);
Average>16: ±(1 interval time +100 ppm×reading+0.4 ns)

Vertical system

Vertical Resolution (A/D)

8 bits (2 channels simultaneously)

Sensitivity

5 mV/div~5 V/div

Displacement

±2 V (5 mV/div – 100 mV/div)
±50 V (200 mV/div – 5 V/div)

Analog bandwidth

50MHz

100MHz

Single bandwidth

Full bandwidth

Low Frequency

≥10 Hz (at input, AC coupling, -3 dB)

Rise time (at input, Typical)

≤ 7.0 ns

≤ 3.5 ns

DC gain accuracy

±3%

DC accuracy (average)

Delta Volts between any two averages of
≥16 waveforms acquired with the same scope
setup and ambient conditions (V):  ±(3% reading + 0.05 div)

Waveform inverted ON/OFF

Measurement

Cursor

V, T, T&V between cursors, auto cursor

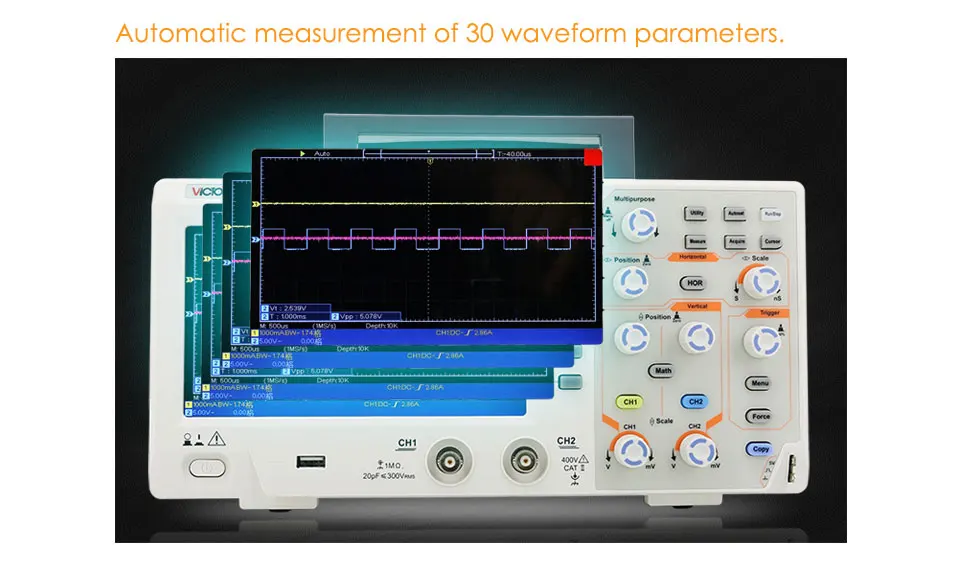

Automatic

Period, Frequency, Mean, PK-PK, RMS, Max,
Min, Top, Base, Amplitude, Overshoot, Preshoot,
Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.

Waveform Math

+, -, *, / ,FFT

Waveform storage

16 waveforms

Lissajous figure

Bandwidth: Full bandwidth / Phase difference:±3 degrees

Trigger

Trigger level range

Internal:±5 div from the screen center

Trigger level accuracy (typical)

Internal:±0.3 div

Trigger displacement

According to Record length and time base

Trigger Holdoff range

100 ns – 10 s

50% level setting (typical)

Input signal frequency ≥ 50 Hz

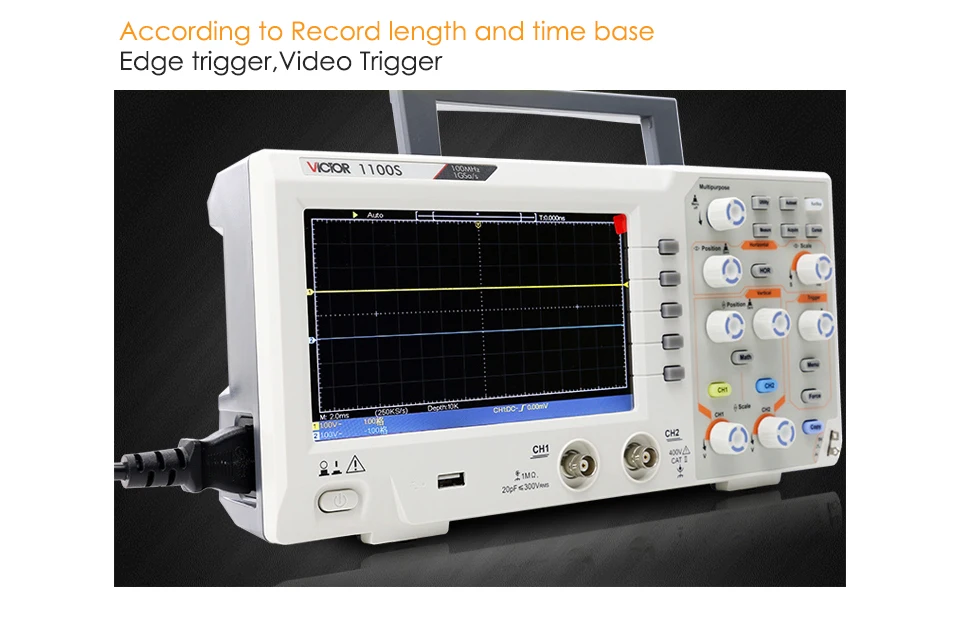

Edge trigger

slope: Rising, Falling

Video Trigger

Modulation: Support standard NTSC, PAL and SECAM broadcast systems
Line number range:1-525 (NTSC) and 1-625 (PAL/SECAM)

Communication

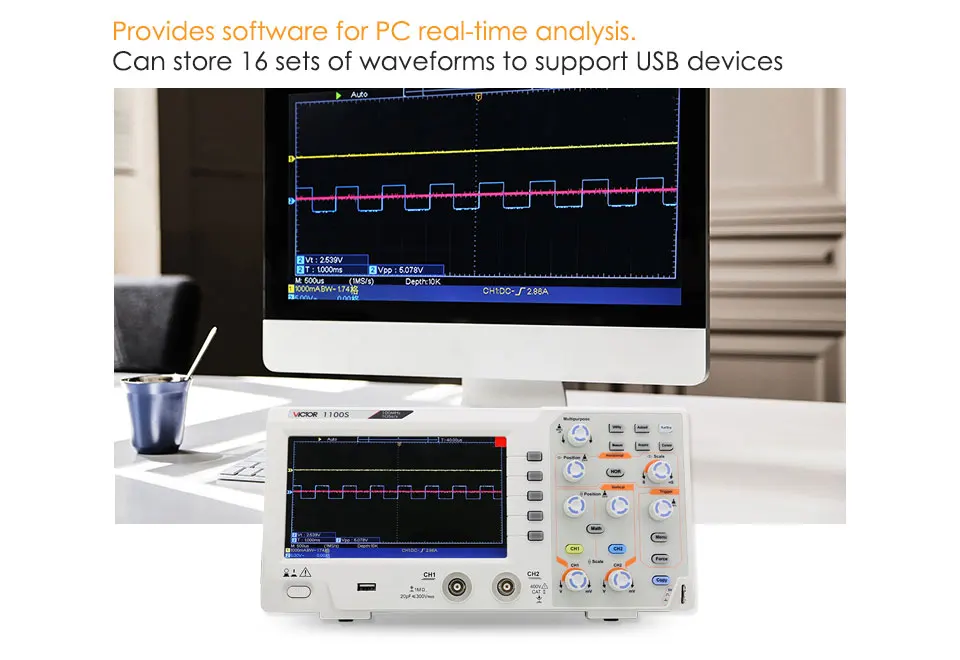

USB 2.0 (USB storage)

Counter

Support

General Information

Temperature

Working temperature: 0 ℃ - 40 ℃
Storage temperature: -20 ℃ - 60 ℃

Relative humidity

≤ 90%

Height

Operating: 3,000 m
Non-operating: 15,000 m

Cooling Method

Natural cooling

Probe compensator output Voltage

About 5 V, with the Peak-to-Peak voltage ≥1 MΩ.

Probe compensator output frequency

Square wave of 1 KHz

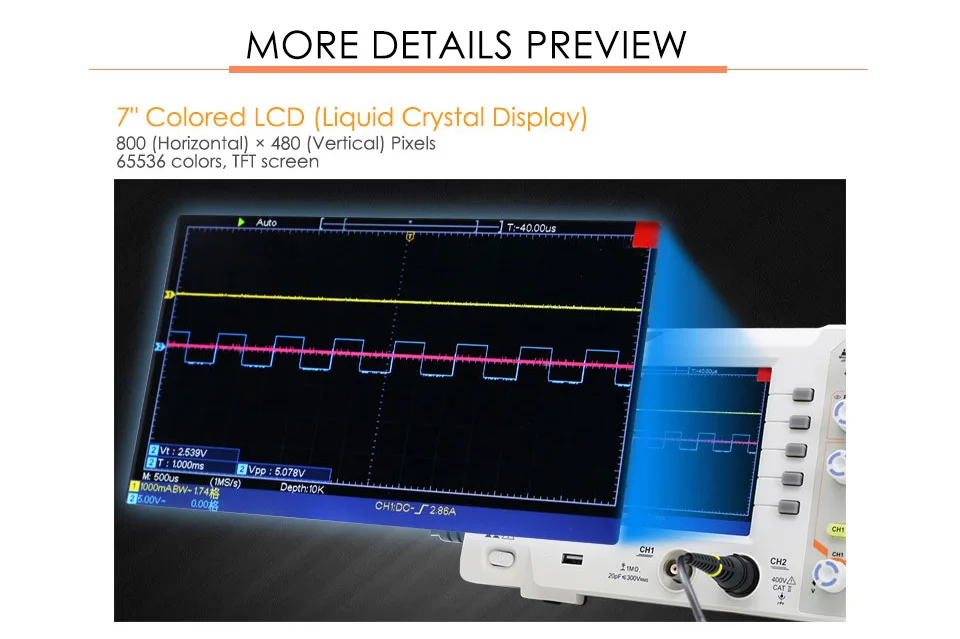

LCD size

7" Colored LCD

Display resolution

800 (Horizontal) × 480 (Vertical) Pixels

Display color

65536 colors, TFT screen

Power supply

100 - 240 VACRMS, 50/60 Hz, CAT Ⅱ

Power Consumption

< 15 W

Fuse

2 A, T class, 250 V

Product Dimension

301 mm× 152 mm×70 mm (L*H*W)

Product weight

About 1.1 kg

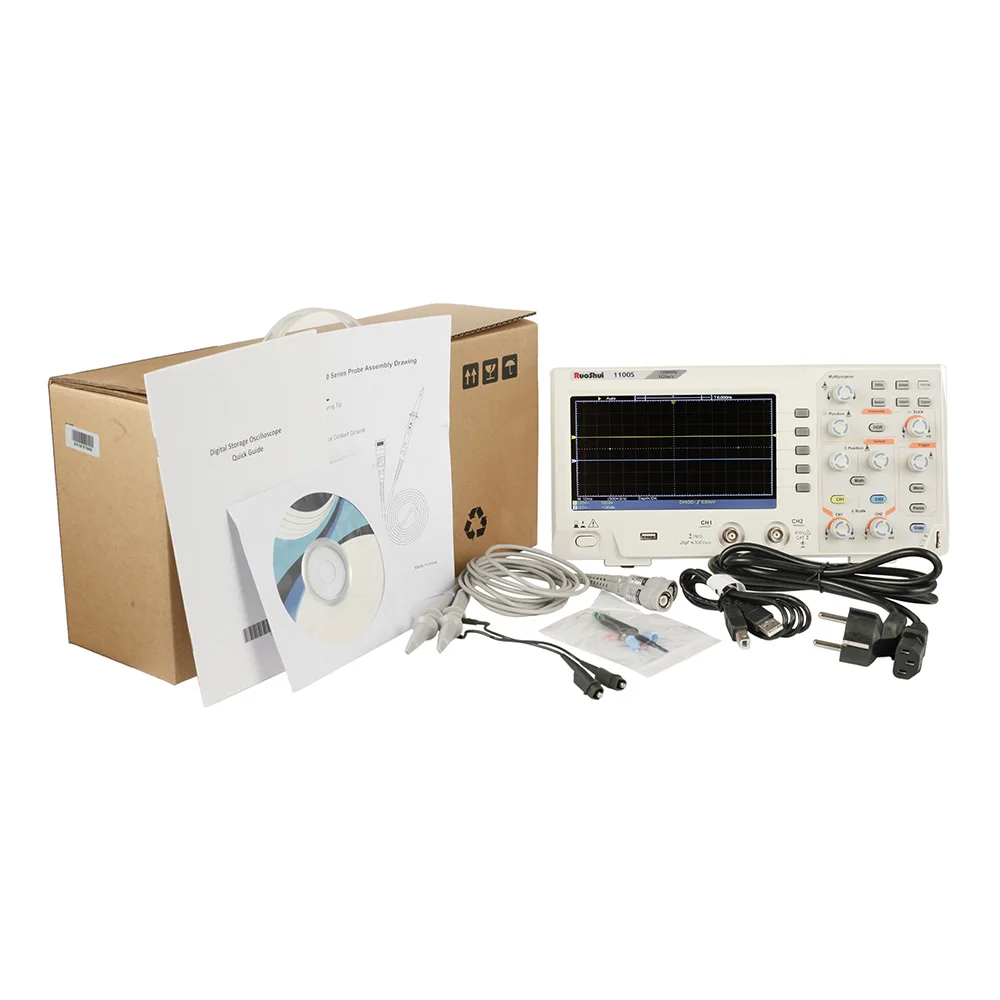

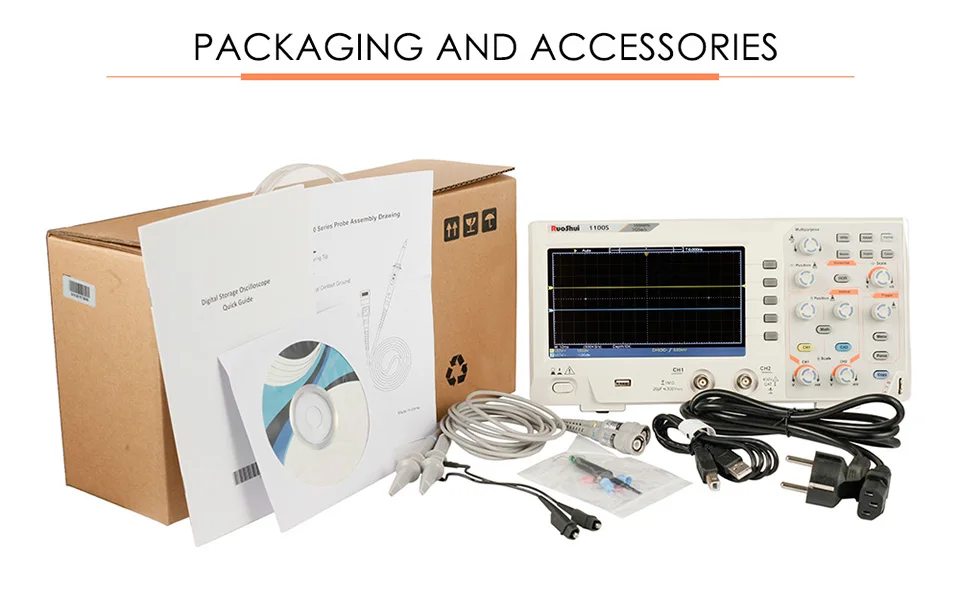

Standard Accessories

Power Cord, Software CD, User Manual , USB cable ,Probe , probe adjust . Pouch (Optional)
