Product Overview
Description
Products Description
Vacuum lifters are the ideal way to make production processes and transports easier.Whether you want to
transport steel,glass-elements,stone or wood...fromA to Byou will find the perfect solution here at Easytech
- the leader of sophisticated vacuum transport techniques.
transport steel,glass-elements,stone or wood...fromA to Byou will find the perfect solution here at Easytech
- the leader of sophisticated vacuum transport techniques.
Features: | ||
Secure | Damage-free gripping by using vacuum lifting. | |
Easy to use | Simple operation, improve efficiency. Minimization of downtime dut to employee injury. Increase in employee motivation. Only one person for handling. | |
Wide Applications | Apply to fast and frequent lifting and moving of workpieces weighing to stone plate, glass, metal, aluminum, PVC plate, acrylic sheet and so on. | |
12 months | 12 months guarantee, all-round services | |
Multiple | Multiple modes of energy supply plug-in and pneumatic, suitable for most of the working environment. | |
MAX 500KG | Max capacity up to 500kg, can achieve most of light or heavy load workpieces loading and unloading tasks. | |
General Descriptions:
The Vacumaster, is a kind of industrial handling system, by the column, the slewing arm, the slewing drive device and the electric hoist composition, light self-weight, big transportation span, high lifting weight capacity, strong practicability.
The crane is fixed on the concrete foundation by the anchor bolt, and the handling system is driven by the cycloidal gear reducer to rotate. The electric hoist runs in a straight line left and right on the I-beam of the cantilever and lifts the heavy objects.
Built-in walking mechanism adopts special engineering plastic walking wheel with roller bearing, with low friction and brisk
walking; The small size of the structure is especially beneficial to improve the hook travel.
This handling system is a new generation of light lifting equipment made to adapt to modern production, with high reliability of the chain electric hoist is especially suitable for short distance, frequent use, intensive lifting operations, with high efficiency, energy saving, labor saving, small area, easy to operate.
This vacumaster is used together with our vacuum lifter. The vacuum lifter equipment is equipped with vacuum suckers and multi-point adsorption vacuum surfaces to ensure the lifting force on workpieces. Flexible suction pad position by adjust the rectangular clamp. A variety of structure suction cups layout is realizable for different sizes of workpiece and all kinds of vacuum surfaces.
Using Easytech handling systems to load and unload punching machines, bending machines or CNC laser cutting systems reduces downtime while protecting the surface of sensitive workpieces.
The crane is fixed on the concrete foundation by the anchor bolt, and the handling system is driven by the cycloidal gear reducer to rotate. The electric hoist runs in a straight line left and right on the I-beam of the cantilever and lifts the heavy objects.
Built-in walking mechanism adopts special engineering plastic walking wheel with roller bearing, with low friction and brisk
walking; The small size of the structure is especially beneficial to improve the hook travel.
This handling system is a new generation of light lifting equipment made to adapt to modern production, with high reliability of the chain electric hoist is especially suitable for short distance, frequent use, intensive lifting operations, with high efficiency, energy saving, labor saving, small area, easy to operate.
This vacumaster is used together with our vacuum lifter. The vacuum lifter equipment is equipped with vacuum suckers and multi-point adsorption vacuum surfaces to ensure the lifting force on workpieces. Flexible suction pad position by adjust the rectangular clamp. A variety of structure suction cups layout is realizable for different sizes of workpiece and all kinds of vacuum surfaces.
Using Easytech handling systems to load and unload punching machines, bending machines or CNC laser cutting systems reduces downtime while protecting the surface of sensitive workpieces.

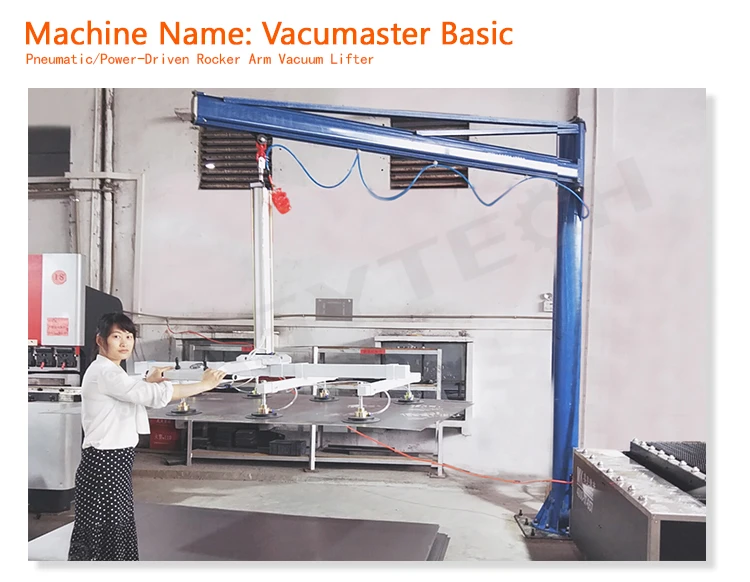

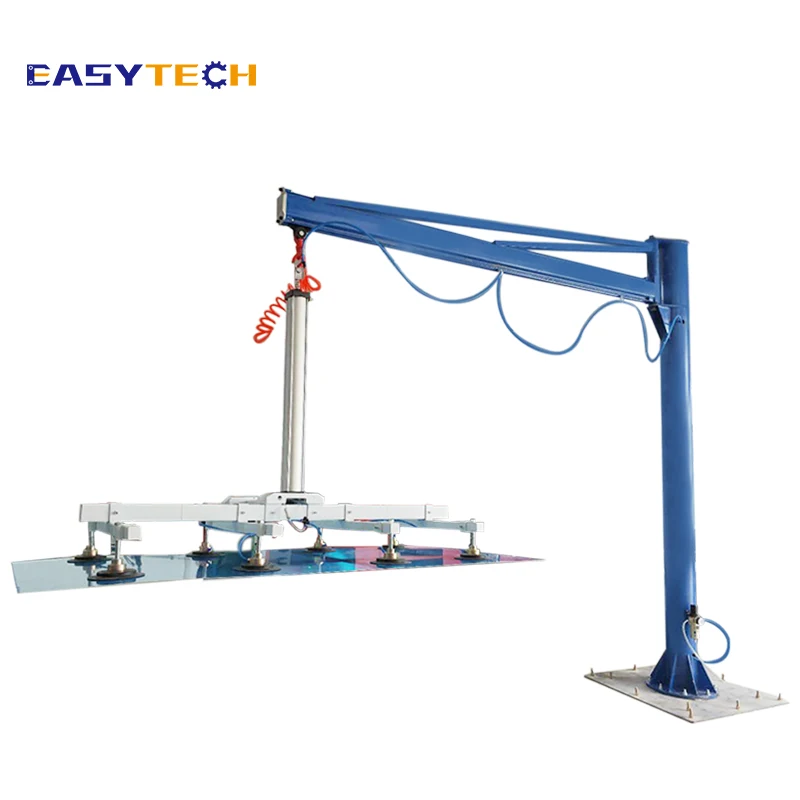

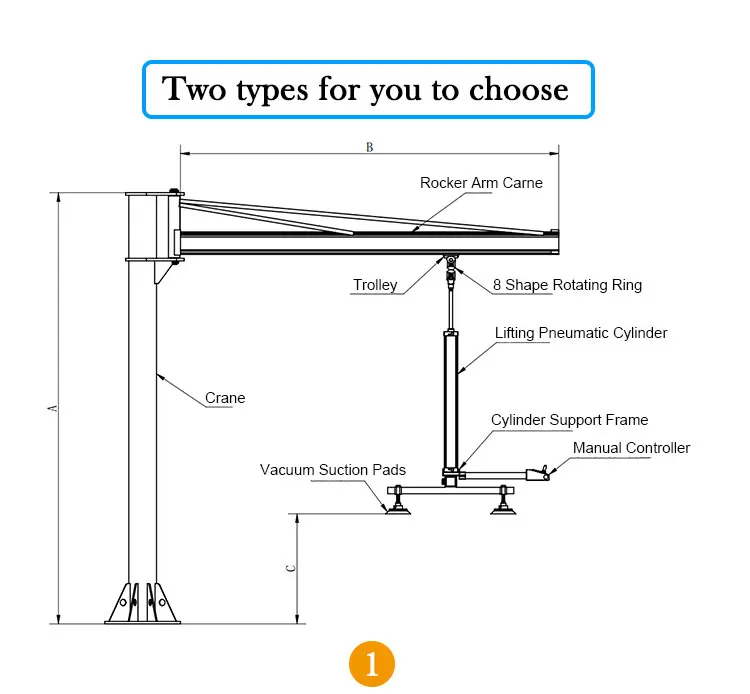

Vacumaster Pneumatic Type
The standard model covers a load of up to 500kg and can also be customized to extend the rocker arm
and crane, increasing the working radius.
and crane, increasing the working radius.
Model | A-Came | B-Rocker Arm | C-STROK | Capacity | Air Pressure | Max Workpieces | Voltage |
ETJSB-Q100-B3M | 3430 mm | 3000mm | 100-1100 mm | 100kg | 0.6-0.8Mpa | 3000*1500mm | / |
ETJSB-Q100-B4M | 4000mm | ||||||
ETJSB-Q300-B3M | 3000mm | 300kg | |||||
ETJSB-Q300-B4M | 4000mm | ||||||
ETJSB-Q500-B3M | 3000mm | 500kg | |||||
ETJSB-Q500-B4M | 4000mm |
ETJSB-Q100-B3M | Size(L*W*H mm) | Suction Pad(pcs/dla) |
ETJSB-Q100-B4M | 3430*3000*2000 | 8pcs/200mm |
ETJSB-Q300-B3M | ||
ETJSB-Q300-B4M | ||
ETJSB-Q500-B3M | ||
ETJSB-Q500-B4M |

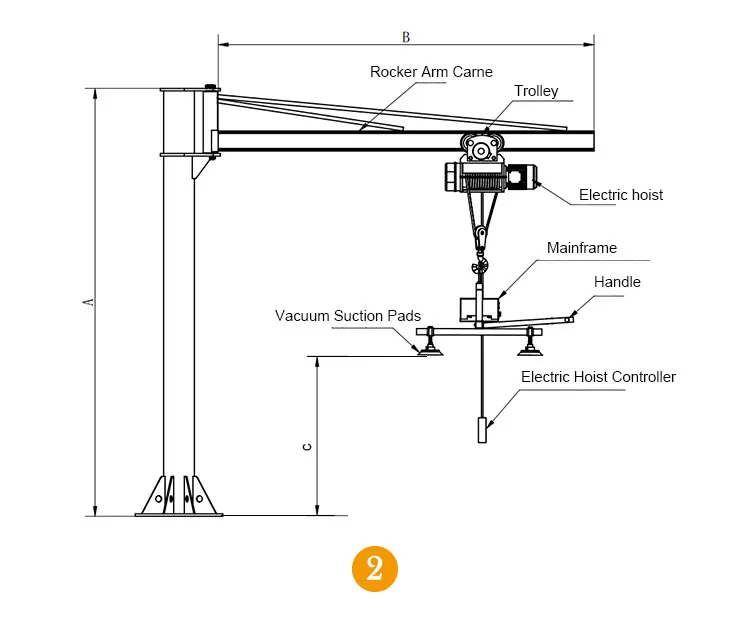

Vacumaster Electric Type
Model | A-Came | B-Rocker Arm | C-STROK | Capacity | Max Workpieces | Air Pressure |
ETJSB-D300-B3M | 3000mm | 0-1600mm | / | |||
ETJSB-D300-B4M | 4000mm | 300kg | ||||
ETJSB-D500-B3M | 3000mm | |||||
ETJSB-D500-B4M | 4000mm | 500kg | ||||
ETJSB-D1000-B3M | 3000mm | |||||
ETJSB-D1000-B4M | 4000mm | 1000kg |
ETJSB-D300-B3M | Voltage | Size(L*W*H mm) | Suction Pad(pcs/dla) |
ETJSB-D300-B4M | 380V | 3430*3000*2000 | 8pcs/200mm |
ETJSB-D500-B3M | |||
ETJSB-D500-B4M | |||
ETJSB-D1000-B3M | |||
ETJSB-D1000-B4M |
Company Profile
How to choose a rocker arm lifter?
1. What are you going to lift, size and weight of the workpiece?
2. What are you going to do with your workpiece? To load and unload punching machines, bending machines or CNC laser cutting systems?
3. What's the minimum working space/radius, plant height of your workshop? What's the subgrade situation of your workshop?
4. Which model are you prefer to use, pneumatic or electric type?
2. What are you going to do with your workpiece? To load and unload punching machines, bending machines or CNC laser cutting systems?
3. What's the minimum working space/radius, plant height of your workshop? What's the subgrade situation of your workshop?
4. Which model are you prefer to use, pneumatic or electric type?
