Product Overview

Description


Product Description

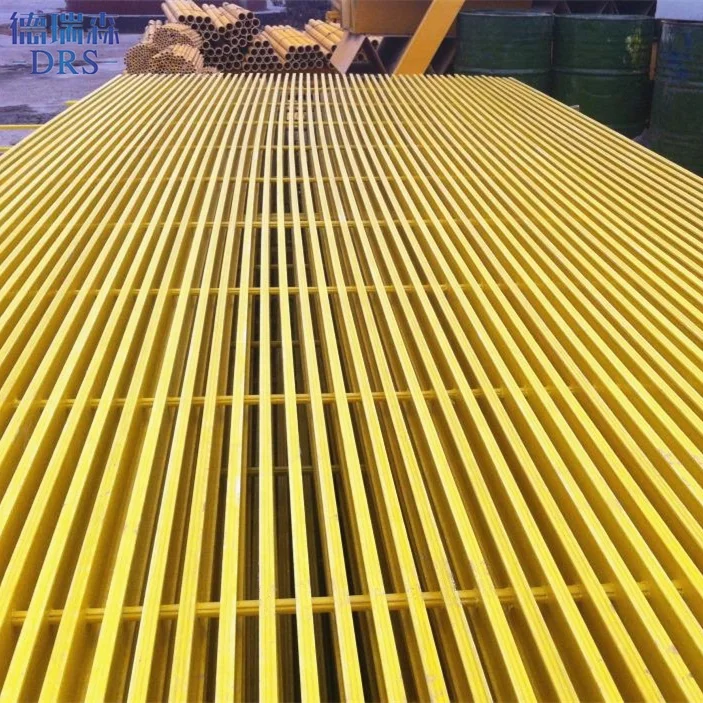

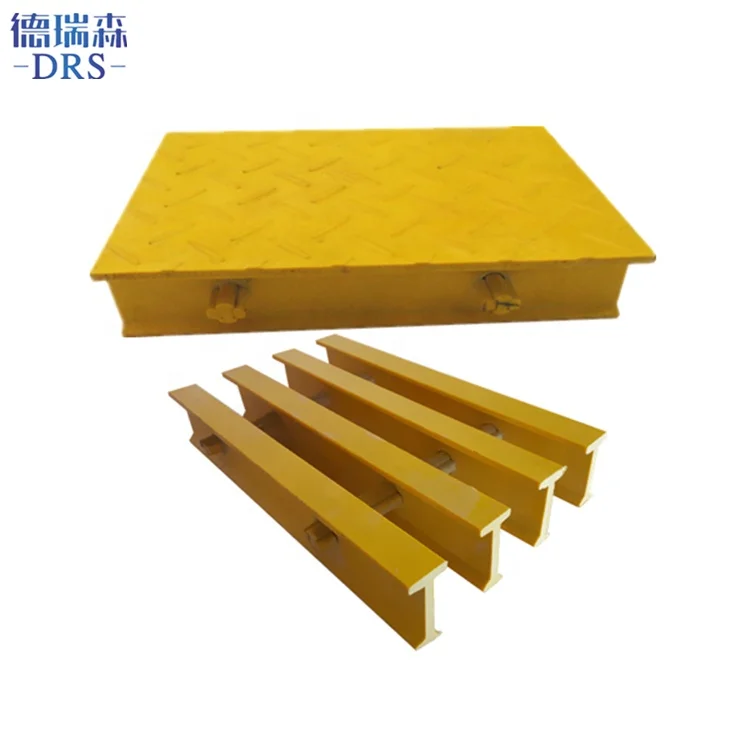

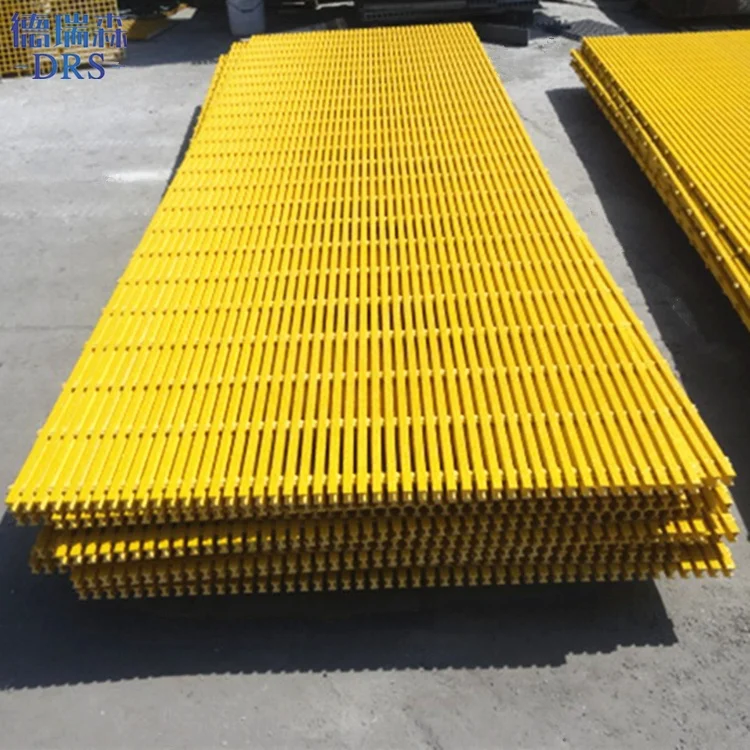

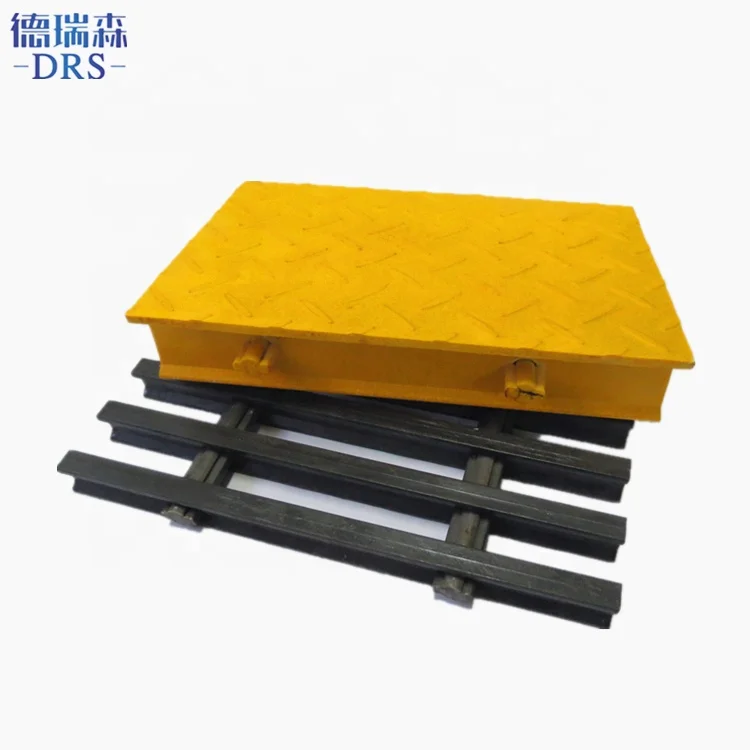

Fiberglass FRP Grating Deck Panel


\t

Parameters

\t
Type
\t
Fiberglass FRP Grating Deck Panel
\t
Material
\t
ECR Glass Fiber + Resin  (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)
\t
Size
\t
I-1410,I-6015, etc. can be customized (pls check detail as below form)
\t
Color
\t
According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
\t
Surface
\t

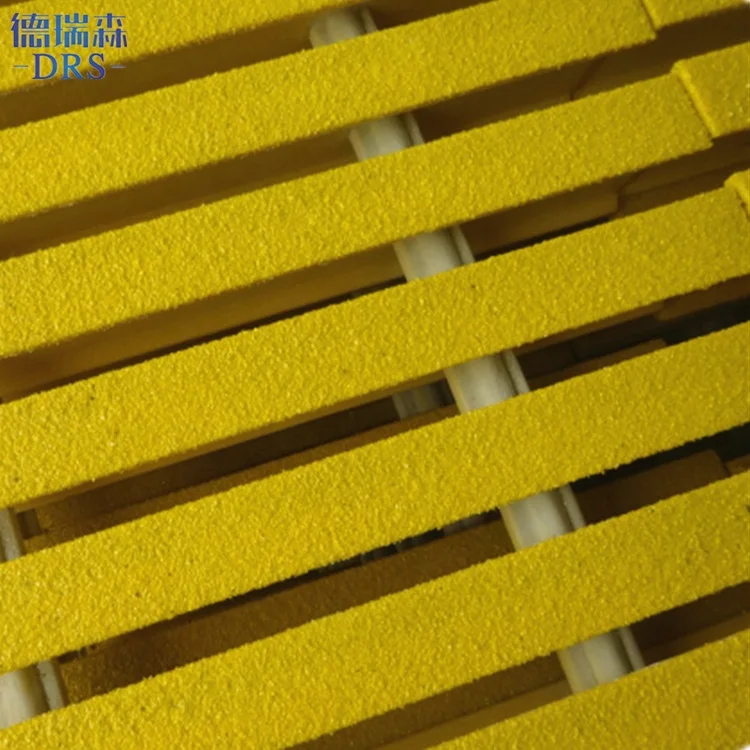

Gritted,  Smooth, Solid Top Covered
\t

Properties

\t

Light Weight / High Strength

\t

Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength

\t
Anti-Fire / Safety
\t
Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
\t
Anti-Corrosion
\t
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
\t
Anti-skid
\t
Different process mode on surface, concave, gritted, increase friction factor.
\t
Anti-aging
\t
Have more than 20 years effective service life under normal outdoor working condition.
\t
Anti-fatigue
\t
Moderate flexibility reduces the workers` pressure on legs and waist
\t
Easy maintenance
\t
have alternative and bright colors. Non-fading. Easily for clean.
\t
Excellent economic benifits
\t
Excellent comprehensive economic benefits
Size-Pultrud Grating
\t
Item
\t
Height(mm)
\t
Upper Width(mm)
\t
space distance(mm)
\t
gap width(mm)
\t
I-1410
\t
25
\t
15
\t
25
\t
10
\t
I-5010
\t
25
\t
15
\t
30
\t
15
\t
I-6010A
\t
25
\t
15
\t
38
\t
23
\t
I-6010B
\t
25
\t
8
\t
19.8
\t
11.8
\t
I-4015
\t
38
\t
15
\t
25
\t
10
\t
I-5015
\t
38
\t
15
\t
30
\t
15
\t
I-6015
\t
38
\t
15
\t
38
\t
23
\t
I-4012
\t
30
\t
15
\t
25
\t
10
\t
I-5012
\t
30
\t
15
\t
30
\t
15
\t
I-6012
\t
30
\t
15
\t
38
\t
23
\t
I-40125
\t
32
\t
15
\t
25
\t
10
\t
I-50125
\t
32
\t
15
\t
30
\t
15
\t
I-60125
\t
32
\t
15
\t
38
\t
23
\t
I-4020
\t
50
\t
15
\t
25
\t
10
\t
I-5020
\t
50
\t
15
\t
30
\t
15
\t
I-6020
\t
50
\t
15
\t
38
\t
23
\t
T-1210
\t
25
\t
38
\t
43.4
\t
5.4
\t
T-1810
\t
25
\t
38
\t
50.8
\t
9.5
\t
T-2510
\t
25
\t
38
\t
50.8
\t
12.7
\t
T-3310
\t
25
\t
41.3
\t
19.7
\t
61
\t
T-3810
\t
25
\t
38
\t
61
\t
23
\t
T-1215
\t
38
\t
38
\t
43.3
\t
5.2
\t
T-2515
\t
38
\t
38
\t
50.8
\t
12.7
\t
T-3815
\t
38
\t
38
\t
61
\t
23
\t
T-3320
\t
50
\t
25.4
\t
38.1
\t
12.7
\t
T-5020
\t
50
\t
25.4
\t
50.8
\t
25.4
\t
HL-4020
\t
50
\t
15
\t
10
\t
10
\t
HL-5020
\t
50
\t
15
\t
15
\t
15
\t
HL-6020
\t
50
\t
15
\t
23
\t
23
Applications-Grating

Walkway / Platform Grating

Decking Grating

Stair Grating

Floor Grating

Marine Industry Platform Grating

Drain Grating
