Automatic Burger Breakfast Bread Flowpack flow Packing Machine
- Category: >>>
- Supplier: Foshan Tentoo Mechanical Equipment Co. Ltd.
Share on (62186935957):
Product Overview
Description
Product Description
Main Performance And Structure Features:
>Multi-function, various products and size available
>PLC Touch screen operation, easy to operate and understand
>High speed, connectable to various feeder line
>Double frequency converter controller / servo motor for choice
>High sensitivity sensor, Durable sealing cutting blades
Machine Specification:
(We can customize the suitable one for you according to your requiredment.Just Tell us : Weight or Bag Size required.)
Specification (With the product size selection models) | ||||||
Model | TT-250 | TT-320 | TT-350 | |||
Film Width | Max.250mm | Max.320mm | Max.350mm | |||
Bag Length | 65-280mm | 65-330mm | 65-330mm | |||
Bag Width | 30-110mm | 50-150mm | 50-160mm | |||
Products High | max.55mm | max.55mm | max.60mm | |||
Packing Speed | 40-330bag/min | 40-230bag/min | 40-180bag/min | |||
Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW | |||
Machine Size(mm) | 3770x680x1420 | 3770x720x1420 | 4020x770x1420 | |||
Machine Weight | 500kg | 550kg | 580kg | |||
Detailed Images

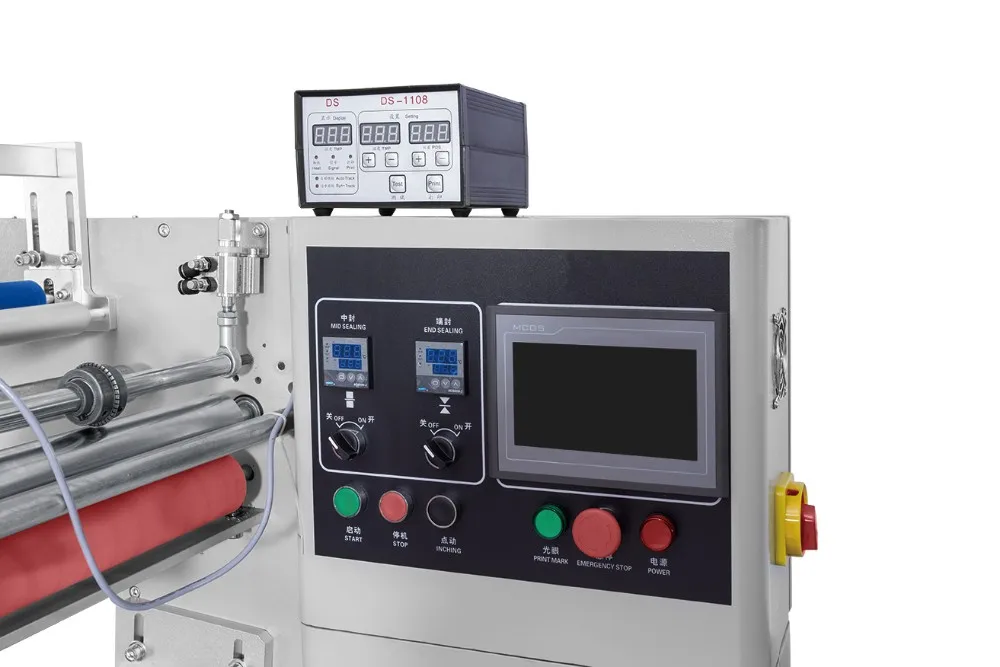

Easy Control Touch Screen
7Inch Touch Screen ,Easy Operation and Multiple language For Choice.

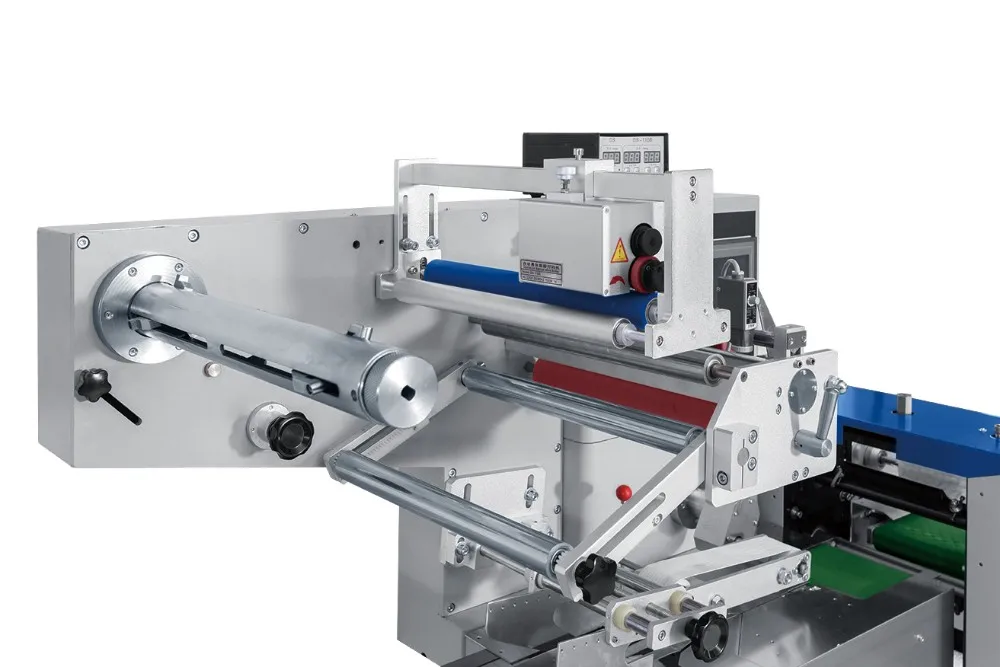

Stable and simply roll structure enable roll film running smoothly
Stable and simply roll structure enable roll film running smoothly
Hot Pressing Middle Seal Area
Independent PID temperature control ,heating the double turntable seal ,sealing the back of the packaged product,guaranteed sealing .
Full 304SS Conveyor
Machine conveyor is made of 304 stainless steel ,Health and Safety Durable feed by manually or automatically

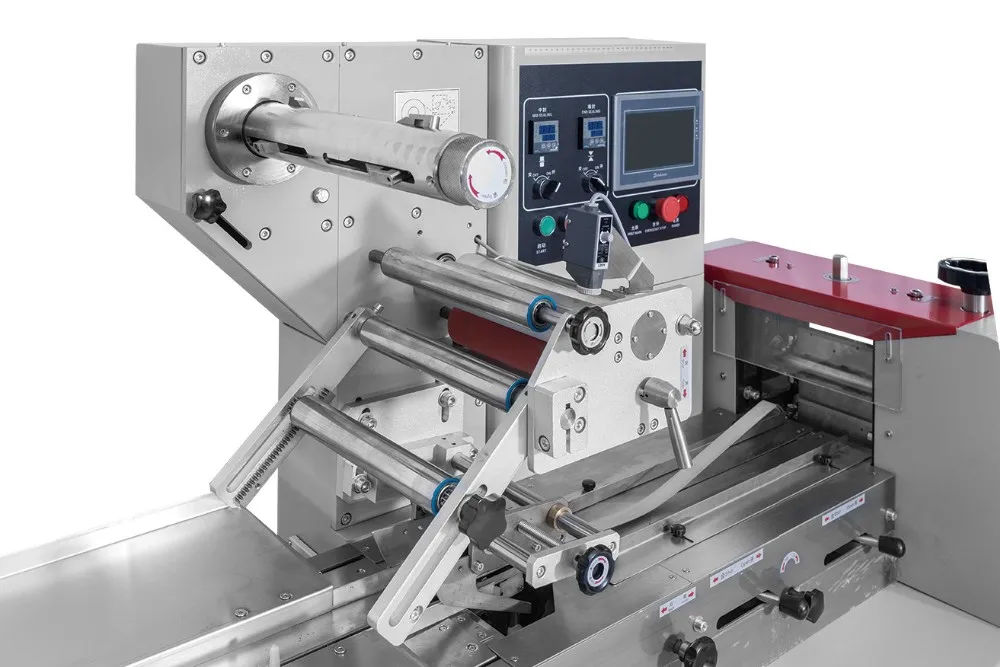

Bag Making Device
Automatic roll film bag shape ,flexible and convenient
End Seal Cutting Area
Rotate the constant temperate heat sealing cutter to seal the front and rear ends of the packaged product and avoid curling or llopholes in the sealing position.
Linkage Roll Film Shaft
Coordinating the film pulling process with Multi-linkage roll film shaft ,adapt to more film material,film rolling process is smoother.
Main Features
This machine is mainly used for packaging bread/bakery, chocolate, sweets, biscuit, vitelline pie, lollipop, moon cake, ice cream, card, wet tissue, spoon, toothbrush, soap, scourer ball, syringe, hardware, commodity and the products with regular shape and no sticky
Packing & Delivery

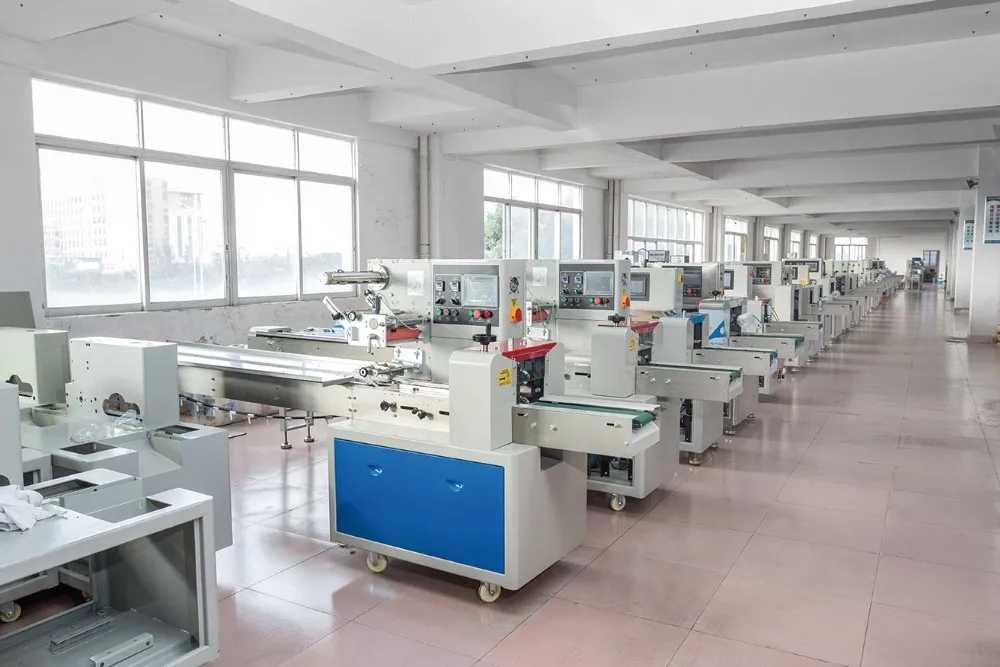

Our Company
After-sale Services:
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Tentoo engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. TENTOO has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
