JH 30 Q Fully Automatic Single Stage Flame Control Stove Natural Gas Burner

Name: JH 30 Q Fully Automatic Single Stage Flame Control Stove Natural Gas Burner
SKU: 62186969011
Availability: InStock

Price:

Quantity:

JH-30-Q Fully Automatic Single Stage Flame Control Stove Natural Gas Burner

Product Description

Technical Parameters
Model		JH-5-Q	JH-10-Q	JH-15-Q	JH-30-Q	JH-40-Q	JH-60-Q
Output power	KW	23-70	46-116	81-174	116-302	174-464	232-696
Output power	104Kcal/h	2-6	4-10	7-15	10-30	15-40	20-60
Control mode		Fully automatic single stage flame control				Fully automatic two-stage flame control
Applicable fuel		Nature gas
Fuel consumption	m³	5.9	11.8	17.6	35.3	47.1	70.6
Adaptable pressure range	mbar	30-50				50-150
Design fuel calorific value	Kcal/Nm³	35.53(8500Kcal/Nm³)
Adapt to ambient temperature	℃	-15~60
Applicable power supply		AC220V/50Hz/1O				AC380V/50Hz/3O
Motor power	KW	0.08	0.18	0.18	0.37	0.75	1.1
Safety Protection Level	IP	55(The protection level can be improved according to the order requirement.)
Flange Installation Form		Sliding adjustable flange
Fuel access port size		DN15	DN15	DN20	DN20	DN25	DN40
*Main Body Size of Burner (Length Width * Height)**	mm	400350450	560400350	560400350	750550550	1150760500	1280860500
Burner weight	kg	6.1	15	15.7	21	44.5	64

.jpg

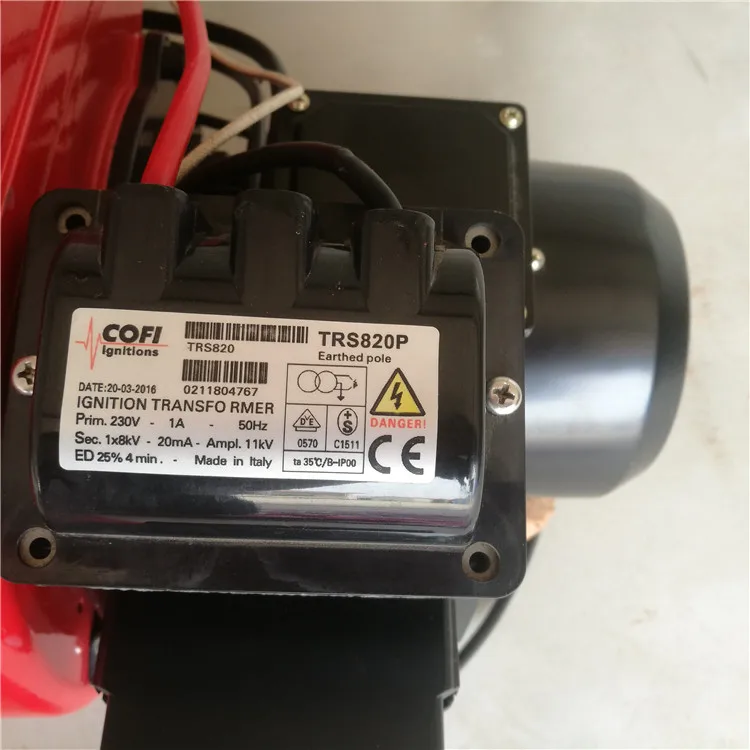

COFI .jpg

.jpg

Packaging & Shipping

.jpg
