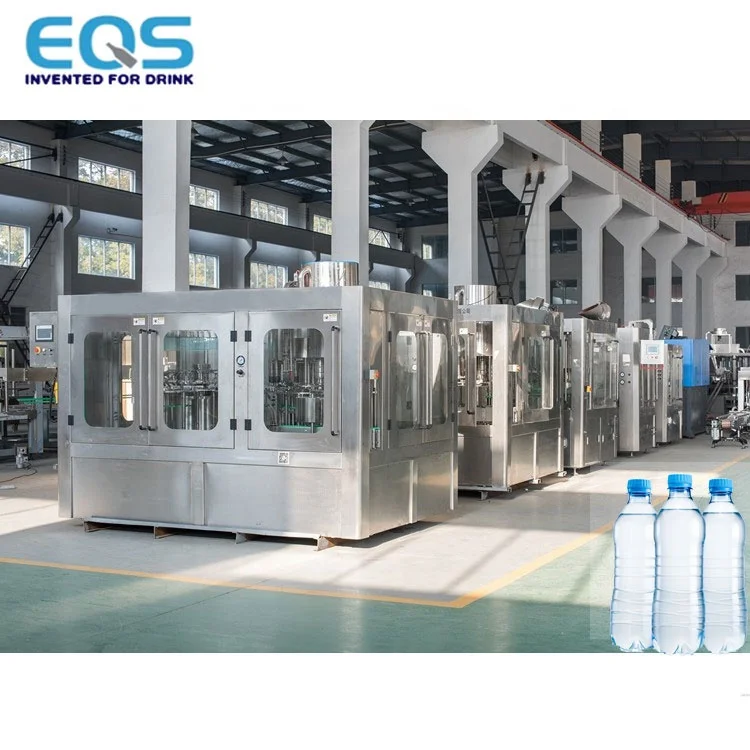

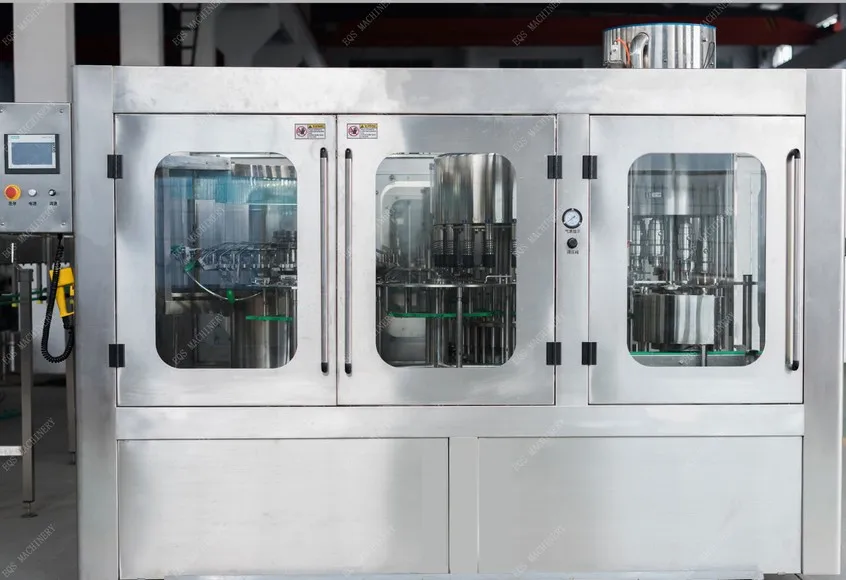

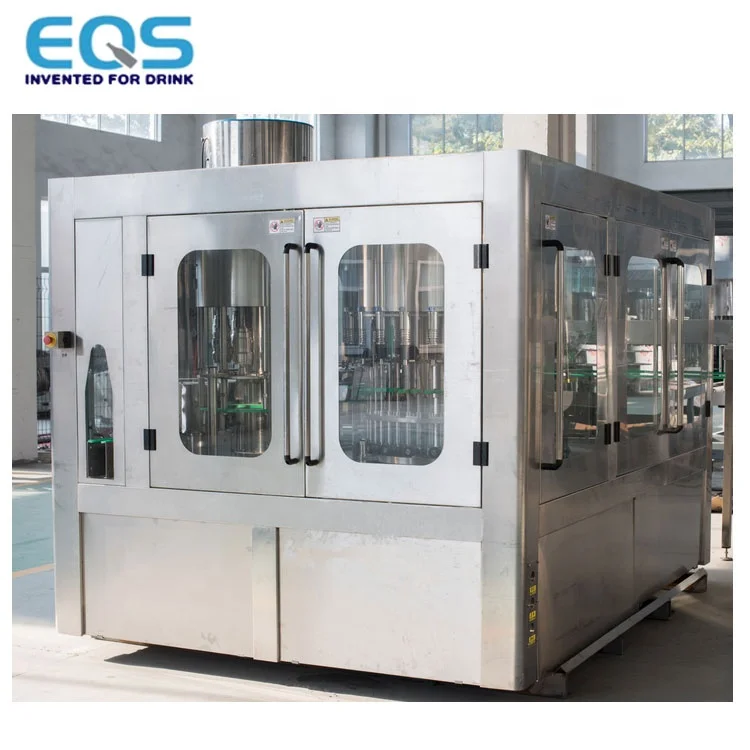

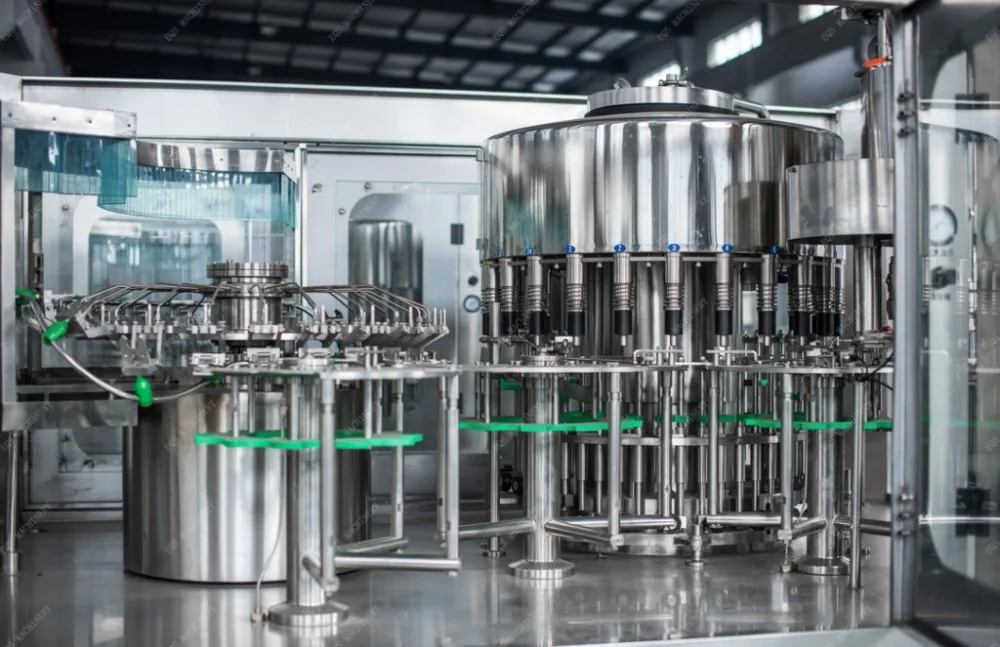

This Water Filling Machine is used to produce polyester bottled mineral water, purified water, drinking water beverage machinery and other non-gas beverage machinery. This Water Filling Machine can finish all the process such as rinsing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
General Information 1. This Drinking Water Plant is for Plastic bottle (PET Bottle). 2. Its Capacity is 8000BPH for 500ML Bottle. (BPH - Bottles Per Hour) 3. This Drinking Water Plant can be used for purified water, mineral water, and other no-gas beverage filling under Atmospherical Pressure.
Rinsing Part
Filling Part
Capping Part
Detailed Images

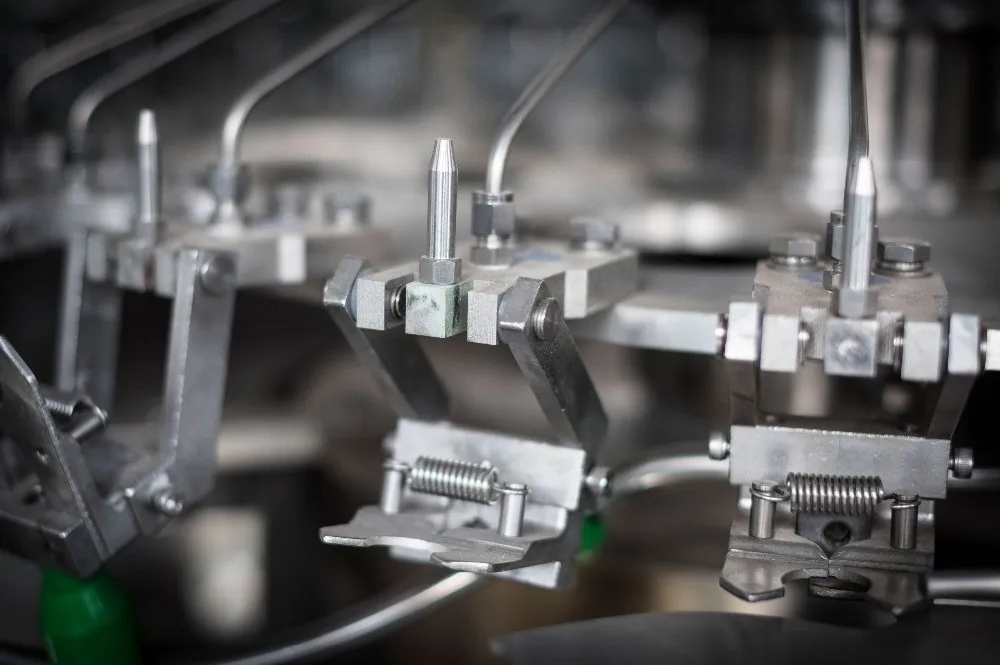

Rinsing Part

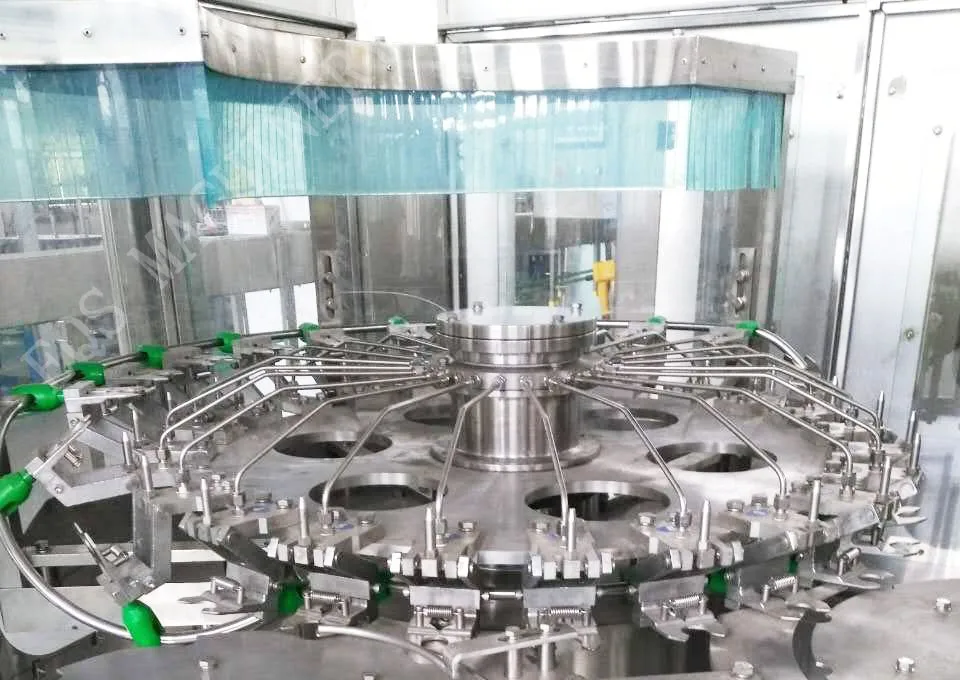

Stainless Steel Rinsing Pipe

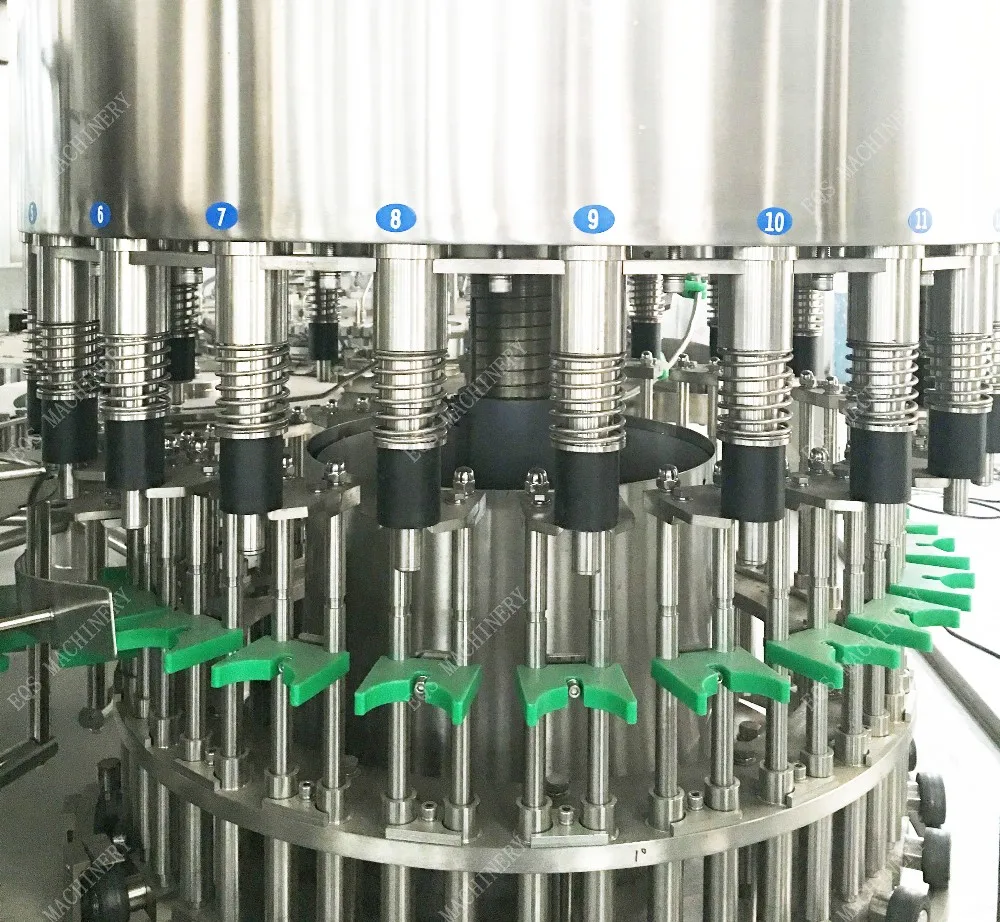

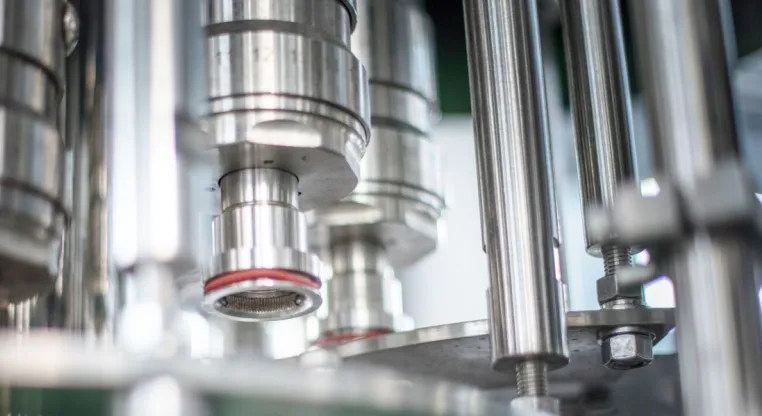

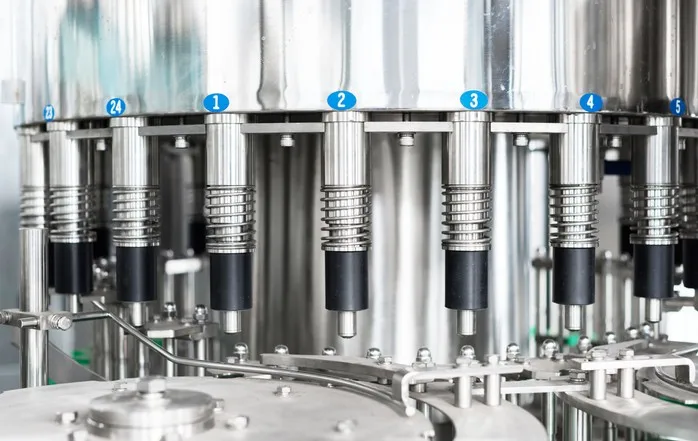

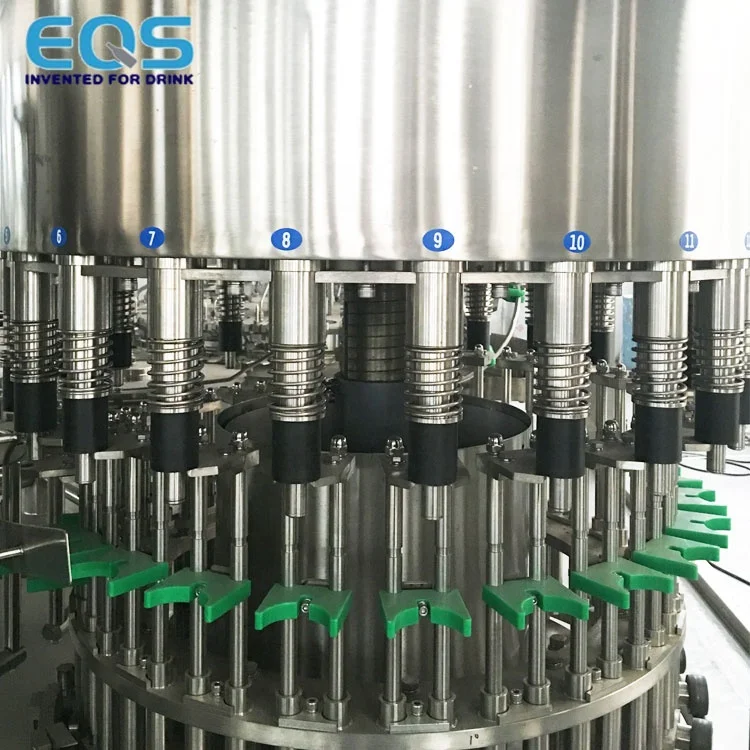

High Speed Filling Valve
High Speed Filling Valve can reach 200ml/s,made of SUS 304(for water filling) & excellent SUS316L(for hot filling and soft drinks filling),equipped with specially designed liquid level modified unit to ensure the same level of each bottle.

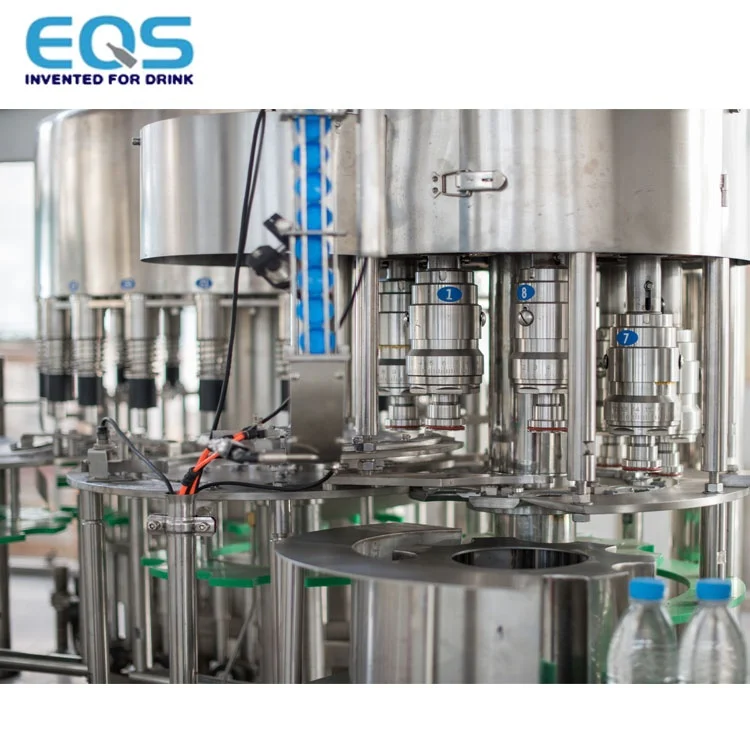

Capping Part
Special design: With Special Design: With graduation
Adjust the position accurately.

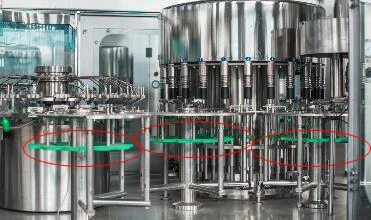

Bottle Neck Clamping Technical
Adopt bottle neck clamp,only these green parts in red circle need to be changed when bottle size change,but bottle neck should be the same.
Specially Treated Platform
Specially treated platform,to ensure the smooth and average level,machine will run more stably.
Bottle Outlet

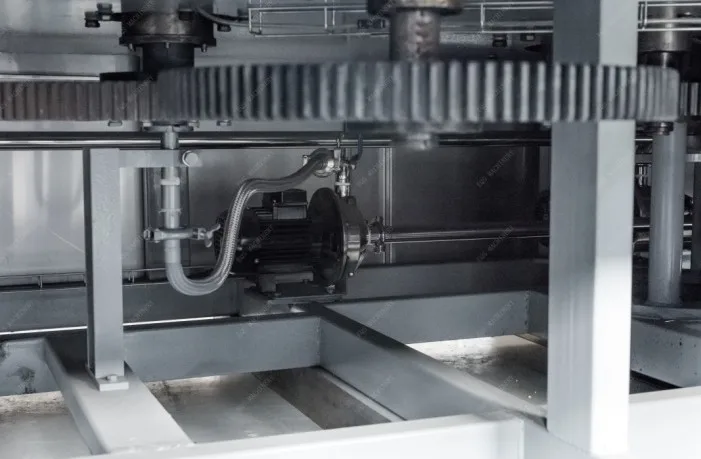

Gear With Pump
Water Filling Machine Model List
Model
CGF14-12-4
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Rinsing Heads
14
18
24
32
40
Filling Heads
12
18
24
32
40
Capping Heads
4
6
8
10
12
Capacity(BPH)
4000
6000
10000
12000
18000
Motor Power(KW)
2.2
3.5
4.5
6.0
7.5
Dimension(mm)
2100*1500*2200
2300*1700*2400
2800*2200*2400
2900*2200*2500
3600*2700*2850
Weight(KG)
2000
2500
3500
5500
7500

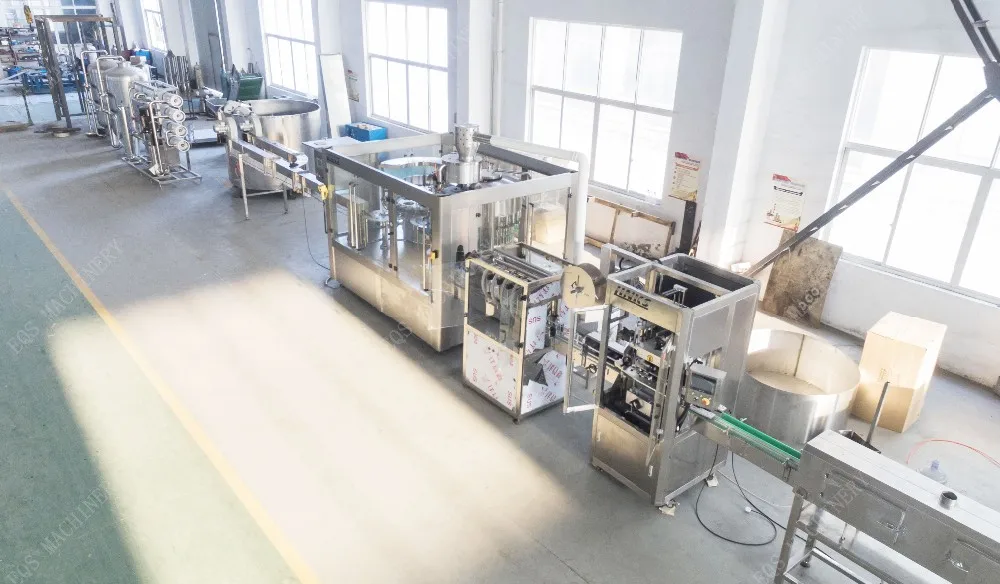

We Supply Turnkey Project Of Water Bottling Plant
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to install and debug machinery overseas.
* 15 months quality guarantee.
Packing & Delivery
Packaging
Size
2300 (L) * 1700 (W) * 2400 (D)
Weight
2.5 T
Packaging Details
The normal package is wrapping shrink film first,after that wooden box(Size: L*W*H). We also can pack it according to customers special request.
Company Profile
Zhangjiagang EQS Machinery Co., Ltd is a professional manufacturer for Beverage Filling Machines. We're located in Zhangjiagang, north part of Suzhou, about 130 kilometers away from Shanghai.
With more than 10 years' experiences in R&D, we are able to design products for individual customer's request. As an ISO9001:2000 company, we have a set of quality control processes. It ensures we can deliver high standard qualified products to our customers. Moreover, our products have passed European CE Certification.
We believe that Machine Quality and After-sale Service are the most important for long-term business.
Core Value of EQS: 1.Collaboration : Respect customers and partners, and together we create value 2.Cost-efficiency: Worth every penny spent 3.Accountability : Assume responsibility for our commitments 4.Agility :Our future depends on speed and flexibility 5.Quality: We do well in what we do 6.Integrity : Act with honesty and make no compromise 7.Passion:Be passionate in our brand and what we do
FAQ
Q1: Are you a trading company or a manufacturer? A1: We are a manufacturer, we supply the factory price with good quality,our Engineer Team with over 20 year's experience,welcome to visit !
Q2.How can I know your machine has good quality?
A2:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q3: What's your guarantee or the warranty of the quality if we buy your machines? A3: We offer you high quality machines with 15months guarantee and supply life-long technical support.
Q4: When can I get my machine after I paid? A4: The delivery time is based on the exact machine you confirmed.
Q5: How can I install my machine when it arrives? A5: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q6: How about the spare parts? A6: After we deal down all the things , we will offer you a spare parts list for your reference.
