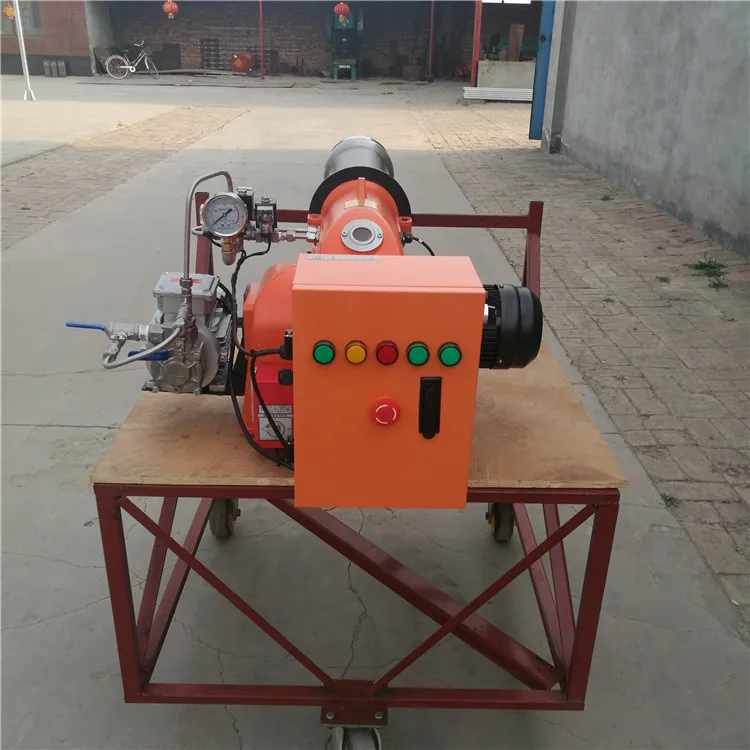

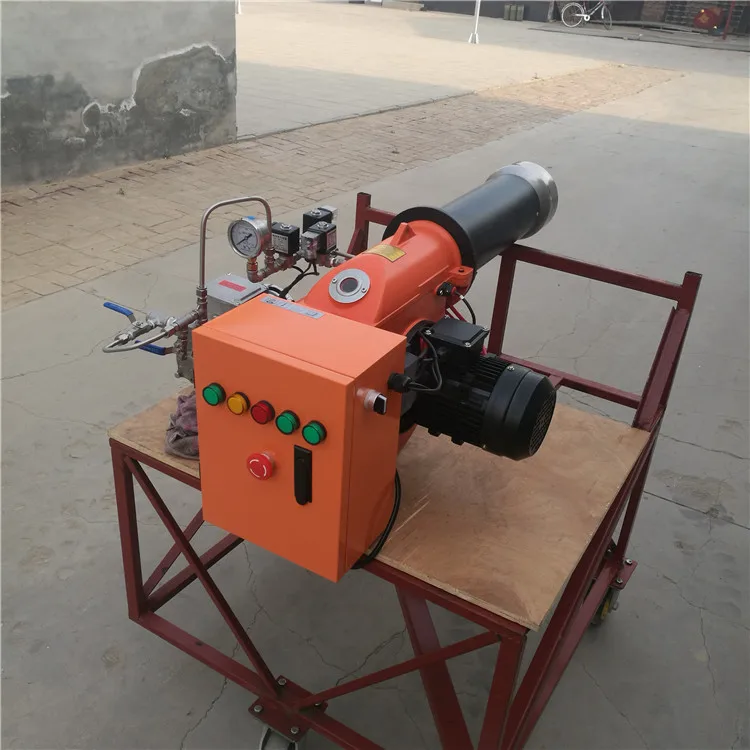

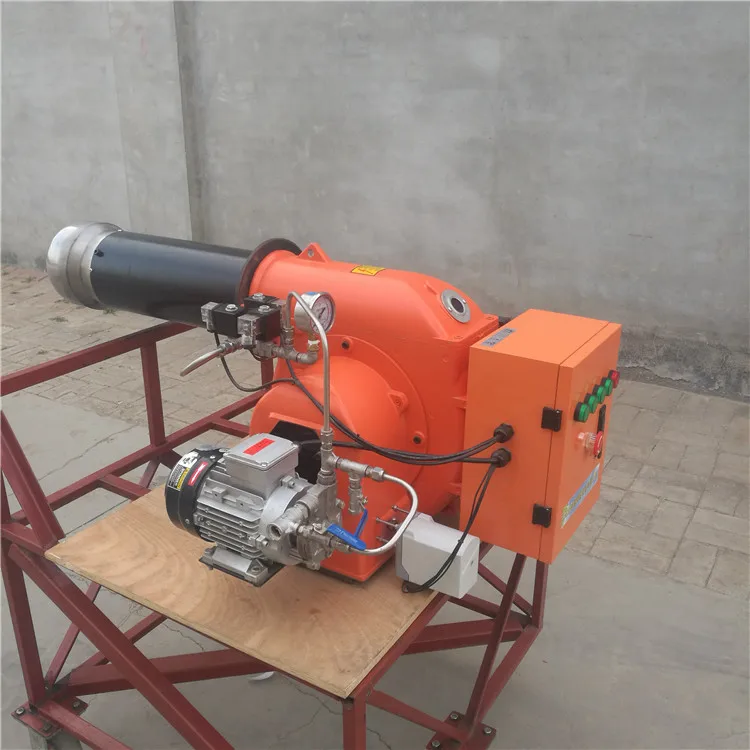

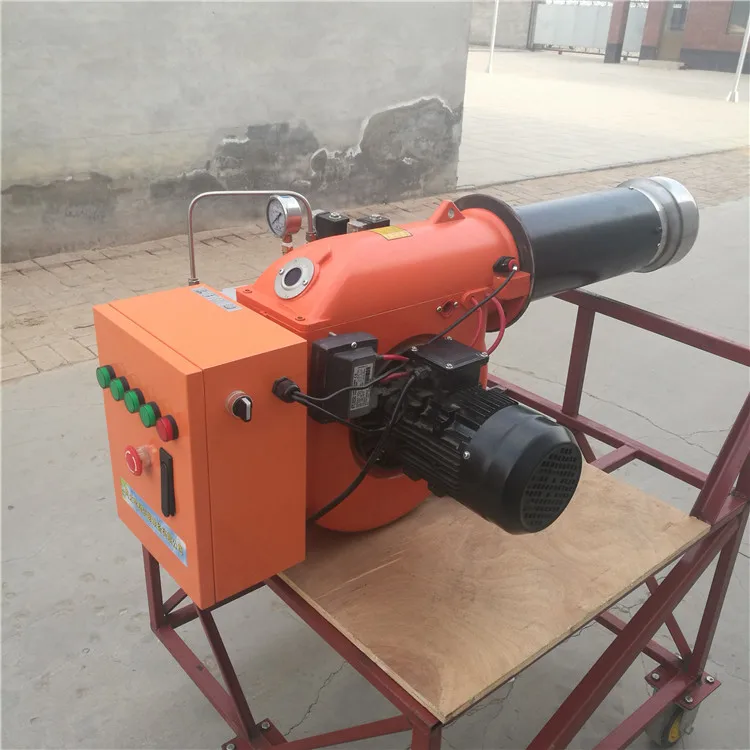

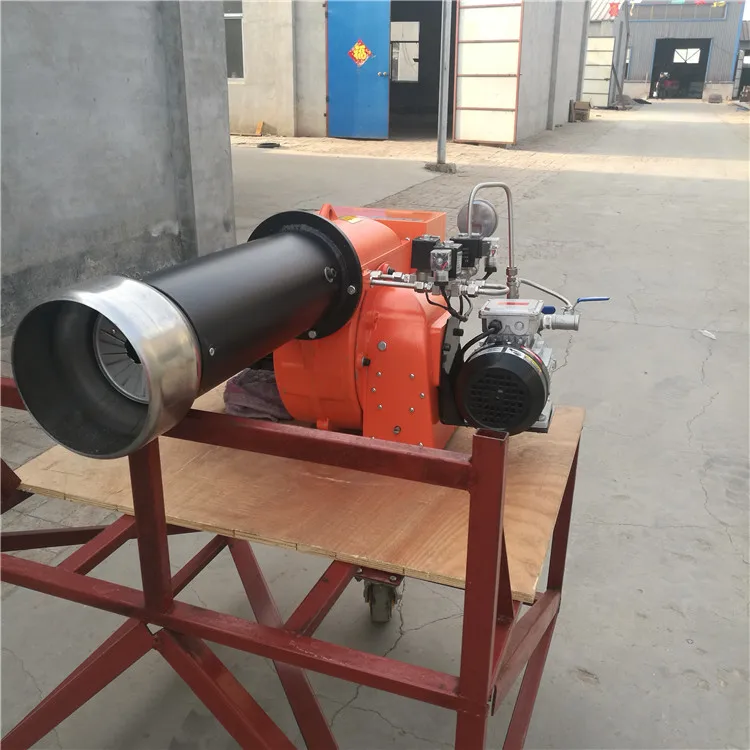

JH 40 Y 174 464 KW Two Stage Fire Light Diesel Oil Burner For The Bakery Oven
- Category: >>>
- Supplier: Hebei Yongchun Heating Equipment Co. Ltd.
Share on (62187005010):
Product Overview
Description

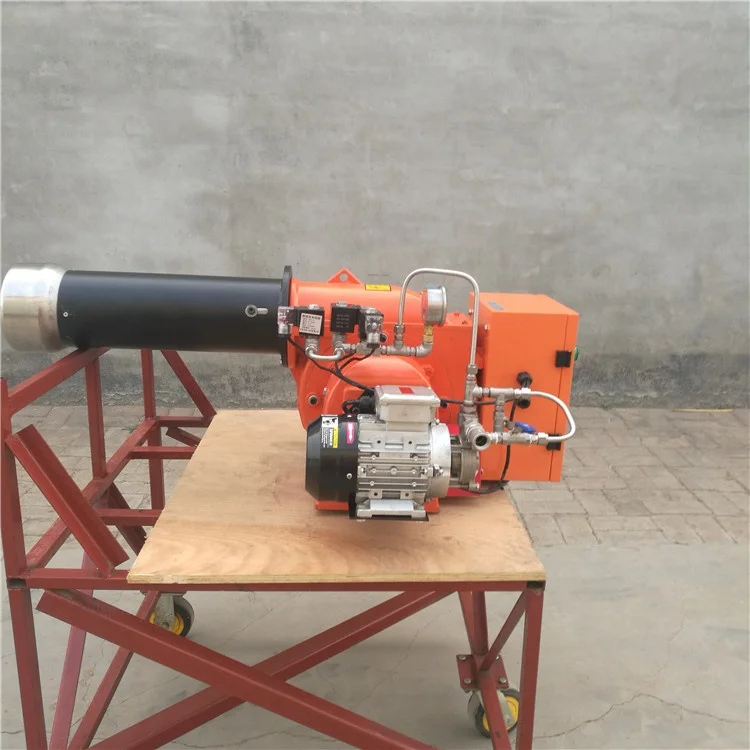

JH-40-Y 174-464 KW Two Stage Fire Light Diesel Oil Burner For The Bakery Oven
Product Description
| Technical parameters | ||||||
| Model | JH-40-Y | JH-60-Y | JH-100-Y | JH-120-Y | JH-180-Y | |
| Output power | KW | 174-464 | 232-696 | 232-1162 | 395-1744 | 488-2093 |
| 104Kcal/h | 15-40 | 20-60 | 20-100 | 34-150 | 42-180 | |
| Control mode | Fully automatic two-stage flame control | |||||
| Applicable fuel | Diesel oil | |||||
| Fuel consumption | kg/h | 18-47 | 24-71 | 24-95 | 40-176 | 49-172 |
| Standard inlet pressure | Pa | 0 | ||||

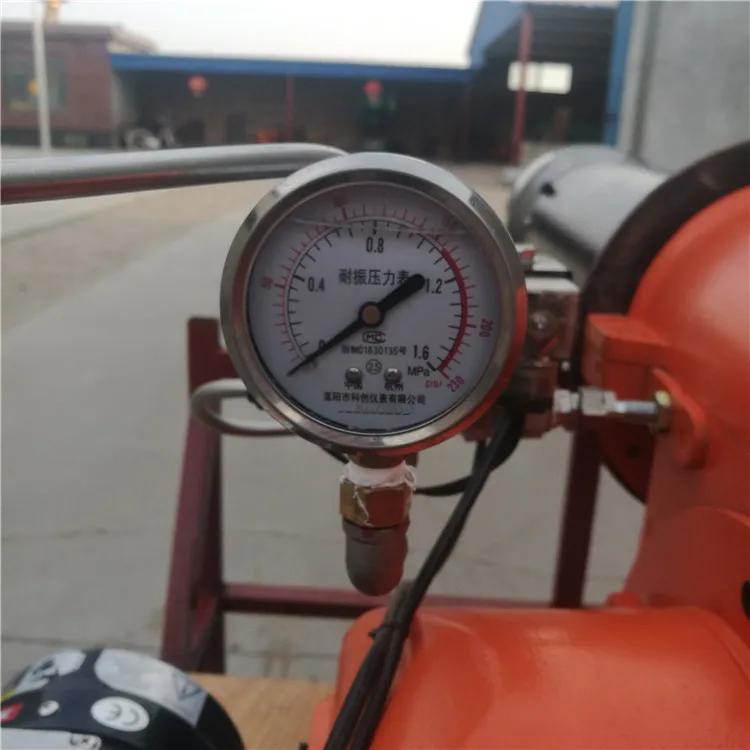

| Adaptable pressure range | MPa | 0.6-1.2 | ||||
| Design fuel calorific value | Kcal/Nm³ | 10500 | ||||
| Adapt to ambient temperature | ℃ | -15~60 | ||||
| Applicable power supply | AC380V/50Hz/3O | |||||

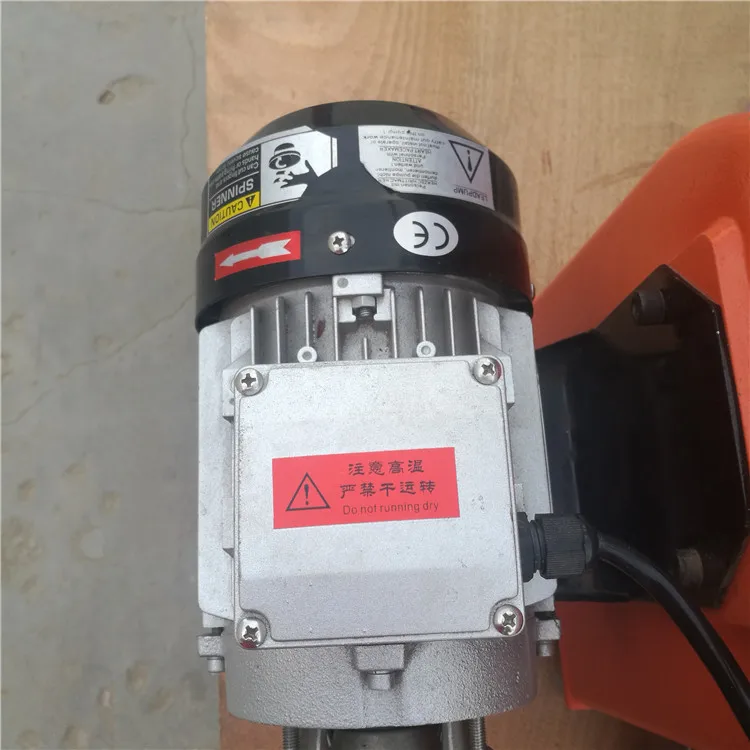

| Motor power | KW | 0.75 | 1.5 | 1.5 | 3.0 | 4.0 |
| Safety Protection Level | IP | 55(The protection level can be improved according to the order requirement.) | ||||
| Flange Installation Form | Sliding adjustable flange | |||||
| Fuel access port size | 1/2 | |||||
| Main Body Size of Burner (Length * Width * Height) | mm | 1130*700*480 | 1250*840*570 | 1250*840*570 | 1400*900*630 | 1400*900*630 |
| Burner weight | kg | 50 | 59 | 61 | 75 | 80 |
Packaging & Shipping
Company Information
Hebei Yongchun Heating Equipment Co., Ltd. is a domestic manufacturer integrating R&D, production and sales. It has been engaged in heating industry for more than 20 years. It mainly produces various kinds of fuel burners, gas burners, atmospheric pressure hot water boilers, etc. Welcome customers from all over the world to negotiate!
