Carmeron Shaffer Hydrill type 5000 psi FH 28 70 API Annular BOP / Annular Blowout Preventer and spare parts
- Category: >>>
- Supplier: Dongying Sino Petroleum Machinery Co. Ltd.
Share on (62187408174):
Product Overview
Description
Product Description
Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP

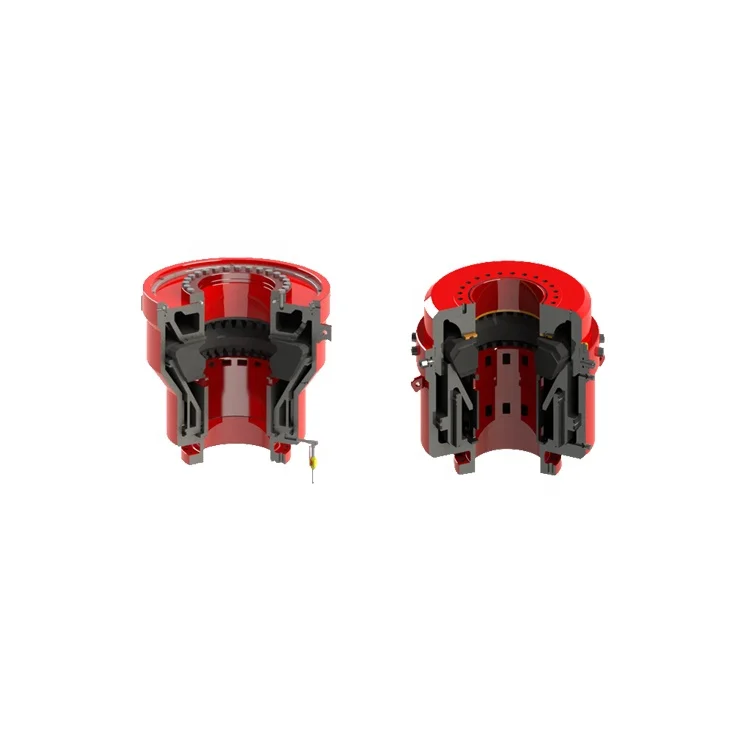

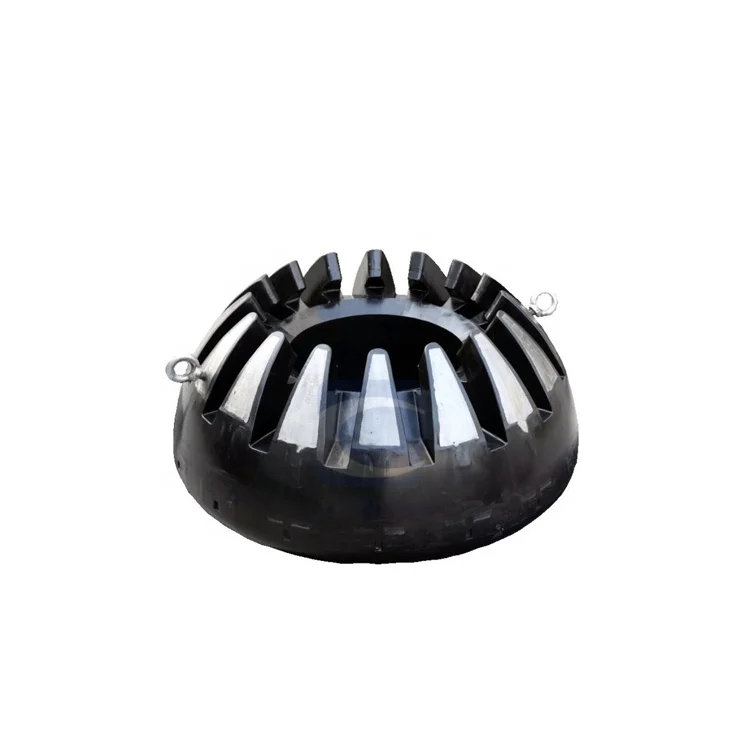

Our API 16A hydril annular BOP can be used in work over and drilling operations equipped with hydril control systems. The BOPs are designed and manufactured in full conformity to the API 16A standard. The annular BOP mainly consists of a body, a header, a rubber core, and a piston. The inner rubber core is interchangeable. While the annular BOP can be used independently, it normally works with a single or a double BOP.It can seal the drilling tool or well bore efficiently, preventing oil well blow outs. Its anti H2S performance conforms to the NACE MR 0175 standard.
Specifications
Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP / Annular Blowout Preventer and spare parts
| Model | 2FZ18-21 | 2FZ18-35 |
| Rated working pressure(psi) | 3000 | 5000 |
| Nominal diameter(in) | 7 1/16 | 7 3/8 |
| Strength pressure test(psi) | 6000 | 7500 |
| Oil cylinder working pressure(psi) | 1200-1500 | 1200-1500 |
| Piston stroke(mm) | 100 | 100 |
| Metal temperature class | -29~121℃ | -29~121℃ |
| Nonmetal temp. class | -18~121℃ | -18~121℃ |
| Oil cylinder closed chamber volume | 2 x 1.75L | 2 x 1.75L |
| Oil cylinder open chamber volume | 2 x 1.50L | 2 x 1.50L |
| Ram closed interval(s) | <15 | <15 |
| Ram specification | 2 3/8” 2 7/8” 3 1/2” 4 1/2” blind ram | 2 3/8” 2 7/8” 3 1/2” 4 1/2” blind ram |
| Bolt quantity and diameter | 12-M30 x 3 x 210 | 12-M36 x 3 x 230 |
| Ring gasket | R45 | R46 |
| Dimension(mm) | 1350 x 380 x 638 | 1350 x 395 x 656 |
| Weight(lb) | 1717 | 1780 |

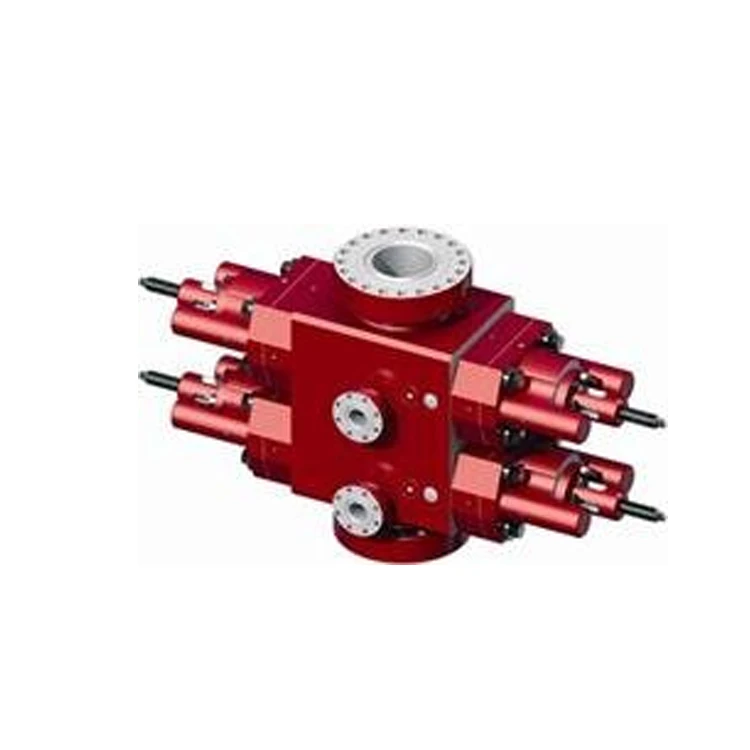

S Ram BOP Specification&Model
| Operating pressure | Bore (in) | ||||||||
| (psi) | 180-7 1/16 | 230-9 | 280-11 | 350 13 5/8 | 430-16 3/4 | 480-18 3/4 | 530-20 3/4 | 540-21 1/4 | 680-26 3/4 |
| 140-20000 | \\ | \\ | \\ | \\ | \\ | \\ | \\ | \\ | \\ |
| 105-15000 | S | S | S | S | \\ | \\ | \\ | \\ | \\ |
| 70-10000 | S | S | S | S | \\ | S | \\ | \\ | \\ |
| 35-5000 | S | S | S | S | S | S | \\ | S | \\ |
| 21-3000 | S | S | S | S | S | \\ | S | \\ | S |
| 14-2000 | \\ | \\ | \\ | \\ | \\ | \\ | \\ | S | \\ |
Detailed Images

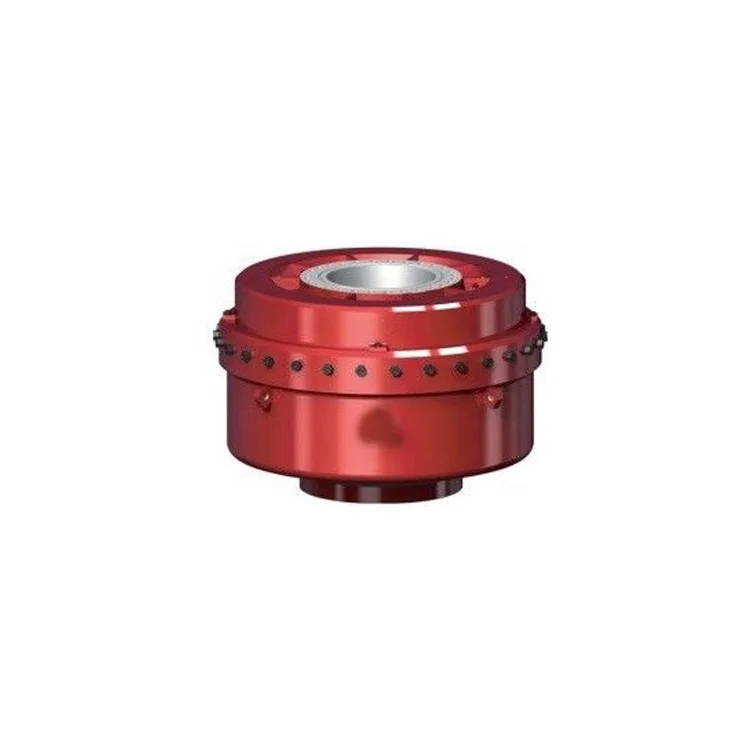

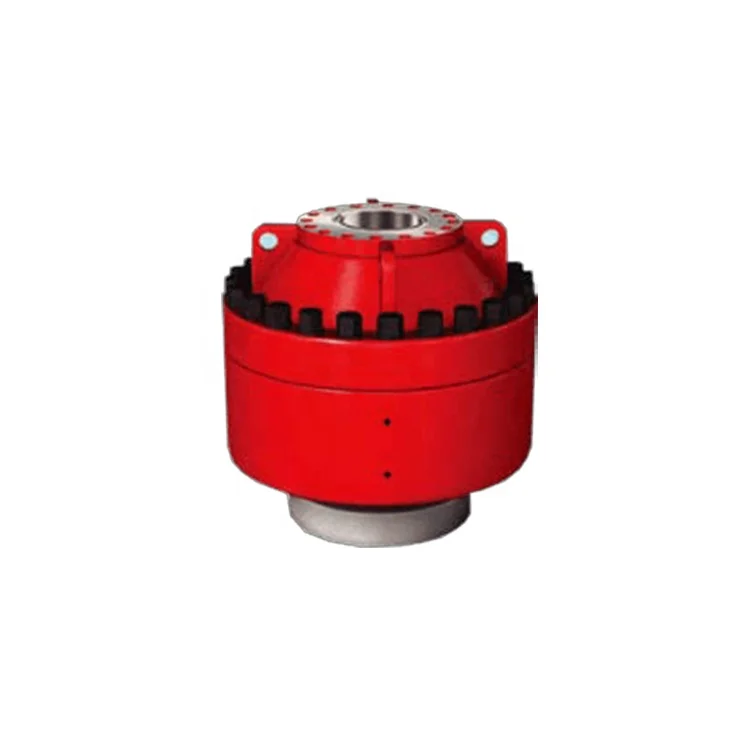

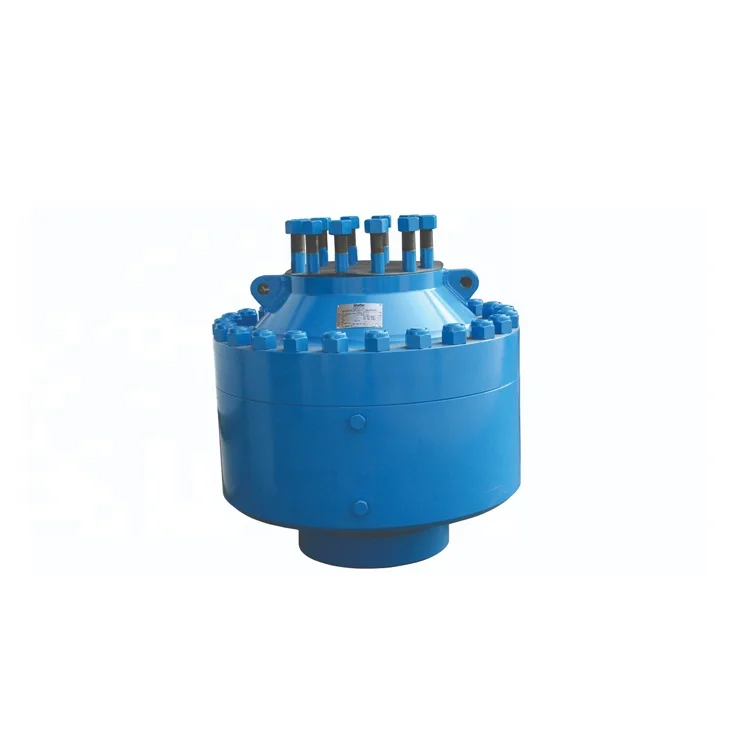

Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP / Annular Blowout Preventer and spare parts
Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP / Annular Blowout Preventer and spare parts
Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP / Annular Blowout Preventer and spare parts
Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP / Annular Blowout Preventer and spare parts
Contact us
Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP / Annular Blowout Preventer and spare parts
Carmeron Shaffer Hydrill type 5000 psi FH 28-70 API Annular BOP / Annular Blowout Preventer and spare parts

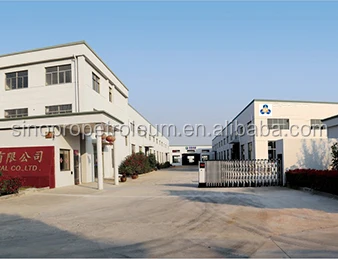

Company Information
