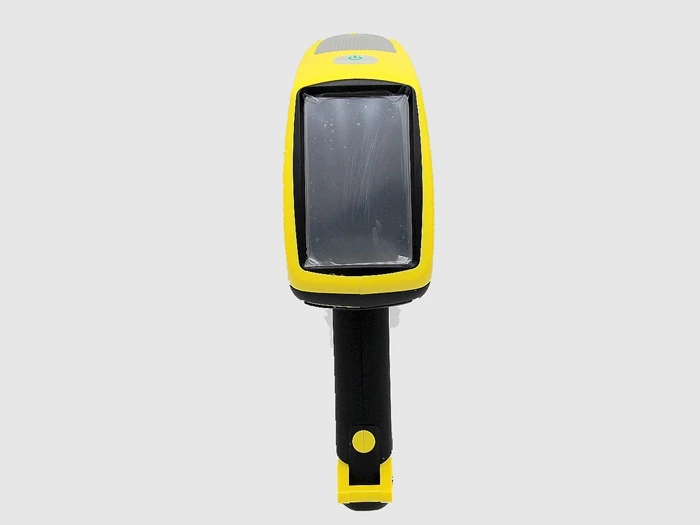

Handhold XRF metal analyser x ray fluorescence spectrometer Tester HXRF 120

Product Overview

Description

x-ray fluorescence spectrometer

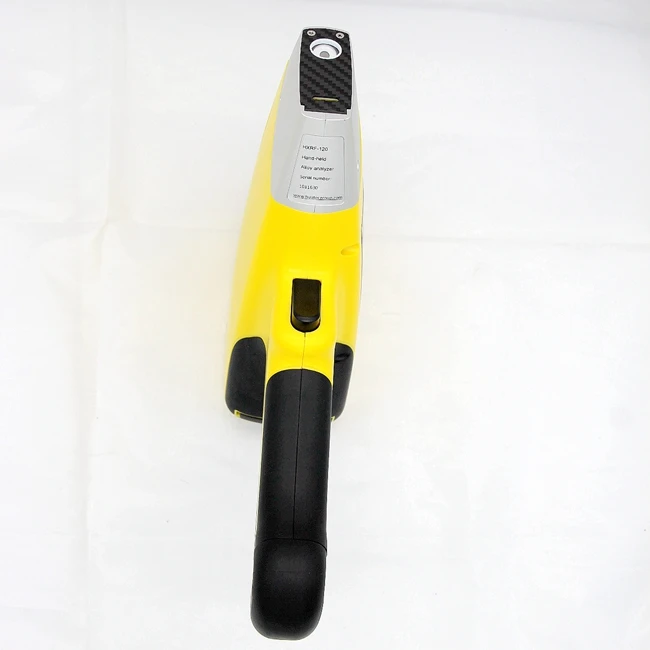

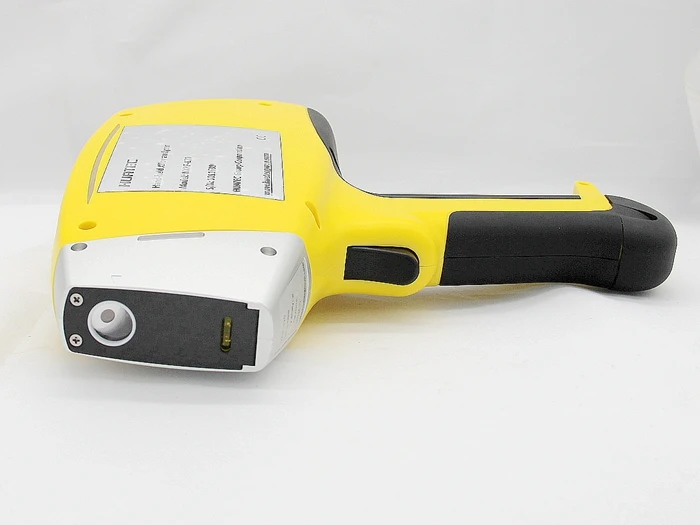

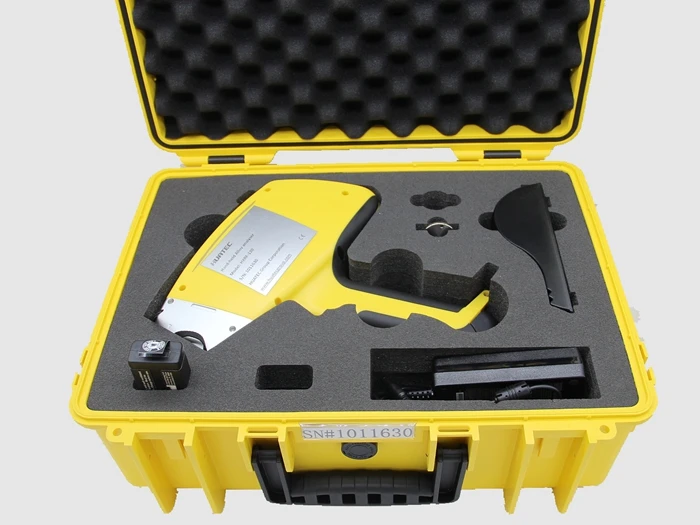

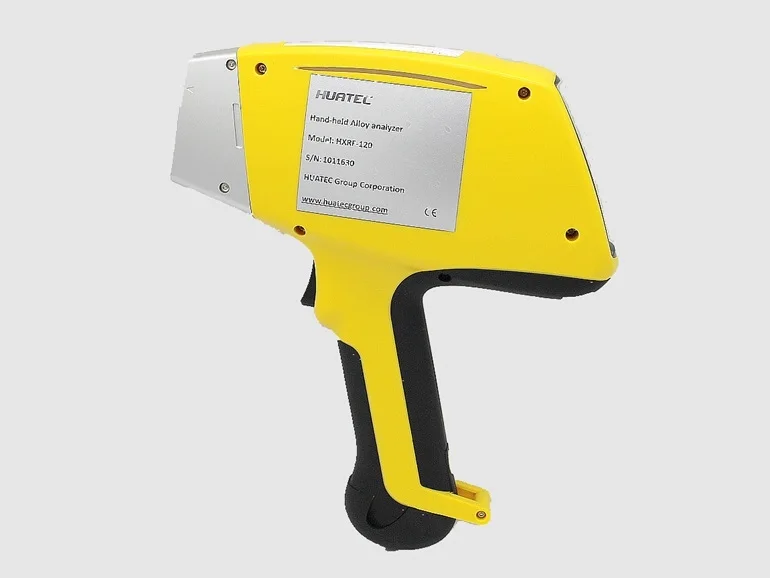

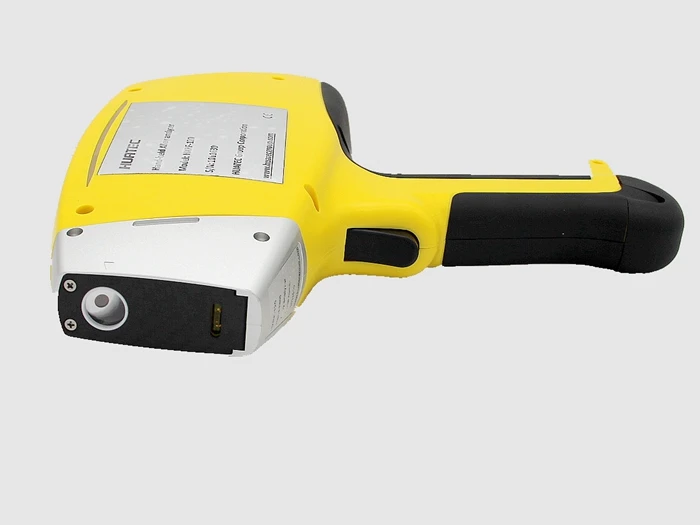

HUATEC Hand-held Alloy Analyzer HXRF 120







Performance Features

1. Small, light and easy to carry.

2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.

3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.

4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.

5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.

6. HXRF-120 utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm. These features allow it to measure elements faster, with higher accuracy and greater repeatability.

7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.

8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, HXRF-120 has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; HXRF-120 will also give out alarm when ambient temperature or humidity exceeds the scope of application.

9. HXRF-120 adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of light elements by 40% and that of rare earth elements by 30%.

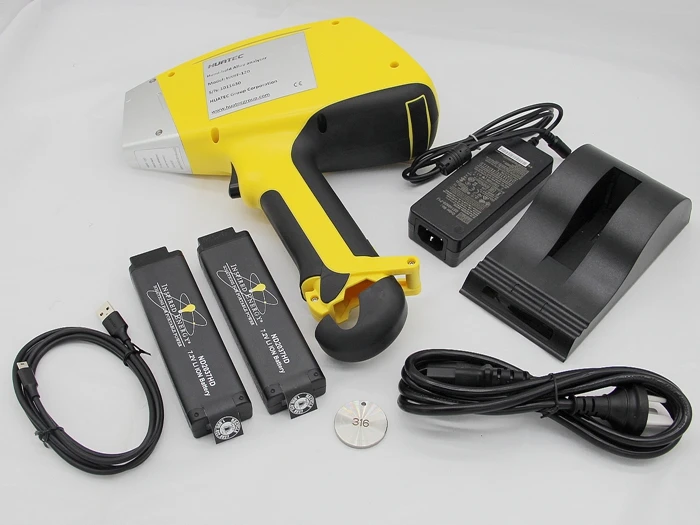

10. HXRF-120 is supportive to battery hot plug, hence battery can be replaced without powering off the machine.

11. On HXRF-120, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of products and batch number).

12. HXRF-120 is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. The brightness of the display of HXRF-120 is automatically regulated according to environment brightness.

13. HXRF-120 can be configured and maintained in a remote way via Internet.

14. HXRF-120 can build a three dimensional element content distribution graph allowing for a fast estimate of mineral reserves or the extent of geological disaster with the built-in GPS for latitude and longitude reading combined with a 3rd party GIS analysis software.

15. HXRF-120's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.

16. HXRF-120 Ultra-short optical path design can significantly improve light element excitation effects, without the fall/fill condition.

17. HXRF-120 has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.

Application fields

l  Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site

l  Metal identification /scrap metal sorting

l  QA/QC management in metal production, processing, casting, etc

l  Medicine and biological medicine

l  Identification of positive materials, oil refining and petrochemical industry

l  Thermal power plant, hydroelectric power station, nuclear power plant

l  Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.



Elements to be Analyzed and Test Modes



Technical parameters and specifications





After service

1. Quality warranty:

HUATEC commits that HXRF-120 handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. HXRF-120 warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.



2. Technical training:

Operating Manual of HXRF-120 Handheld Spectrometers

Maintenance Manual of HXRF-120 Handheld Spectrometers



3. After-sale service

 Over the years, HUATEC has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to.

1. services including

a)         HUATEC shall provide after-sales service to all products it has sold worldwide.

b)        HUATEC shall provide a one-year warranty for the spectrometer it has sold worldwide.

c)         HUATEC shall provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector).

d)        HUATEC shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair of machine.

2. The following physical damage is not covered by warranty.

a)         instrument is impacted by great force that the internal impact sensor changes from white to red;

b)        Detector is broken

c)         PDA is broken;

d)        Instrument body is broken;

e)         Loss of accessories

f)         Loss of components

g)        Water coming into instrument

3. In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:

a)         Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair service.

Website:  www.huatecgroup.com      Email:export@huatecgroup.com

b)        Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to solve the problem.

c)         On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72 hours after the problem is reported; for aboard customer, on-site repair need to be talked in details.

4. Out-of-warranty service: upon expiry of the warranty period, all customers are still entitled to out-of-warranty service during the working life of the instrument.

5. Privilege in out-of-warranty service: customers shall have the privilege to get preferential prices on the components when they maintain their instrument during the out-of-warranty period as long as they maintained it beforehand.
