Application of ZTHT-CHZ-A Paintball Medium production Line

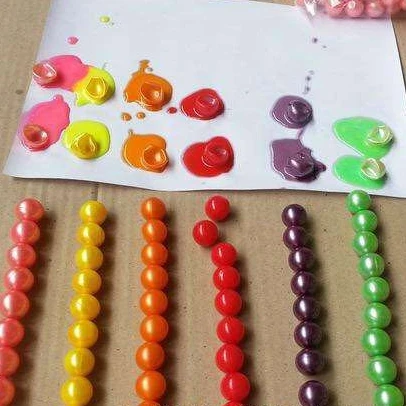

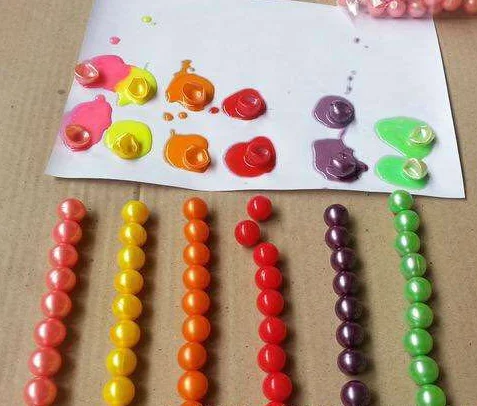

Type of CHA-A Automatice paintball production line is used for producing Paintball and bath beads. the output is 5000 pieces each hour if the diameter with 17.5mm if the diameter of the paintball is 11.3 mm , the yied of paintball will be 20000 piece . this machine is easy to operate, well-kint structure , less land occupation, convenient installation.
Main Feature
1) Simple structure in linear type ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) High pressure double crank to control the die opening and closing. 4) Running in a high automatization and intellectualization,no pollution 5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine
Details of each part

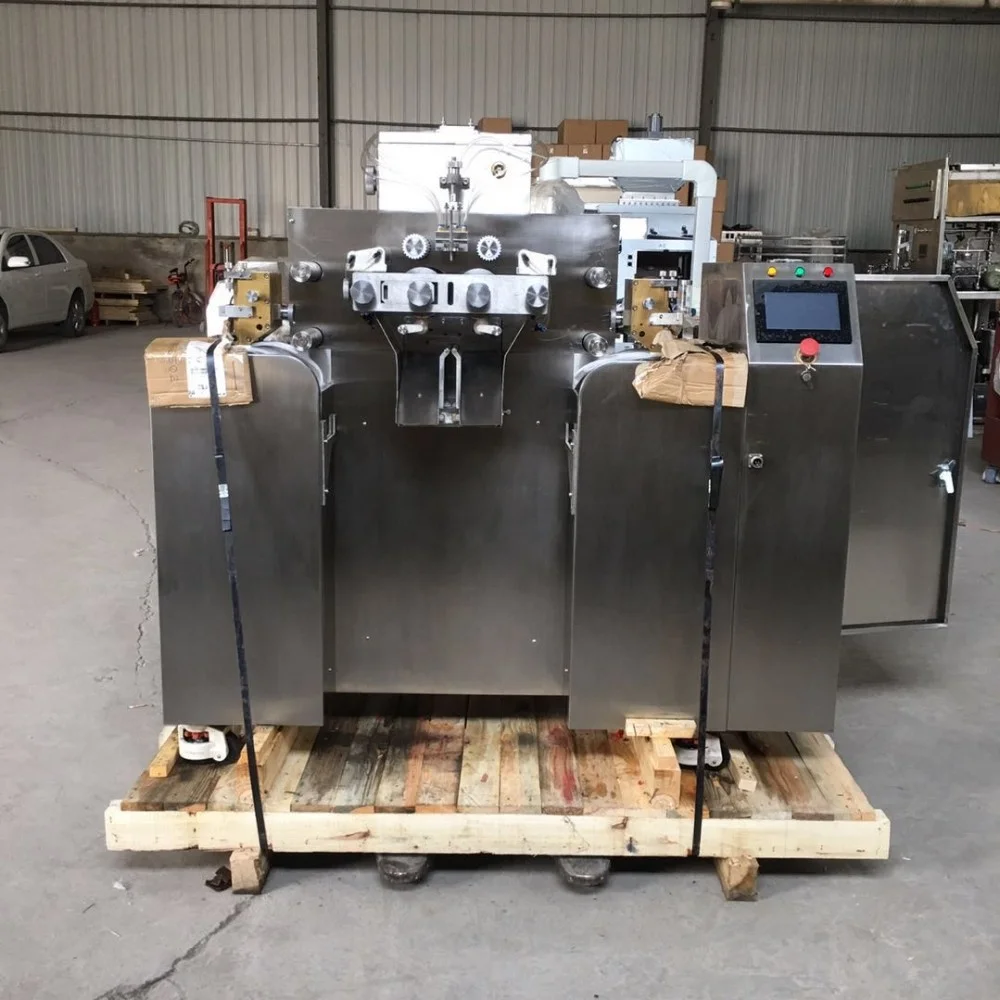

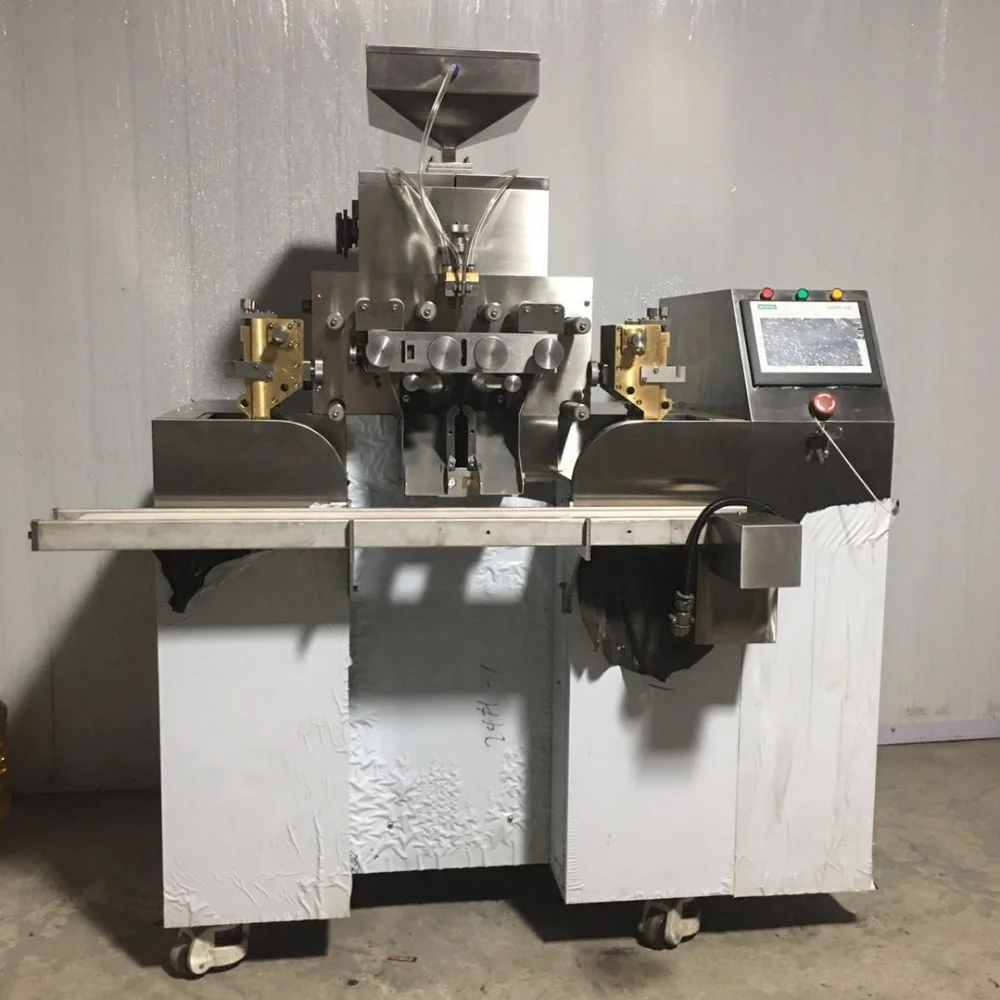

Paintball Machine
Die roll size 64mm X 125mm Speed 0-44 RPM Piston 4 Ea Loading Tolerance: +/- 0.5% Feeding of each Pistion: 0-2 Ml Electric Spec 220 V / 380 V Required power 3 Kw Dimension 1380mm X 915mm X 1582mm Weight 300 Kg Material SUS 304 for contact area Control PLC + Touch Screen
Water Cooling Machine
It is to keep the temperature of the gelatin.
Voltage: 220 V Power: 0.55 Kw
Size: 500mm X 500mm X 700mm

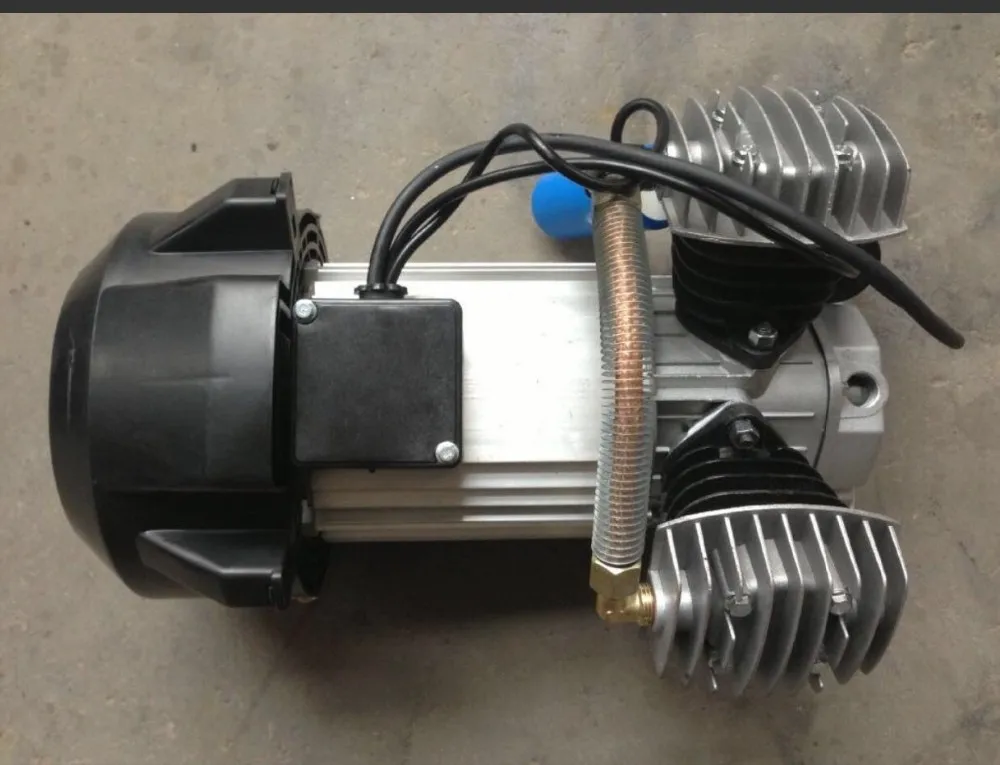

Air compressor
Material SUS 304 PE Flow Rate 1 m3 / h Head of delivery 10 m Voltage 220 V / 50 Hz Power 0.15 Kw Dimension: 250mm X 230mm X 320mm Wight 2 Kg
Tumble Dryer ( HTR-II)
Basket Size Φ320mm x 450mm Control Central control system Electric spes 200V /50HZ/50HZ 1 PH Required power 0.8 Kw Main Motor 0.2Kw X 2 motors Pan Motor 0.2 Kw X 2 Fans Dimension 1550mm X 400mm X 760mm Weight 100 Kg Material SUS 304 for control area

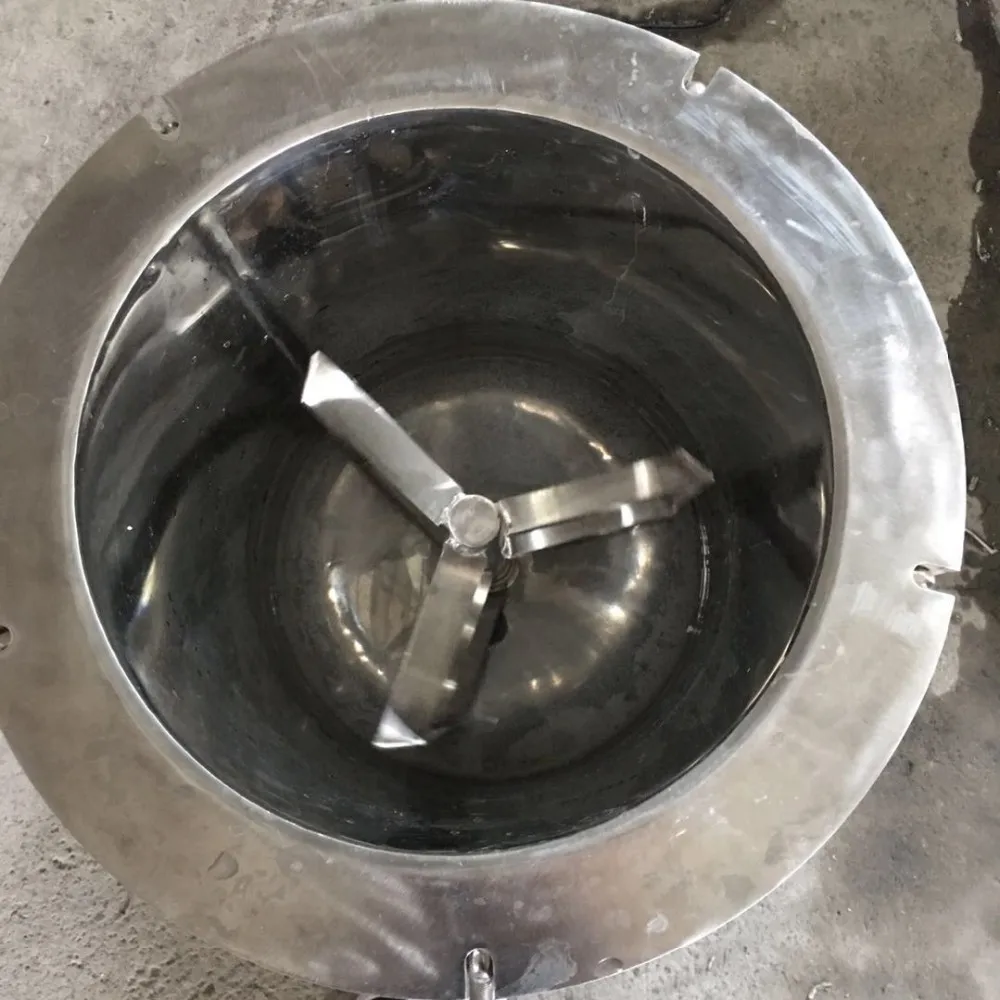

Gelatin Melting Tank
Material SUS 304 Dimension Φ500mm X 900mm Weight 90 Kg Power 2 Kw Voltage 220V / 380 V / 440 V Max rate 40 rpm fixed Max temp 50--100℃ Max capa 60 liter *1 tan
Burdening Tin
Material SUS 304 Dimension Φ500mm X 600mm Weight 80 Kg Power consumption 2 Kw Voltage 220 V / 380V / 440 V Volume 40 L Max tem 0-100 ℃ Revolution 36 R / Min Working Pressure 0.02-0.09 Mpa
Colloid Mill ( JTM-II)
Material SUS 304 Production capablity 40 Kg/ h Processing fineness 2--70 um Unloaded speed 3000+/- 10 R/Min Dimension 320mm X 320mm X 760mm Weight 30 Kg
Trailer and Capsule dry Tray
Material PVC Dimension 750mm X 480mm X 55mm Capacity 2500 capslue
TrailerMaterial SUS 304 Dimension 775mm X 510mm X 115mm Four casters Equipped on the bottom Weight 80 Kg
Light Check up Stage ( ZRDJ-I)
Material SUS 304
Produce capacity 20-100 Kg/H Dimension 800mm X 600mm X 800mm Weight 60 Kg Power consumption 100 W Voltage 220 V
FAQ
About Our Company
Q: Are you a factory or a trading company? A: We are a factory manufacturer for pharmaceutical equipment and soft capsule making machine we provide prefect OEM and after service.
Q: Where is you factory ? How can i visit your factory? A: Our factory is located in Beijing City, near the airport, we are warmly welcome you visit our factory, we can pick you up as Beijing International Airport .
Q: Can you sent me the video to show the machine works? A: Certainly , we have made video of each machine
Q: How can I know the machine is designed for my product? A; You can sent the samples to us, the we will test it on machine
Q: How can I pay my order? A: Usually, we accept the payment with T/T .L/C Western Union , Cash.
Packing & Delivery
Exported Package of our Machine
The normal package is wooden box with pallet and we use the plastic and waterproof to protect the goods form moisture . If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
