Intel HD Graphics 1 x hdmis 1 x Mini PCIe, 1 x mSATA wall hanging all in one computer mini pc with serial parallel port

Item Name

Q300G4

Dimension

187*111*50mm(L*H*W)

Power Consumption

TDP 15w

Onboard CPU

Q330G4: Intel Core i3-4005U Processor,dual core, 3M Cache,1.7GHz

Q335G4: Intel Core i3-5005U Processor, dual core ,3M Cache, 2GHz

Q350G4:Intel Core i5-4200U Processor, dual core ,3M Cache ,1.4GHz,up to 1.9 GHz

Q375G4:Intel Core i7-5500U Processor, dual core ,4M Cache ,2.4 GHz,up to 3.0 GHz

Memory

Support DDR3L 1333/1600 MHz,1.35V                                                1 x DDR3 DIMM Memory Slot ,Max. 8GB

Hard Disk

support SSD ( MSATA / SATA) - support 2.5"HDD

Onboard VGA

i3-4005U  :   intel HD Graphics 4400
i3-5005U : Intel HD Graphics 5500
i5-4200U  : Intel HD Graphics 4400
i7-5500U : Intel HD Graphics 5500

Onboard LAN

WiFi

optional

Audio Solution

Realtek ALC662 6-Channel HD Audio

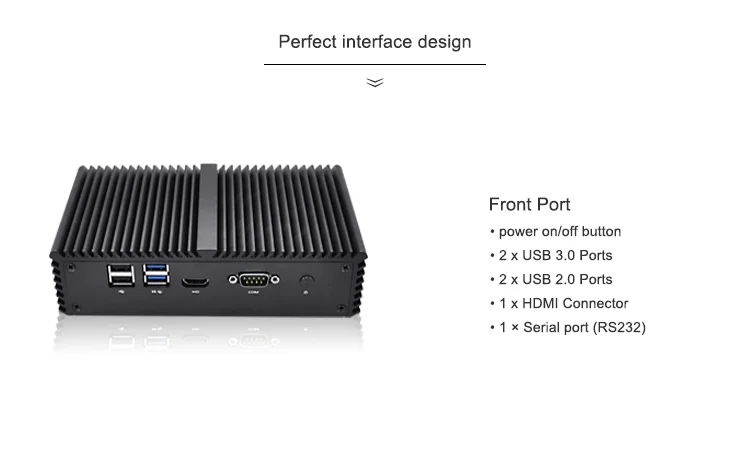

Front-Panel Connectors

 power on/off button
 HDD LED, Power LEDs
 2 *USB 2.0 Ports
 2 * USB 3.0 ports
 COM port
 HD Video port

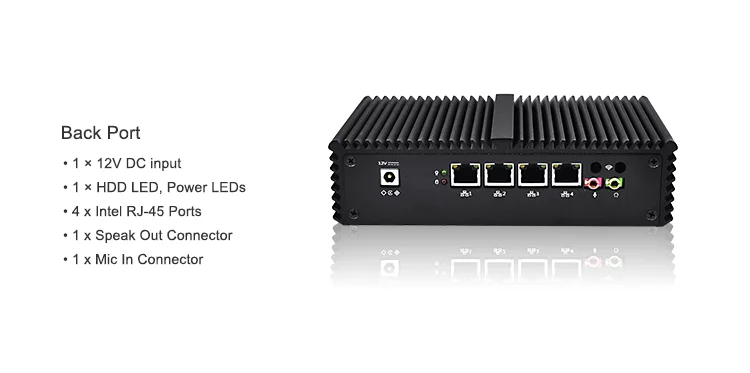

Rear-Panel Connectors

 12V DC input
 4 * Intel RJ-45 Ports
 1 x Speak Out Connector

Operating System

Preload Pfsense,wanna Linux/Ubuntu or inactive win7/8/10, pls tell me in advance.

Boot Type

1. work automatically when the power connected
2. Press the button then it works
