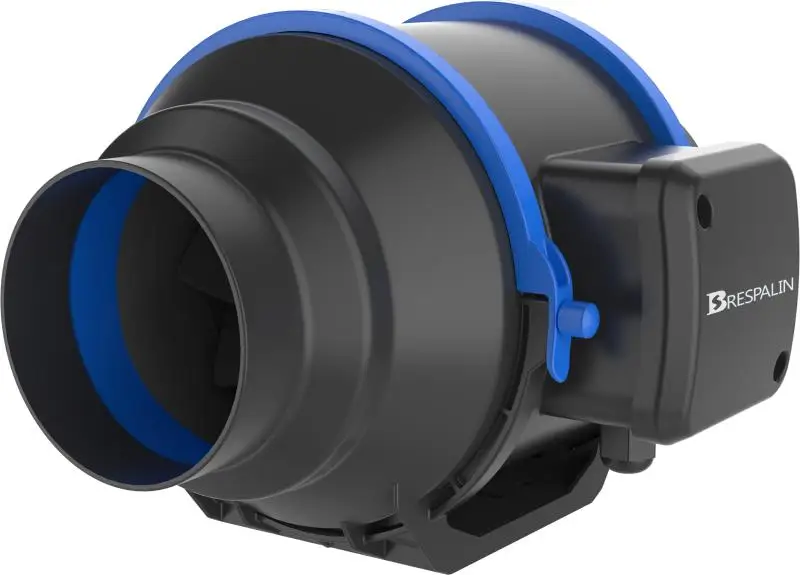

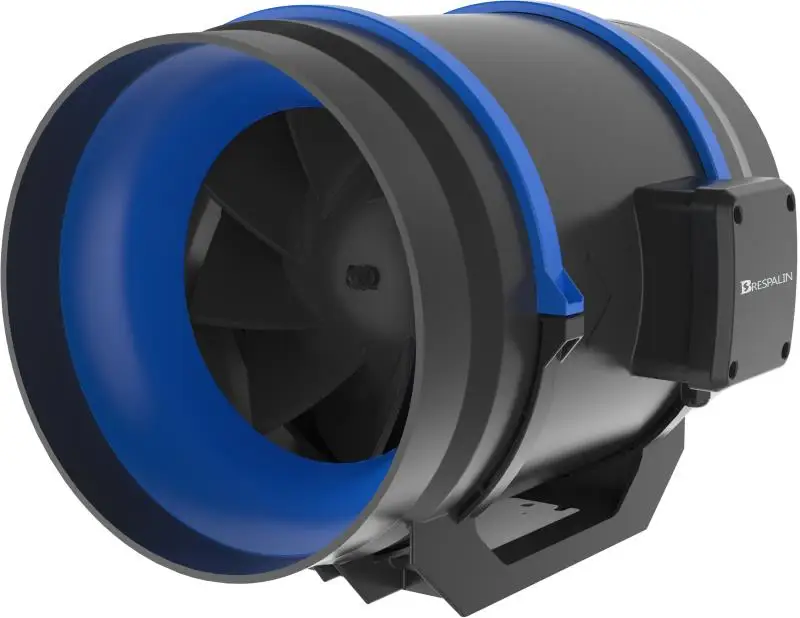

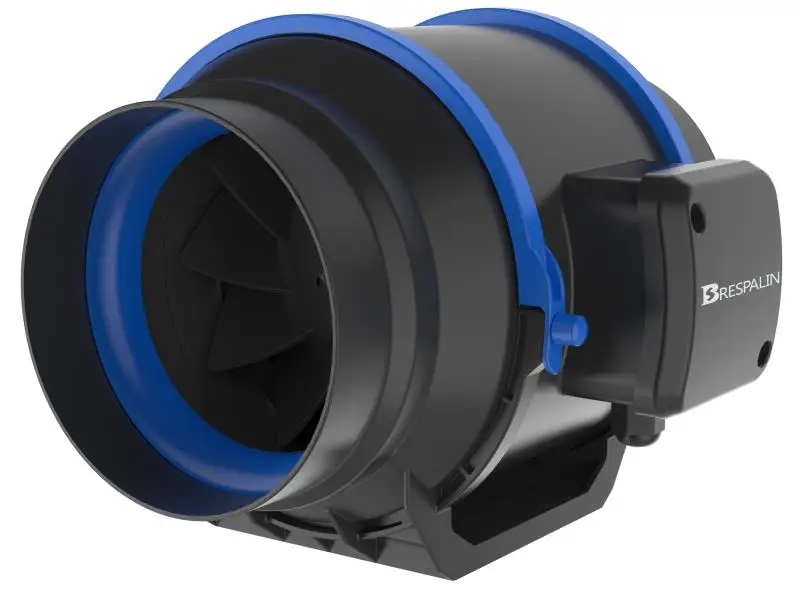

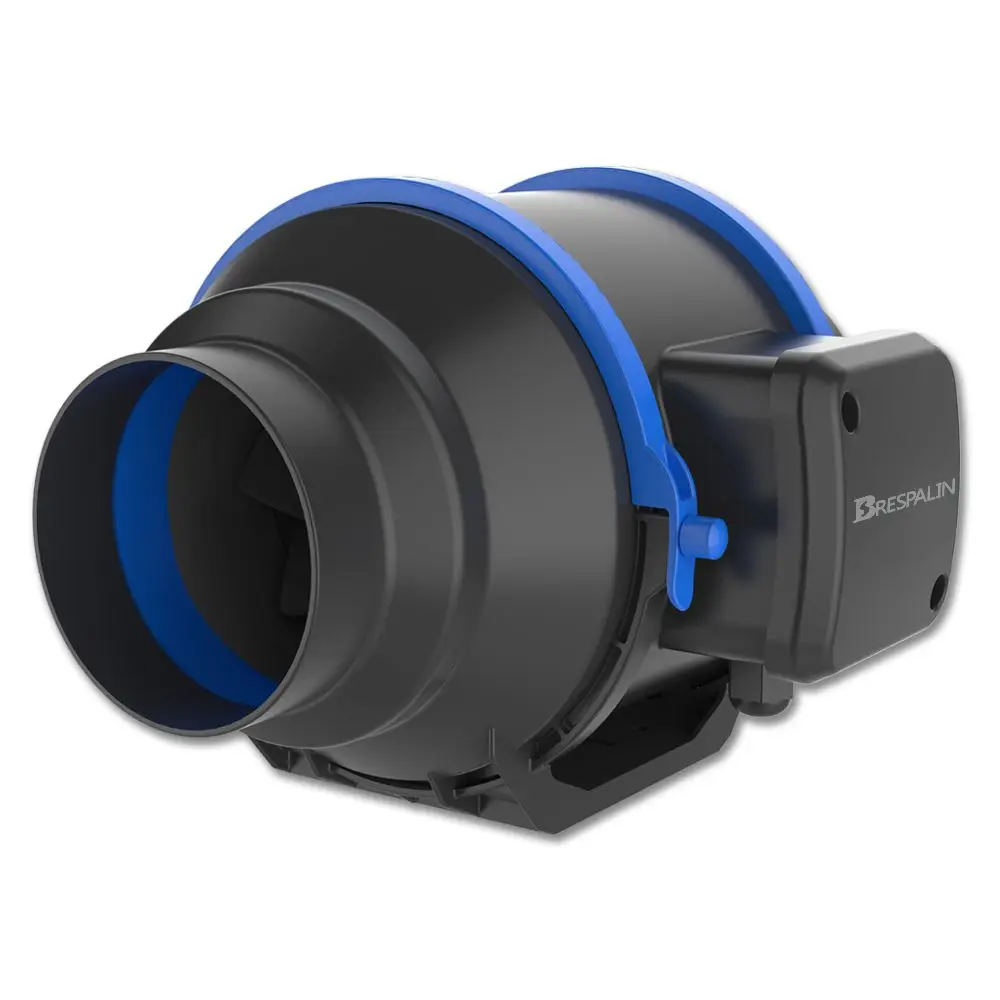

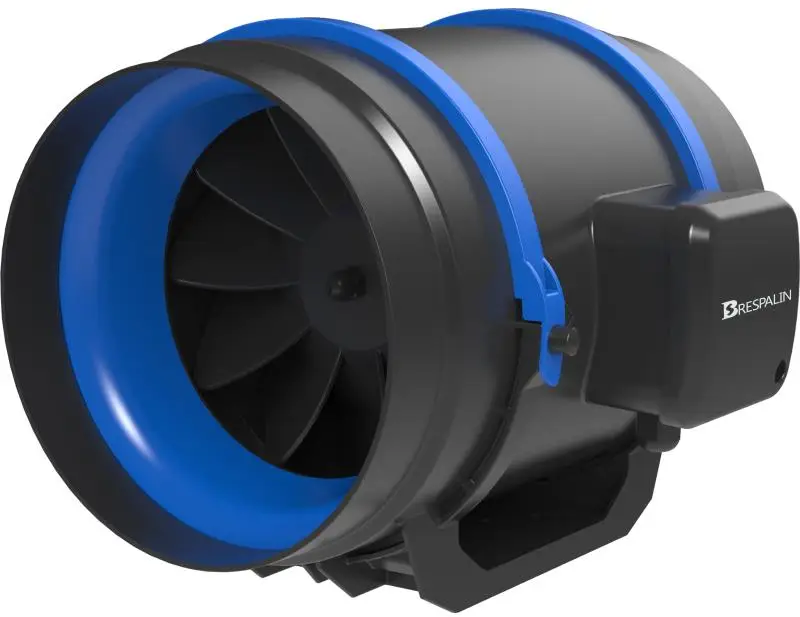

Plastic High Volume Silent Circular Hydroponic Ventilation Mixed Flow Inline Duct Fan
- Category: >>>
- Supplier: Foshan Brespalin S&t Co. Ltd.
Share on (62187710424):
Product Overview
Description
Product Description
A solution for most kind of ducting ventilation system.
♦ Simple installation, simple maintenance.
♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ 2 Speeds
♦ Stable long service life
♦ Unique Design.
♦ Low cost.
Product Structure
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
Performance Table
| Model | Power (W) | Air Volume (m³/h) | Static Pressure (Pa) | Noise (dB) | Duct Size (mm) | Net Weight | Applicable Area |
| D100 | 28/25 | 200/150 | 180/130 | 30/25 | 100/125 | 1.8 | 8-16 |
| D150 | 50/40 | 500/400 | 300/250 | 35/30 | 150/160 | 2.2 | 18-36 |
| D200 | 70/60 | 850/700 | 350/280 | 50/45 | 200 | 3.1 | 34-76 |
| D250 | 170/130 | 1500/1100 | 550/400 | 60/54 | 250 | 7.0 | 42-84 |
| D315 | 320/230 | 2300/1800 | 700/500 | 66/61 | 315 | 9.7 | 60-120 |
Overall and Installation Dimension
Multi-Application
Easy Installation & Maintenance
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
Performance Curve
Reassuring Service
We control every step of your order to make sure the goods arrive your side with good situation on time without any worry.
Strict testing for new products, OEM/ODM products, or customized products.
Our own molding factory (90T-1600T) provide us best cost, delivery time, quality for our Air Purifier, Anion generator, UV sterilizer, Fresh Air System, Exhaust Fan, Bathroom Fan, Heat Recovery Ventilator, Inline Duct Fan and so on.
Our own motor production line (two different department separated for different usage of motor.) provide us best cost, delivery time, quality for our own products.
Strictly required 5S workshop, regular staff training, in-process and final inspection, make sure every tiny mistake is stopped before delivery.
Specialized staff gives you an eye on your products. From our detailed loading report, you will know how are the products loaded. What you see will be what you received.
