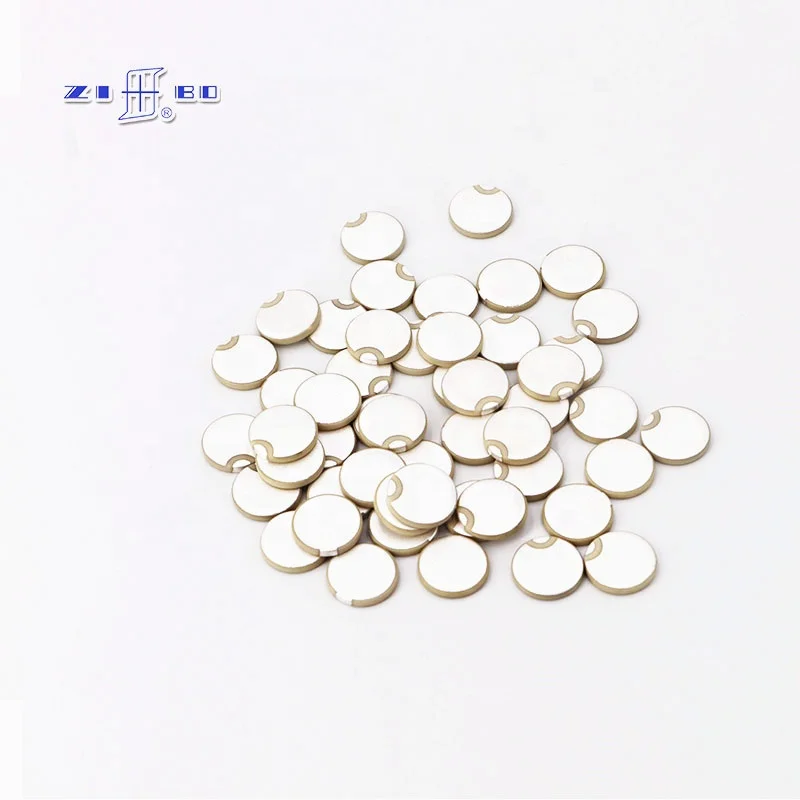

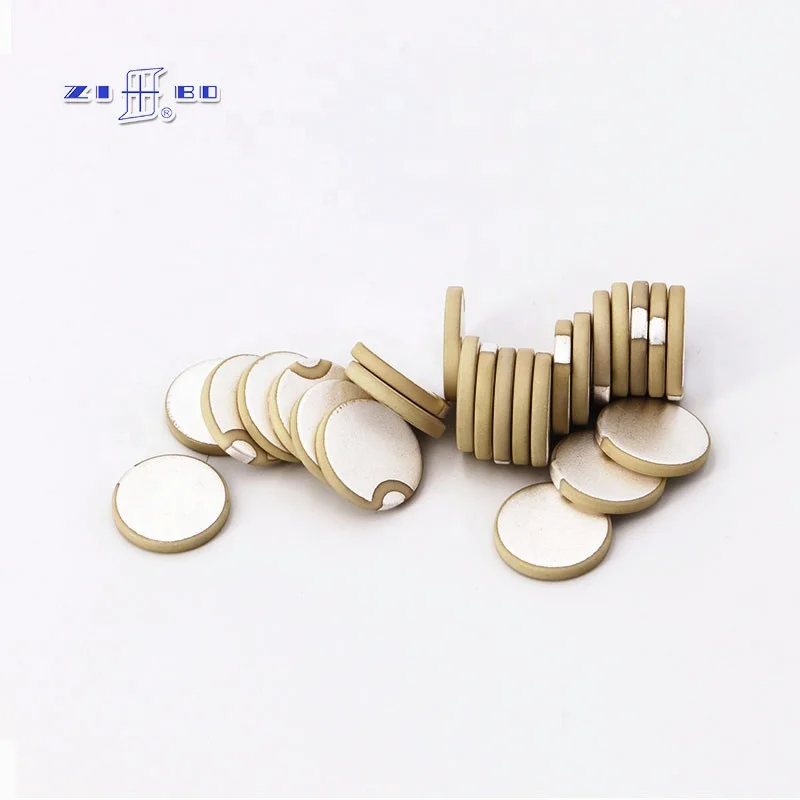

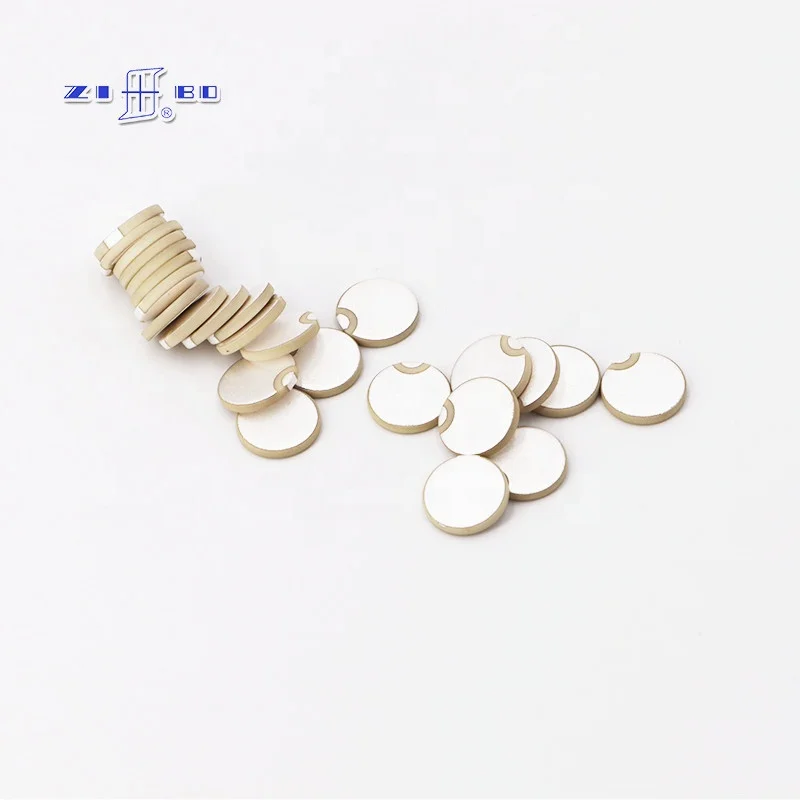

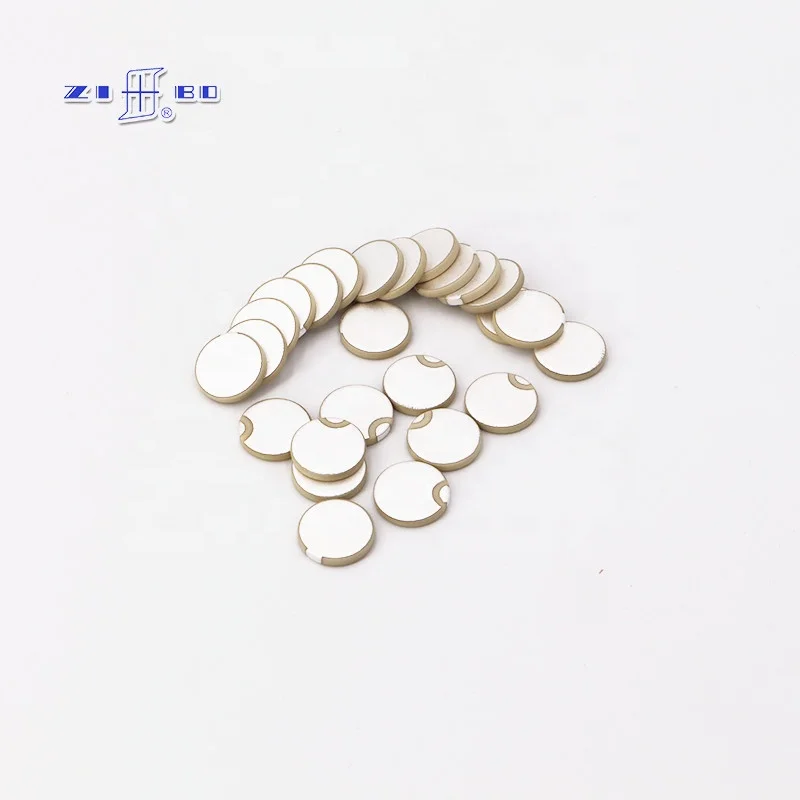

Disc Pzt4 Pzt5 Pzt8 Piezoceramic Piezo Sensor Price Piezoelectric Ceramic PZT

Product Overview

Description

About us
Zibo Yuhai Electronic Ceramics Co., Ltd. (formerly Zibo Wireless Ceramics Factory), founded in 1966, is one of leading manufacturer of piezoelectric ceramic elements and is engaged in the research and development of piezoelectric ceramic elements.

Ø One of the founders of research, development and production of Piezo components and sensors in China.

Ø As a member of China Standardization Committee on underwater piezoelectric ceramic materials and components



a. In 1986, involved in the formulation of the CB1125~1128-86 ministerial standard for general technical conditions of piezoelectric ceramic materials for underwater acoustics.
b. In 1988, participated in the formulation of the "Measurement and Calculation Method of Performance Parameters of Underwater Acoustic Practical Piezoelectric Ceramic Components" CB1194-88 standard.
c. In 1993, participated the formulation of the CB1218-93 ministerial standard of commonly used piezoelectric ceramic components for underwater acoustics.
d. In 2004, Participated in the formulation of Dielectric Filters Part 1: General Specification SJIEC61337-1:2004, Dielectric Filters Part 2: Guidelines for UseSJIEC61337-2:2004 industry standard.


Core Competence


Ø more than 30 formulations of piezoelectric materials, to ensure very stable performance of components.
Ø Forming process with dry pressing, rolling film and isostaticpressing.
Ø High precision machining equipment for other special-shaped components such as inner, outer circle and hemisphere.
Ø be the manufacturer of supplying most complete components varieties in China.

PiezoelectricCeramics (PZT) materials are categorized as functional ceramics. In sensors they make it possible toconvert forces, pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations.PiezoelectricCeramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.
Features
· High dielectric constant
· Very high Q-factor
· Excellent temperature stability
· Tight tolerance
· Recommended applications: base station DR filters, satellite communication LNB and so on
· Available in different sizes
Application
1. ultrasonic cleaning trasnducer
2. ultrasonic welding tansducer
3. ultrasonic beauty transducer
4. ultrasonic underwater transducer
5. ultrasonic immersible transucer
6. ultrasonic screening transducer
7. ultrasonic cutting transducer
8. ultrasonic atomization transducer
9. ultrasonic emulsifier
Types of Piezoceramics Material

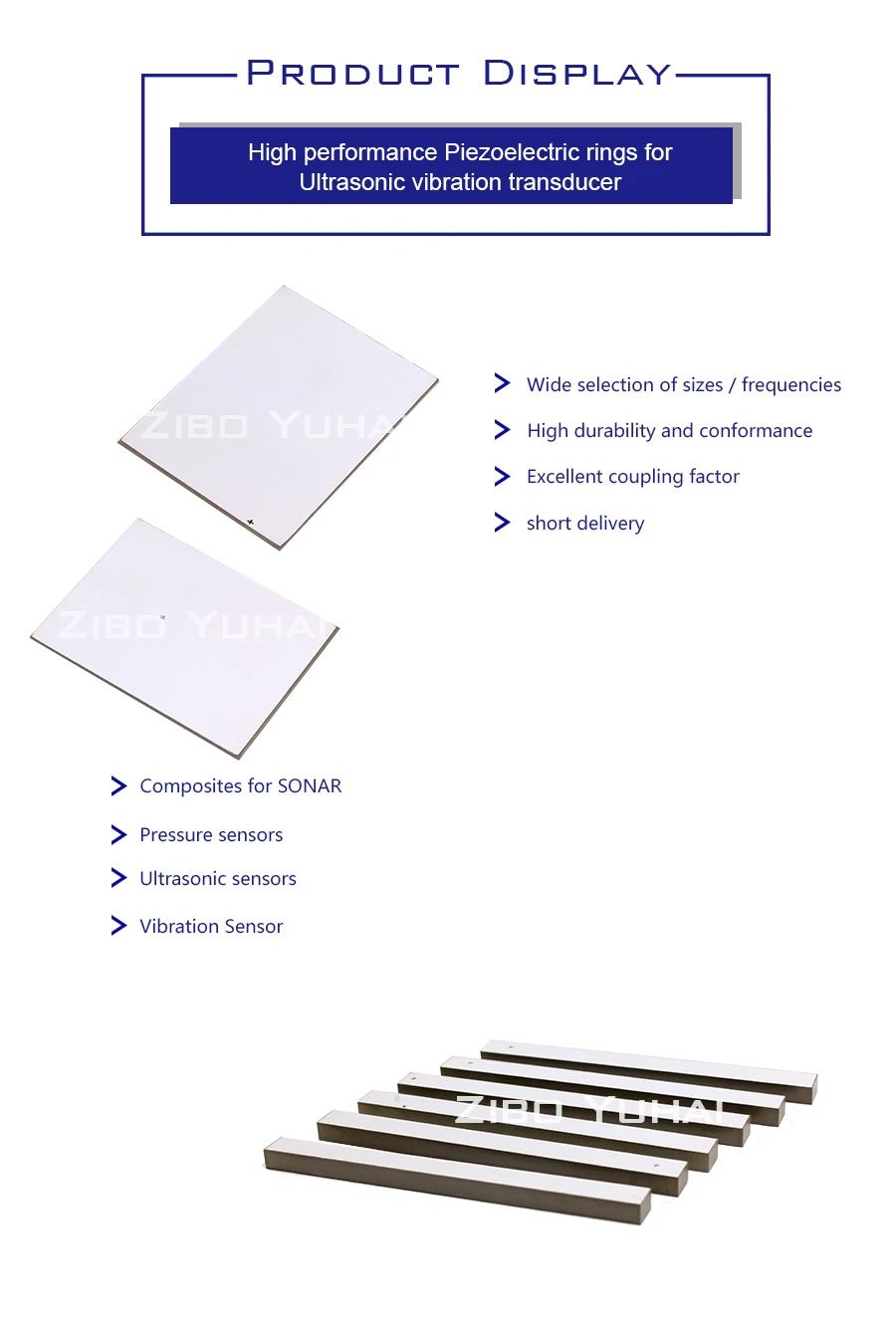

Piezoelectric Ceramic Ring
Piezoelectric Ceramic Disc
Piezoelectric Ceramic Tube
Piezoelectric Ceramic Cylinder
Piezoelectric Ceramic Ball/Hemisphere
Piezoelectric Ceramic Square/Rectangular
