Epever GM3024N GoMate Series Flush Mount PWM Solar Charger Controller 30A 12V/24V Solar Regulator Negative ground RS485 Connect
- Category: >>>
- Supplier: Shanghai Tingen Electric Co. Ltd.
Share on (62187967295):
Product Overview
Description

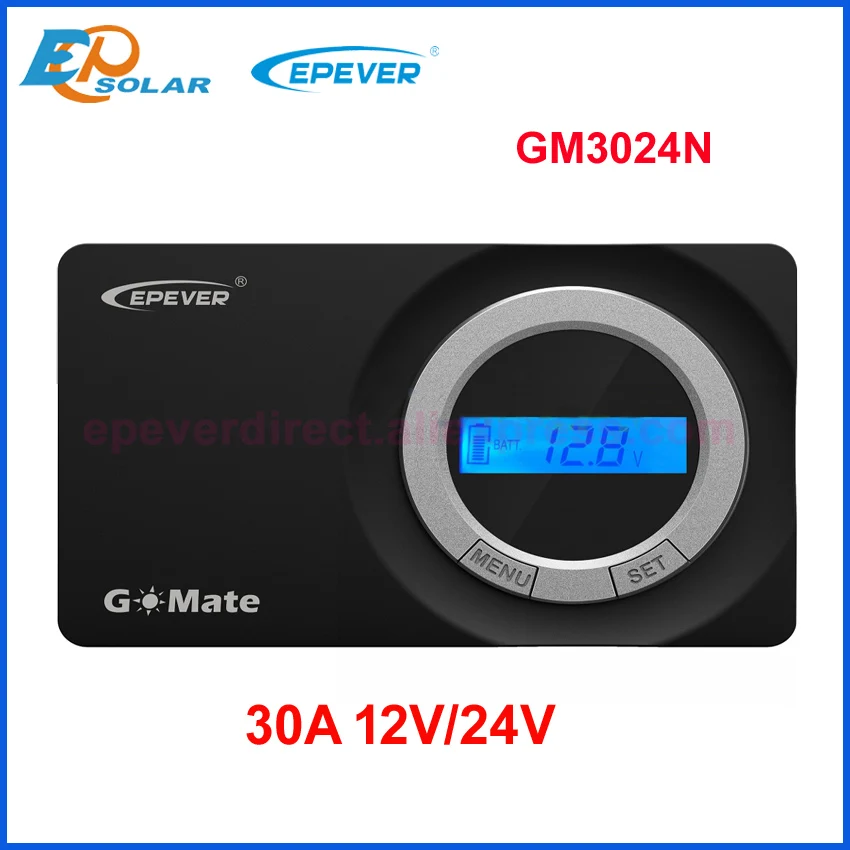

Epever GM3024N GoMate Series Flush Mount PWM Solar Charger Controller 30A 12V/24V Solar Regulator Negative-ground RS485 Connect
GoMate Series (30A)
Models:GM3024N
Specification:12/24V 30A
Overview:

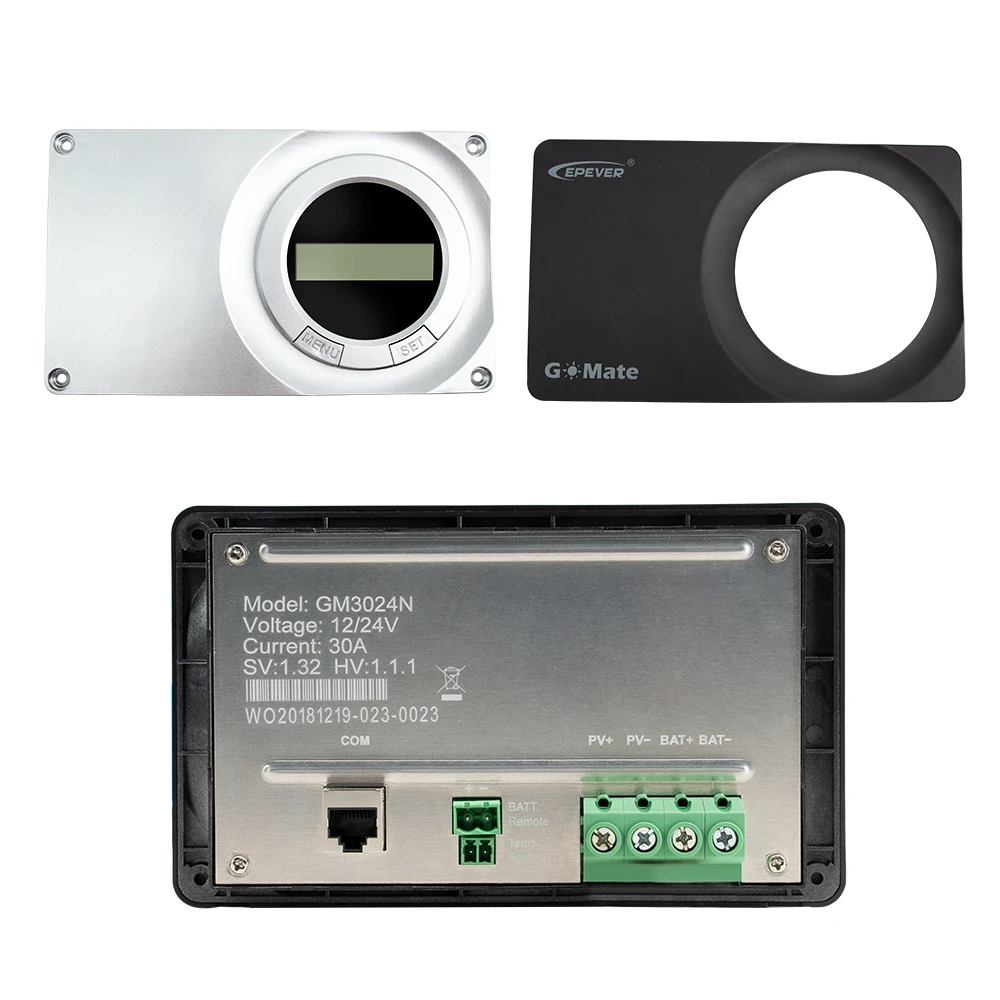

The GoMate is a negative-ground, fush mount solar charge controller, designed for an aesthetically clean and integrated look on RV and Vessel, also included surface mount cover to suit personal preference. The GoMate adopts highly efcient PWM charging mode, also comes equipped with special LCD display to show the real-time operating status of the system. This charge controller is fully controlled automatically, which provide simple usage pattern to users.
Features:
Flush mounted and embedded installation design
High quality and low failure rate components (ST/IR) to ensure the product lifetime
3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
Battery type: Sealed, Gel, Flooded, and User
Real-time energy statistics feature
Battery temperature compensation feature

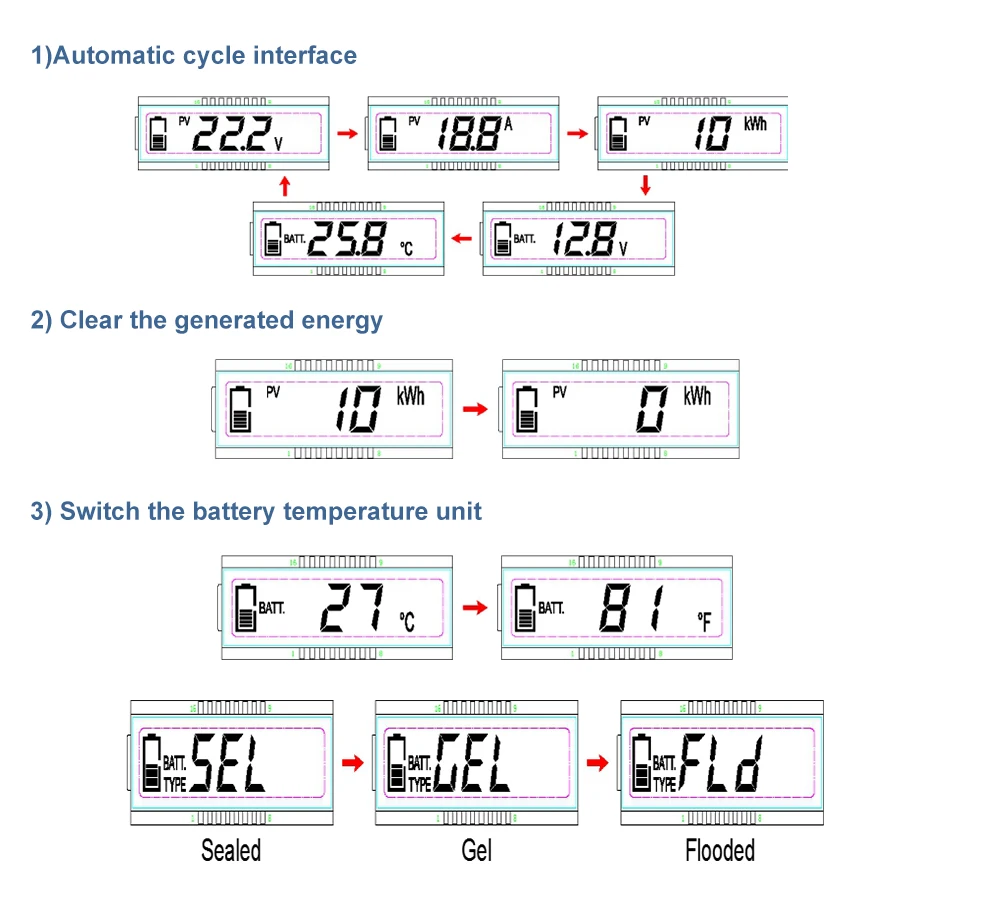

Digital LCD monitor for informative display of operational parameters and fault messages
Voltage drop and temperature compensation sampling interface design
RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
Multiple communication peripherals
Rated charging current at working temperature without de-rating
Extensive electronic protections
Monitor and set the parameters via PC software or APP
Epever GM3024N GoMate Series Flush Mount PWM Solar Charger Controller 30A 12V/24V Solar Regulator Negative ground RS485 Connect-in Solar Controllers from Home Improvement on Aliexpress.com | Alibaba Group

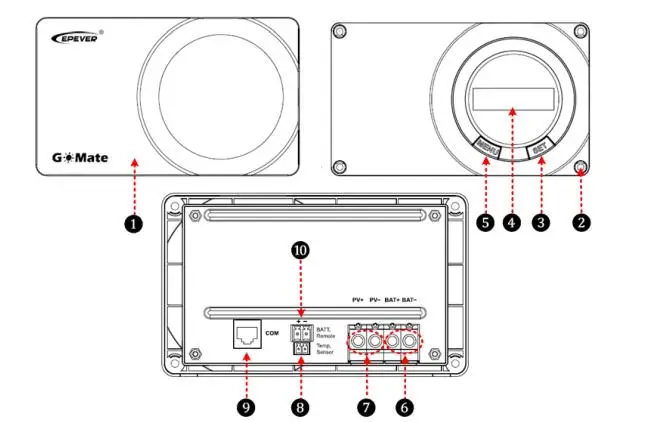

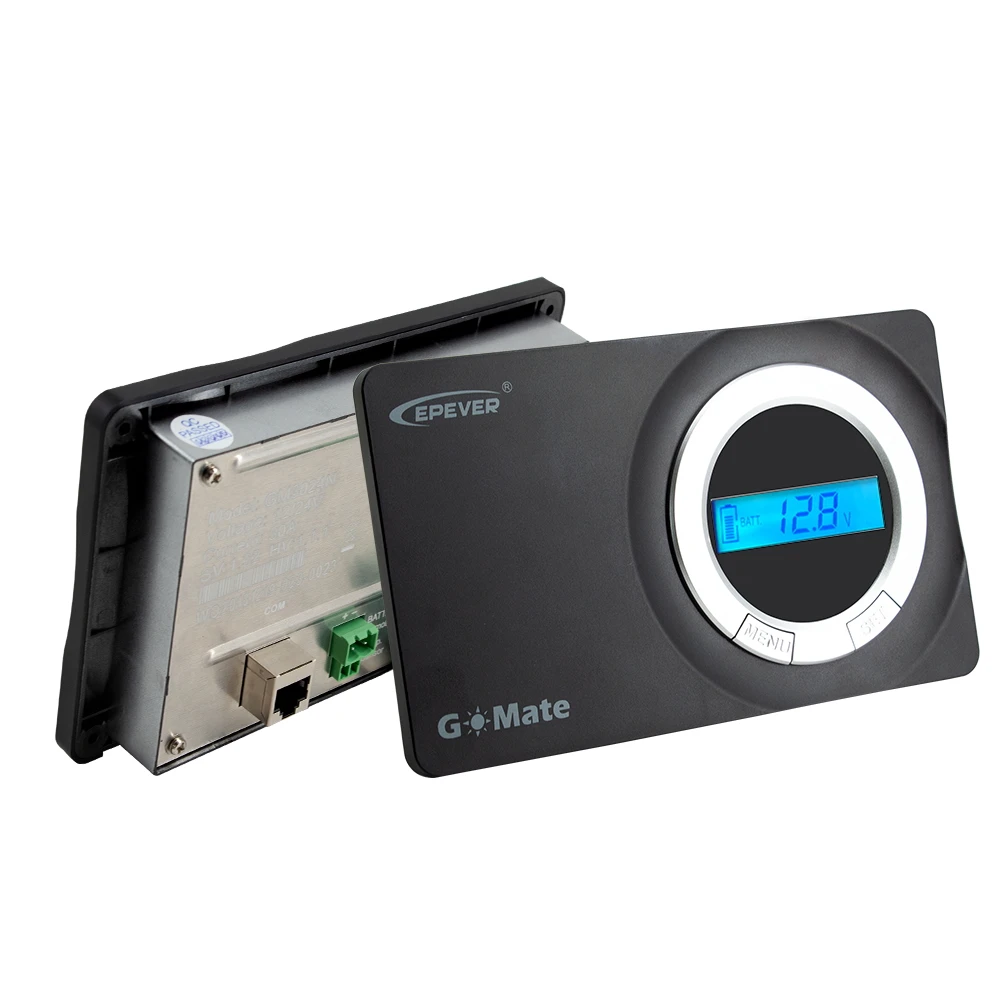

1.Controller case
2.Mounting hole sizephi 4.5mm
3.SET button

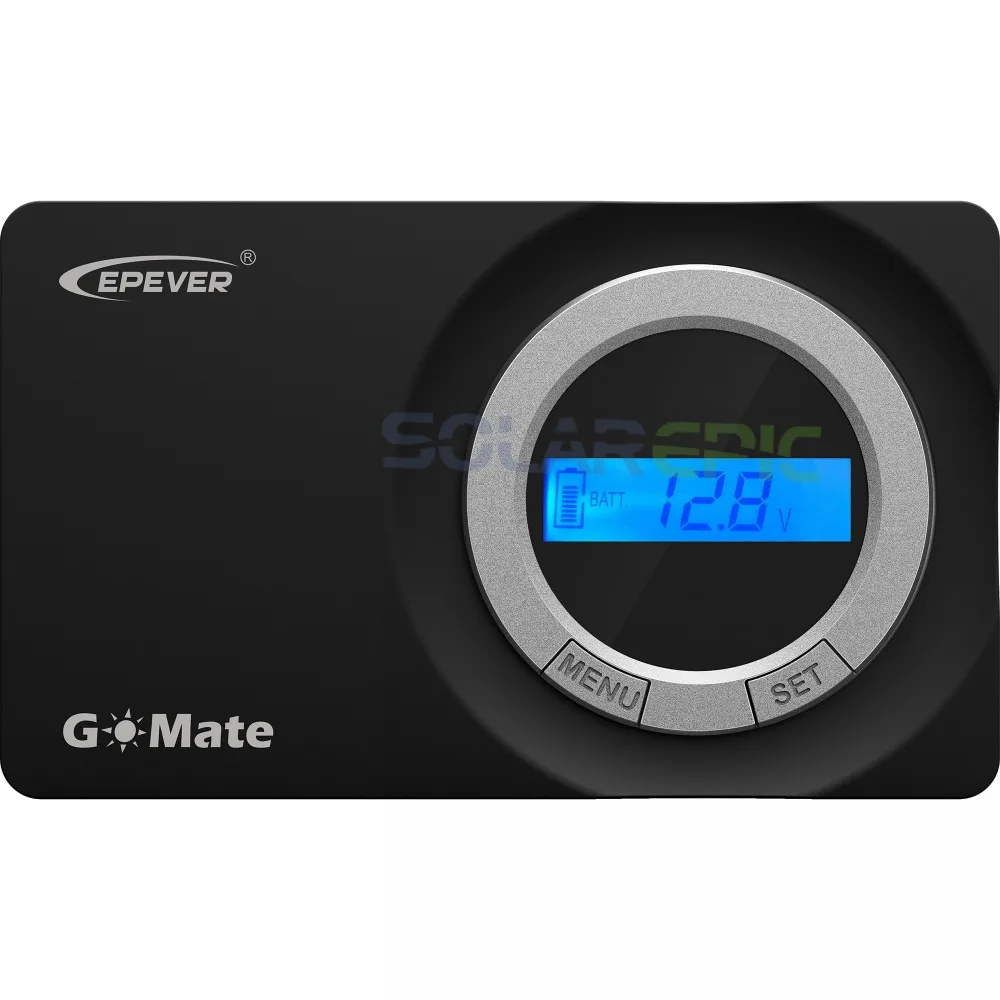

4.LCD
5.MENU button

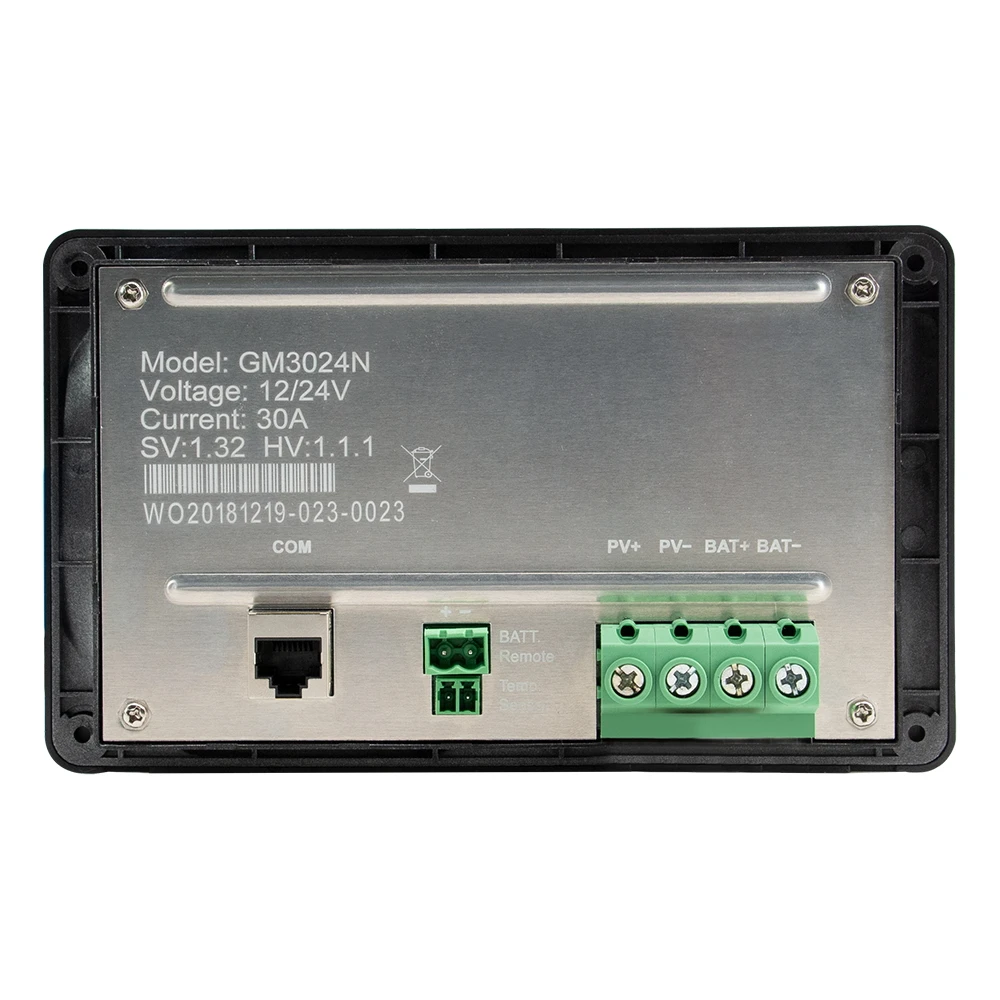

6.Battery terminals
7.PV terminals
8.Remote temperature sensor port
9.RS485 communication port
10.Remote battery voltage sensor port
Technical specifications:
Model | GM3024N |
Electrical Parameters | |
Nominal System Voltage | 12/24VDC Auto |
Battery Input Voltage Range | 8V~32V |
Rated Charge Current | 30A |
Max. PV Short Circuit Current |
|
Max. PV Open Circuit Voltage | 50V |
Battery Type | Sealed(default)/Gel/Flooded/User |
Self-consumption | le4.2mA/12V;le2.6mA/24V |
Temperature Compensation Coefficient | -3mV/degC/2V(Default) |
Charge Circuit Voltage Drop | 0.21V |
Environmental Parameters | |
Storage Temperature Range | -30degC~+80degC |
Working Environment Temperature | -20degC~+55degC(100% input and output |
Relative Humidity | le95%, N.C. |
Enclosure | IP30 |
Grounding | Common negative |
Altitude | 5000m |
Pollution Degree | PD2 |
Mechanical Parameters | |
Dimension(LtimesWtimesH) | 178.5times105.5times48.3mm |
Mounting Dimension | 166.5times93.5mm |
Mounting Hole Size | Phi5mm |
Terminal | 16mm /6AWG |
Recommended Cable | 10mm /8AWG |
Wholesales price | Contact the seller |
Accessories (Optional):
remote Temperature Sensor (RTS300R47K3.81A) | | Acquisition of battery temperature for undertaking temperature compensation of controlparameters, the standard length of the cable is 3m (length can be customized). The RTS300R47K3.81A connects to the port (4th) on the controller. NOTE: The temperature sensor short-circuited or damaged, the controller will be charging or discharging at the default temperature 25degC |
|
USB to RS485 cable CC-USB-RS485-150U |
| USB to RS-485 converter is used to monitor each controller on the network using Solar Station PC software. The length of cable is 1.5m. TheCC-USB-RS485-150U connects to the RS-485 Port on the controller. | |
Remote Meter MT50 | MT50 can display various operating data and fault of the system. The information can be displayed on a backlit LCD screen, the buttons are easy-to-operate, and the numeric display is readable. | ||
WIFI Serial Adapter eBox-WIFI-01 | After the controller is connected with the eBox-WIFI-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through WIFI signals. | ||
RS485 to Bluetooth Adapter eBox-BLE-01 | After the controller is connected with the eBox-BLE-01 through the standard Ethernet cable (parallel cable), the operating status and related parameters of the controller can be monitored by the mobile APP software through Bluetooth signals. |
