long range wireless cctv system outdoor 4 channel cctv system nvr set
- Category: >>>
- Supplier: Zibo Zunzhi Trading Co. Ltd.
Share on (62187981803):
Product Overview
Description

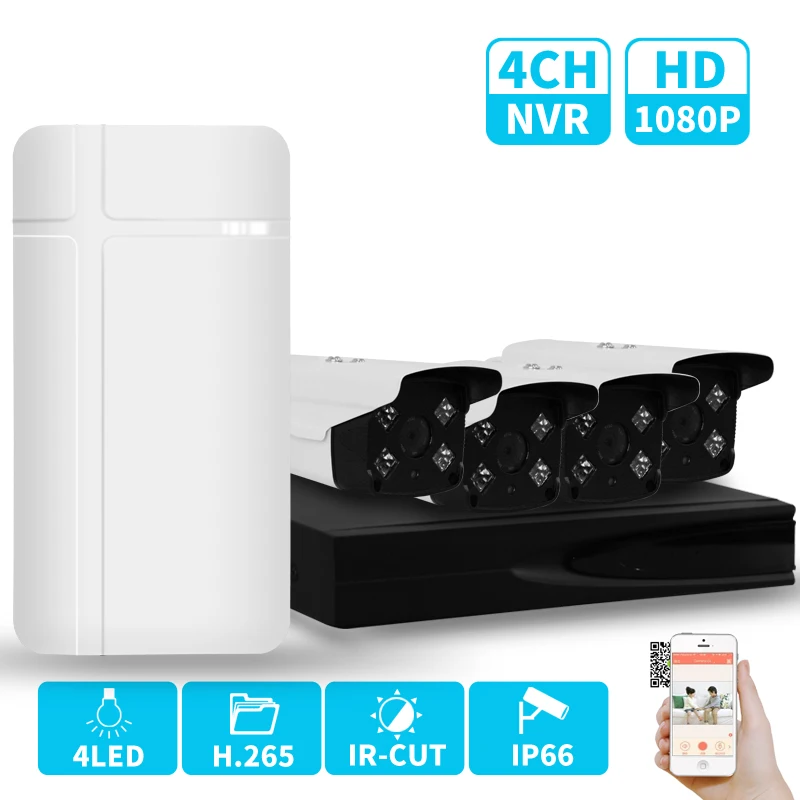

This WQ-Link 4 channels wireless CCTV camera system kit consists of 4 * IP bullet camera, 5 * 5.8GHz wireless CPE and 1 * 4 channels NVR. This kit can come ture a long distance wireless monitoring, not just few hundred meters. Max distance can be 1km to 50km (according speical solution).
And we support OEM service, it means we can develop appropriate plans and solutions according to the needs of our customers, not limited to this set of 4ch wireless cctv kit. Just contact us, we will make a suitable solution for you.
long range wireless cctv system outdoor 4 channel cctv system nvr set
Andy Shaw
Mob/Wechat/Whatsapp: +86 130 5334 3539Skype: live:e125cf9f4b64b661
QQ: 1211031999
Camera model | WQ-T5020D |
Pixel | 2MP |
Lens | 4 mm & 6 mm |
Coding | H.265 |
Night vision | Support |
ONVIF | Support |

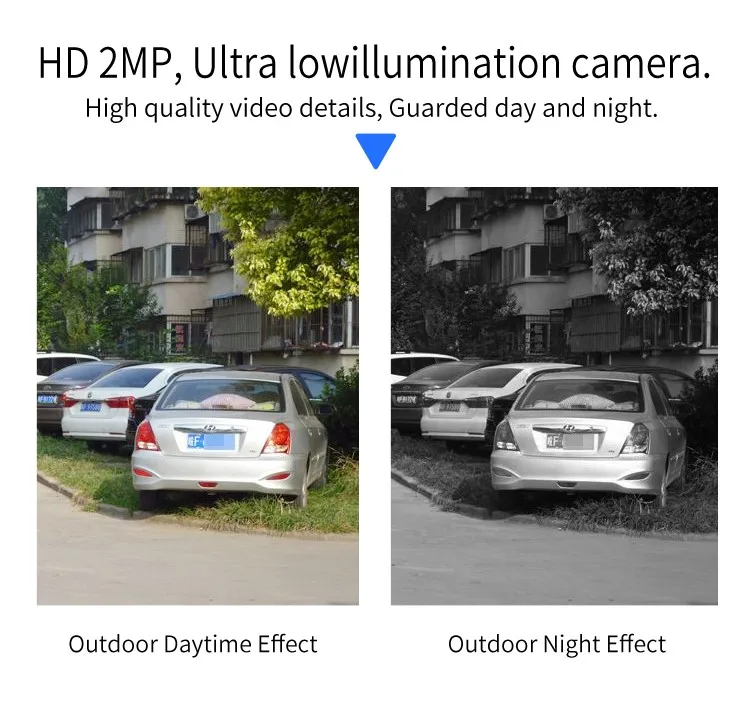

This IP camera has a two million pixels len, it can meet most of the monitoring requirements.

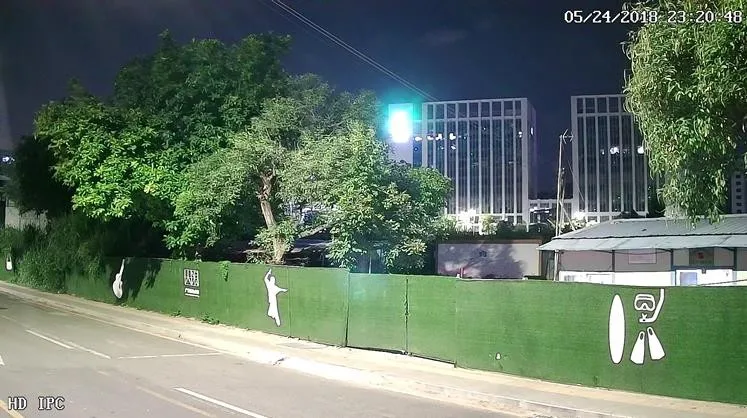

It has infrared and night vision functions, and supports standard onvif.
H.265 coding makes it have a higher video compression ratio and reduce the storage footprint.

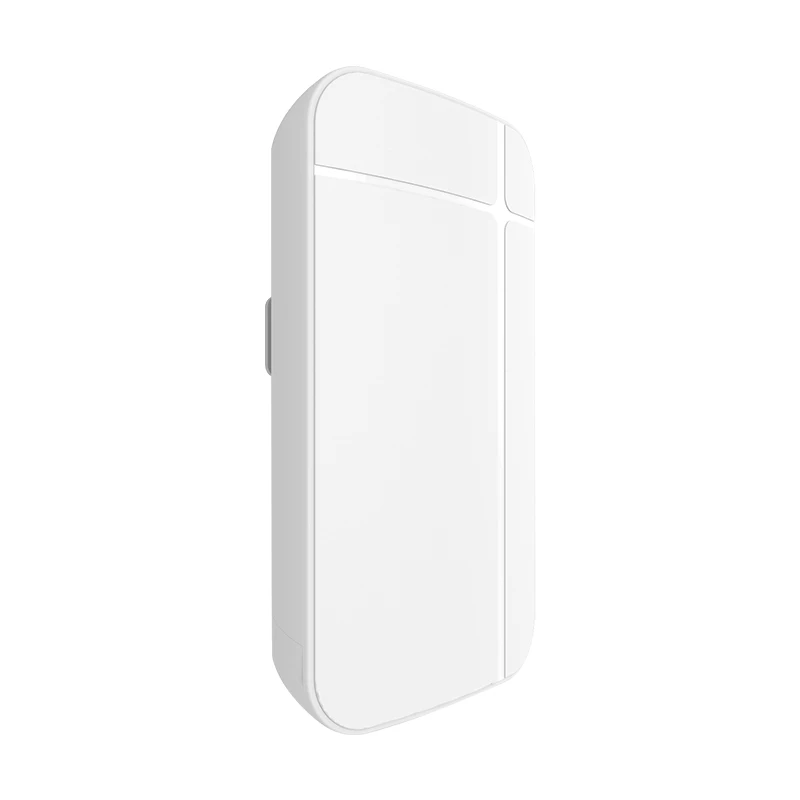

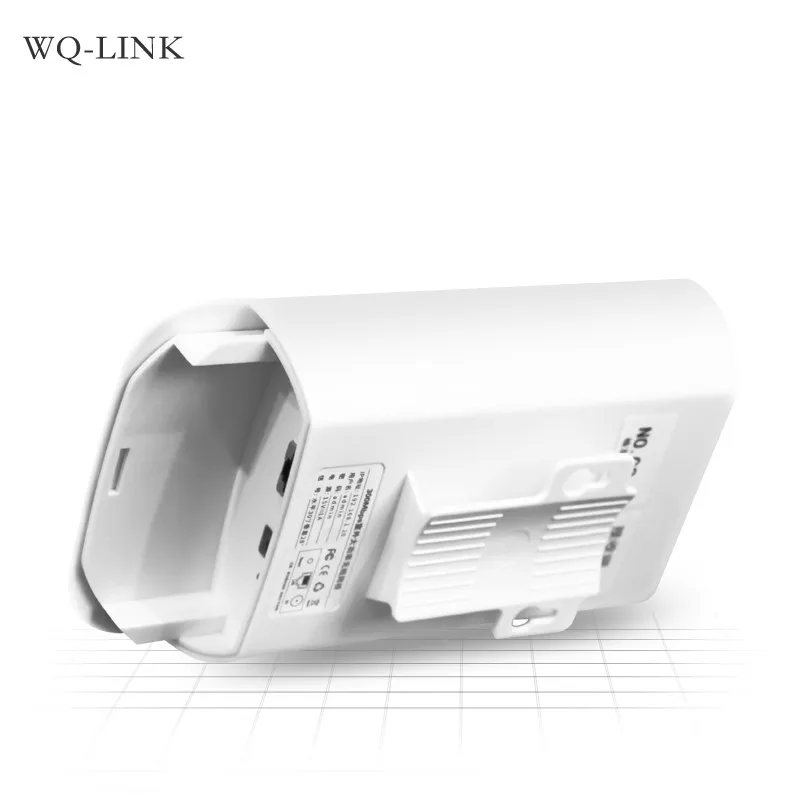

WQ-W520 wireless CPE

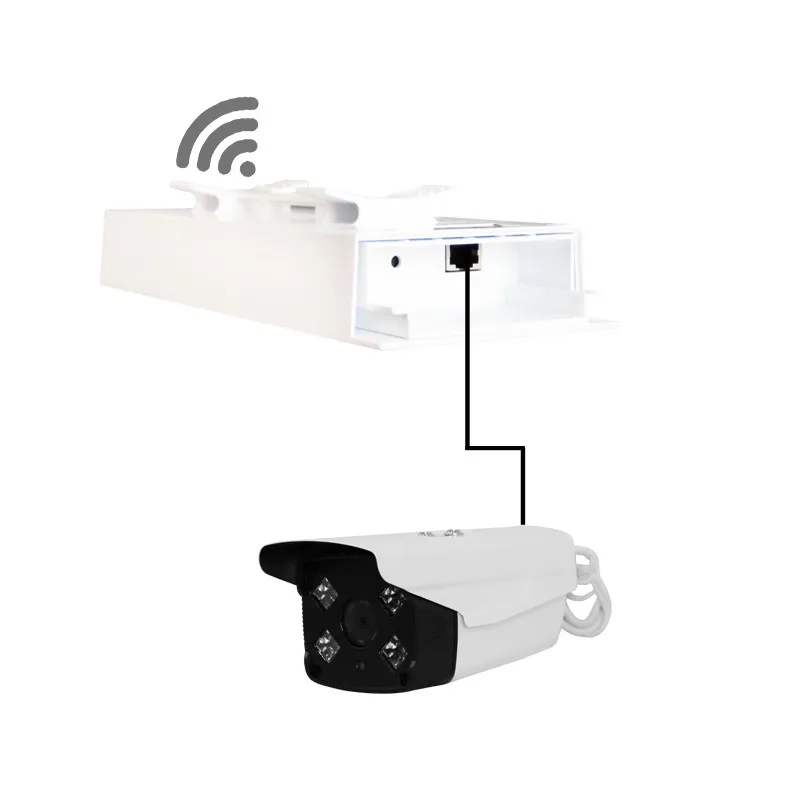

We use W520 wireless cpe to send and receive camera signals in this kit.
* 5.8GHz frequency band, PTP range 2km
* 300Mbps through out
* AR9342 chipset
* 24V PoE power supply
More info about WQ-W520, please click here to get
Model | WQ-LXJ2504 |
Channel | 4 ch |
Coding | H.265 |
Output | VGA, HDMI |
HDD | Support 1 * 8TB |
ONVIF | Support |
* 1U standard case, Max 4*3MP IPC input
* Support 4 screen preview and 1*3MP playback* Support 1*8T hard drive

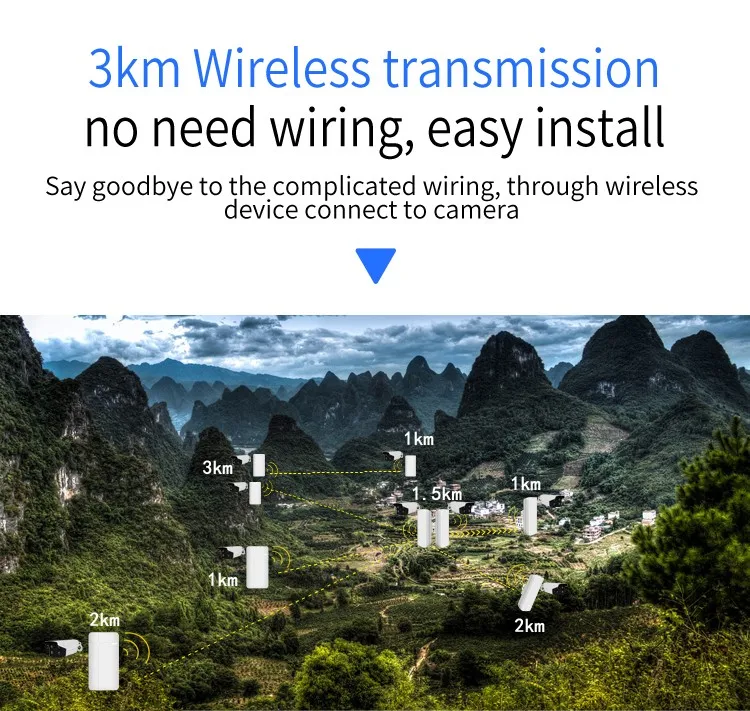

Normal wireless cctv system can just send signals to hundred meters away, if cameras are 1km away from Center room, cameras(built-in wifi) can't work.
Our wireless cctv system use wireless CPE to send and receive siganls, the distance can be as far as 50km.

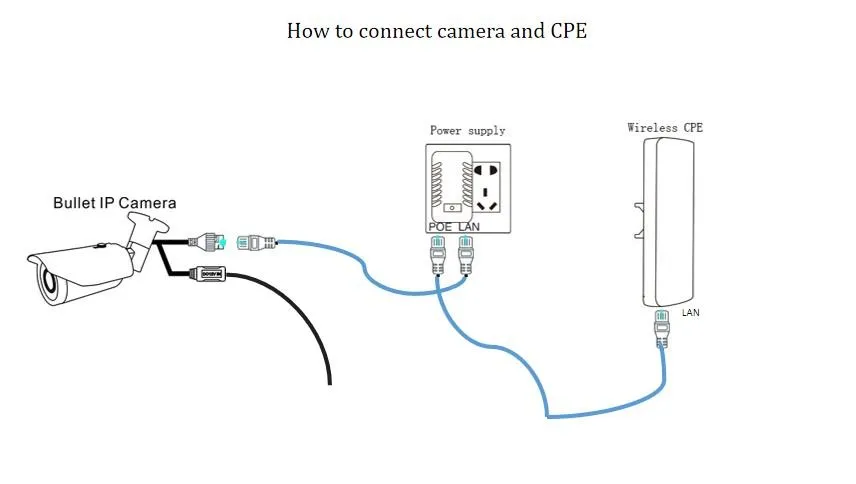

Our wireless CPE(We call the receiver as Station, call sender as Access point) supports PoE power supply.

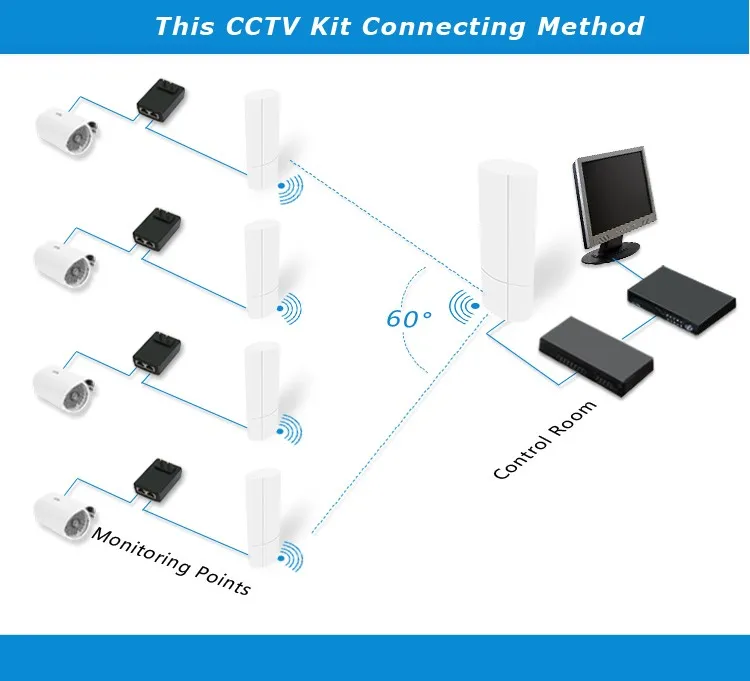

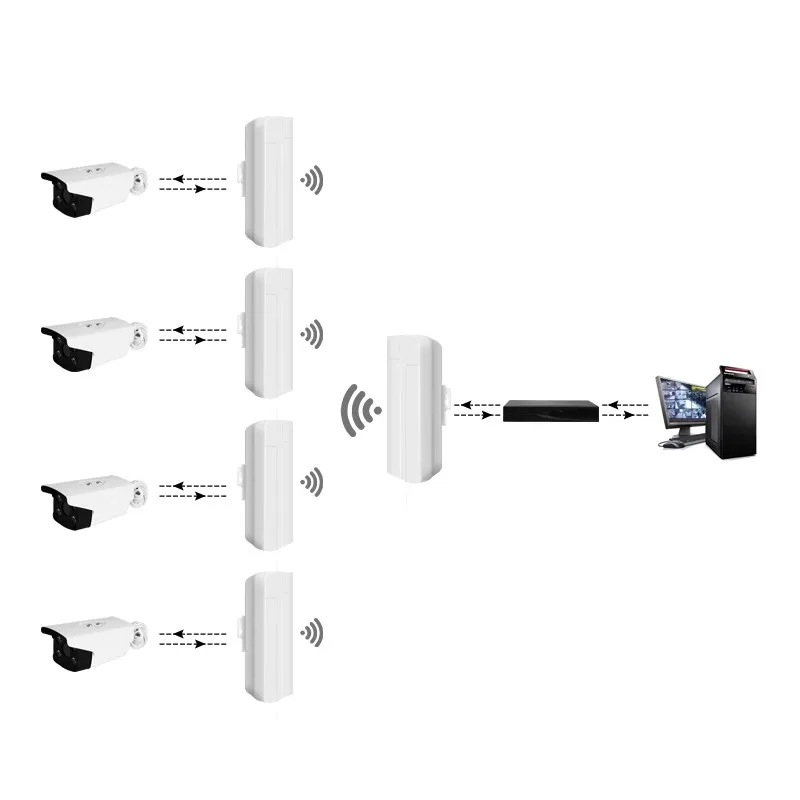

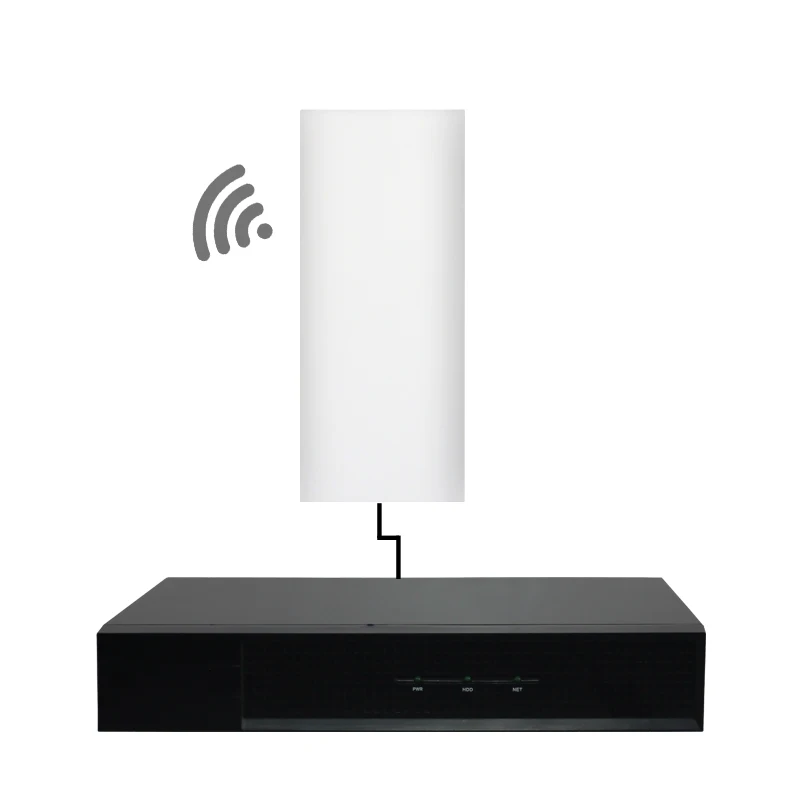

We put Access point at NVR, and Station at each camera. There should be no obstruction between Access point and each Station, cause obstruction reduces the efficiency of wireless transmission.
Please note: Stations should be within 60 degrees of Access point.

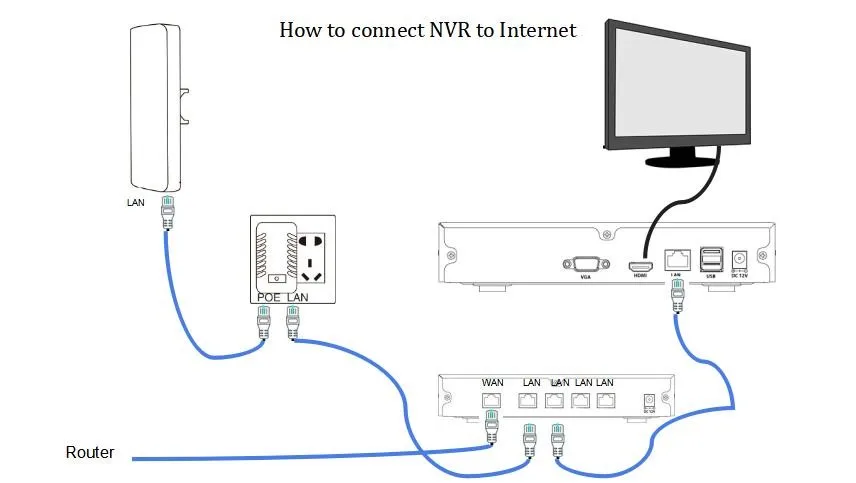

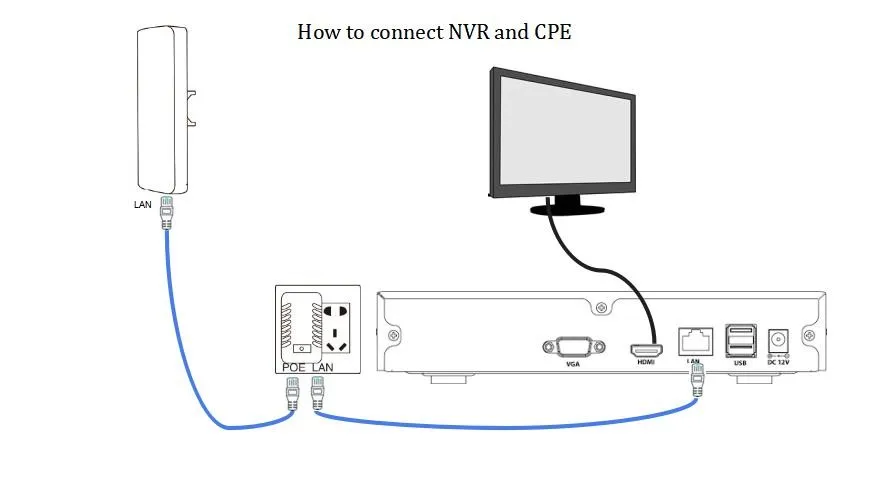

If we connnect Access point, NVR, internet router to a switch, we can see the monitoring videos by phone or PC.
When you are on a business trip, you can still see the monitor screens.

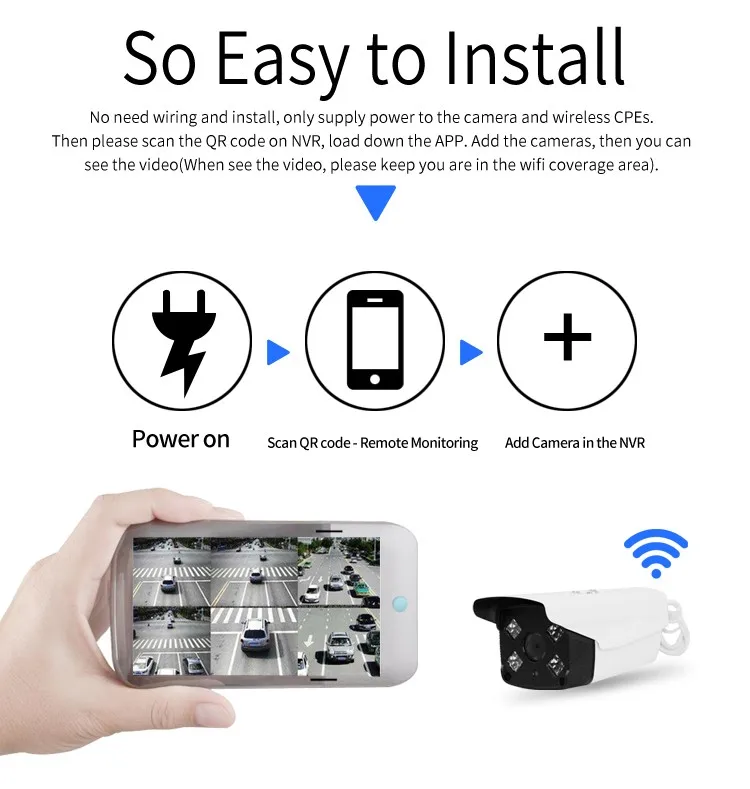

Step 1: Check NVR Seetong cloud ID
After entering the NVR main interface, you can view the middle of the top of the preview
interface to view the NVR Seetong cloud ID, or click the right mouse button, enter the right menu - system setting - network, you can also view the Seetong cloud ID.
Step 2: Download Seetong ID
In the NVR boot wizard mobile phone monitoring or preview screen by moving the mouse to the
top of the middle area of the QR code, or right click menu - system setting - system - basic
information, scan QR code download the corresponding Seetong APP.
Step 3: Registered Seetong cloud users, according to user login and add Seetong cloud ID
View monitoring image on PC/laptop
After we connect NVR to network, we can view the pictures and record videos to hard disk.
With years of export experience along with excellent quality, advanced services and competitive prices, WQ-Link has won numerous customers' trust and support.
Packing

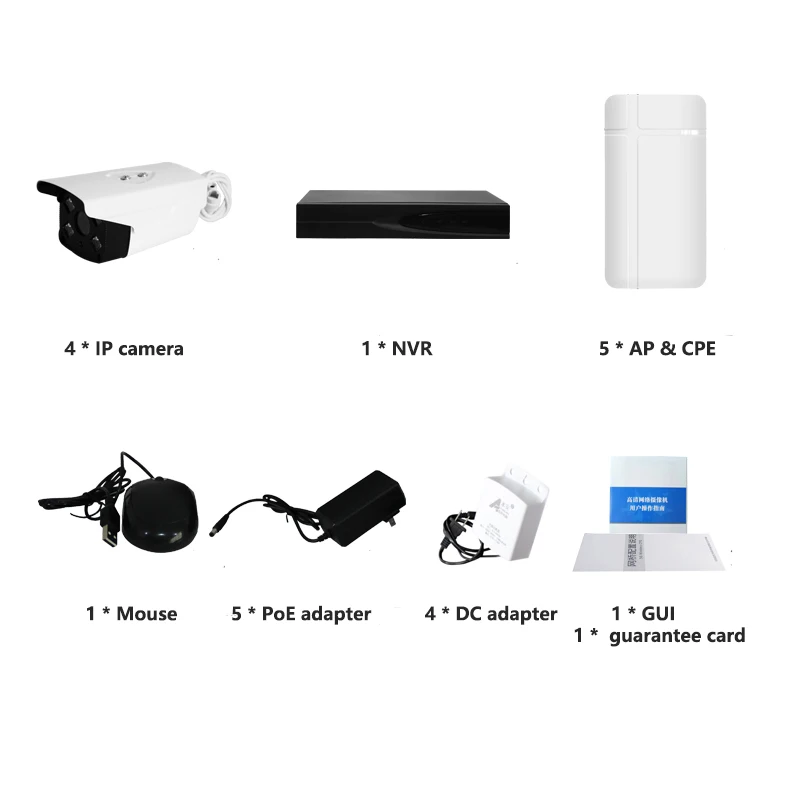

1set in 1pcs carton, including: 4 * 2MP bullet camera, 1* NVR and 5 * wireless bridge.
We support neutral or OEM packaging. We will seal the box to avoid damage to the goods during transportation.
Delivery
How can i get product price list?
Contact us by email, trademanager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptible for bulk order.
What is the product warrenty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
