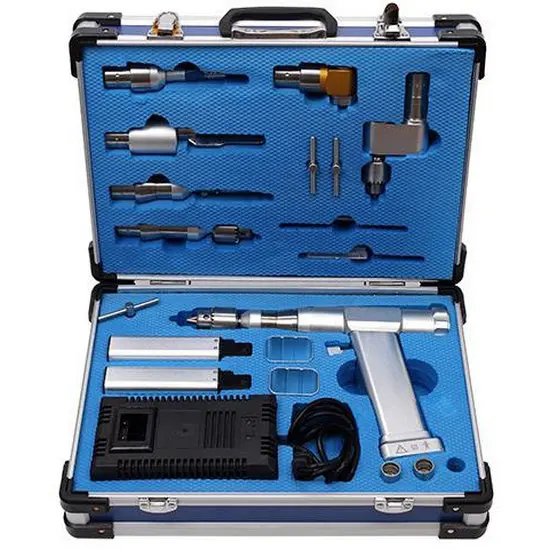

Orthopaedic Surgical Instruments Medical Power Tools Multifunction Hand Bone Drill for Orthopedic Surgery

1. Handpiece maximum speed: 14000rpm, stepless speed. Positive and negative direction Rotation for choosing and it runs stably.
2. The handpiece can install 7 connectors, they are high torque drilling interface, self-stopping craniotomy drilling interface, fast-drilling interface, cannulated drilling interface,
oscillating saw interface, reciprocating saw interface, craniotomy milling interface,

3. Battery voltageL14.4V; free from sterilizing; two batteries;

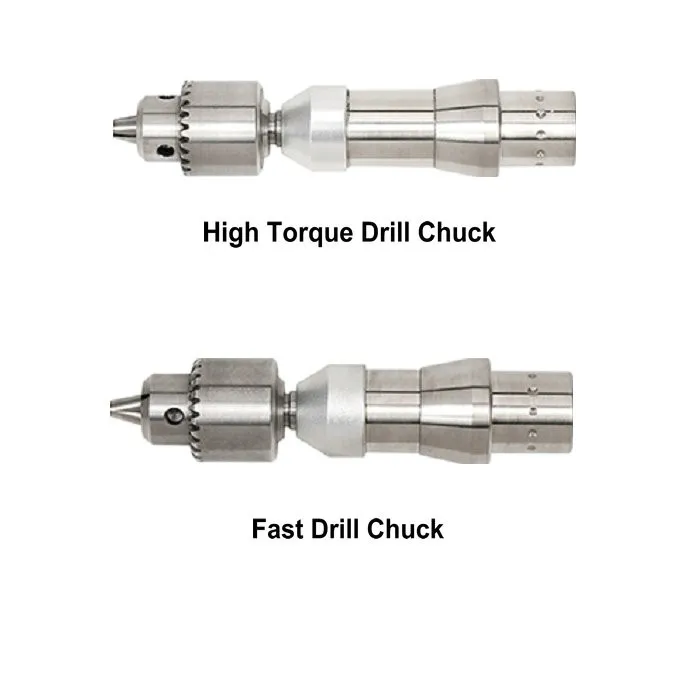

Features of high torque drilling interface

Fastest speed: 250rpm.

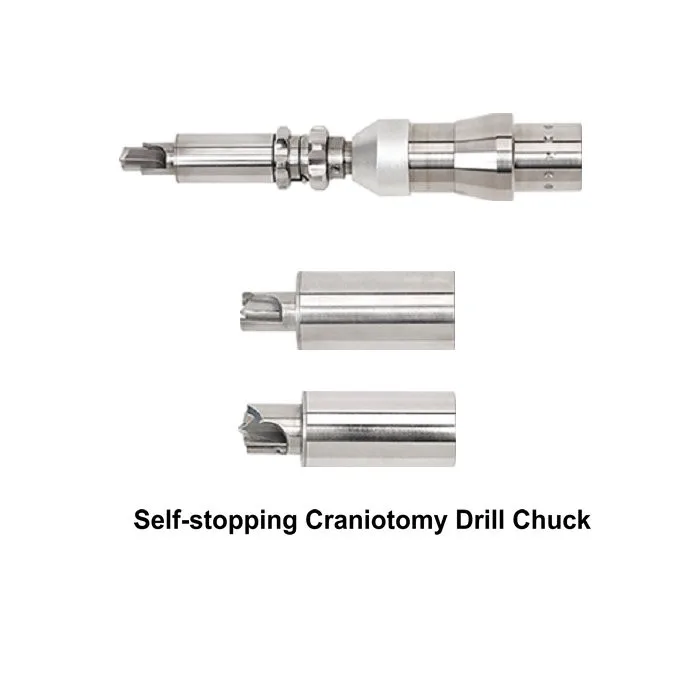

Features of self-stopping craniotomy drilling

The Max. speed: 1200 RPM, has the function of self-stopping after piercing craniotomy to ensure safety in operation. It is also suitable for neurosurgical operation.

Features of fast drilling interface

1. Milling head drilling speed: 30000rpm
2. Continuously Variable Transmission, Stable Running
3. 4 pieces of mills for free

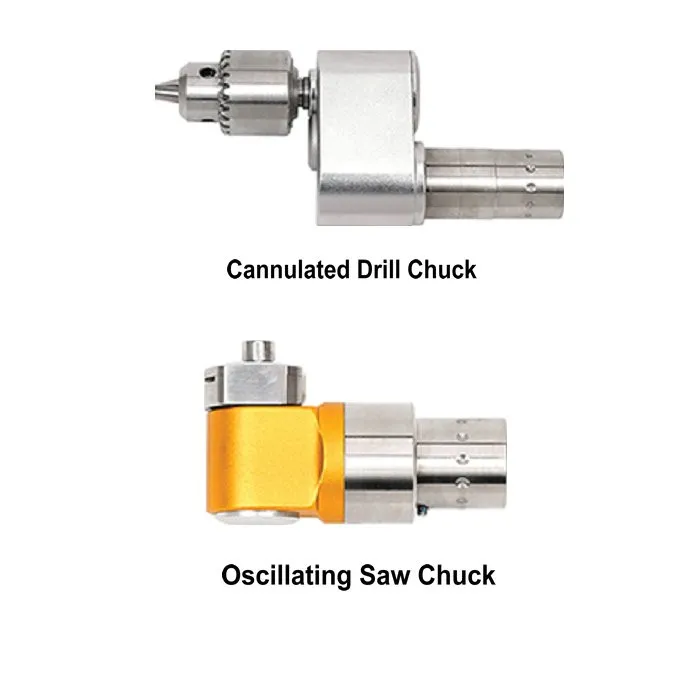

Features of cannulding drilling interface

1. Max. rotating speed: 1200rpm2. Max. hollow diameter:4.5mm
2. Suitable for K-wire and interlocking nails operation.

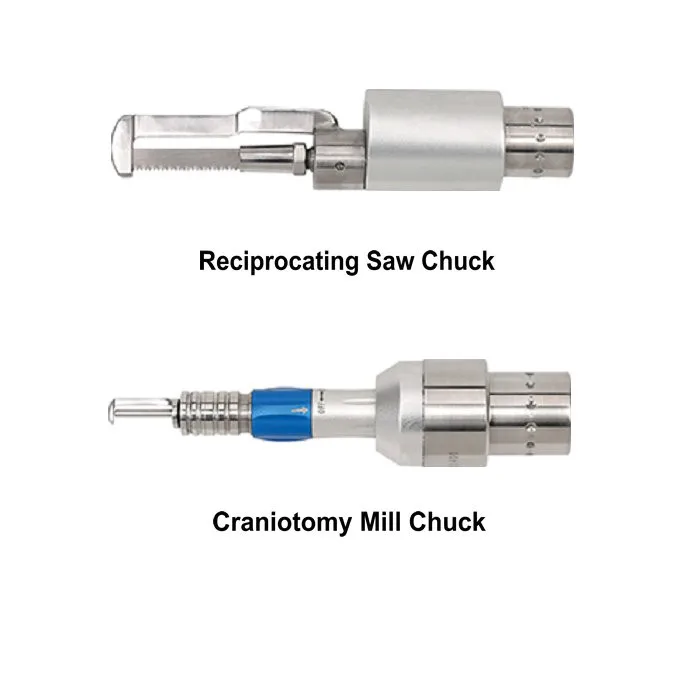

Features of Reciprocating Saw Interface

1. Reciprocating Frequency Of 14000 times/Minute.
2. Reciprocating Amplitude 2.5mm-5mm,
3. 5 saw blade for free

Features of Oscillating Saw Interface

1. Oscillating Frequency:14000 Times / min
2. Oscillating amplitude: 50 degrees,
3. Saw Blades: 1.0*24*90mm,1.0*24*110mm, 1.2*24*90mm, 1.2*24*110mm, and 1.2*20*120mm, one piece each size.

Packing & Delivery

Packaging Details:

Mult-Functional Bone Drill packaged by carton box

Delivery Detail:

Normally within 7 days after your payment
