Fly Kan USB3.0 HD Video Gaming Capture Device Box for Windows OS (1080p)

Share on:


Price:$69.00
Price in USD:Details

Quantity:


Product Overview

Description

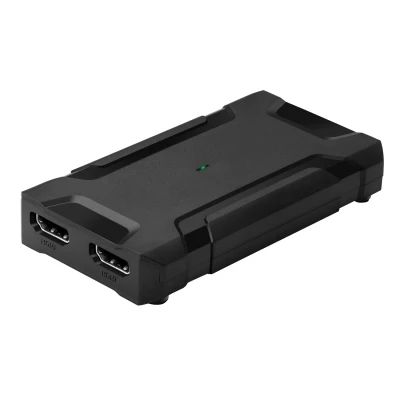

HDCAP07 HDMI to USB3.0 Video Capture Device w/ MIC Input
- Turn your computer into a high-definition HDMI video recorder

This HDMI to USB video capture device lets you record HDMI video to your USB3.0 computer. For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that's natively supported by Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this capture device you're not limited to the included software. You can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
HDCAP07-N-006

Record 1080p video at 60fps (frames per second), to save your content so it can be shared, stored, or edited. Capture meetings, presentations, conference calls and from security equipment directly to your computer.Stream your video over the internet using Twitch™ or other third-party video streaming platforms. With the included software or your own third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using Twitch or other third-party video streaming platforms.

Applications

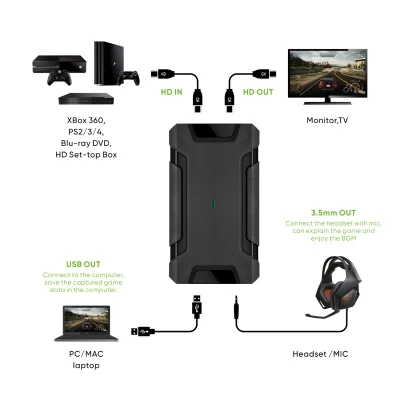

I. Record video for training and tutorial purposes from devices that output HDMI
II. Great for video producers that may have a camera connected directly to the capture device
III. Great for recording the output from your PC, server, or POS station
IV. Add your own independent audio source for voice-over commentary

Features
I. Includes a USB-A and USB-C cable for connection to any Mac or PC host
II. Seamless picture quality with USB 3.0 bandwidth enabling you to capture 1080p video at 60fps
III. Wide device playback support with universally encoded video files
IV. Raw/lossless video capture ensuring DirectShow™ compatibility on Windows devices

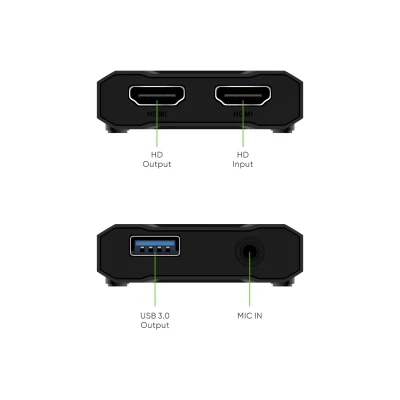

V. Separate 3.5 mm audio input, for adding voice commentary or audio tracks
VI. Features an HDMI pass-through port, for watching the video as it is captured


Notes: Due to significant OS structure updating, the device might not stable with macOS 10.13 +


HD Video Capture Model No. Reference



Model No.

INTERFACE

HDCAP01

HDCAP07

HDCAP08

HDCAP011

Capture Feature



HDMI to USB3.0

HDMI to USB3.0

Standalone

Standalone

Playback



X

X

X

X

Storage



Computer

Computer

U-Disk

U-Disk



FAT/FAT32/NTFS

FAT/FAT32/NTFS

Input Resolution
(Max.)

HDMI

3840 x 2160

1080p, 60p

Composite/Component



Capture Resolution
(Max.)

HDMI

1080p,60p

1080p,30p

Composite/Component



Input Interface

HDMI

V

V

V

V

Mic Input (3.5mm Mini-Jack)

X

V

V

V

Composite/Component

X

X

V

X

Output Interface

HDMI Pass-Through

V

V

V

V



Line Out (3.5mmMini-Jack)

X

X

V

X

Power Supply



USB3.0

USB3.0

5V,2A

5V,2A

Remarks
