Mini size peltier module for water dispenser

Product Overview

Description

Mini size Peltier module for water dispenser

High performance TEC

• Features

High reliability: with the special GL structure, the reversal of polarity property of our products is 10 times better than conventional thermoelectric coolers. The reliability of coolers has been increased dramatically.
Higher temperature difference: 2℃ temperature difference results in higher cooling performance and better quality.
High temperature resistance: the 230℃ high-temperature solder made the products possible to be used at higher temperature.

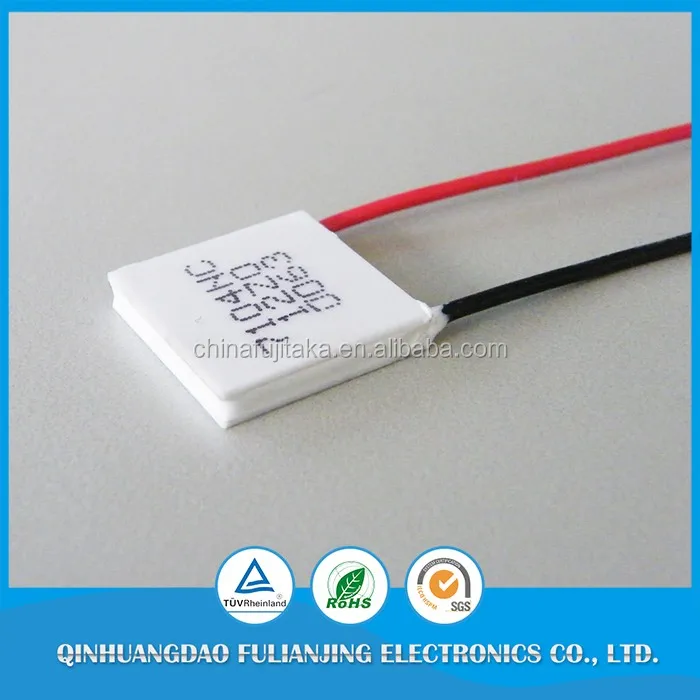

1. Product Pictures of Peltier Module

2.Product description of peltier module



Model number	Imax(A)	Vmax(V)	Tmax(℃)	Qmax(W)	Tmax(℃)	Qmax(W)	Dimensions(mm)
			Th=27℃		Th=50℃		L	W	H
TEC1-1703NC	3.5	2.1	68	3.9	75	4.3	15	15	4.70
TEC1-3103NC		3.8		7.0		7.7	20	20
TEC1-3503NC		4.2		7.9		8.7	15	30
TEC1-7103NC		8.6		16.0		17.8	30	30
TEC1-12703NC		15.4		29.0		32.0	40	40
TEC1-12703AC		15.4		29.0		32.0	40	40
TEC1-1704NC	4.0	2.1	68	4.2	75	4.6	15	15	4.60
TEC1-3104NC		3.8		7.5		8.3	20	20
TEC1-3504NC		4.2		8.4		9.2	15	30
TEC1-4904NC		5.9		13.5		15.2	25	25
TEC1-7104NC		8.6		19.6		21.6	30	30
TEC1-12704NC		15.4		32.0		35.2	40	40
TEC1-12704AC		15.4		32.0		35.2	40	40
TEC1-1705NC	5.0	2.1	68	5.5	75	6.1	15	15	4.00
TEC1-3105NC		3.8		10.0		11.1	20	20
TEC1-3505NC		4.2		11.0		12.3	15	30
TEC1-7105NC		8.6		23.0		25.7	30	30
TEC1-12705NC		15.4		41.0		45.8	40	40
TEC1-1706NC	6.0	2.1	68	7.1	75	7.9	15	15	4.00
TEC1-3106NC		3.8		13.0		14.5	20	20
TEC1-3506NC		4.2		14.5		16.1	15	30
TEC1-7106NC		8.6		29.0		31.4	30	30
TEC1-12706NC		15.4		53.0		59.3	40	40
TEC1-12706AC		15.4		53.0		59.3	40	40
TEC1-1707NC	7.0	2.1	68	7.5	75	8.3	15	15	3.70
TEC1-3107NC		3.8		13.6		15.1	20	20
TEC1-3507NC		4.2		15.4		17.1	15	30
TEC1-7107NC		8.6		31.0		34.6		30
TEC1-12707NC		15.4		55.0		61.5	40	40
TEC1-12707AC		15.4		55.0		61.5	40	40
TEC1-1708NC	8.5	2.1	68	10.0	75	11.1	15	15	3.50
TEC1-3108NC		3.8		18.0		20.1	20	20
TEC1-3508NC		4.2		20.0		22.3	30	15
TEC1-6308NC		7.6		37.4		41.8	40	20
TEC1-7108NC		8.6		42.0		46.9	30	30
TEC1-12708NC		15.4		75.0		83.9	40	40
TEC1-12708AC		15.4		75.0		83.9	40	40
TEC1-12710AC	10.5	15.4	68	93.0	75	102.0	40	40	3.30
TEC1-12712AC	12.5	15.4	68	110.0	75.0	121.0	40	40	3.70
TEC1-12715AC	15.0	15.4	68	130.0	75.0	145.0	50	50	4.15
TEC1-19903AC	3.5	24.1	68	49.0	75.0	53.0	40	40	4.70
TEC1-19904AC	4.0	24.1	68	55.7	75.0	61.2	40	40	4.60
TEC1-19906AC	6.0	24.1	68	83.5	75.0	91.9	40	40	4.00
TEC1-19908AC	8.5	24.1	68	118.0	75.0	130.0	40	40	3.50
TEC1-19910AC	10.5	24.1	68	148.0	75.0	163.0	40	40	3.30
TEC1-19913AC	13.0	24.1	68	200.0	75.0	224.0	40	40	3.40
TES1-3102NC	2.0	3.8	68	3.7	75	4.0	15	15	4.8
TES1-7102NC		8.6		8.5		9.4	20	20
TES1-12702NC		15.4		15.2		16.9	30	30
TES1-12702AC		15.4		15.2		16.9	30	30
TES1-3103NC	3.0	3.8	68	6.5	75	7.2	15	15	3.9
TES1-4903NC		6.0		10.3		11.3	20	20
TES1-7103NC	3.0	8.6		15.0		16.7	20	20
TES1-12703NC		15.4		27.0		30.1	30	30
TES1-12703AC		15.4		27.0		30.1	30	30
TES1-3104NC	3.9	3.8	68	8.1	75	8.8	15	15	3.7
TES1-7104NC		8.6		18.7		21.8	20	20
TES1-12704NC		15.4		33.4		37.3	30	30
TES1-12704AC		15.4		33.4		37.3	30	30
TES1-3106NC	6.0	3.8	68	12.2	75	13.6	15	15	3.2
TES1-7106NC		8.6		27.9		31.2	20	20
TES1-12706NC		15.4		50.5		56.5	30	30
TES1-12706AC		15.4		50.5		56.5	30	30







3.More Products

1.About us

Qinhuangdao Fulianjing Electronic Co., Ltd. was founded in 1988. As a joint investment by Fujitaka (Japan), Chinese Academy of Sciences, and Ukraine Research Center, we brought in the world leading cooling technology from Ukraine to accelerate the development of the thermoelectric cooling product, production, and sales. In 2003, Fujitaka and Ukraine Research Center formed a joint venture, in which, Qinhuangdao Fulianjing later became a foreign solely owned corporation.
