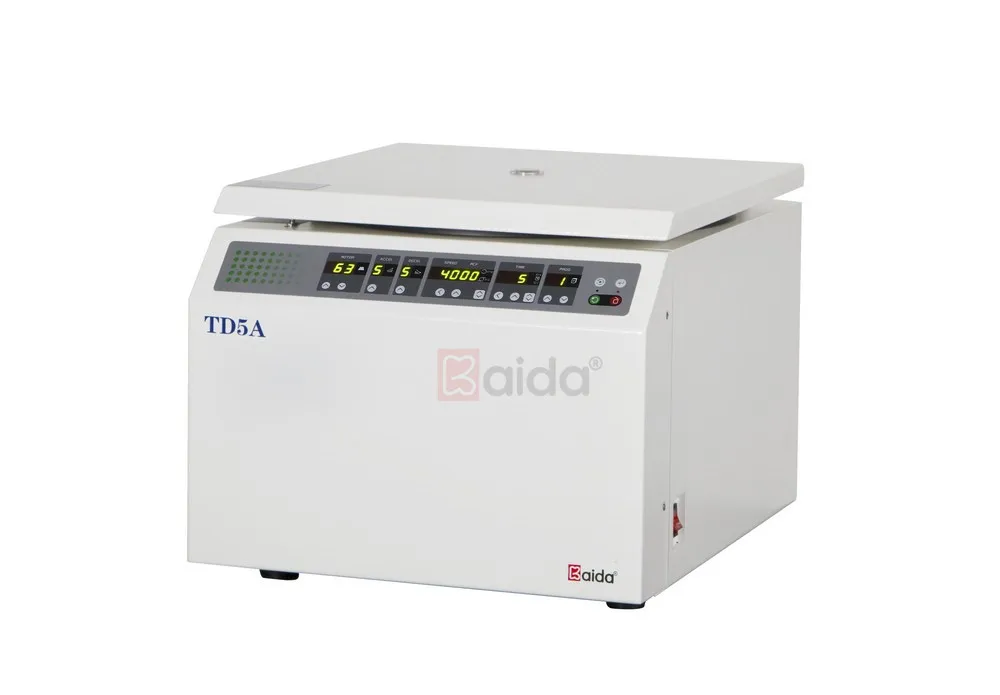

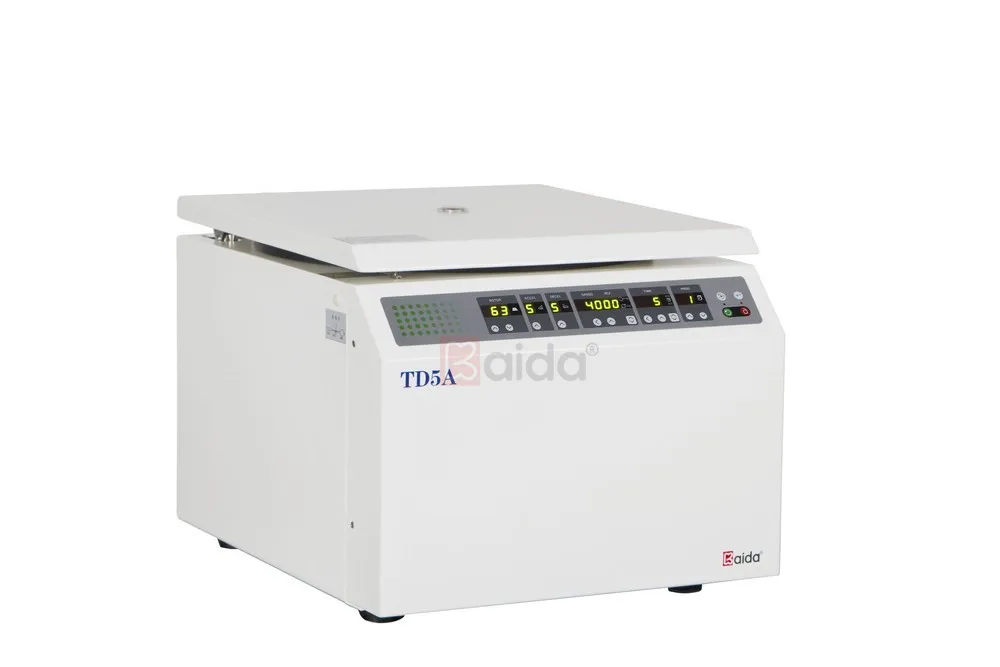

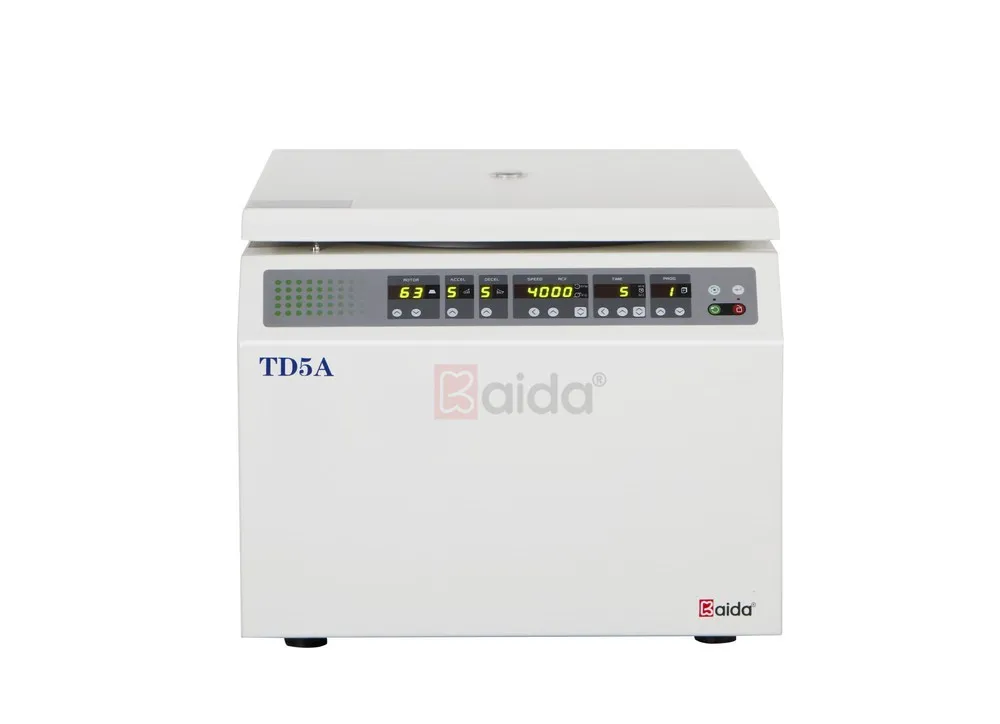

3000ml Table type low speed large capacity centrifuge for medical science use

Product Overview

Description

3000ml Table type low speed large capacity centrifuge for medical science use

FEATURES:

1,Microprocessor control, operated by touch panel, visual digital display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.

2,Brushless motor, imported super speed bearing from Europe, smooth running and maintenance free.

3,Steel body, stainless steel centrifugal chamber, multistage damping system, low noise and slight vibration, green.

4,Overspeed, door interlock, imbalance protections, the rotor can be high temperature & high pressure sterilization, ensure safety.

5,Special air current design, the temperature of centrifuge chamber is stable, can effectively protect the samples.

6,Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, 40 kinds of self-defining operating programs can be stored and recall, to achieve the best centrifugal result.

7,Hold-on and transient centrifuging, easy to diverse centrifugation.



TECHNICAL PARAMETER:



Model	TD5A
Max Speed	5500r/min
Max RCF	5310×g
Max Capacity	3000ml
Speed Accuracy	±20r/min
Time Range	0-999min/sec
Power Supply	AC 220V 50Hz 15A
Noise	≤60dB
Dimension	560×460×390mm
Weight	45kg



ROTOR:



Model	Number	Capacity	Max Speed (r/min)	Max RCF(×g)	Dimension of tube (mm)
Swing Rotor	No.63	4×50/100ml	5500	5310	Φ38×124
	No.69	4×500/12×50/8×100ml	4000	3580	Φ80×140
	No.70	4×250/8×50/32×10ml	4000	3500	Φ64×113
	No.71	4×750ml	4000	3890	Φ99×130
	No.77	32×10/15ml	4000	2810	Φ16×85-118
	No.78	16×10/15ml	4000	2810	Φ16×85-118
	No.81	8×50/100ml	4000	2810	Φ28×105-115
	No.82	40/48×5ml	4000	3500	Φ14×54
	No.84	148×5/7ml	4000	3890	Immuno Tubes
	No.84	120×5/7ml	4000	3890	Vacumm Blood Collection
	No.85	96×5/7ml	4000	3580	Vacumm Blood Collection
	No.85	80×5/7ml	4000	3580	Vacumm Blood Collection
Microtiter Plate Rotor	No.43	2×2×96 Holes	4000	2300	Microtiter Plate
	No.44	2×48 Holes	4000	2300





 PRODUCT DISPLAY:







WORKSHOP/CERTIFICATE/PACKAGE:
