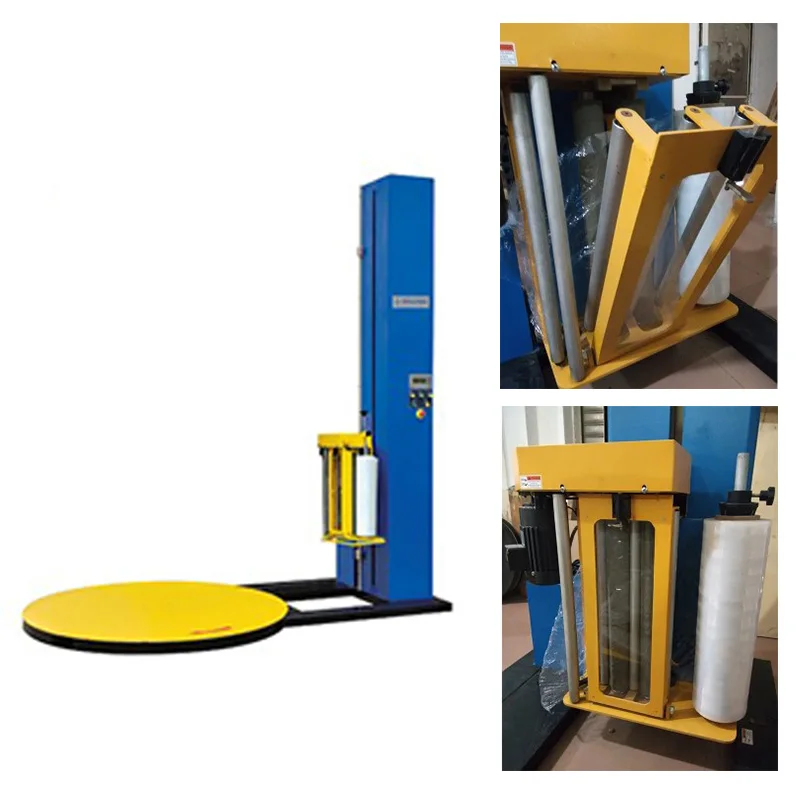

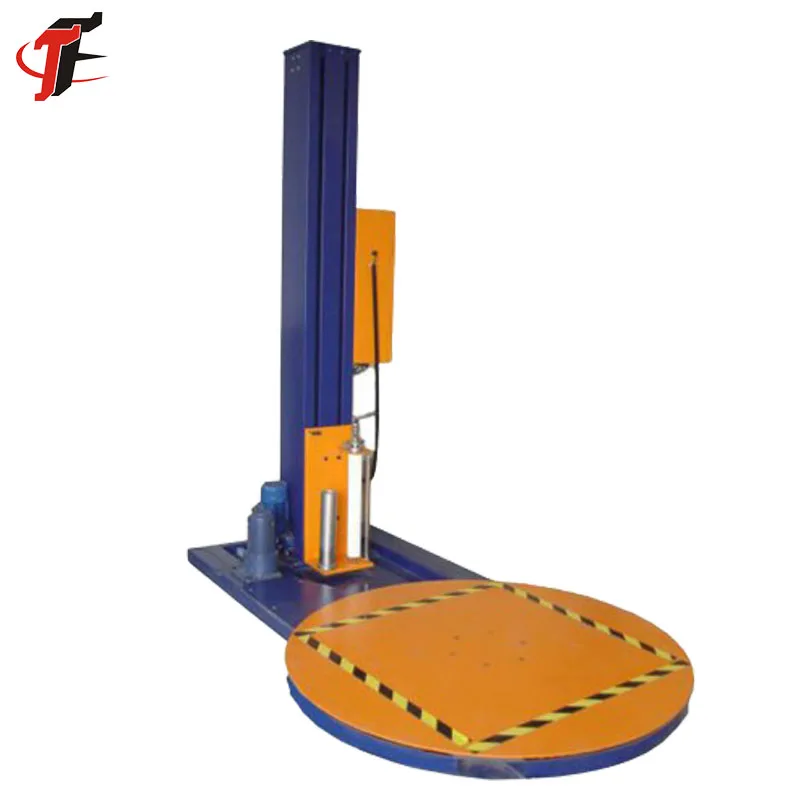

Fully Automatic Pallet Stretch Wrapping Machine

Share on (62188284684):


Price:

Quantity:


Product Overview

Description


Fully Automatic Pallet Stretch Wrapping Machine

Fully Automatic Pallet Stretch Wrapping Machine

Product Description

The tray type wrapping machine is suitable for container transportation of bulk goods and packaging of spare parts trays. Widely used in glass products, hardware tools, electronic appliances, paper, ceramics, chemicals, food, beverages, building materials and other industries. It can improve logistics efficiency, reduce loss during transportation, and has the advantages of dustproof, moisture-proof, and low packaging cost. It is an ideal choice for improving product packaging grade.



Feature:

PLC control, winding layer number, frequency adjustable, over the top height adjustable, self-dynamic measurement of the height of goods.

Technical parameter
ModelT1650F-L
Wrapping Size(LxW)(500-1200)*(500-1200)mm
Wrapping height(800-1800)mm
Wrapping capability20-40torr/hour
Turntable diameter1650mm
Turntable height77mm
Turntable speed3-12rpm/min adjustable by inverter
Machine  dimension2545mmx1650mmx2280mm
Max.capacity2000kg
Machine weight700kg
Voltage220v/380v(can be customized)
Motor powerTurntable 0.37kw Membrane frame 0.4kw Column 0.37kw

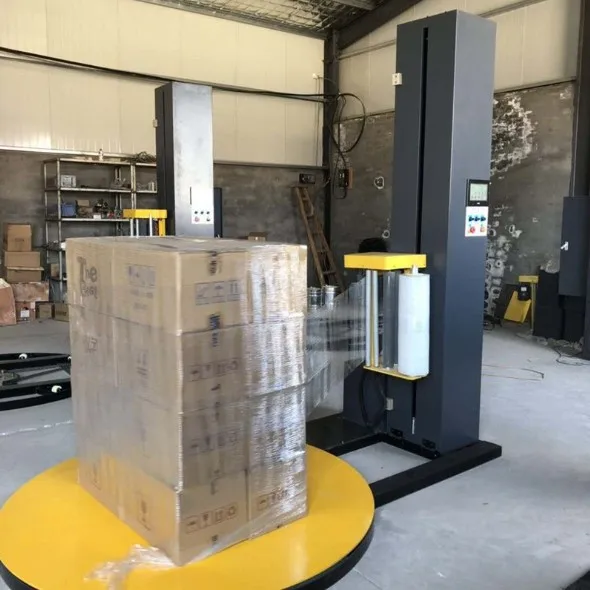

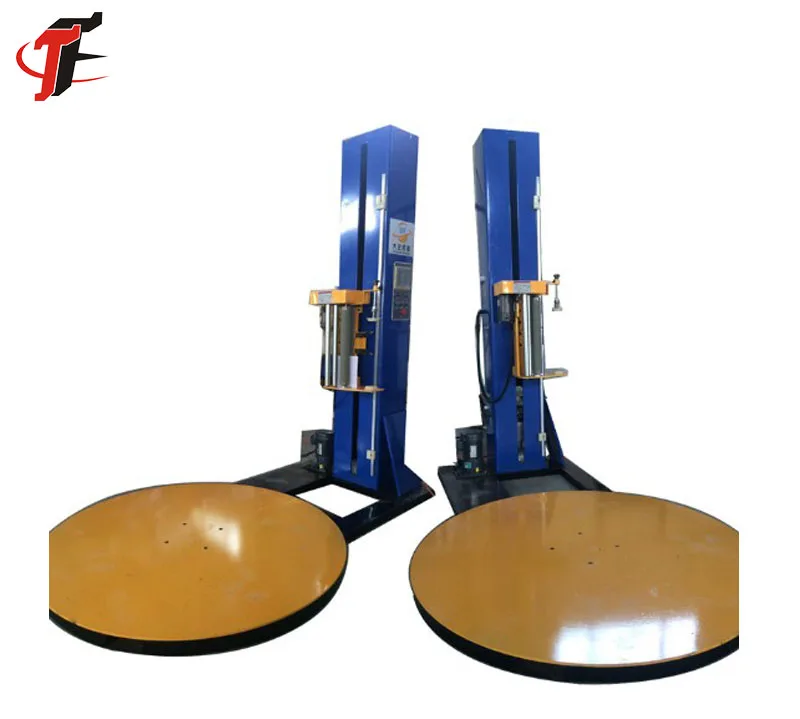

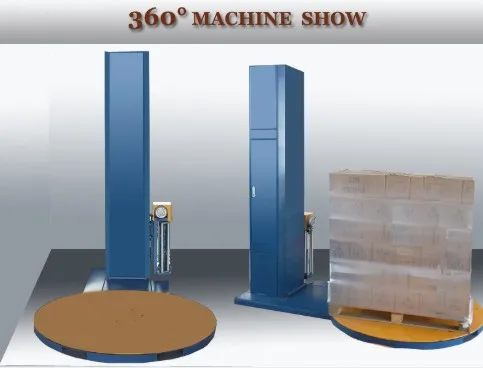

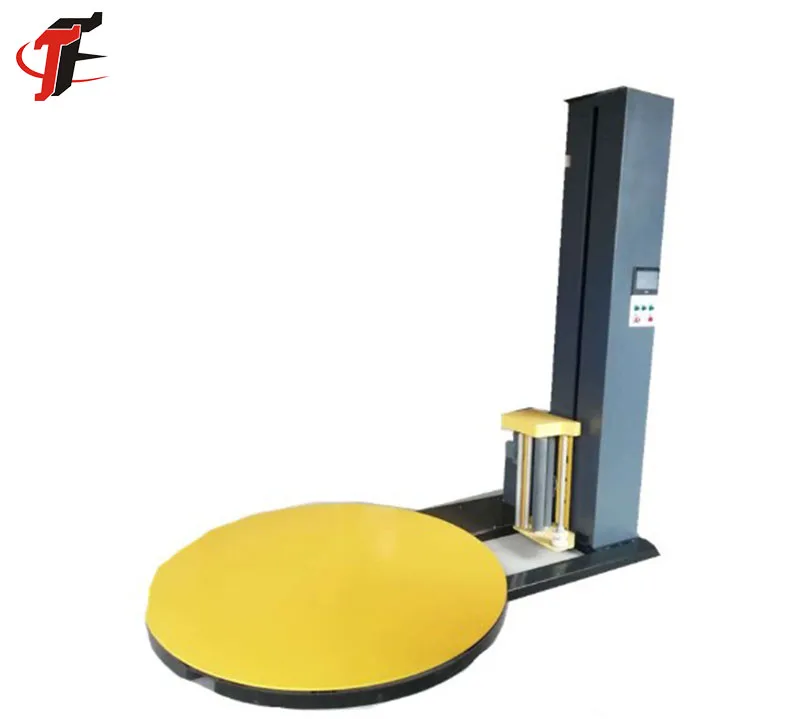

Product display





Fully Automatic Pallet Wrapping Machine



Fully Automatic Pallet Wrapping Machine



Fully Automatic Pallet Wrapping Machine

Our Customer

Fully Automatic Pallet Wrapping Machine
