Круглый светодиодный цветной емкостный Сканер контроля доступа со сканером отпечатков пальцев GROW R503
- Category: >>>
- Supplier: Hangzhou Grow Technology Co. Ltd.
Share on (62188378370):
Product Overview
Description
Product Description
Description
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

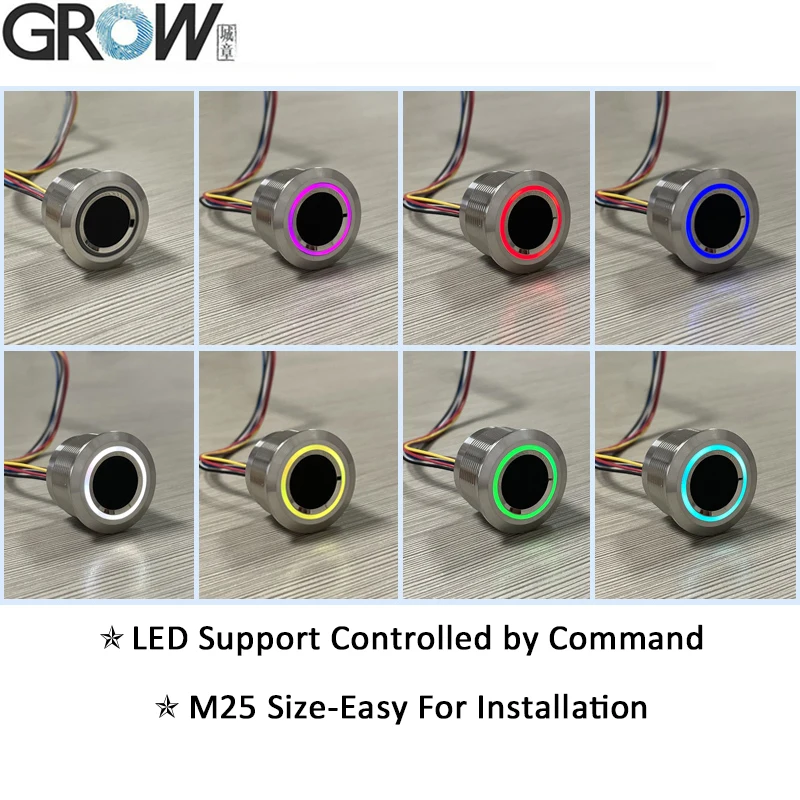

R503 fingerprint module with RGB ring indicator light, LED can be controlled by command.
Specifications
SPECIFICATION | |
Model | R503 |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Voltage | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |
Fingerprint module external size | Diameter 28(mm) |
Fingerprint module inner size | Diameter 23.5(mm) |
Fingerprint module height | 19(mm) |
Effective collection area | Diameter 15.5 (mm) |

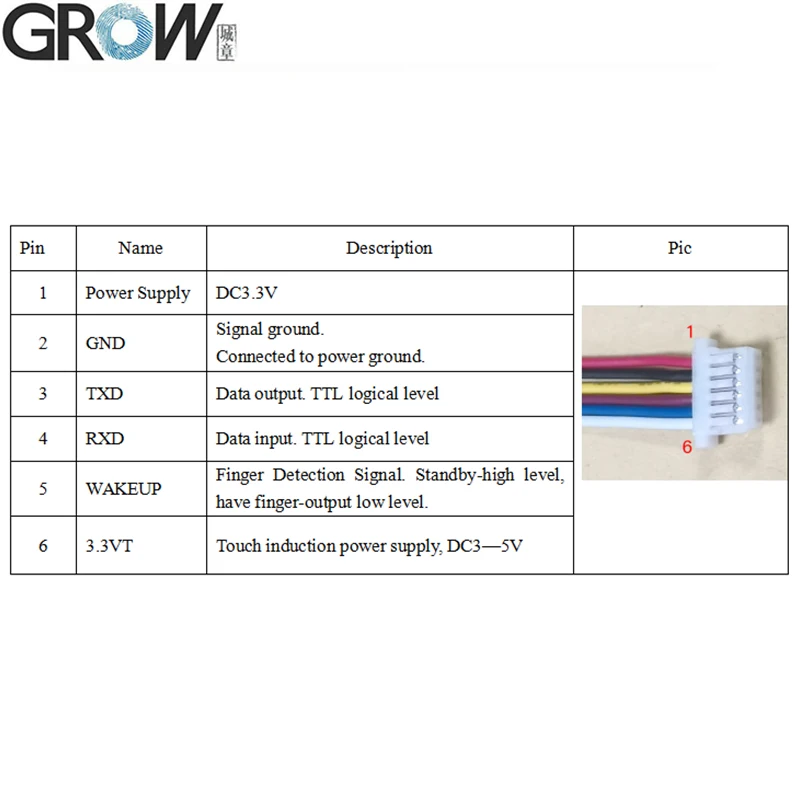

Connector | MX1.0-6Pin |
LED Control | YES |
LED Color | RGB |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
Files
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
You can download the R503 user manual from this website link:
R503 Test program operation display video on Youtube: https://youtu.be/eD2xtwCWOmQ
