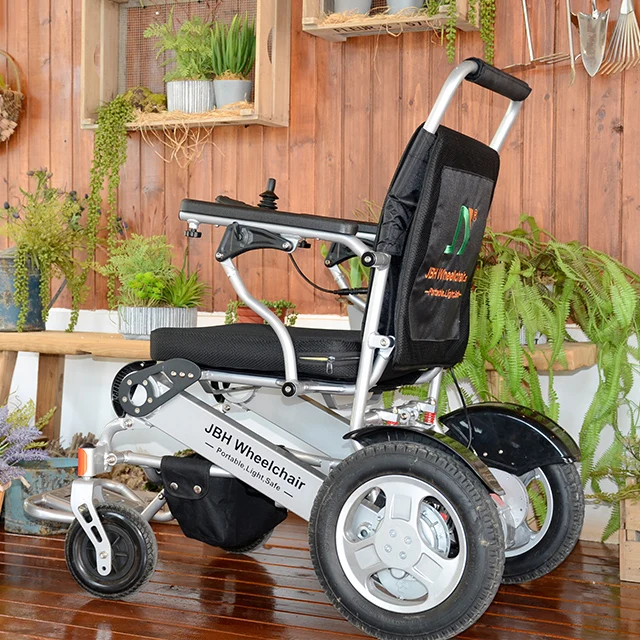

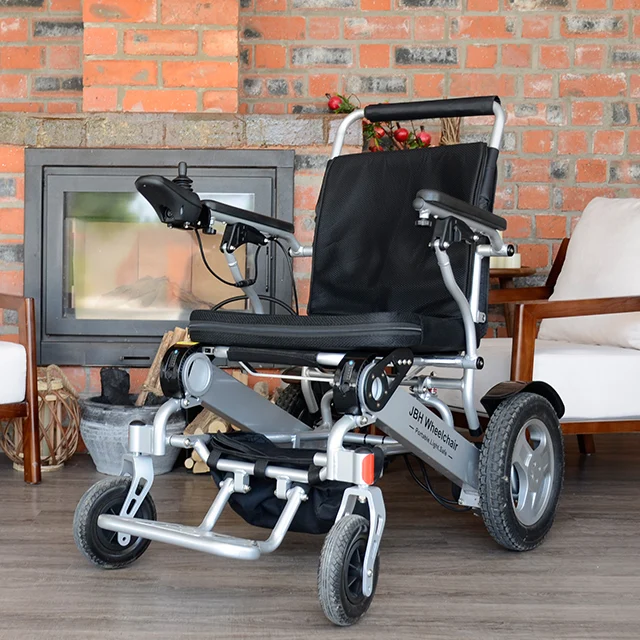

Stair climbing wheelchair power spares for electric wheelchairs smart
- Category: >>>
- Supplier: Nanjing Jin Bai He Medical Apparatus Co. Ltd.
Share on (62188495301):
Product Overview
Description

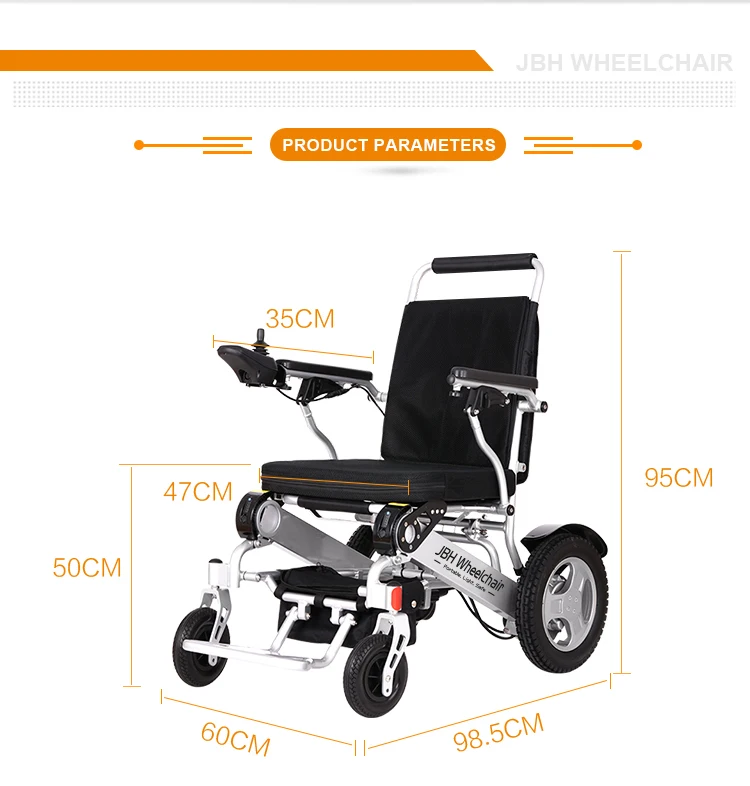

| Model | JBH-D09 | Imperial | Metric |
| Specification | Unfolded Dim(LxWxH) | 38.8x23.6x37.4inch | 985×600×950mm |
| Folded Dim(LxWxH) | 23.6x14x31.1inch | 600×355×790mm | |
| Width of Armrests | 19'' | 480mm | |
| Seat Width | 19'' | 480mm | |
| Seat Depth | 16.5' | 420mm | |
| Seat Height | 19.7'' | 500mm | |
|
Pedal High From Ground |
3.2'' | 13.5mm | |
| Packing Carton(LxWxH) | 27.2x16.9x34.6inch | 690x430x880mm | |
| Weight | N.W. (Without Battery) | 51.7lbs | 23.5kg |
| N.W. (With battery) | 58.3lbs | 26.5kg | |
| GW | 32kg | 70.4lbs | |
| Performance | Max Speed | 3.75mph | 6km/hr |
| Loading Capacity | 396lbs | 180kg | |
| Climbing Slope | Max 12° | ||
| Motor | Type | DC Brushless motor | |
| Motor | 250W×2pc (500W) | ||

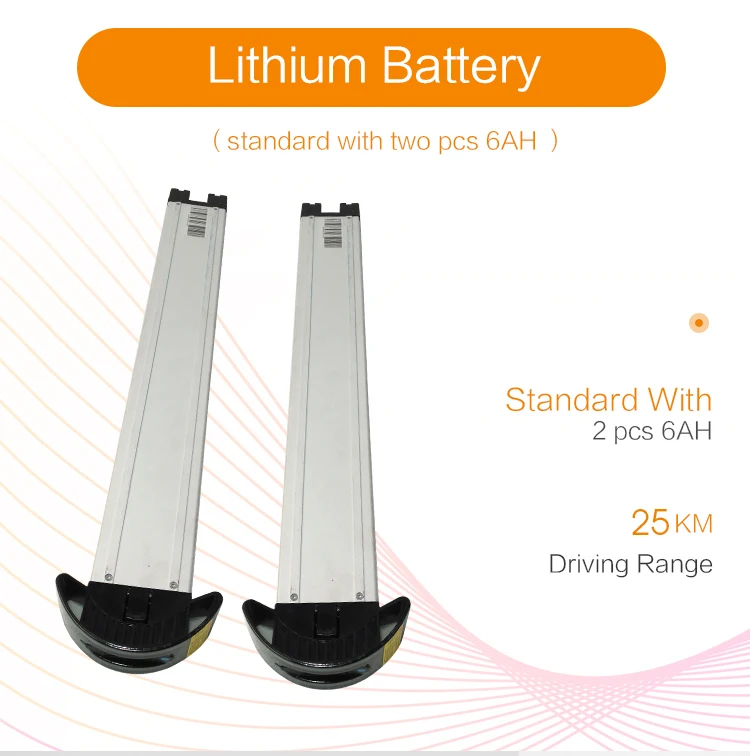

| Battery | Type | Lithium Battery | |
| Voltage | 24V | ||
| Current | 24V 6AHx2pcs | ||
| Power | 144WH | ||
| Range | 15.5miles | 25KM | |
| Weight | 3.3lbs | 1.5kg/pc | |
| Intput Voltage | 100~240VAC 50/60Hz | ||
| Charger | Output Voltage | 24V | |
| Charging Time | 6~8H | ||
| Tires | Front Tires | 8" PU solid tires | |
| Rear Tires | 12" PU solid tires | ||
| Brake System | Brake | Electromagnetic Brake | |

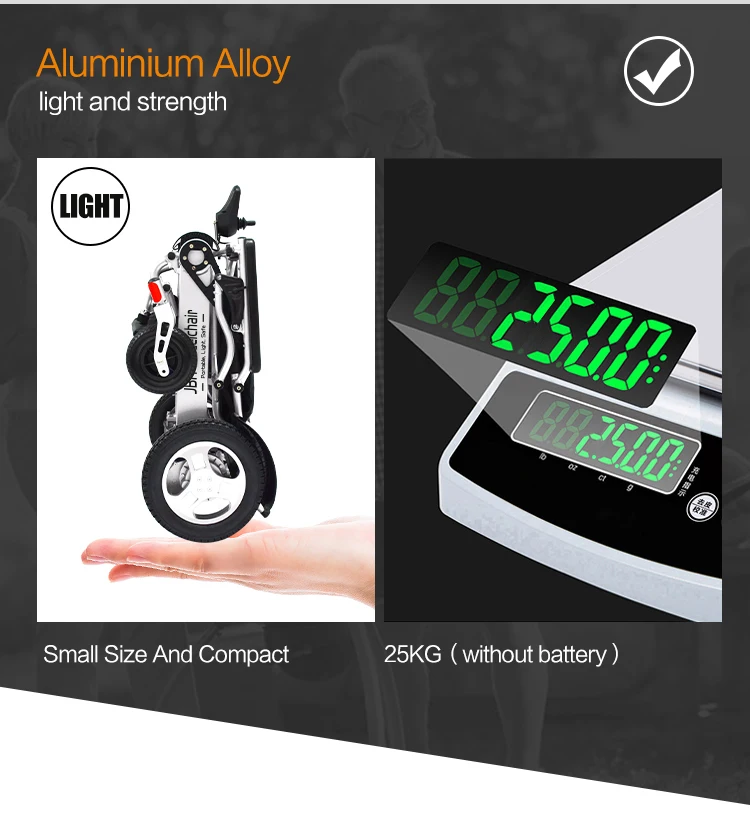

| Others | Material | Aluminum Alloy | |
| Drive Mode | Rear Drive | ||

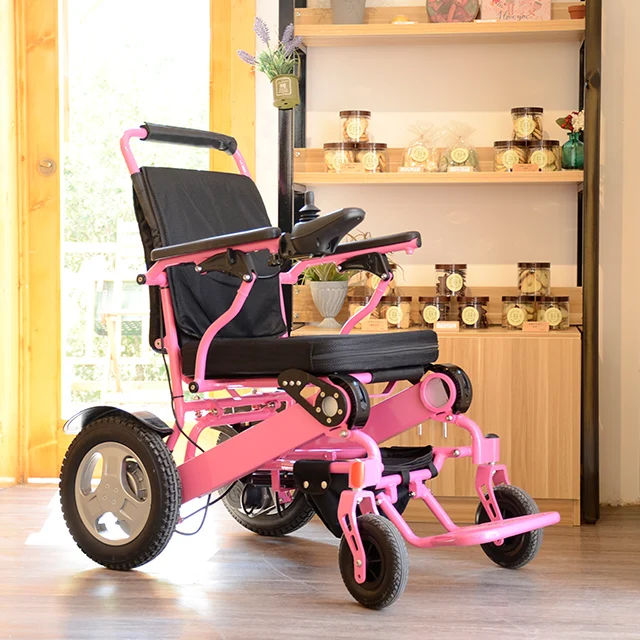

| Color | Silver, Black, Blue, Yellow, Red &Pink | ||
| Container | one 20FCL=98pcs, one 40HQ=250pcs | ||
| Warranty |
3 months for cushion and tires 12 months for motor, battery and controller 36 months for frame |
||
