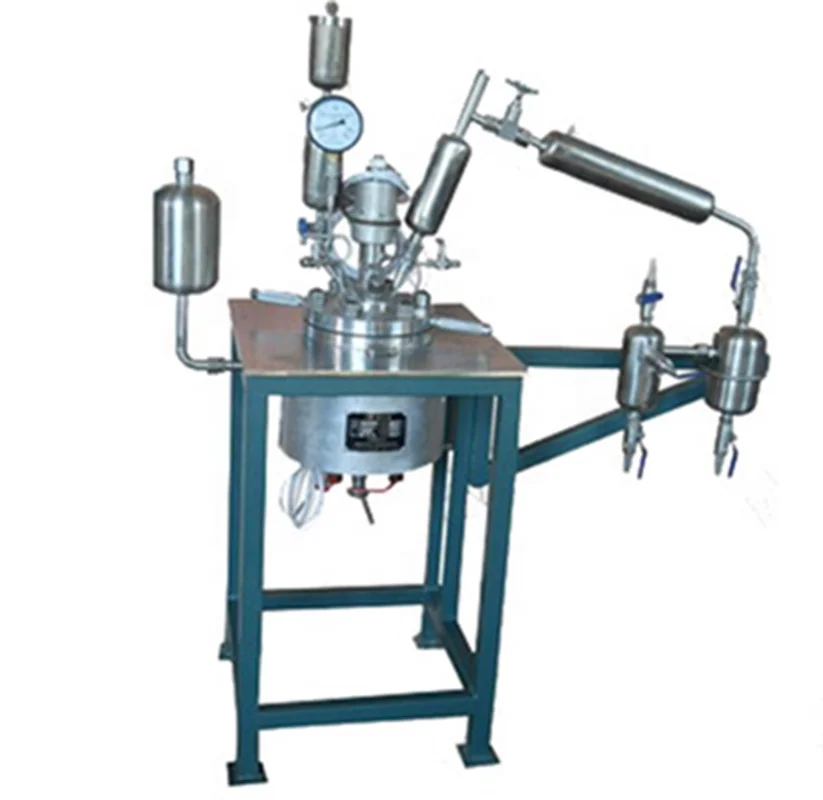

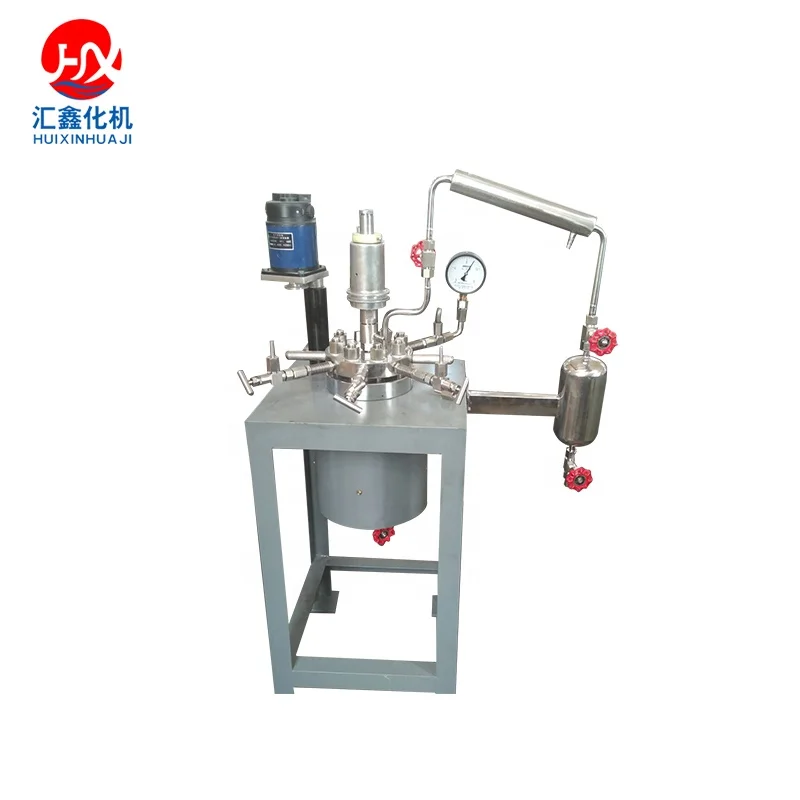

2L Continous Tubular Reactor

Specifications and Technical Parameters

Type

GSH-0.1~1

GSH-1~10

GSH-10~25

GSH-25~50

Volume(L)

0.1~1

1~10

10~25

25~50

Working pressure(MPa)

Negative pressure

Negative pressure

Negative pressure

Negative pressure

-0.1~40

-0.1~40

-0.1~30

-0.1~30

Motor power(W)

40~80

80~200

300~750

1100

Heating power(KW)

0.1~1

1~3

3~6

4~9

Working temperature(°C)

-196~500

Stirring speed(r/min)

0~1500

Heating type

Electric heating,heat oil heating

Charging type

Charging from above, discharging from bottom.

Stirring type

Customized anchor-type, frame-type, impeller-type, turbine-type, scraper-type or paddle-type...etc

Seal type

Magnetic seal, mechanical seal,

Motor

General DC motor, DC servomotor or explosion-proof motor according to customers’ requirements.

Equipment manufacturing materials

Low--alloy steel: Q235R, Q345R, 13MiNiMoR, SA516--60/70.

Low temperature carbon steel: 16MnDR, 09MnNiDR, SA516--60/70+S5

Austenitic stainless steel: 304/304L, 316/316L, 317, 309, 310S, 321

Also can be produced by titanium (TA2), nickel, zirconium, hastelloy, etc, or their cladding plate;

Or lined with PTFE, PPL, and Ni (Ni6) according to different requirements of reaction media.

Controller Device

  Controller Device is equipped with automatic or programmed PID or PLC which can achieve:

  Temperature display and control, accuracy ± 1 ℃ (or ±0.1 ℃);

  Mixing Speed ,  Pressure ,  Level ,  Flow display and control;Valve open/close control, etc.

Can realize the goal of automatic constant temperature

Other Accessories

We can design and manufacture various supporting device such as condensate return unit, the thin film evaporator&Short path (molecular) distillation receiver, condenser, etc as customer”s request.

Special requirements on stirring paddle ,equipment internal structure,reactor kettle body opening nozzles,etc can be achieved.
