1000W 1000watts VHF UHF amplifier wireless cable analog tv transmitter TV Station Broadcasting
- Category: >>>
- Supplier: Guangzhou Fmuser Information Technology Ltd.
Share on (62188689791):
Product Overview
Description
1000W TV Broadcast transmitter Description
\tModel : CZH518A-1000W
Product Name : 1000W tv Transmitter
Overview:
1.This
product is the all solid-state Single-channel TV Transmitter, it adopts
professional TV exciter, and it can use the single/duel exciter
configuration, switching automatically.
2.This transmitter has a
variety of linear and non-linear pre-correction function, carrier
frequency offset, and precision bias (with external precision reference
source) function.
3.It can prefabricate and control the half-power output, and it has remote control telemetry interface。
4.The power amplifier used LDMOS FET, the analog and digital are both
compatible, and it used high-quality switch parallel power.
5.The power amplifier and power supply are both used hot-plug devices.
6.The power loss and standing wave of the one-time synthesis power combiner is small.
7.The module of power amplifier display the working parameters in real-time.
8.The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
9.The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.

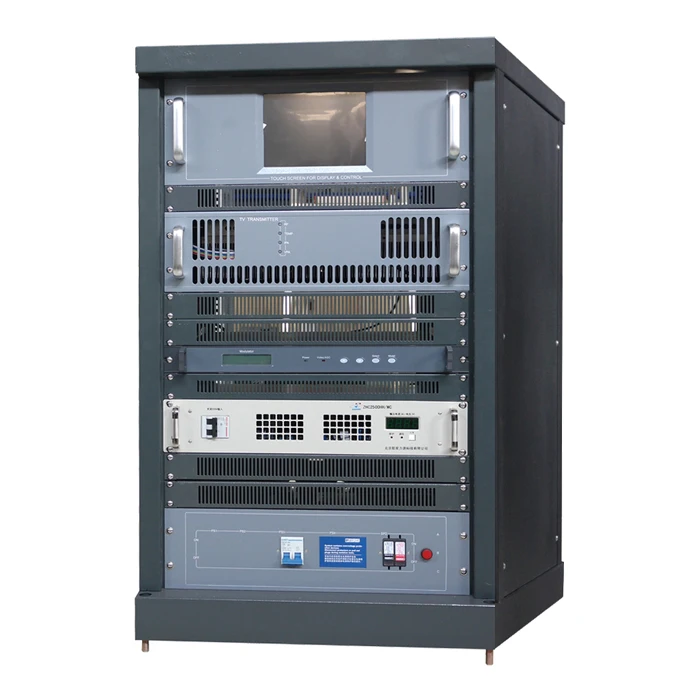

10.The 1000W tv transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
Our Advantages
To know more about FMUSER
FMUSER International Group INC. is a modern high-tech manufacturer specializing in designing, engineering, manufacturing and marketing of high quality FM/TV transmitters and related accessories.
With over 9 years of experience in the field of FM/TV broadcasting, we won great reputation by our high quality products at very competitive price and excellent service. We’ve done business with customers from over 100 countries and regions all over the world. Currently our biggest market is in American countries, European countries and African countries. Meanwhile we look forward to expand our business and would like to have distributors in other areas too.
All the FMUSER products has one year Warranty period.
Product Shipping
* It will be sent in 1-2 working days when payment clear.
* We will send it to your paypal address. If you want to change address, please send your correct address and phone number to my email sky@fmuser.org
* If the packages is below 2kg,we will be shipped via post airmail, it will take about 15-25days to your hand.
If the package is more than 2kg,we will ship via EMS , DHL , UPS, Fedex fast express delivery,it will take about 7~15days to your hand.
If the package more than 100kg , we will send via DHL or air freight. It will take about 3~7days to your hand.
All the packages are form China guangzhou.
* Package will be sent as a "gift" and declear as less as possible,buyer don't need to pay for "TAX".
* After ship, we will send you an E-mail and give you the tracking number.
Customer Photos
At fair
How to find us?
You can search this numbers " 23.127460034623816,113.33224654197693 " in google map , then you can find our fmuser office .
FMUSER Guangzhou office is in Tianhe District which is the center of the Canton . Very near to the Canton Fair , guangzhou railway station, xiaobei road and dashatou , only need 10 minutes if take TAXI .
Welcome friends around the world to visit and negotiate .
Contact: Erin Huang
Cellphone: +8615800205544
WhatsApp: +8615800205544
Wechat: +8615800205544
QQ:406154273
Skype: Erin-huang2
Address: No.305 Room HuiLan Building No.273 Huanpu Road Guangzhou China Zip:510620
Product Paramenters
Specification:
1. Operating frequency band: VHF/UHF
2. Output power: 500W (synchronous top)
3. Output impedance: 50Ω
4. Intermodulation distortion: ≤-50dB
5. Unwanted transmission: ≤-40dB in adjacent channels
≤-60dB outside the adjacent channel
6. RF output interface: L27/L29
7. Power: Single phase 220V
8. Dimensions: 1135mm (height) × 675mm (width) × 950mm (deep)
9. Weight: 136KG
Second, the image:
1. Video input level: 1VP-P positive polarity
2. Video input impedance: 75Ω
3. DG: ±8%
4. DP: ±7°
5. Brightness nonlinearity: ≤12%
Third, accompanying sound
1. Audio input level: 0dBm±6dB
2. Audio input impedance: 10KΩ (unbalanced)
3. Maximum frequency offset: ±50KHz
4. Harmonic distortion: ≤1%
5. 0 noise ratio: ≥60dB
2. Output power: 500W (synchronous top)
3. Output impedance: 50Ω
4. Intermodulation distortion: ≤-50dB
5. Unwanted transmission: ≤-40dB in adjacent channels
≤-60dB outside the adjacent channel
6. RF output interface: L27/L29
7. Power: Single phase 220V
8. Dimensions: 1135mm (height) × 675mm (width) × 950mm (deep)
9. Weight: 136KG
Second, the image:
1. Video input level: 1VP-P positive polarity
2. Video input impedance: 75Ω
3. DG: ±8%
4. DP: ±7°
5. Brightness nonlinearity: ≤12%
Third, accompanying sound
1. Audio input level: 0dBm±6dB
2. Audio input impedance: 10KΩ (unbalanced)
3. Maximum frequency offset: ±50KHz
4. Harmonic distortion: ≤1%
5. 0 noise ratio: ≥60dB
