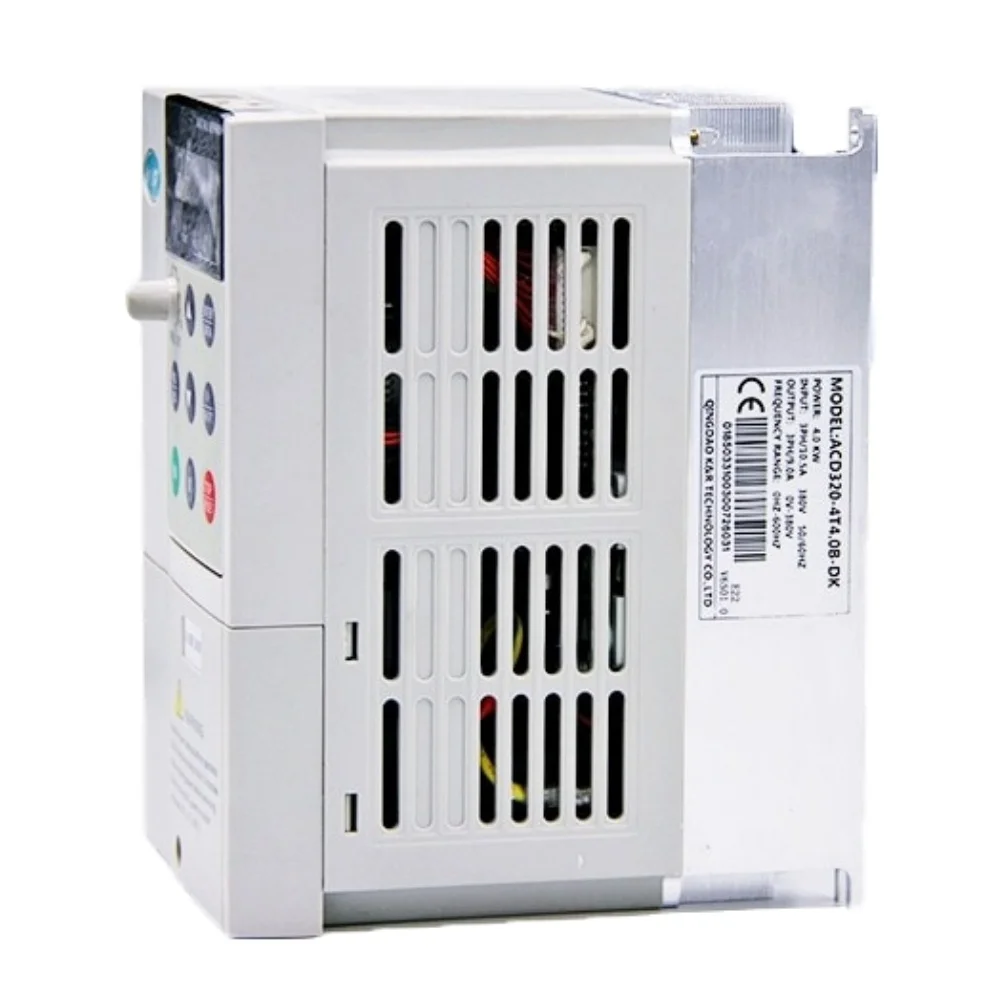

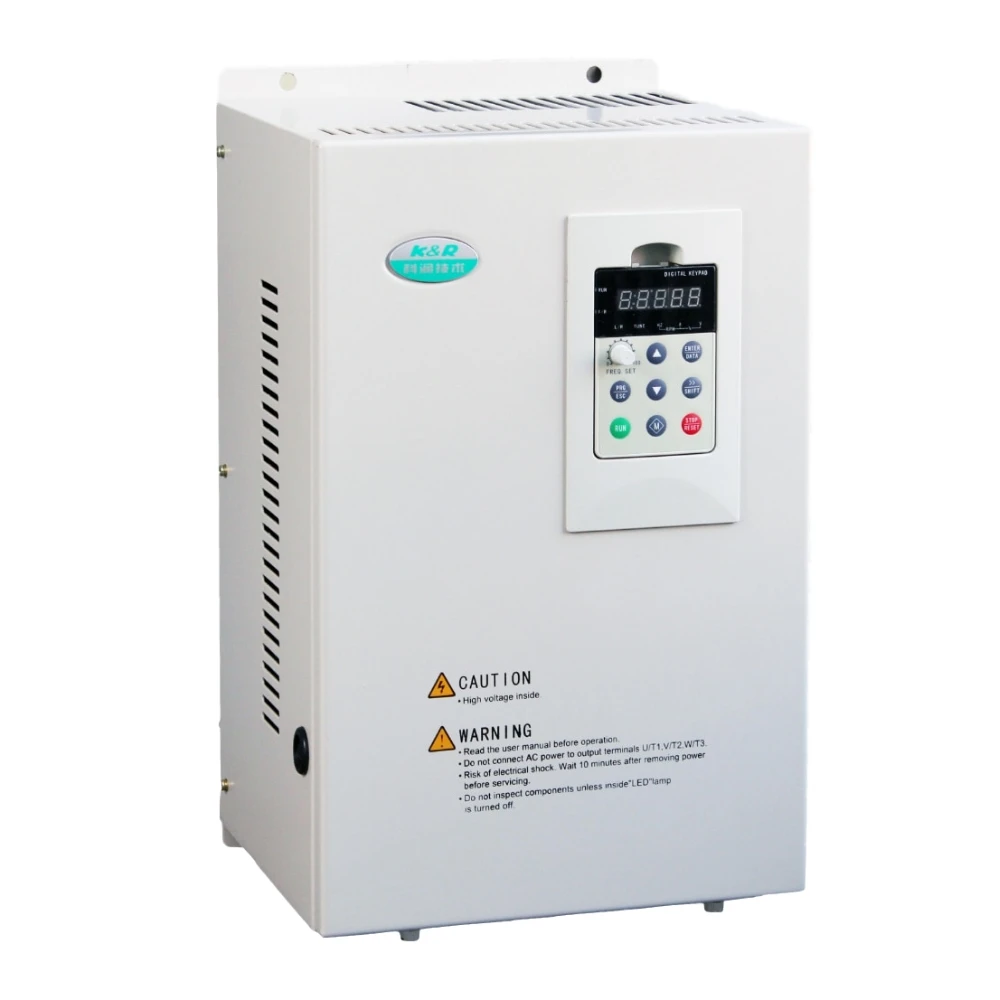

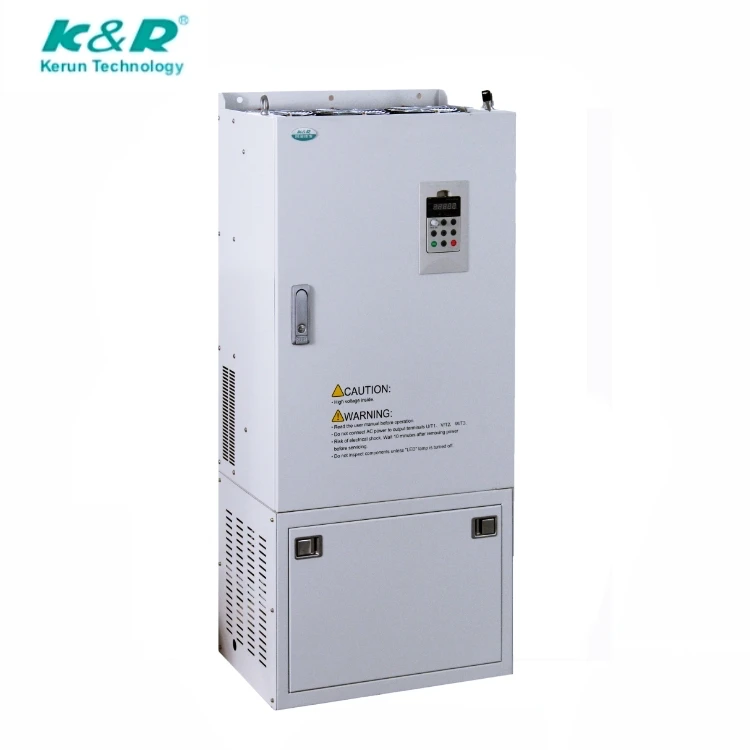

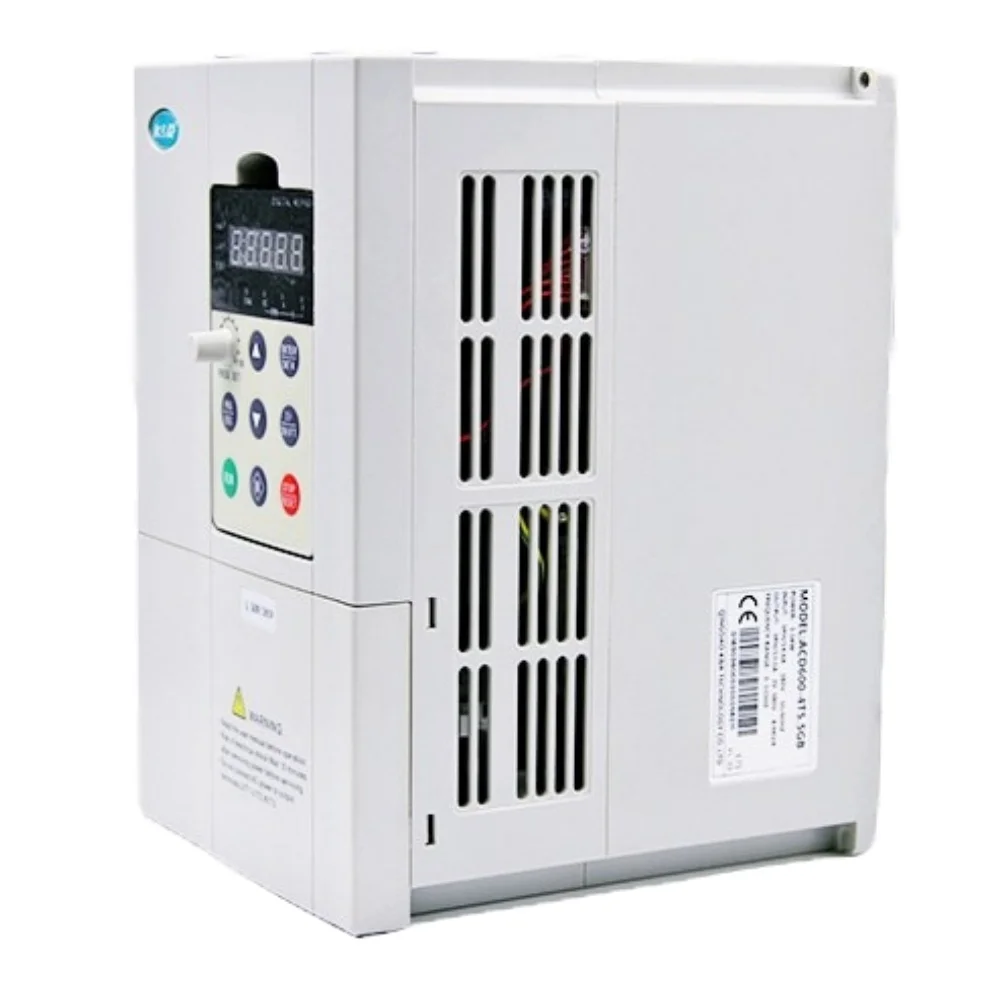

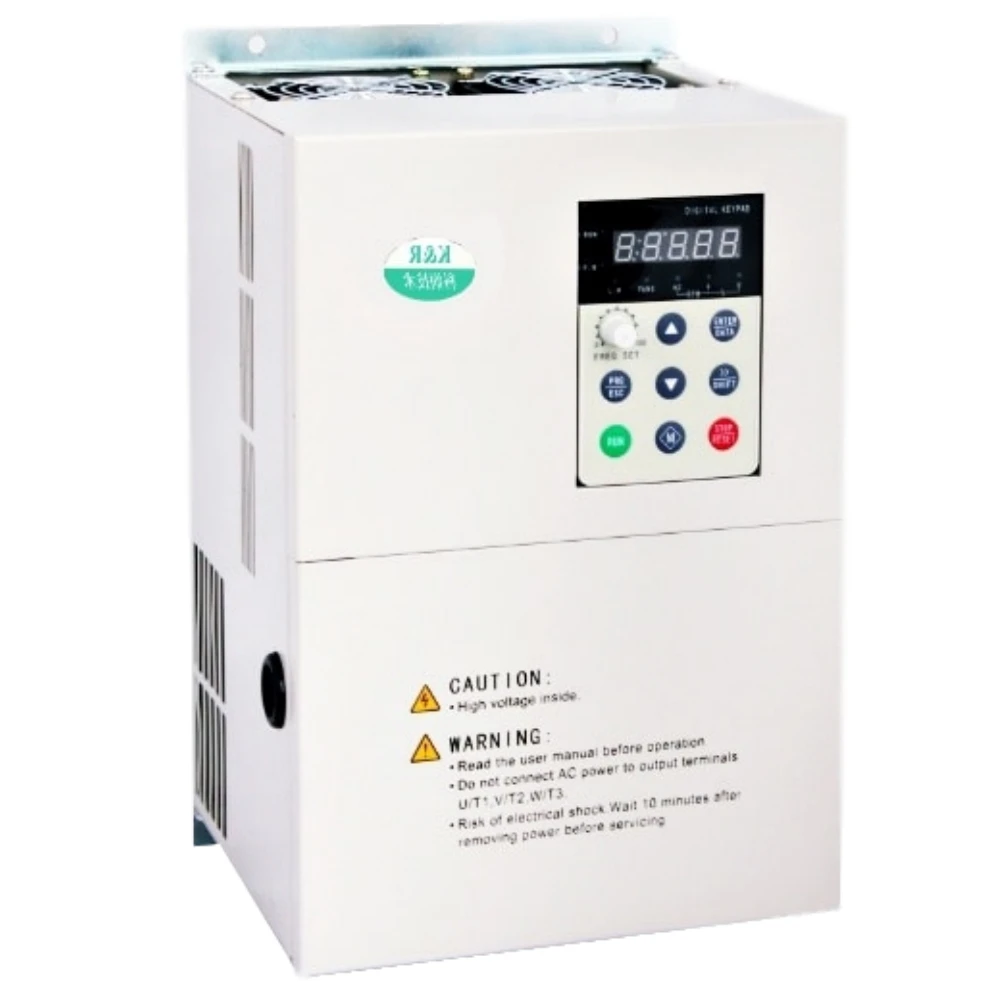

ACD320Series 220V 2.2KW Single phase frequency inverter
- Category: >>>
- Supplier: Qingdao Speedo Industry & Commerce Co. Ltd.
Share on (62188735518):
Product Overview
Description
Product Description
Technical Features
The ACD320 series is a general-purpose vector inverter that can perform high-performance control and comprehensive protection of the motor through the testing of the electrical parameters of the motor.
a. With 2 kinds of control methods 1,) Multiple VF control 2) No speed sensor vector control
b. Built-in simple PLC function, which can realize 8-speed speed control and swing frequency control.
c. PID control: advanced PID algorithm, fast response, and strong adaptability.
d. Self-learning function, complete high-performance control and all-round protection of the motor.
a. With 2 kinds of control methods 1,) Multiple VF control 2) No speed sensor vector control
b. Built-in simple PLC function, which can realize 8-speed speed control and swing frequency control.
c. PID control: advanced PID algorithm, fast response, and strong adaptability.
d. Self-learning function, complete high-performance control and all-round protection of the motor.
A. Realize the AC motor to solve the problem, make the operation control DC, and realize the torque control under the speed sensorless control.

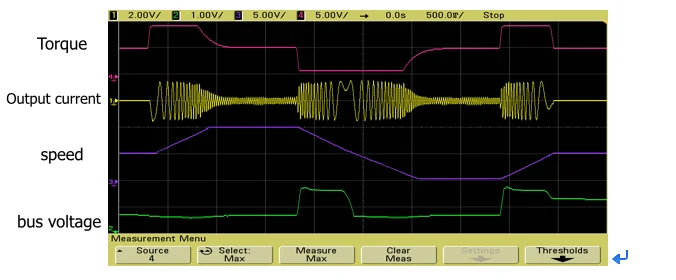

B. The above figure shows the four-quadrant operation of the motor under no-speed sensor vector control. The torque, current, speed and DC bus voltage respond quickly and the motor runs stably.
C. The motor achieves a 0.1s acceleration/deceleration command at rated load.
D. Motor forward and reverse When the zero-speed switching occurs, the current has no phase abrupt change and oscillation, and the speed is not pulsating.
E. The bus voltage control is stable, and the deceleration can also provide fast and reliable braking capability under the condition of no energy braking.
Details

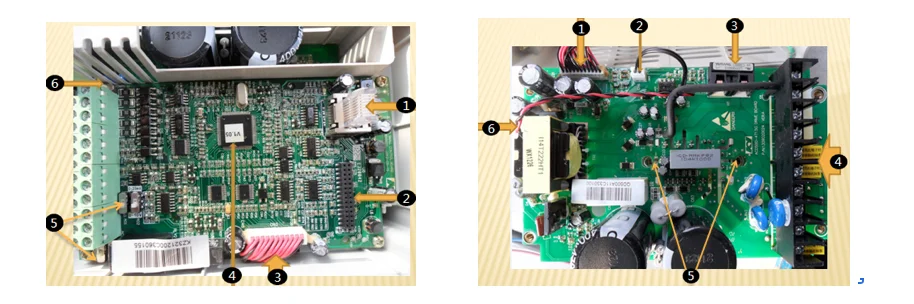

In the left control panel, is the keyboard connector, 2 is the expansion card interface, 3 is the cable, the control panel and the driver board are connected; 4 is the main chip, the software version number is attached on the top; 5 is the toggle switch, It is a selection switch for analog input and output; 6 is a terminal start selection switch, and the common terminal is COM or +24V.
In the driver board diagram, 1 is the 24PIN cable, 2 is the temperature sensor socket, the temperature of the sensing module is used to transmit the signal to the control board; 3 is the Hall component for sampling the current signal; 4 is the input terminal, used to Connect the power supply and motor line; 5 is the module range.
Packing & Delivery
Certifications
Company Profile
Advantage of Us
As a manufacturer, we mainly produce Variable Frequency Drive, Soft Starter, Pump System.
\tOur manufacture started in 2009, we have 10 years experiences in sell, technology service and, sales service. As the second tier of variable frequency drive company in China, we produce high technology and quality products.
The advantages of us \t1. Provide direct factory price
\t2. Close to port, convenient and fast delivery
\t3. Compare with other domestic manufacturers, we have a high cost-effective
\t4. Offer sales service and technical support timely
5. Provide a variety of payment
Exhibition
FAQ
Q 1: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q 2: How long is your delivery time?
A: Generally it spends 4-8 days if the goods are in the stock. Or it takes 10-20 days if the goods are not in the stock, it is depending on quantity.
Q 3: Do you provide samples? Is it free or extra?
A: Yes, we could provide the sample, but it charges the sample fee and the cost of freight.
Q 4: What are your terms of payment?
A: We accept T/T, L/C, Paypal, and cash.
Q 5: What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q 6. Is there any discount?
A. The discount will depend on the quantity that you purchase.
Q 7. What is your supply capacity?
A. The month output of the factory exceeds 1500 PCS.
Q 8. Do you provide warranty for the goods?
A. Yes, we provide 18 months of warranty.
Q 9. Do you provide technical support?
A. Yes, feel free to contact us if you have a technical problem.
