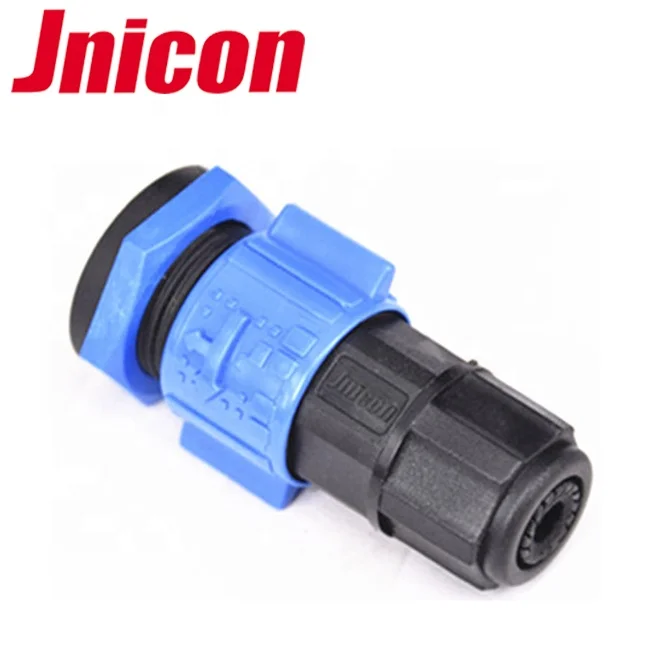

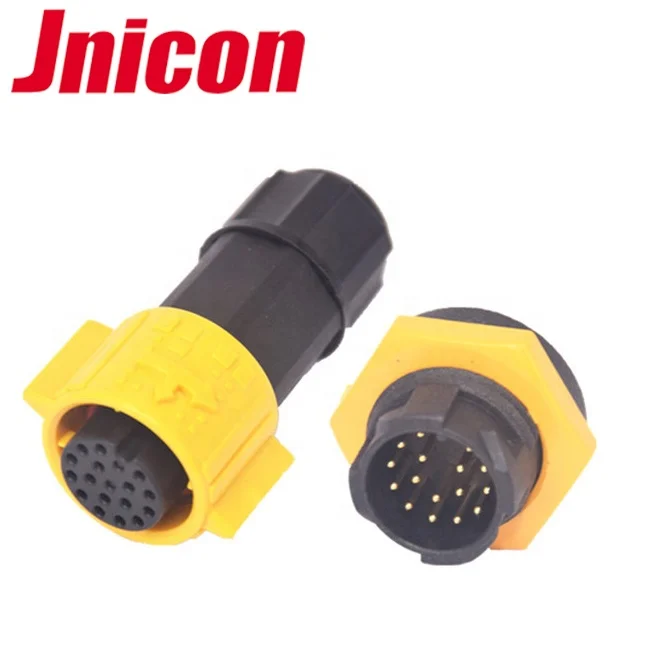

Jnicon M19 Push lock 12 14 16 pin male and female Waterproof Circular Connectors For Signal

Share on:

Price:$3.50 - $4.00
Price in USD:Details


Product Overview


18 Pin Power Signal Waterproof Circular Connectors For Outdoor Electronic Distribution Auto


Product Description

Product Description:


1. Push locking type waterproof connector

2. IP67 protection level

3. Solder cable Screw locking wire and assembly to your applications

4. Multicolor available, such as Blue,yellow,black

5. Multicores are available, 12pin,15pin,16pin or 18pin

6. High Performance Engineer Plastic


18 pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission,stage lighting equipment etc.

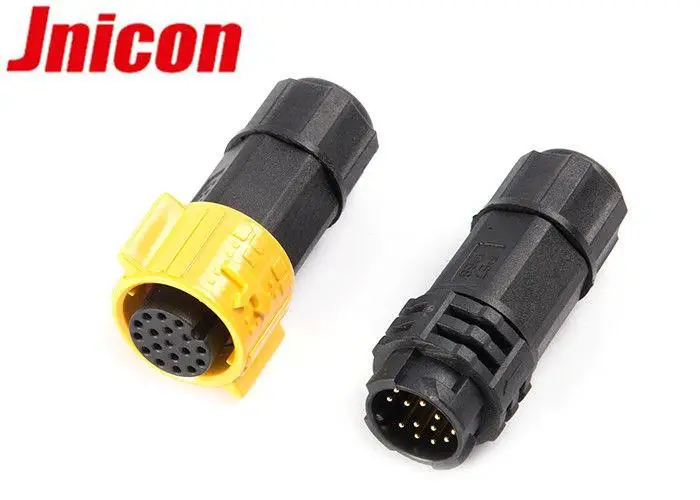

Cable to cable and Panel mount type connector are optional.


Technical Data


Core No. :18pin
Connector color:Black, blue, yellow
Waterproof level:IP67
Cable specification:0.3-0.5mm2
Cable diameter range:4.5mm-12mm
Rated current (A):5A
Operating voltage (AC.V.rms):125V
Withstand voltage (AC.V)1min:500V


High quality material


Sealed against dust and fluid (IP67)
Vibration resistance, impact resistance, stretching resistance
Dust cover available


Contact resistance:<5mΩ
Insulation resistance:>500MΩ
Durability:≥3000 mating and unmating cycles
Temperature rating:-40°C~105°C
Connecting mode:Solder type/screw terminal


High quality material to ensure and improve your applications performance, 18 pin waterproof connectors is a good choice to data transmission no matter for equipment or lights fixtures.





Production Flow

Production Process.jpg

Attention Please

Pay attention.jpg

Before quotation, please tell us the cable requested details.

1. Current rating, eg: 8A...

2. Wire gauge, eg: 2*1.5mm²...

3. Cable OD(outer diameter), eg: 8mm...

Packaging & Shipping



Recommended Products

Company Information

About us.jpg

Jnicon is located in Shenzhen China,own more than 200 people's team,4000 square meters factory,varites of test equipments of environment,electric and machinery 3 aspects.Jnicon does not only povide waterproof and high-current connectors, but also offer the service of customized connectors and cable assembly.


Jnicon has more than 50 items invention, utility model and design patents till 2017. In addition,all our connectors have UL,TUV,CCC,CE and Rohs certificate.we are committed to providing responsive, cost effective, efficient and reliable logistic solution to our customers.


With years of experience in waterproof connector applications,Jnicon connectors are selling well in all cities and provinces around China, also popular to countries such as United State, United Kingdom, Germany, Netherlands, Spain, United Arab Emirates etc.

Factory Show.jpg



Q1. Are you a factory or trading company?
A: We are a factory,more than 5,000 square. Located in Shenzhen,China.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We could support show you production and picture of the products and packages.


Q3. How about the delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the ordered items and quantities.


Q4. Can you produce according to the samples?
A: Yes, we can produce according to samples or technical drawings. We can also make the molds and fixtures.


Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the sample cost and the shipping cost should be paid.


Q6. Do you test all your goods before delivery?
A: Yes, we have 100% Full check before delivery.


Q7.Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.

Q8.How to buy your products?

A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
