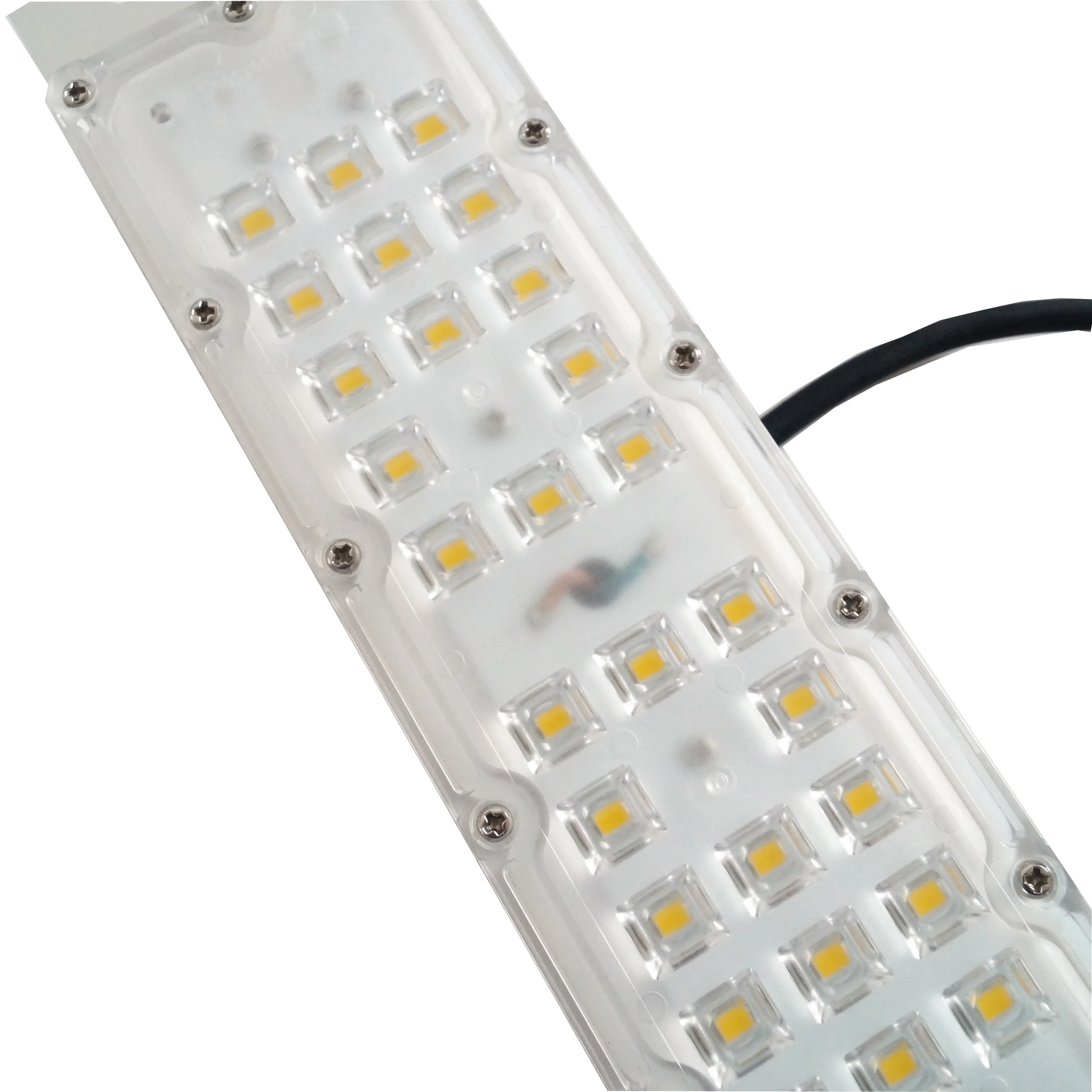

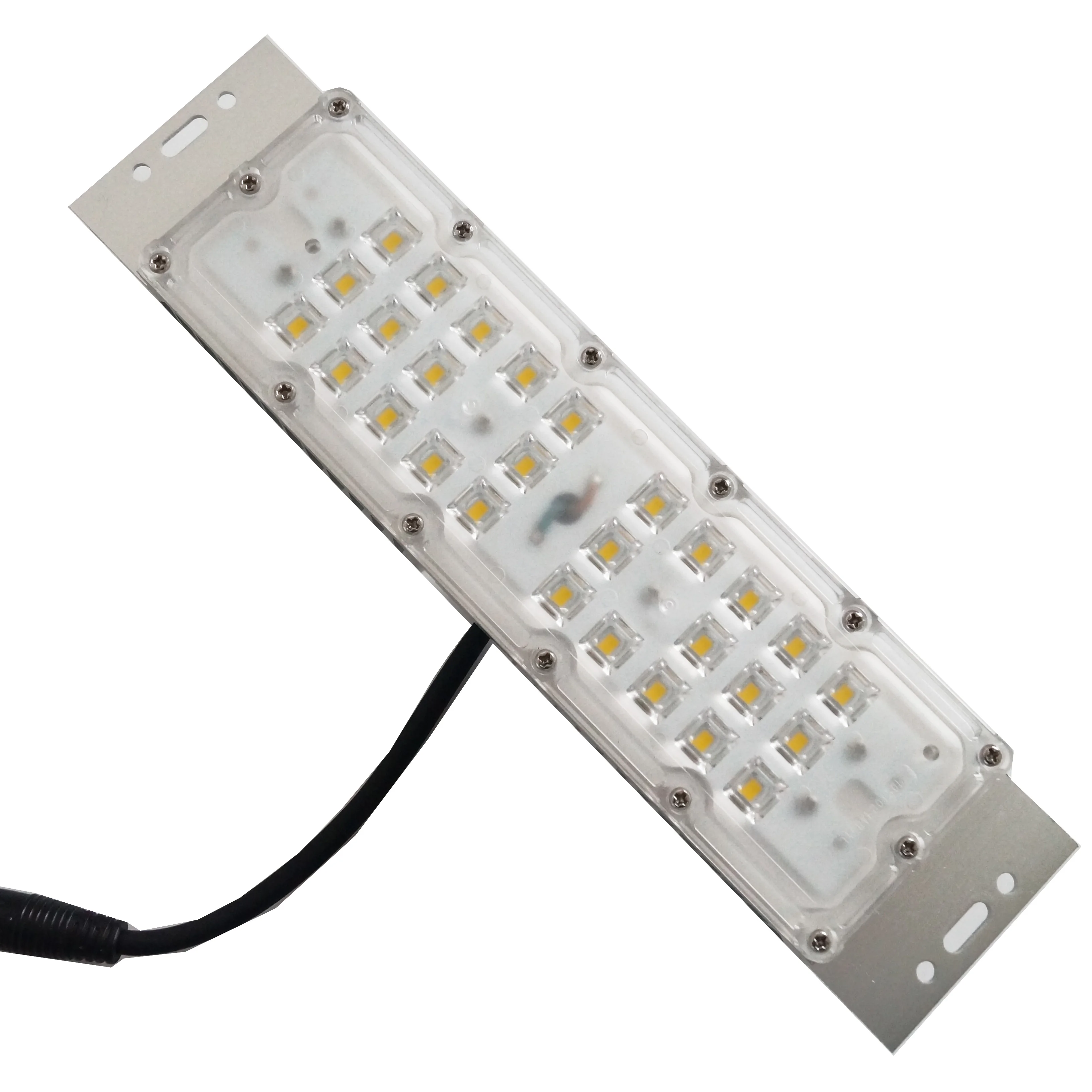

Sunshineopto 28 светодиодов Открытый высокий световой 5050 Светодиодный модуль уличного света
- Category: LED Encapsulation Series >>>
- Supplier: Shenzhen Sunshine Opto-Electronics Technology Ltd.
Share on (62188948910):
Product Overview
Description
SunshineOpto 28 Leds Outdoor High Luminous 5050 Led Street Light Module
Product Description
1,The module uses high-quality 5050 leds and we provide 2 years warranty .
2,The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,
3, SunshineOpto 50W PH 5050 led street light module, Whole module 300*70*40mm, common size makes it easy to replace or retrofit your old lamp.
Quick Detail :
| Model No.: | SUN-LD236X70-5050 |
| Angle: | 90*120°,80*150°,80*150°Vertical for choose , |
| Lens Size: | 236x70mm |
| PCB Size: | 217.7x43.5x1.5mm |
| Lens Material: | Optical grade PC |
| Circuit: | 2 series 14 parallel |
| LED: | 28 pcs 5050 SMD LED |
Technical Parameters :
Model No. | SUN-LD236X70-5050 | ||||
Power(W) | 30 | 40 | 50 | 60 | |
Voltage(Vf/V) | 46.03 | 46.50 | 47.25 | 47.08 | |
Current(If/mA) | 648.4 | 848.2 | 1048.3 | 1298.3 | |
Color Temp Tc(K) | 4000 | 4000 | 4000 | 4000 | |
Efficiency (lm/W) | Without lens | 173.87 | 171.37 | 165.00 | 160.04 |
with lens | 156.53 | 150.83 | 145.90 | 143.27 | |
Luminous Flux (φv/lm) | without lens | 5189 | 6686 | 8124 | 9874 |
with lens | 4614 | 5949 | 7227 | 8757 | |
Color Index(Ra) | >70 | >70 | >70 | >70 | |
Lens beam angle | 90*120°,80*150°,80*150°Vertical, | ||||
Wick | 28 pcs 5050 leds | ||||
Protection level | IP66 | ||||
Working temperature(℃) | -30 - 50 | ||||
storage temperature(℃) | -30 - 65 | ||||
Server Life(H) | 50000 | ||||

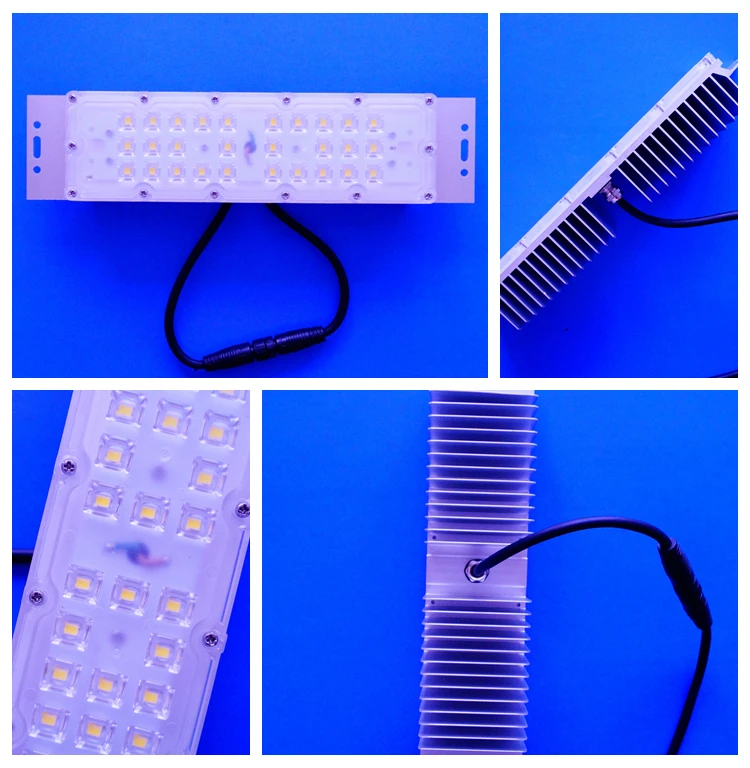

Product Picture :
Our Main Products
 | Custom Aluminium PCB Board Welding Leds , For CR XTE ,XP-G3 ,PH 3030 ,5050 leds , Our product prices are very competitive . |
If you need we can provide whole led light module ,include led lens with silicon gasket , pcb welding leds ,heat sink and led driver . |  |
 | |
 | Custom Led Optical Lens Design . We have professional ,efficient optical design team, and strict quality inspection department. |
| You can choose the lens according to your requirements , Don't worry about the match pcb and leds . |  |

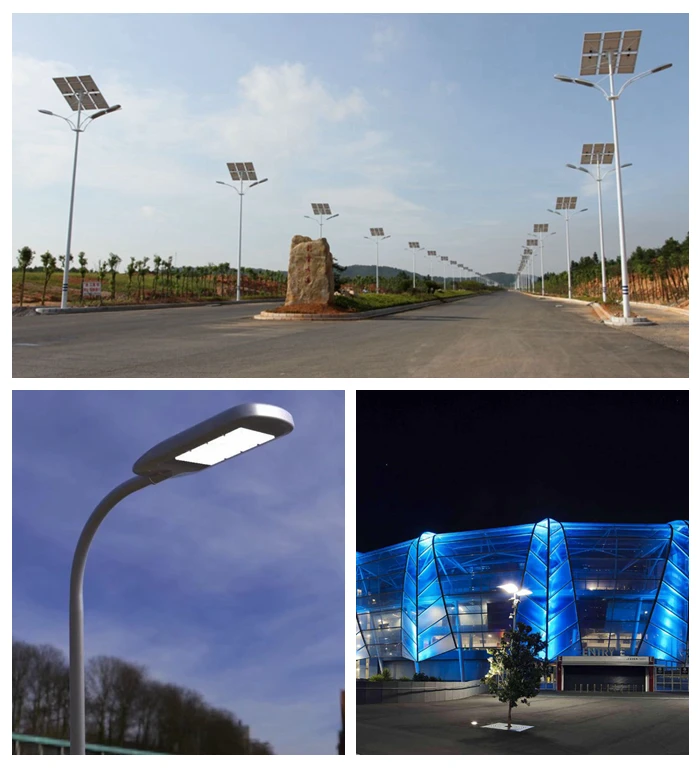

Application
Highway lighting, urban trunk roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places of street lighting .
