T 13T Best Price pvc hot air seam sealing machine for tents tarpaulin China Manufacturer
- Category: >>>
- Supplier: Jiangmen Junbai Machinery Co. Ltd.
Share on (62189066479):
Product Overview
Description
Product Description

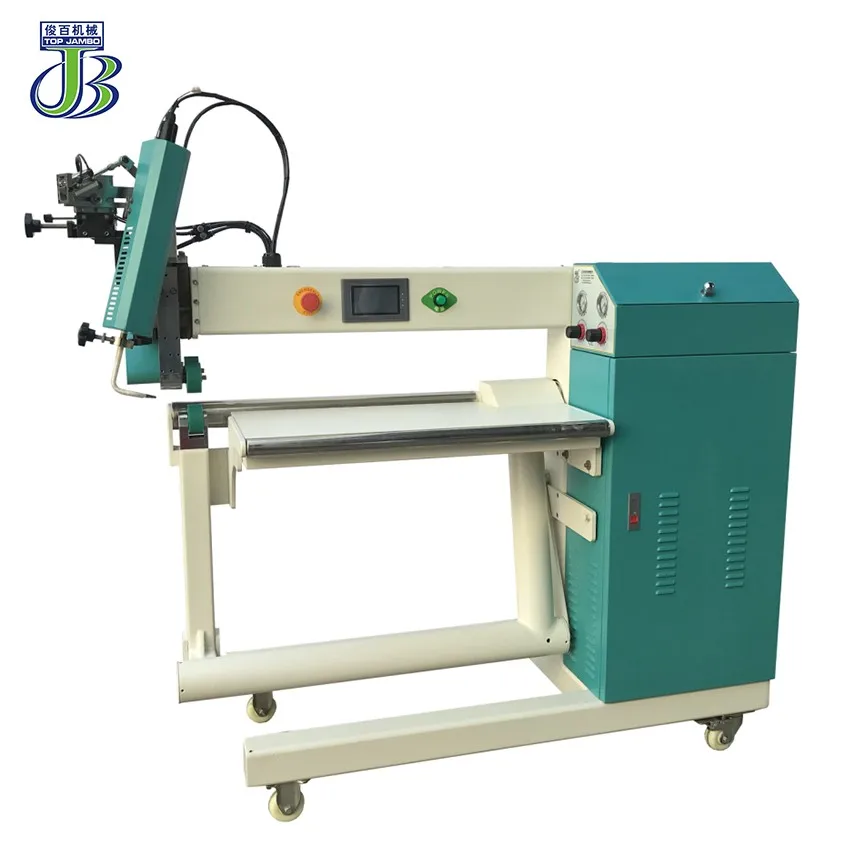

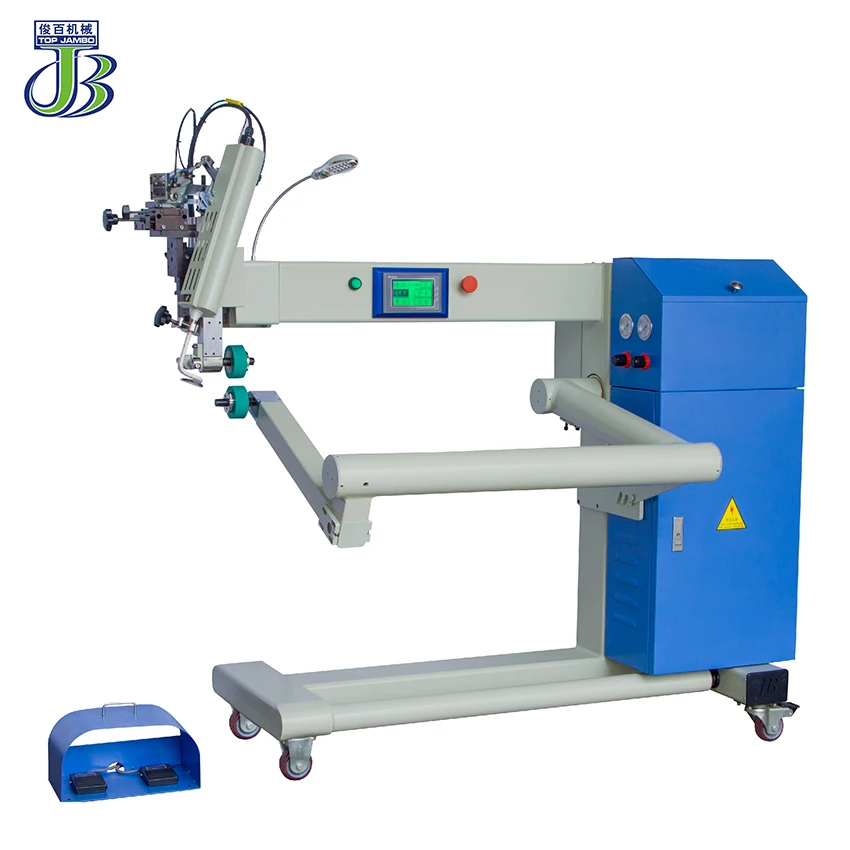

Hot Air Seam Sealing Machine T-13T
==Product Features==
1.Providing super-large space for manufacture ,used for medium and large size tents, car cover, bouncy castle and other Inflatable product.
2.Programmable PLC is set in HD LCD, which can be modified and based on users’ requirements.
3.Auto controllable temperature System, stable adjustment between±2°C, temperature maximum limit alarm is installed to protect heating wire.
4.Double Pedal control, comfortable for using, suitable for long-time operation.
5.It is possible to work 24 hours continuously with high efficiency.

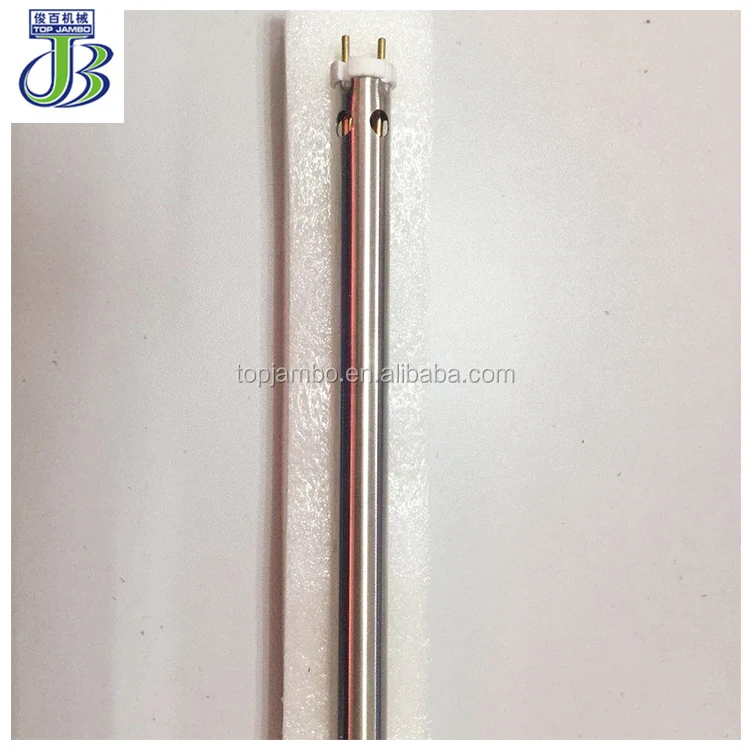

6.Unique heating tube structure design.
7.Auto reverse function to save more tape and improve efficiency.
8.High turning Power design.
==Product Application==
This Machine are widely applicable for large size outdoor inflatable products such as Inflatable Tents, Big car covers, bouncy castle, rubber boat etc.Seam Sealing for thick fabrics
such as tpu,pvc,etc.

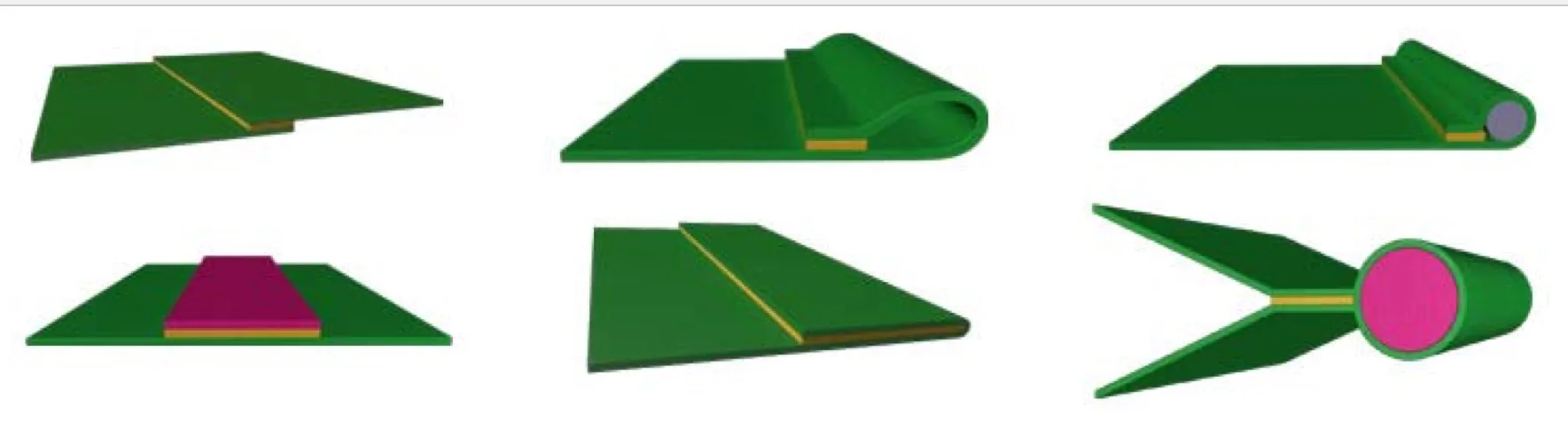

T-13 Hot Air Seam Sealing Machine is a multifunctional hot air seam sealing machine, could be equiped with different sparts parts mold to meet your different products requirement.
==Technical parameter==
Model | T-13 |
Power supply | AC 220 V50Hz |
Rating efficiency | 3000W |
Heat control | temperature~700°C adjustable without bands |
Speed | Standard:1~18m/min infinitey variable. |
Air supply | 0.35~0.5 Mpa |

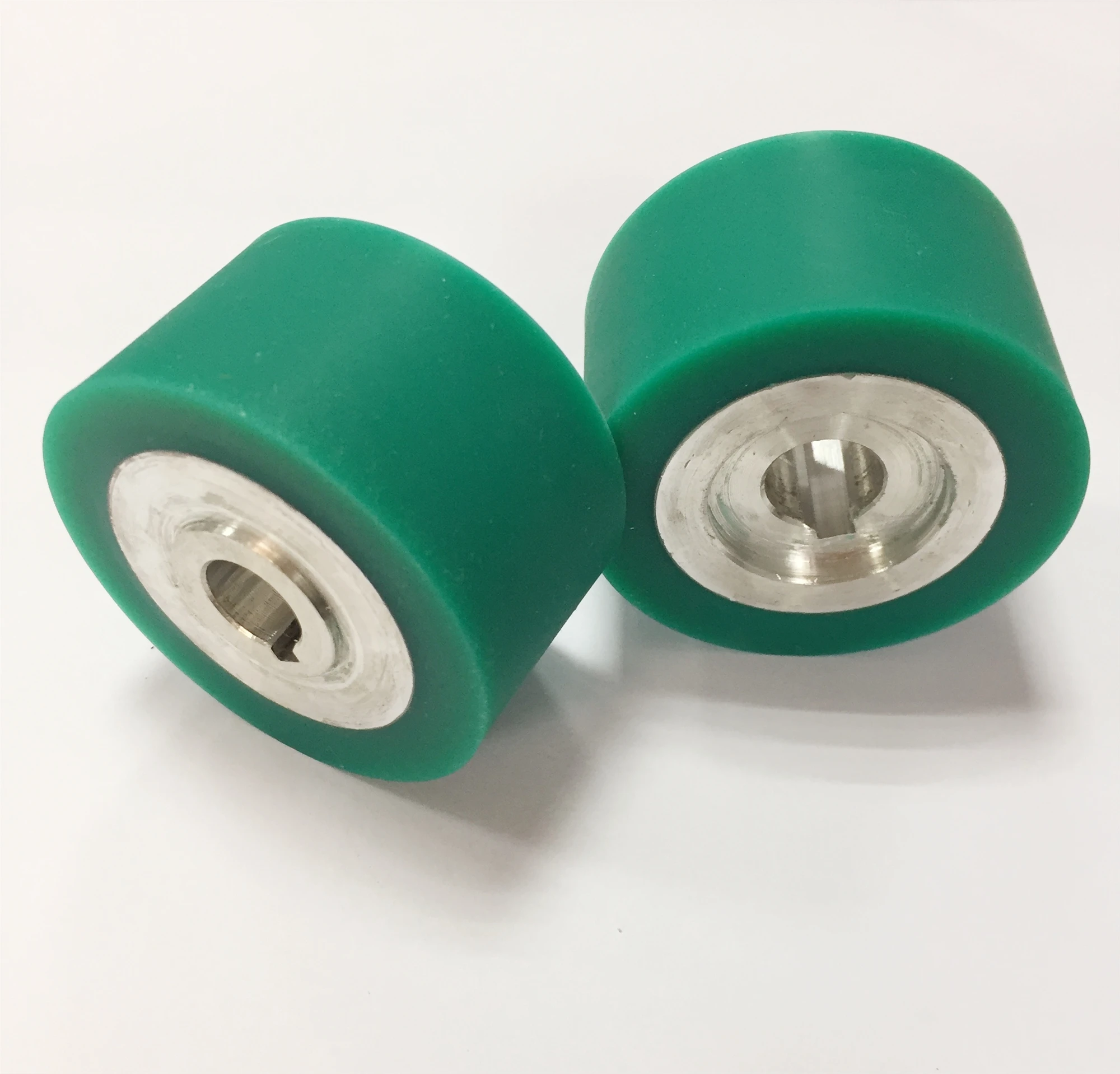

Pinch roller width | Standard:30mm mill finish, steed grain straight grain to be chosen according to demand |
Width of the gun diameter | Standard:24mm or 27mm, others can be choosen according to demand |
Exterior size | 1650mm(L) X 720mm(W)X1600mm(H) |
Net weight | 245kg |
Prevention mechanism: | There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping |
Our Services
Warranty Period
First half year warranty will be provided for all electrical element of new sold machines one year
warranty for all mechanical parts (under warranty free replacement parts are available),Our machines are modular
design that can repair by swapping module (free spare parts will be provided for not-consumable parts, e.g. roller, or not caused by improper use, when under warranty period).
Maintenance
All machines must be placed indoor, and cannot be under high temperature working environment.
Air-conditioned set up would be favored.
Initial Machine Startup Installation
All machines are in good testing before delivery,once you got the machine,only connect the air
compressor and choose language in English. Then you can set up speed and temp. according to your requirement.( Details refer to the instruction)
Machine Repairing
We can offering the online videos technology support service for machine repairing .
Technology Support
For any technical problem, we will discuss with customers to investigate their problem and finding
solution.
We can quote lowest prices separately for spare parts and freight
