At the heart of the Wallenstein TOPS Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 6" diameter tree trunks.
2.Blades The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.
3.Air Vents Blowing force is maximized with air intake vents on the side of the chipper. Air enters through the vents and powers the chips out the chute up to 20 feet.
4.Twig Breaker Blower Paddles Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
5.Adjustable Chute Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance. 6.Mounting Configurations There are three different mounting configurations available for the TOPS Wood Chipper; A three point hitch, skidsteer mount and trailer.
7.Self-feeding Hopper The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.
Specifications of the pto driven wood chipper:
Item
TOPS42S
TOPS42R
TOPS62R
TOPS92R
Rotor dia.
630mm
730mm
940mm
Rotor thickness
18mm
25mm
32mm
Rotor weight
53kg
100kg
221kg
Chip Max. wood
10cm/4"
15cm/6"
22cm/8.7"
Number of rotor knives
4pcs
4pcs
4pcs
Blade materials
65mn
65mn
Cr12
Feeding system
Manual
Hydraulic
Hydraulic
Hydraulic
Blade quantity
2pcs
2pcs
2pcs
Chips size
2-5cm
2-5cm
2-5cm
Outlet rotate angle
360°
360°
360°
Weight
660kg
680kg
780kg
Capacity
6-7m3/h
7-8m3/h
8-9m3/h
Packing size
114*91*126cm
113*81*180cm
122*91*210cm
130*115*215cm
Certifications
Detailed Images
Machine Parts

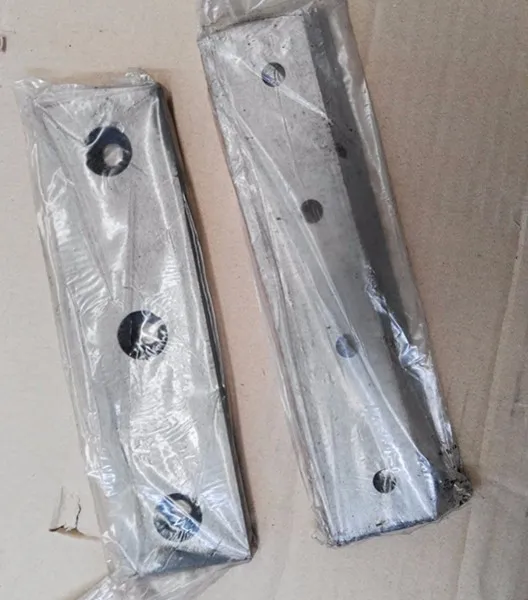

Name: Blades
Brand: TOPS
Original: Shandong, China
There are 2pcs fixed blade. You can buy a set as spare.
Our Service
1. 1 year guaranteed time with 24 hours service. 2. Free training, Guidance Installation and Debugging. If needed, engineers can be sent to your factory for installation and commissioning, training. 3. English manual and video for installation & operation. 4. Any problem in operation or others about the machine, you can contact with me and we will give solution in 24-48 hours.
Packing & Delivery
Packaging
Size
122(L) * 91 (W) * 220 (D)
Weight
680kg
Packaging Details
The normal package is iron sheet. This package can export directly to every country.
