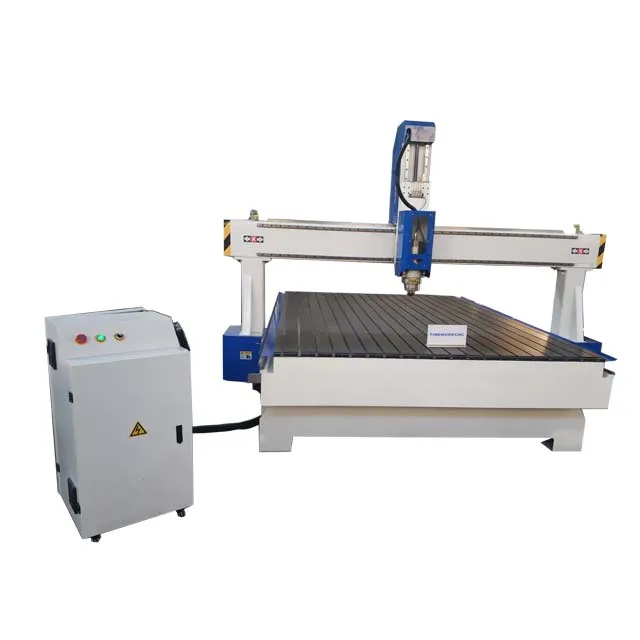

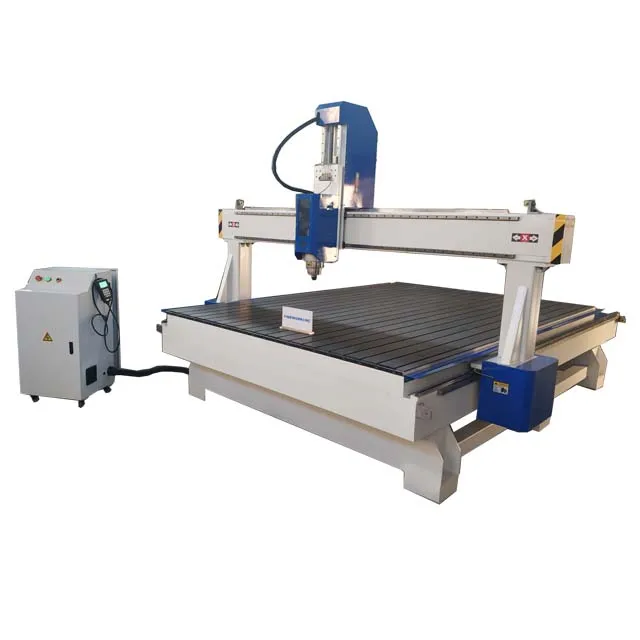

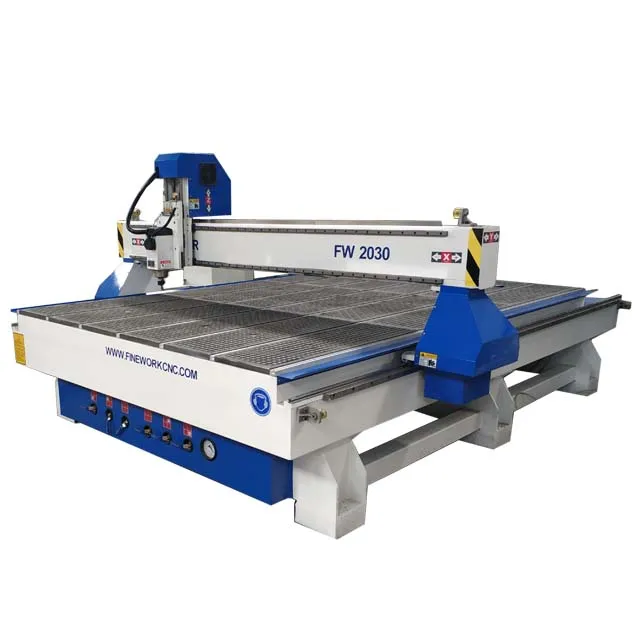

2030 woodworking wood cutting machine cnc router cnc machine woodworking cut wood plywood MDF sheet wooden door making 3D Relief
- Category: >>>
- Supplier: Jinan Finework CNC Machinery Co. Ltd.
Share on (62189352137):
Product Overview
Description
Product Description
Hi ,This is Alice ,we are manfacture for wood cnc router ,we are support customized machine ,xy working size and the z height also could customized .
Z axis height customized 400mm
This machine is suit for material feeding height large material .For example foam .
Specification
Parameters | Standard Specifications |
X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
Optional Working Area | 1300*1300*200mm|4*4ft |
1500*3000*200mm|5*10ft | |
2000*3000*200mm|6*10ft | |
2000*4000*200mm|6*13ft | |
2000*6000*200mm|6*20ft | |
Spindle Power | 6KW HQD air cooled spindle, Italy HSD spindle for option |
X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
Table Surface | Vacuum table+Intergrated T-solt table clamping System |
X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
Max. Rapid Travel Rate | 80m/min |
Max. Working Speed | 60m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | Leadshine servo motor, Japanese Yaskawa Servo Drive System for option |
Working Voltage | AC380v/50HZ/3 phase |
Command Language | G code |
Operating System | DSP A11, Mach 3, Ncstudio control for option |
Interface | USB |
Software Compatibility | Option:Type3, Ucancam, Alphacam, Aspire, solidworks,etc. |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Details Images

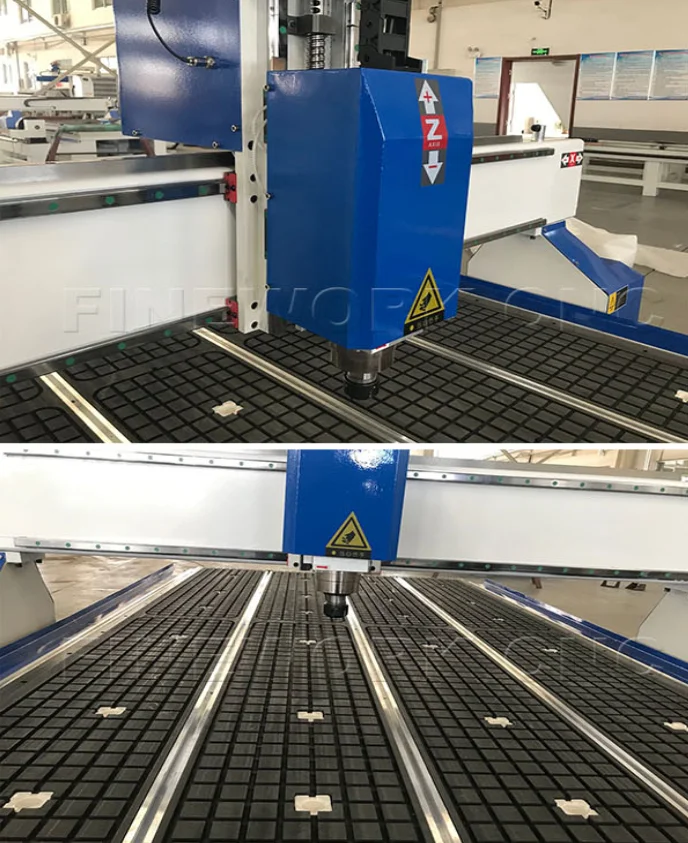

Spindle head design
Usually we suggest hot place client use the water cooling spindle ,water cooling spindle is more powerful and can cool spindle well .
Becuase air cooling spindle if ud in tropical areas, it cannot dissipate heat well, thus affecting the service life
Inverter | Now more and more client is choose Fuling inverter ,becuase economical. 3KW water cooling spindle is match with standard 3.7KW Fuling inverter . DELTA inverter is optional too . |

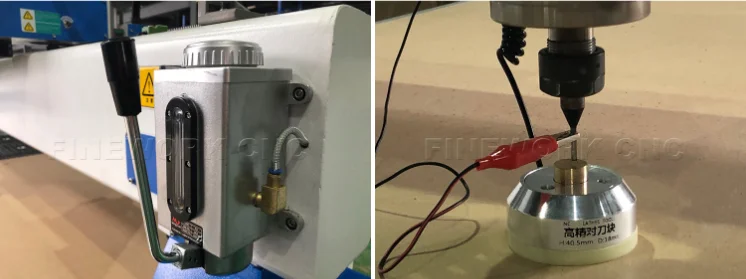

Rail lubrication oil system Auto focus block

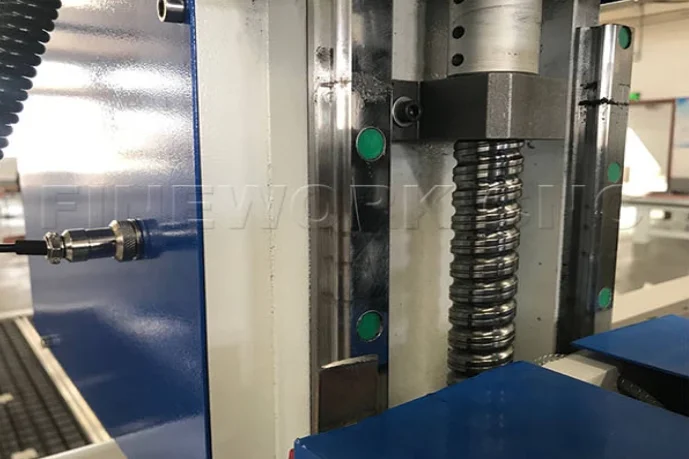

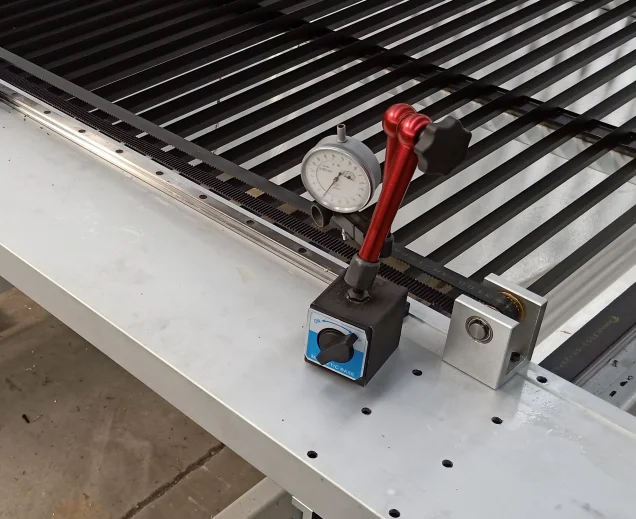

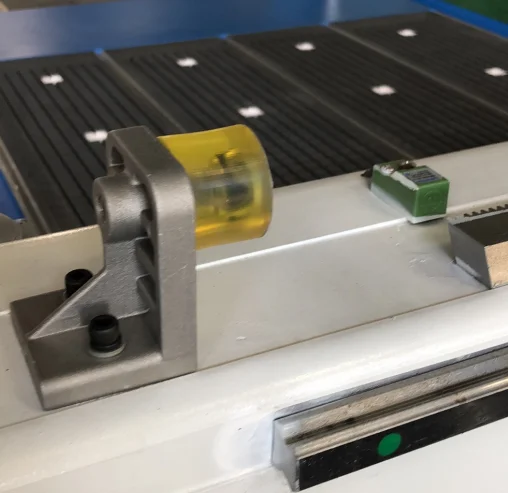

Limit Ball screw

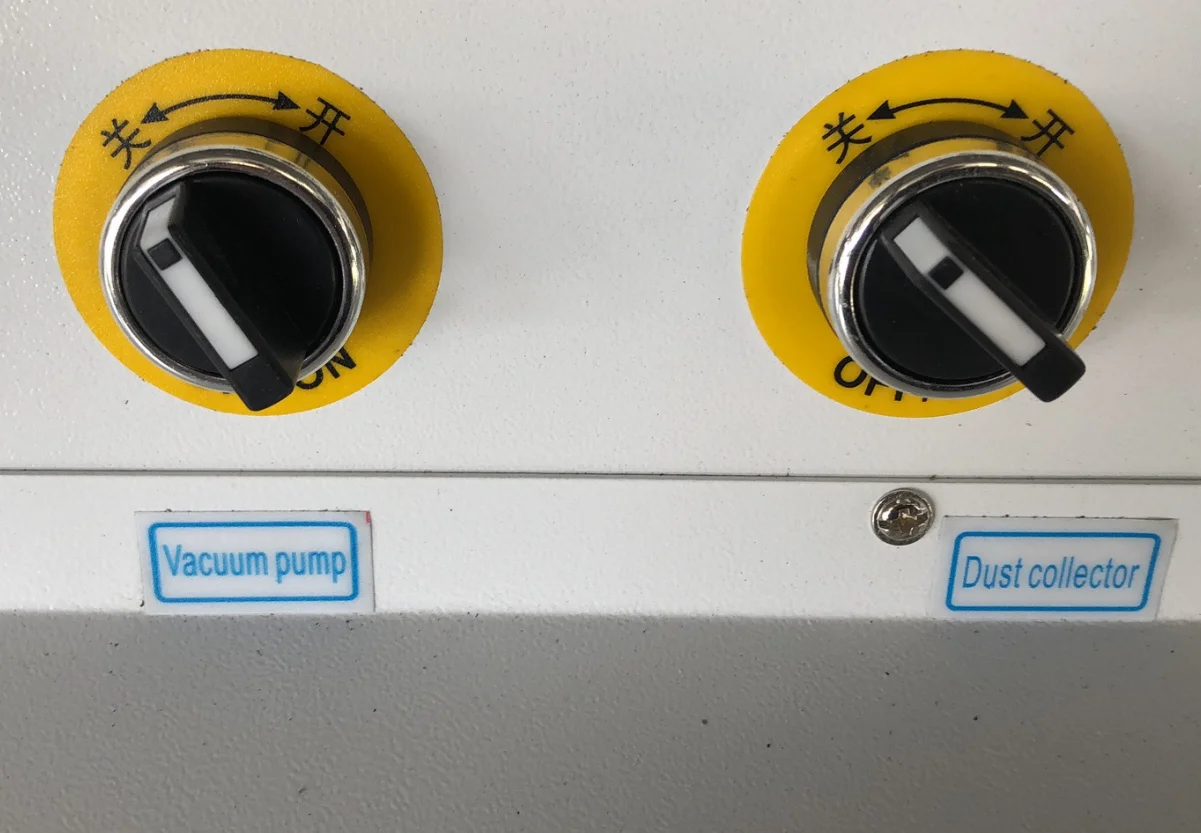

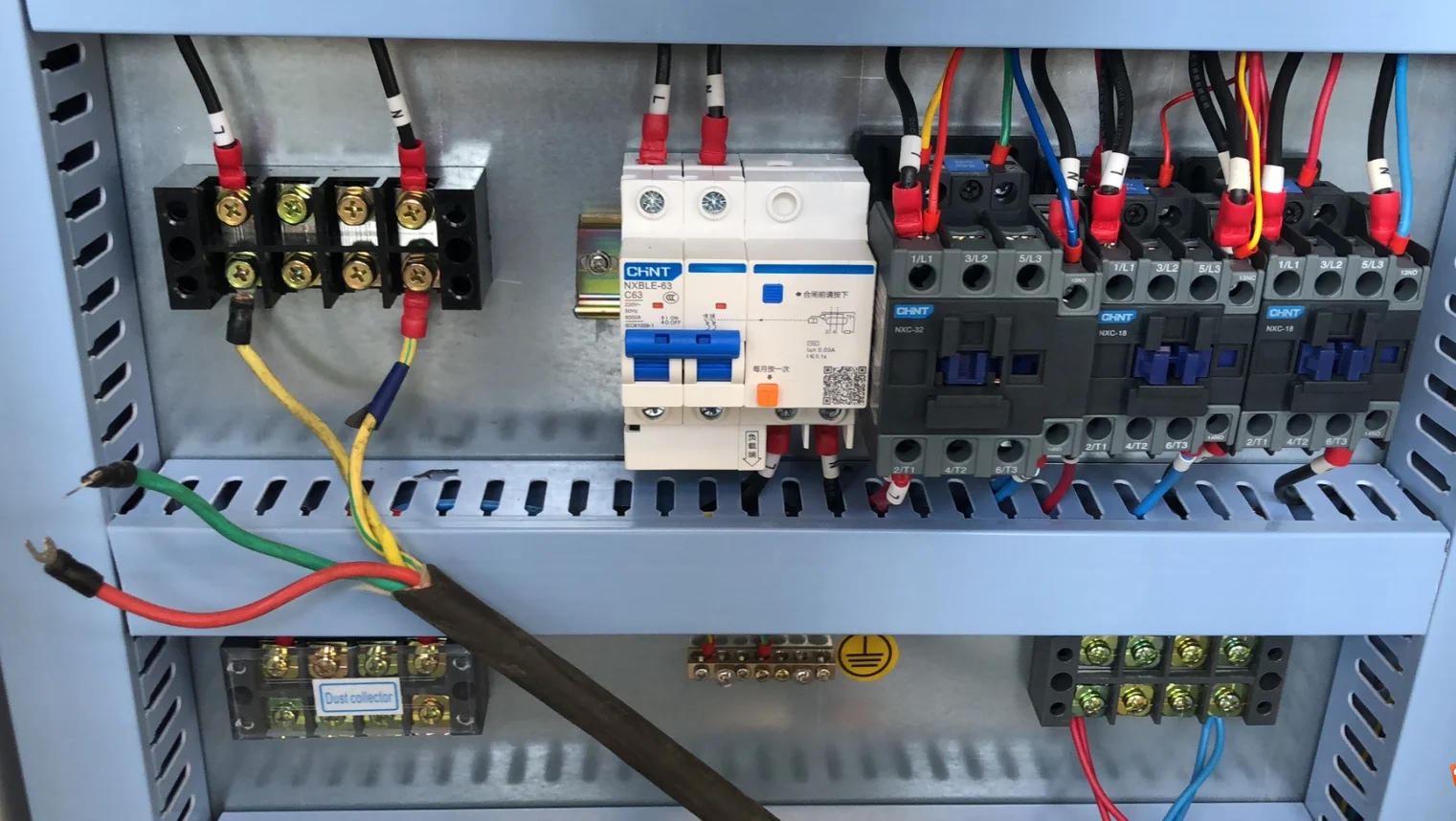

Dust collector switch for vacuum pump and dust collector

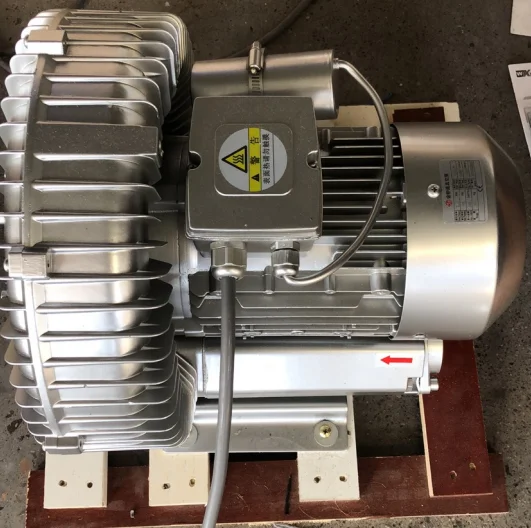

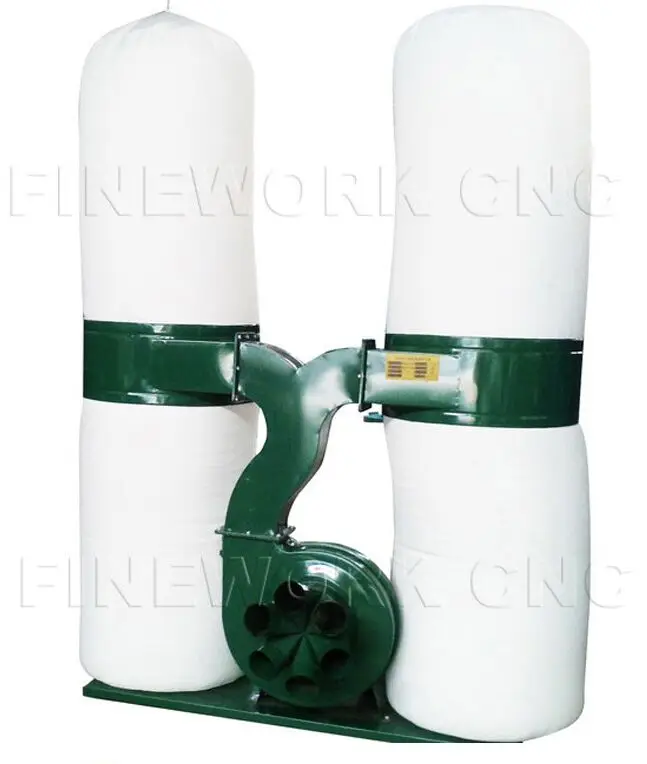

Vacuum pump Dust collector

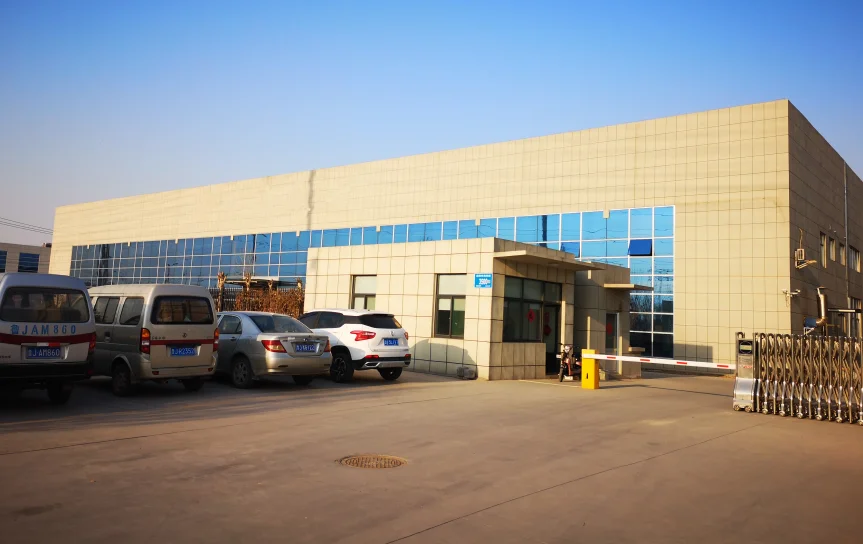

Our Factory

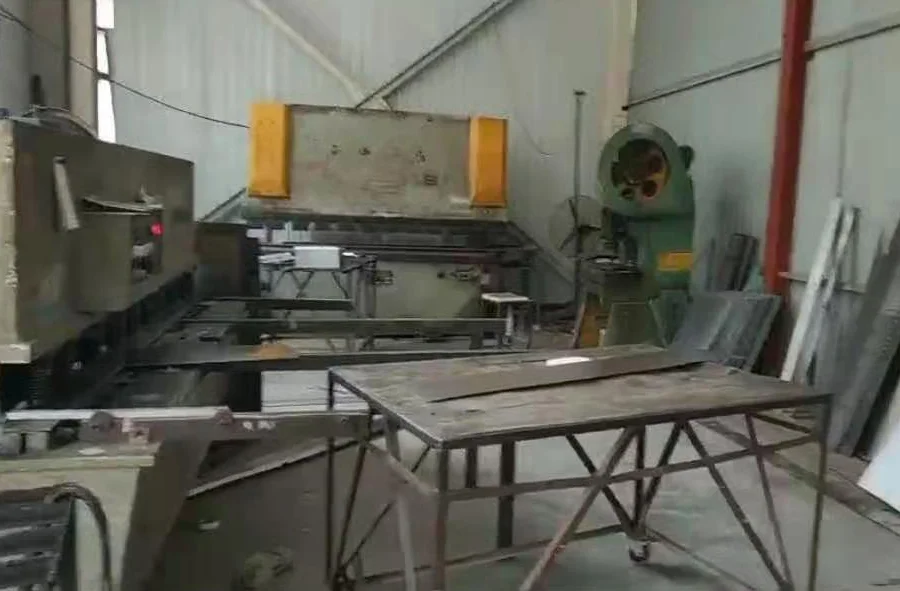

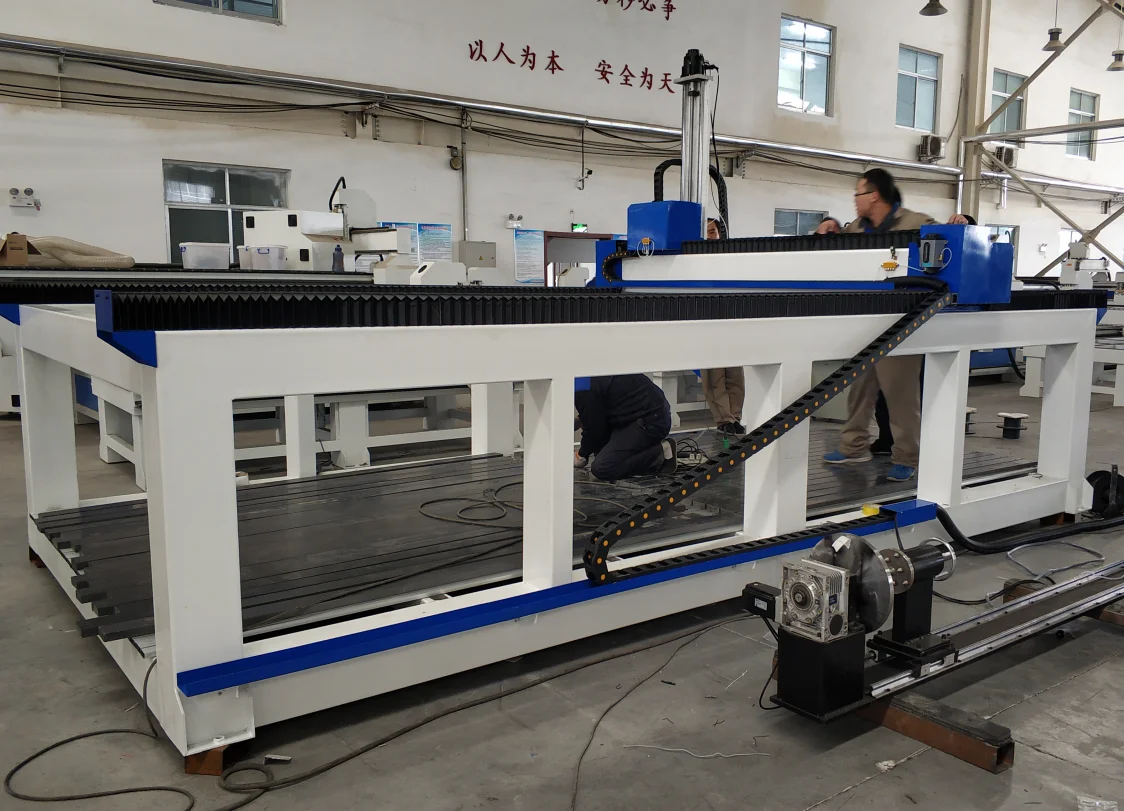

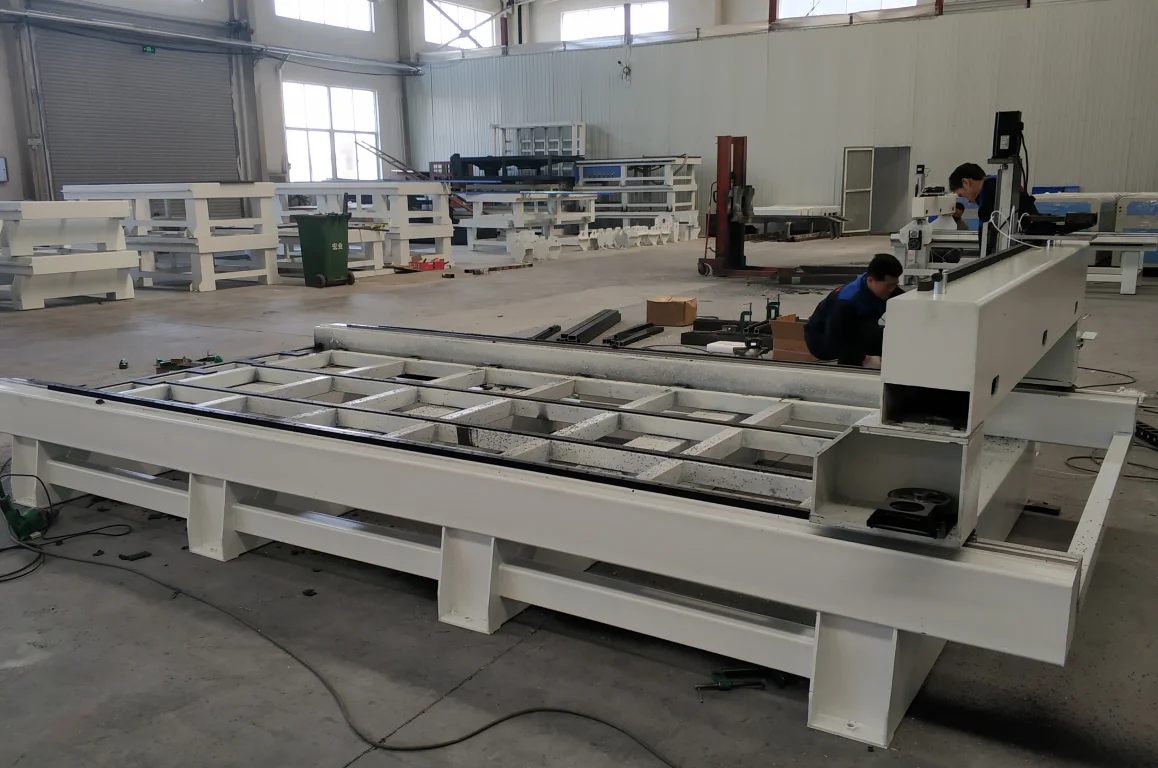

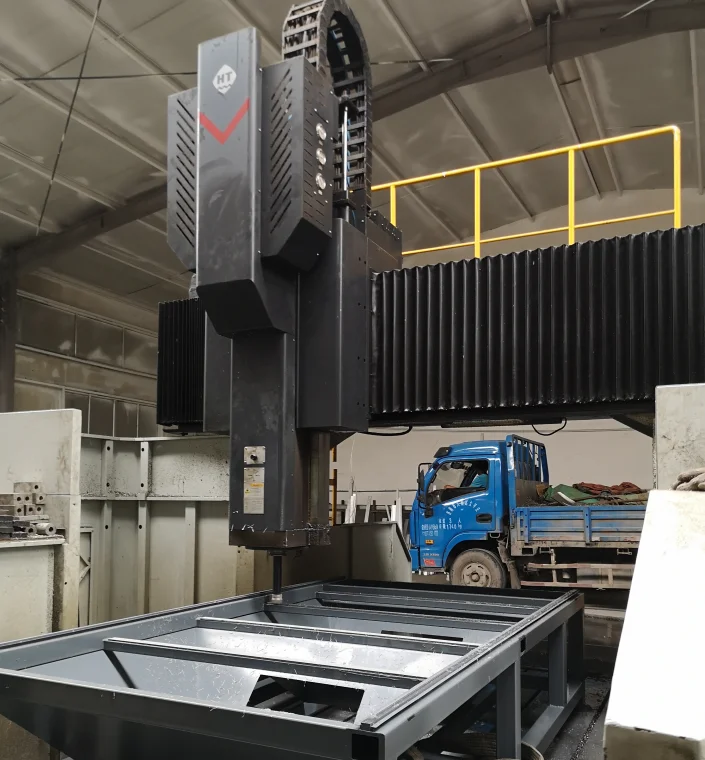

Working shop and production

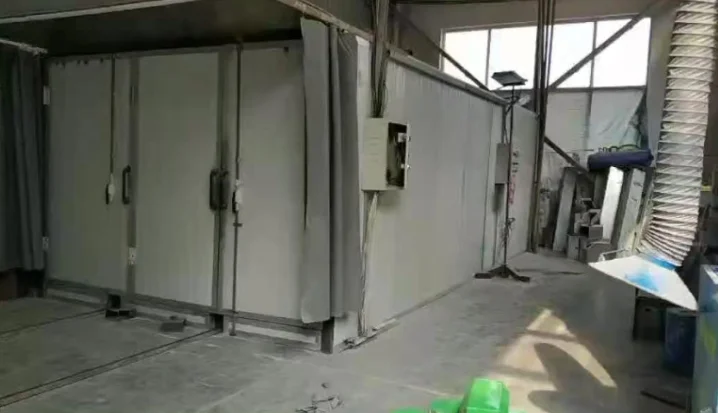

Painting room Surface process Installing
Our Advantages
Technical file for our wood engraving machine has been observed and audit has been completed successfuly 2006/42/EC machinery .
Machine after finished produce could support quality test report ,test report EN60204-1 safety of machinery REPORT
Clients visist

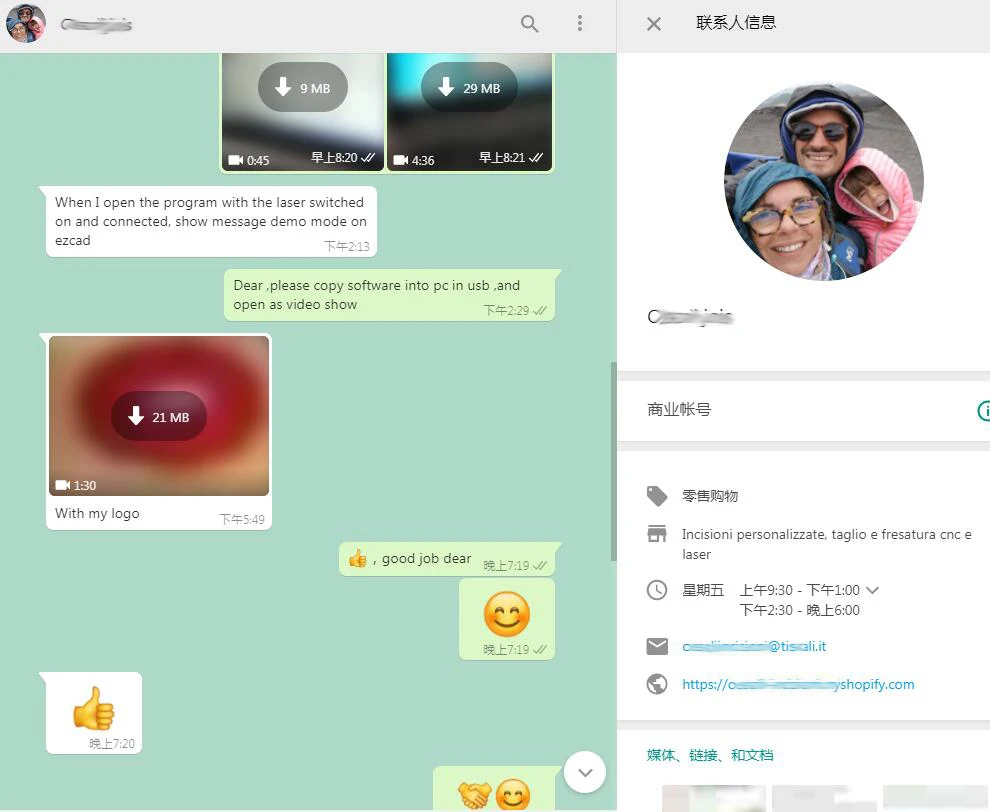

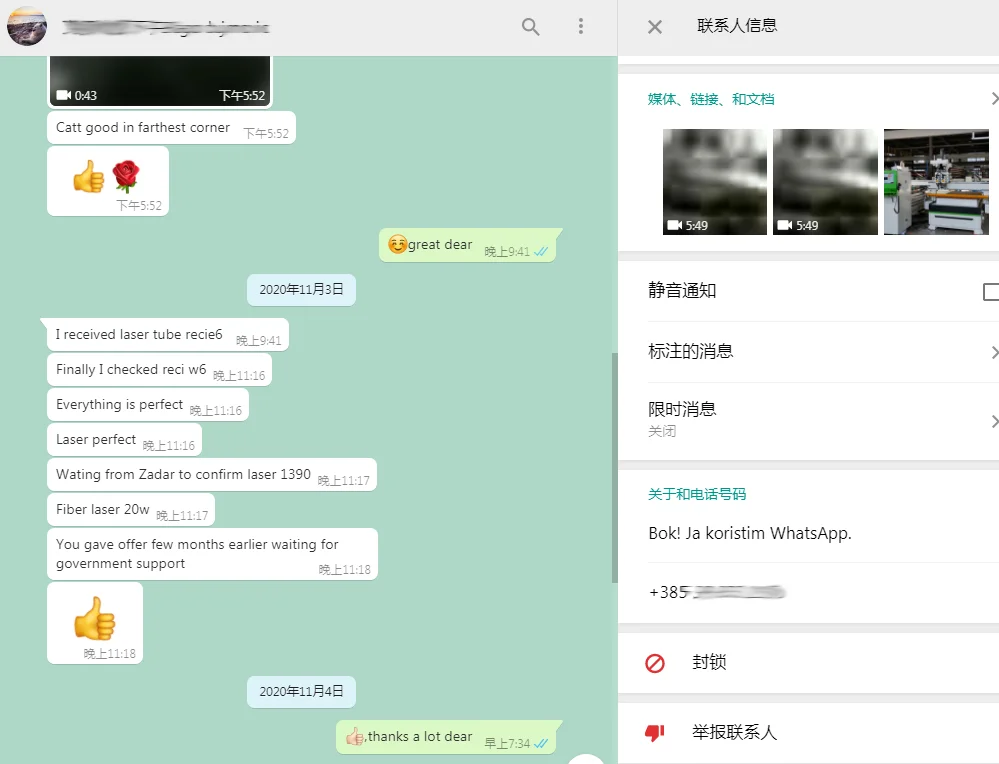

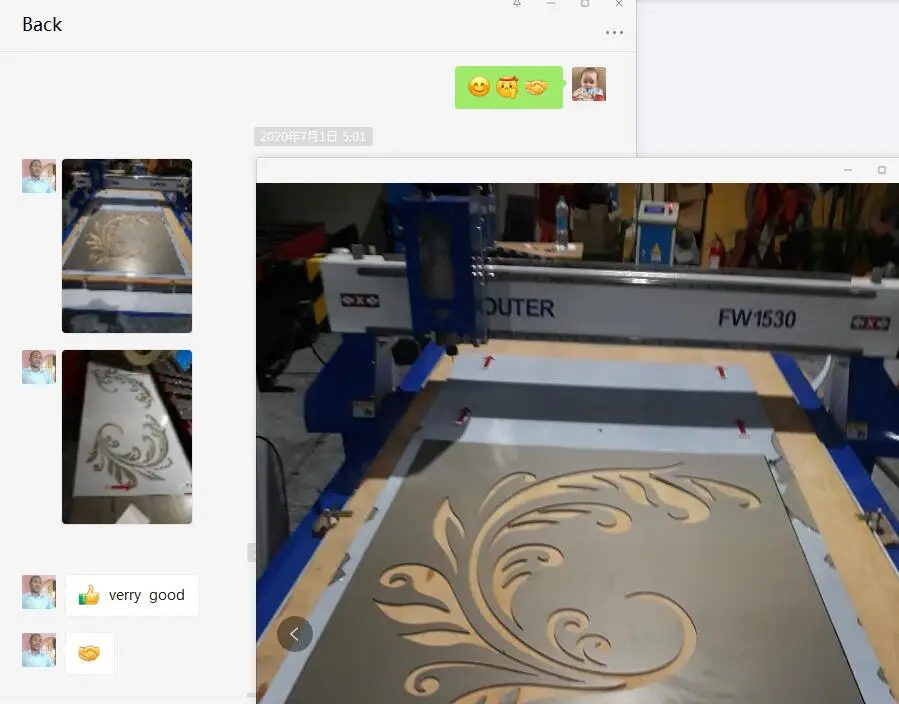

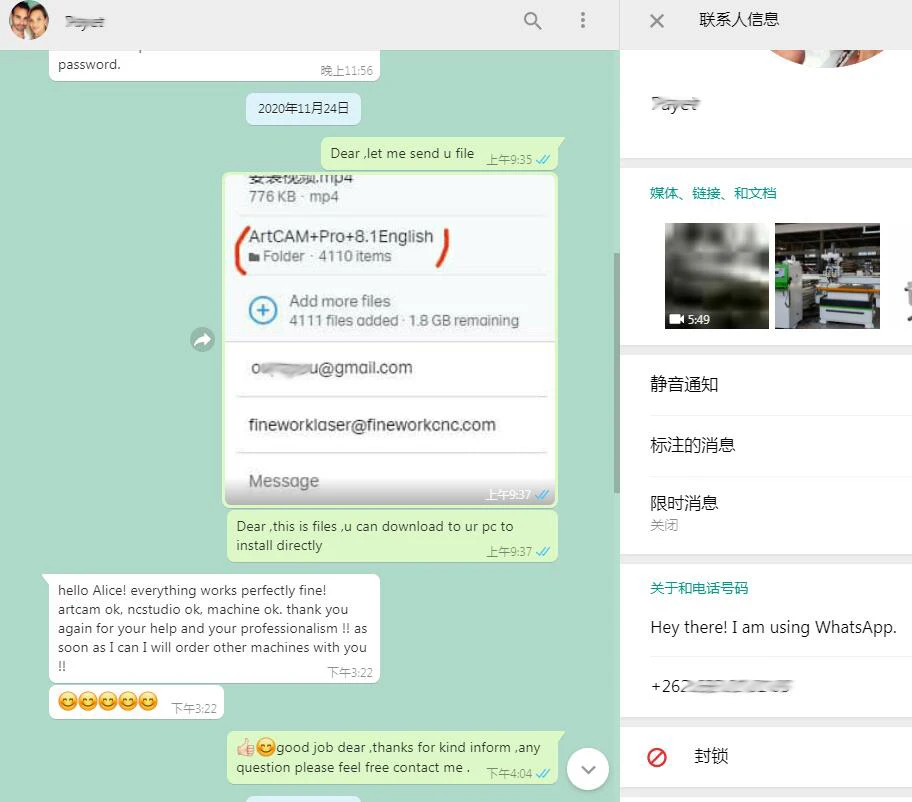

Feedback
Service
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant. Lifetime maintenance free of charge.
3. Our staff can be sent to your company to install or adjust if necessary.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
2. Free training course at our plant. Lifetime maintenance free of charge.
3. Our staff can be sent to your company to install or adjust if necessary.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
FAQ
Q:How to operate the machine ?
A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q:How can I get the sample to check you quality ?
A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
Q:Does the machine can be customized according to my requirements ?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q:Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q:How can I get the sample to check you quality ?
A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
Q:Does the machine can be customized according to my requirements ?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q:Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
