Strong Water Cooling 300w 500w Steel Aluminum galvanized sheet laser welding machine
Model No.:BE-W300II/BE-W500II/BE-W300/BE-W500

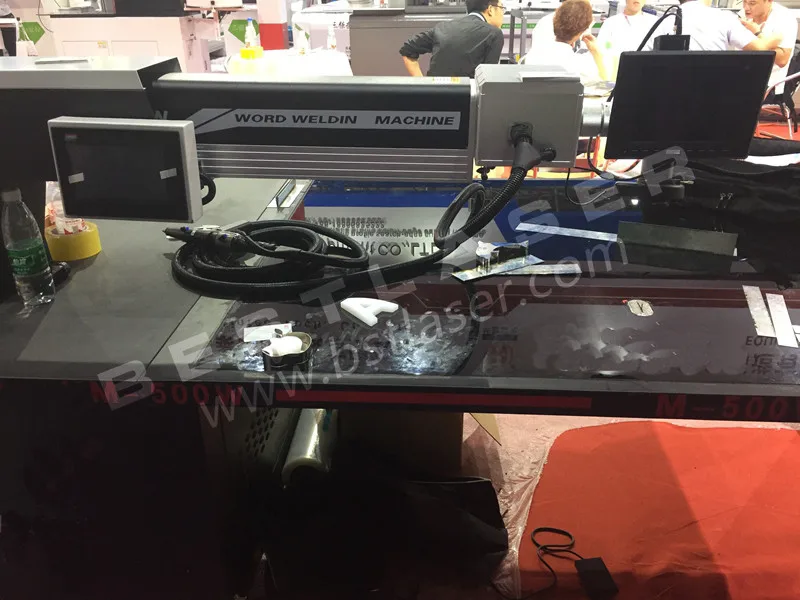

This type Dual Path laser weld machine is mainly used to welding stainless steel channel letters.double welding path with 5 meter length fiber laser cable, which brings large convenience for your welding job, the double path laser welding machine is suitable for weld large size SS channel letters which can not move easily.Fiber cable is soft, enable laser head electrically move back and forth, up and down, left and right and rotate 360 degree.
Dual Path Letter Laser Welding Machine Main Features
1.Double Path Channel Letter Laser Welding Machine,with 5m length fiber laser cable, which can be used for welding big letters and complicated metal sheet welding, brings large convenience
to your job.
2.Red light finds the welding point fast, CCD intuitive observation, optional microscope.3.Marble working platform, to ensure that the bright face plate does not scratch.
4.Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.
5.Small thermal deformation and heat affected zone.
6.Local heat treatment can be carried out on the metal word.
7.Available for the processing of complex shape of parts and small words.
8.Processing without noise, no pollution to the environment.
9.Ultra fine bearing rotating positioning rod, friction plate welding word, also need not adjust the spot position in the font corner.
10.Owing to the advanced processing method, the quality of the existing metal character is greatly improved.
11.LED ring special lighting lamp, no dead spot.
12.The self-produced high peak laser power supply, for other brand is difficult to weld aluminum. The machine can easily achieve (500W models for welding aluminum models).
Detailed Images

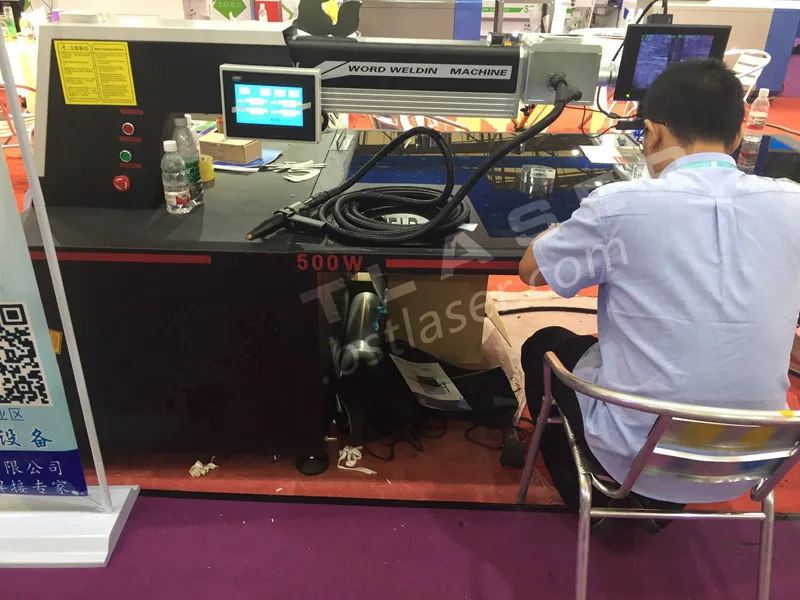

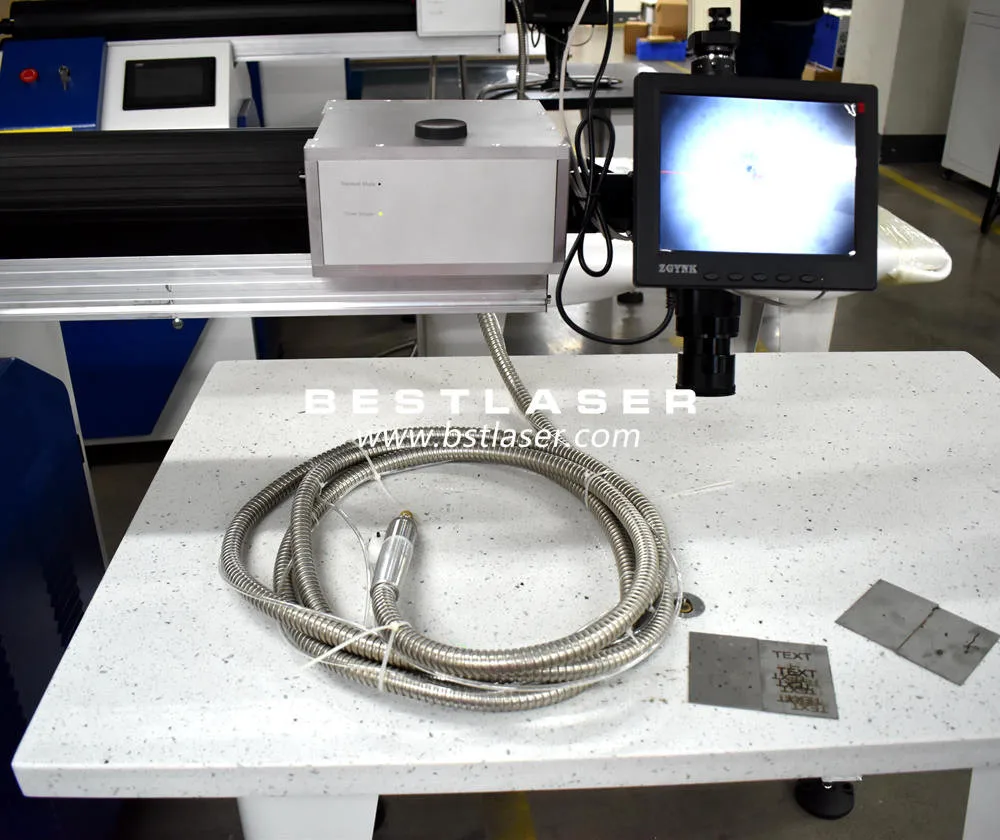

5m fiber laser cable and handy
pen
More freely, more flexible
Operators can hold the laser pen and weld
work pieces what they want.

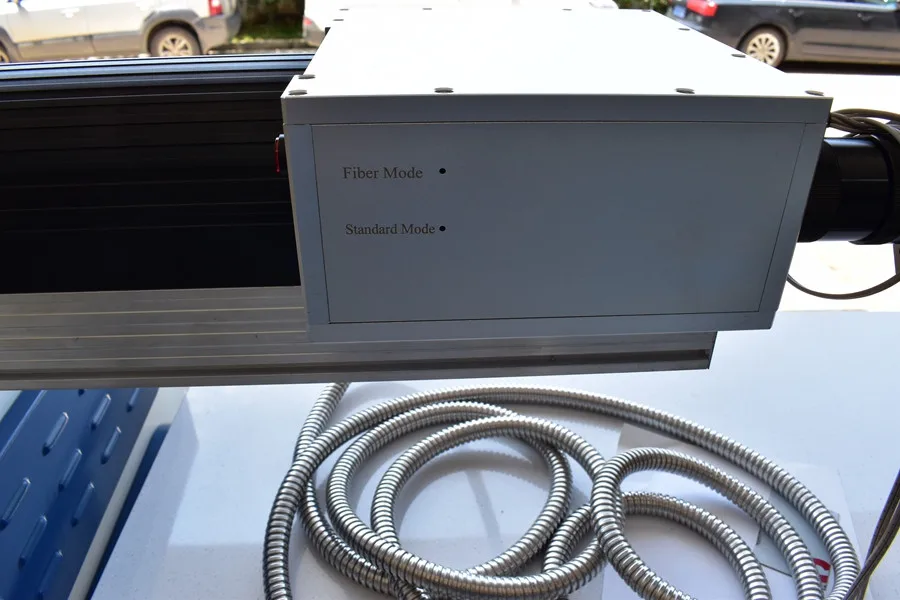

One-button Switch between Fiber and Standard Mode
Easily to change different welding way based on your welding demand

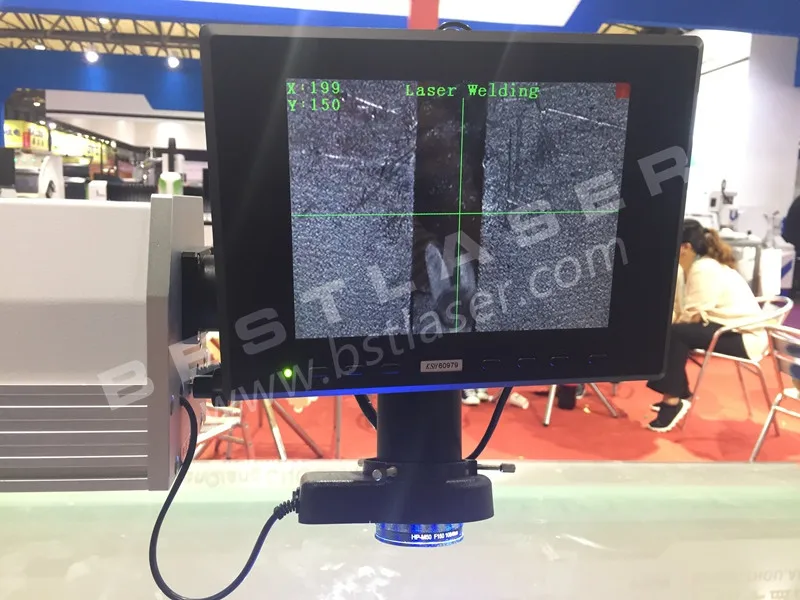

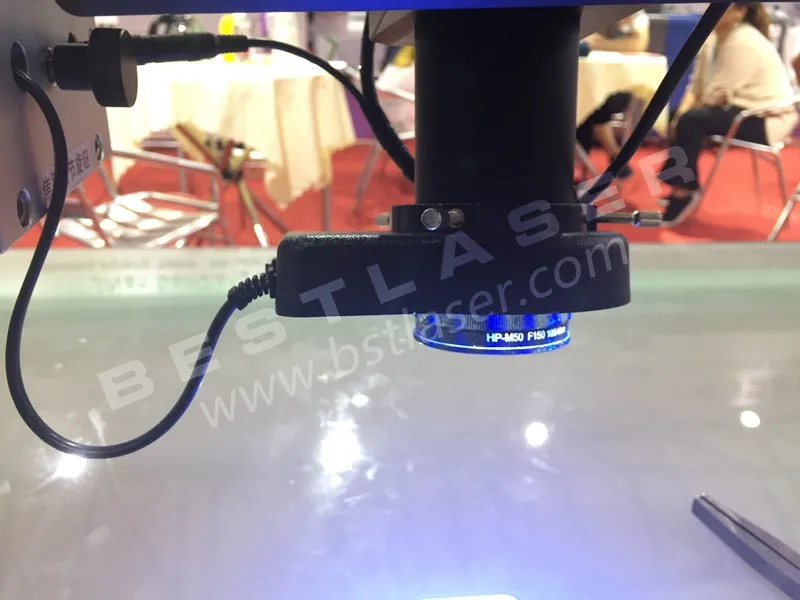

CCD Observation System
Easy to adjust the spot size and solder
joint position.

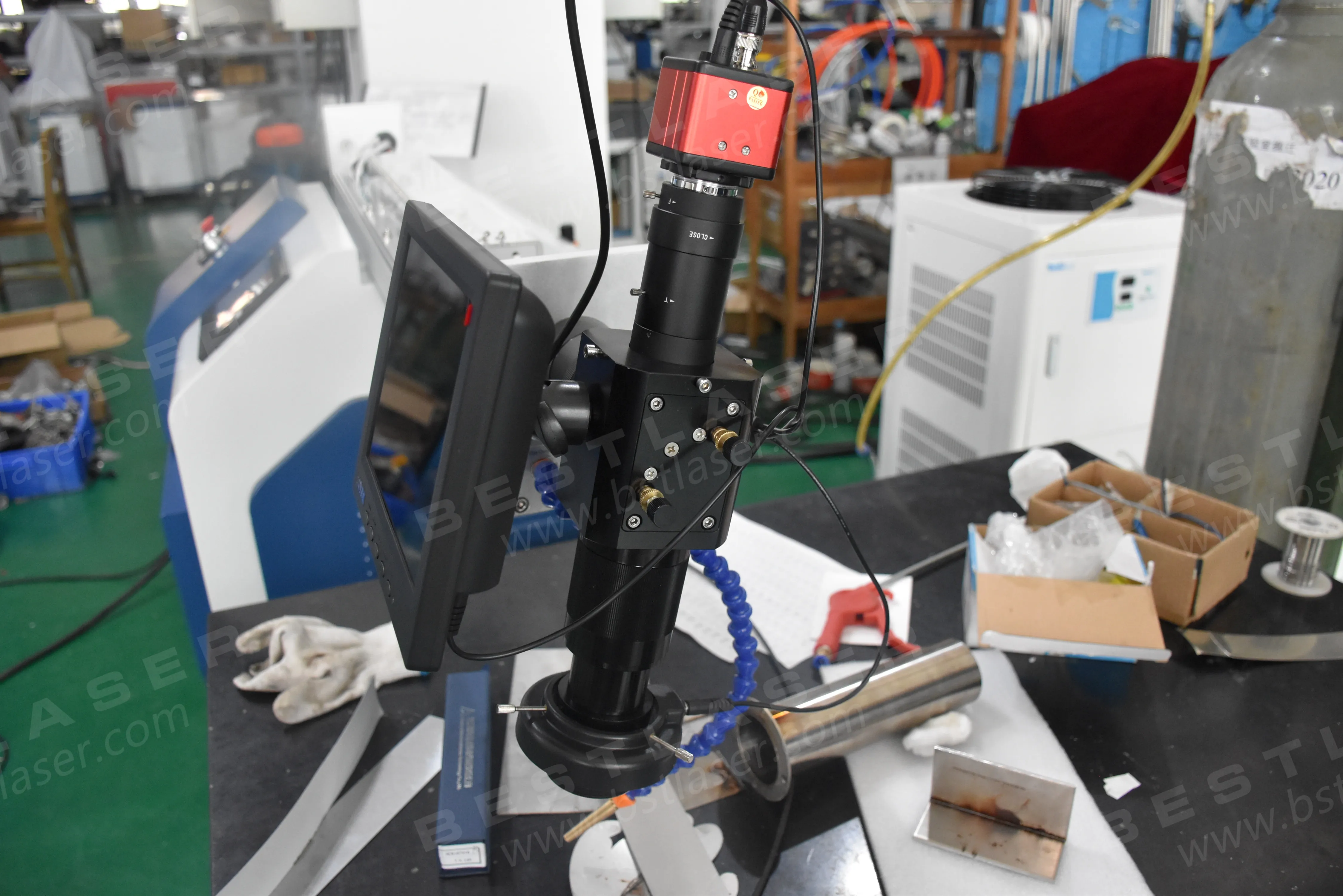

Laser Welding Head
Adopts China famous brand CCD camera, LCD screen and red pointer
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.
The welding effect is more clear and intuitive.
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.
The welding effect is more clear and intuitive.
Controlling system

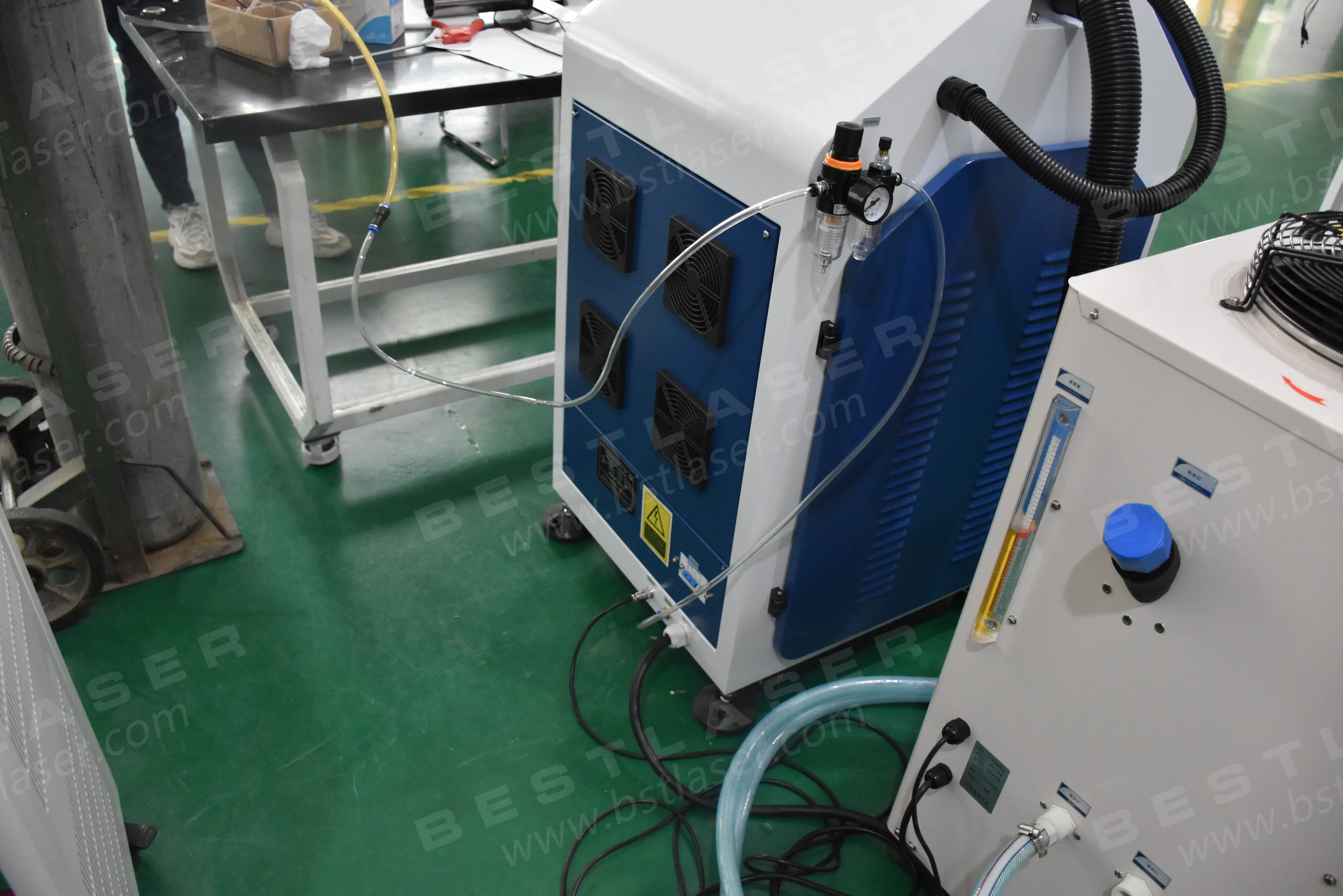

Industrial water chiller can cool the machine and make the machine work in good condition.
Operators can adjust the temperature parameters on the chiller panel.The water chiller comes with air-conditioner system.
(300w-1p,400w-2p)

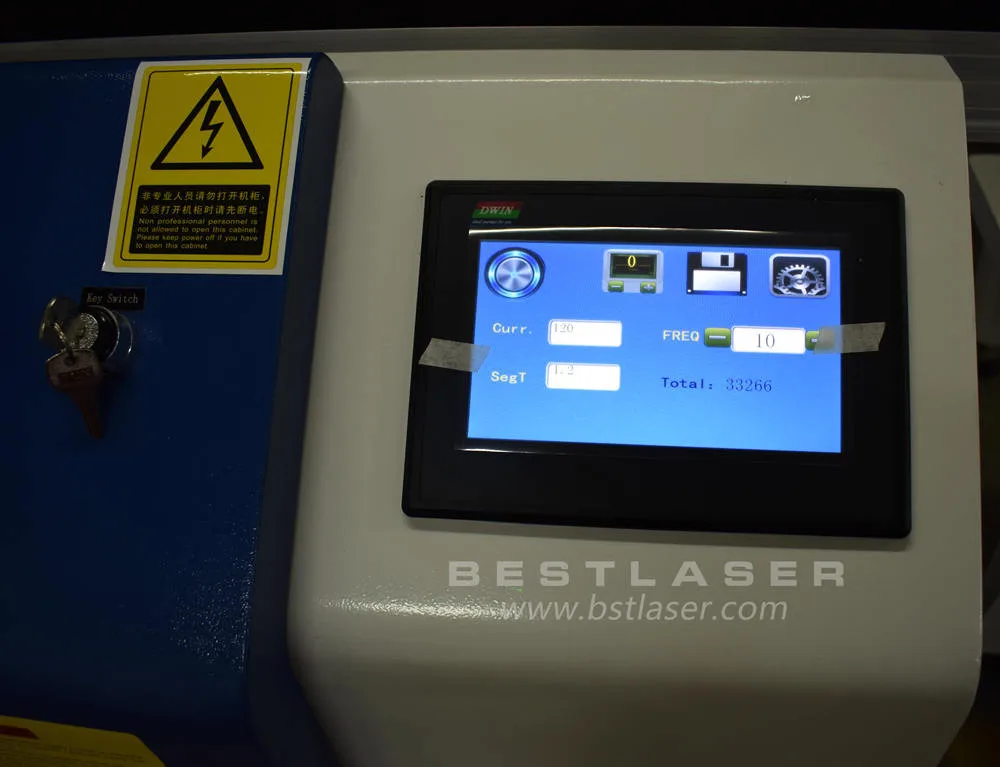

LCD Touch Screen Controller
Easy parameters adjustment ,you can keep
parameter and search directly when need

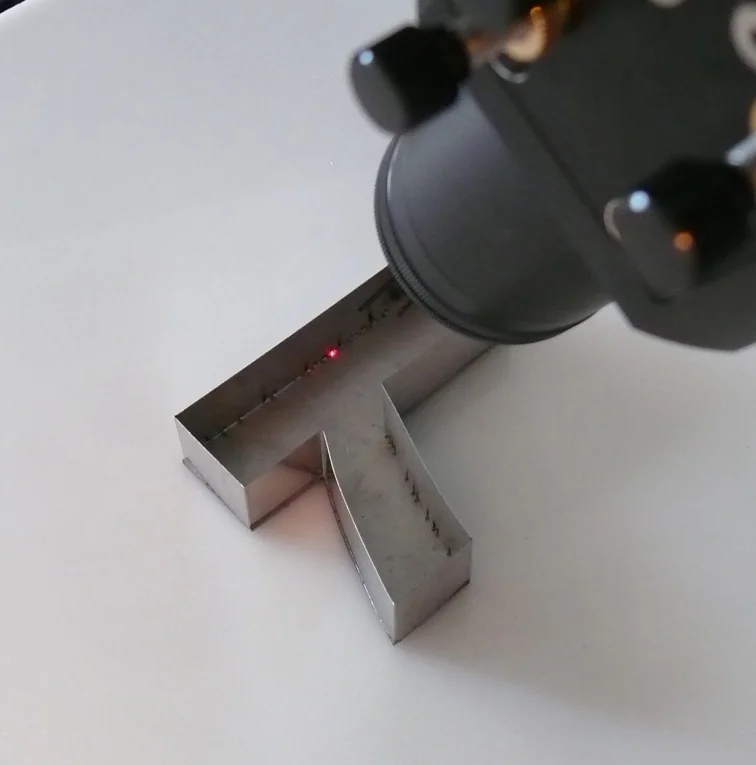

Red pointer
It is easy to for red light to find the welding point fast, and position faster
Electrical Controlling System
Controlling board and cable connection are
integrated to avoid confusion..
Working Table
Thicken Marble or Tempered Glass,
Ensure that the glossy sheet is not scratched
Technical Data
Model | BE-W300II | BE-W500II | |||
Name | 300W Laser welding machine | 500W Laser welding machine | |||

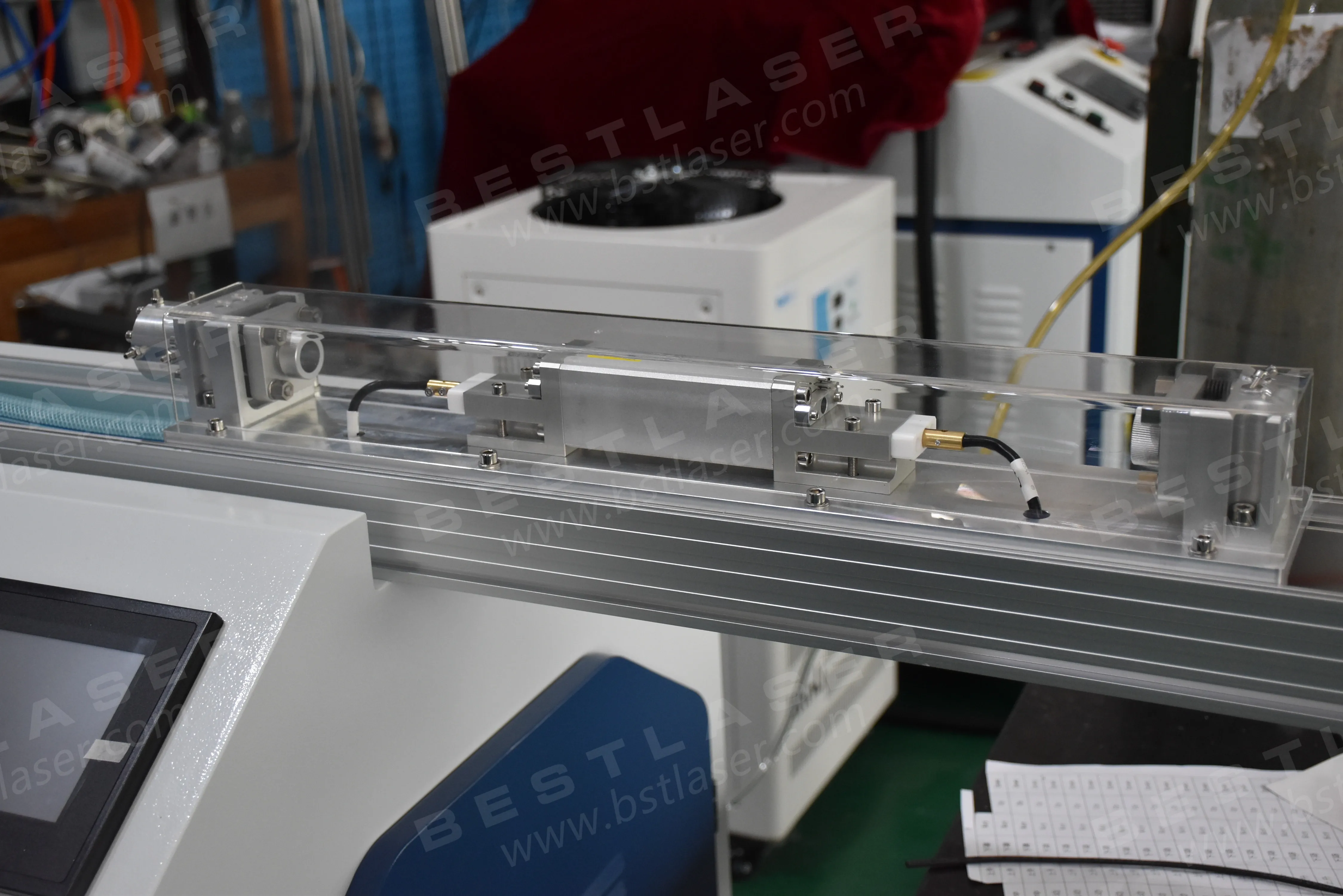

Machinery Part | Laser cavity length of 1100 mm, the laser head can rotate 360 degrees. | ||||
Working Area | 750*1000MM | ||||
Load Bearing | ≤200KG | ||||
Machine Power Supply | 220V±10%/50/60Hz | 380V±10%/50/60Hz | |||
Position system: | <7KW | ≤12KW | |||
Single Pulse Energy | 90J | 120J | |||
Impulse Rate | ≤50Hz | ≤100Hz | |||
Cooling Capacity | 2700W | 5000W | |||
Cooling Mode | Circulation Water Cooling and Protection System | ||||
Operation | Detailed Video to teach customer how to operate the machine | ||||
Application for Dual Path Laser Welding Machine

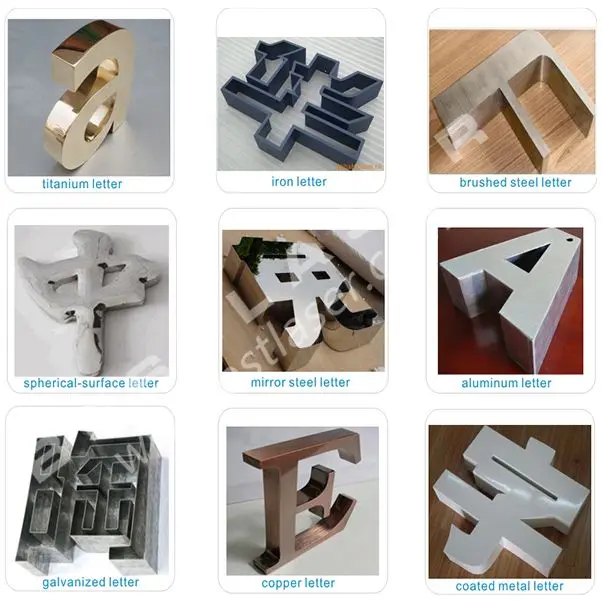

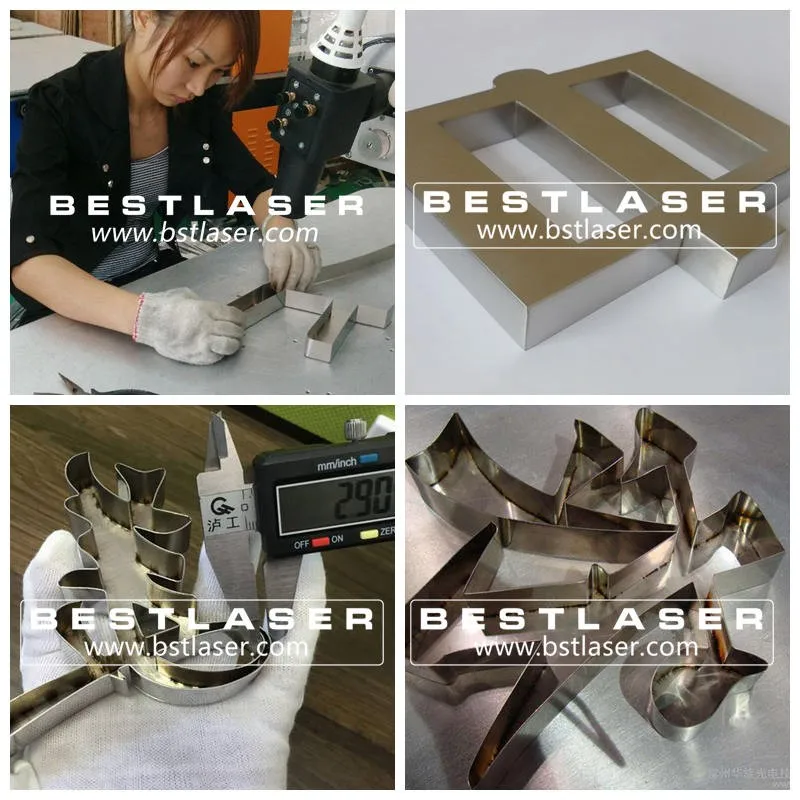

The channel letter welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs,metal letters, LED illuminated letters, customized metal signage, and exterior billboards and other fast welding.
Welding Materials:
0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum (500w laser welder).The channel letter welding machine also called handheld laser welding machine,portable laser welding machine,advertising letter welding machine,laser welder for sale.
Welding Materials:
0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum (500w laser welder).The channel letter welding machine also called handheld laser welding machine,portable laser welding machine,advertising letter welding machine,laser welder for sale.
Packing & Delivery
Packaging | ||
Size | 1580*830*1340mm | |
Weight | 450kg | |
Packaging Details | We have 3 layers package. 1.Outside:we adopt wood craft case. 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof. | |
Related Product
\t\t\t\t\t\t\t\t\tCompany Introduction \t\t\t\t\t\t\t
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
FAQ&Contact
FAQ for Best Laser Auto Laser Welding Machine
1. What are the main functions of the laser welding machine?
Mainly for the welding of metal advertising words to replace the traditional argon arc and soldering.
2. What are the advantages of laser welding?
Laser welding has no requirements for technicians, it is quick to get started, there is no heat deformation after welding, and it can be used without polishing and grinding.
3. How many models are there for your laser welding machine?
At present, the welding machine is divided into three types according to the power:
300W and 500w .
There are two types of ordinary type and double optical path according to the function. The common type is mainly made of small characters. The double optical path is a 5m conductive fiber added to the ordinary type. Use a common optical path when welding small characters, and use a fiber laser welding head when welding large characters or ordinary types cannot achieved.
4. What are the consumables for laser welding machines?
The main consumables of the laser welding machine are laser xenon lamps, which have a service life of 8 million times. The calculation is about 5 hours per day, about 6-12 months. If you use less, replace it once every 1-2 years. We use the Xenon lamp of the best Anguang in China. Below 300W is a xenon lamp, and 400W or more is two xenon lamps.
5. Does the laser welding machine need a computer, and the requirements for the user are not high?
The laser welding machine does not need a computer when it is used. There is a control screen. On the top, three parameters are set. One is CUR current which is equivalent to laser power, the second is the Wid" pulse width" which is the time the laser stays on the material, and the third is the Fre "welding frequency", which is the welding speed. There is no high demand for personnel, and it can be used after simple training.
6. What are the materials that the laser welding machine can weld?
The laser welding machine is mainly designed for the advertising industry. The materials that can be welded mainly include stainless steel, iron sheet, galvanized sheet, copper plate, aluminum alloy plate and other metal materials. For customers who use more aluminum and copper materials, 400W and above lasers are recommended. Welding machine model.
Please contact Best Laser for more information. Your kind reply of following questions will help us to recommend the most suitable machine.
1.What's the welding materials (stainless steel,galvanized sheet,aluminum...)
2.To recommend suitable power,may we know max welding depth you demand ?
3. What's the application ? (advertisement, signage,mould,jewelery...)
Best Laser Bonnie Contact:
Web:www.bstlaser.com
Mail:bonnie(@)bstlaser.com
MP:+86 18971376270
Tel/Fax:(+86)-27 81787970
Whatsapp:+8618971376270
ADD: Optic Valley No.8 Industrial Park,No.1 Tanhu Road ,Jiangxia District,Wuhan,China.zip code :430205
