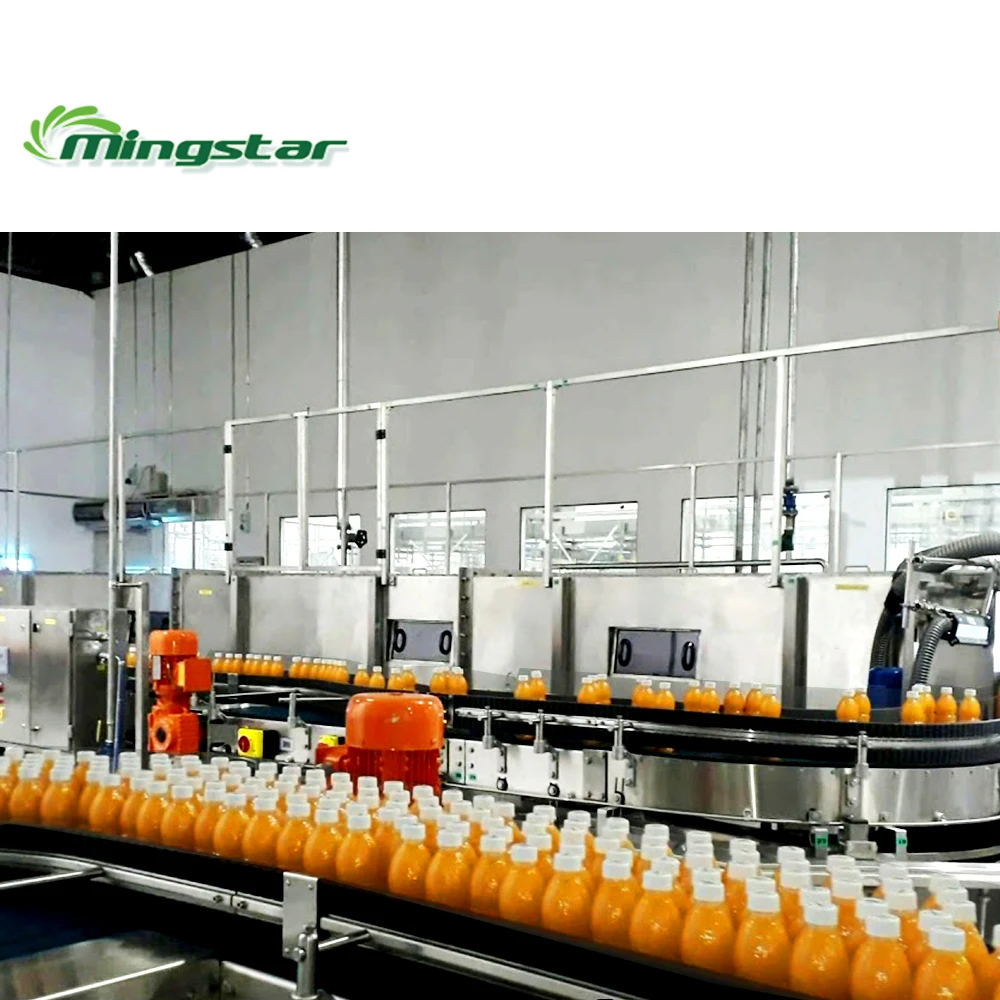

Полностью автоматическая машина для розлива пластиковых бутылок 14000BPH для линии производства соков и напитков
- Category: >>>
- Supplier: Suzhou Mingstar Company Limited
Share on (62189762951):
Product Overview
Description
Product Description
This is a inline piston filling machine for cream and liquid.it adopts PLC and touch screen control panel for control material.It is charaterized by accurate measuring,adcanced structure,stable operating,low noise,large adjusting range,fast filling speed.

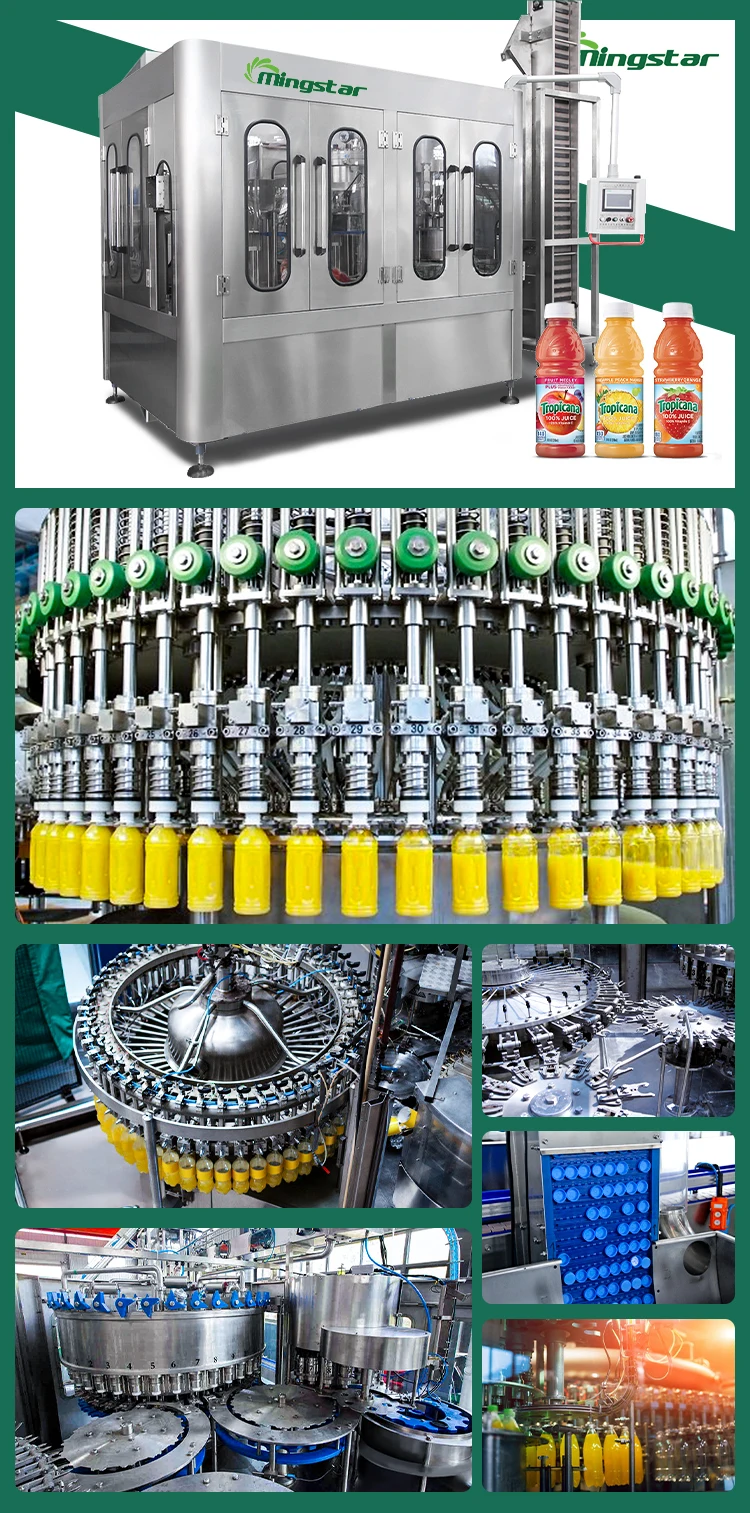

Hot Juice filling Machine
RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml-2000ml.different models can .satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .
Technical Parameters
Take water as the main parameter for reference, other liquids, please contact customer service for details
All machines could be customized , we could design design and produce machines according to your request.
Model | RCGF14-12-5 | RCGF16-16-6 | RCGF24-24-6 | RCGF32-32-8 |
Production capacity | 4000BPH(500ml) | 8000BPH(500ml) | 12000BPH(500ml) | 10000BPH(500ml) |
Washing heads | 14 | 16 | 24 | 32 |
Filling heads | 12 | 16 | 24 | 32 |
Capping heads | 5 | 6 | 6 | 8 |
Suitable bottle | PET bottle, Plastic bottle | PET bottle, Plastic bottle | PET bottle, Plastic bottle | PET bottle, Plastic bottle |
Diameter of bottle | 50-110mm | 50-110mm | 50-110mm | 50-110mm |
Height of bottle | 150-310mm | 150-310mm | 150-310mm | 150-310mm |
Suitable cap | Plastic screw cap | Plastic screw cap | Plastic screw cap | Plastic screw cap |
Weight | 2000KG | 3000KG | 5000KG | 7000KG |
Main motor power | 1.5KW | 2.2KW | 3KW | 3KW |

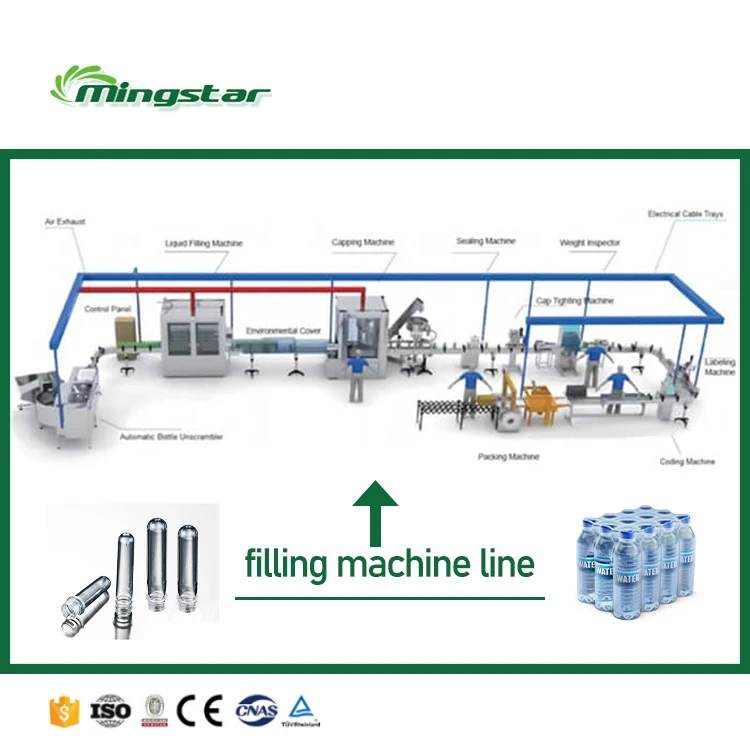

This Production Line is a whole Automatic water filling capping machine production line solution;The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.
Please contact us to confirm the product parameter before payment.
Glass Liquor filling systems
※Easy Maintenance
The valve components can be dismantled independently, a maintenance advantage
※High Level of Hygiene
The AISI 304 and plastic parts that come into contact with the treatment liquid are made of tested food-grade materials
The valve components can be dismantled independently, a maintenance advantage
※High Level of Hygiene
The AISI 304 and plastic parts that come into contact with the treatment liquid are made of tested food-grade materials
※User-friendly Control
Control panel with a color tour with a touch screen interface
Control panel with a color tour with a touch screen interface
※The filling nozzle
.The filling nozzle is equipped with a drip proof device to ensure that the filling is not drawn, and it will not drip.
he method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.
Detail Images

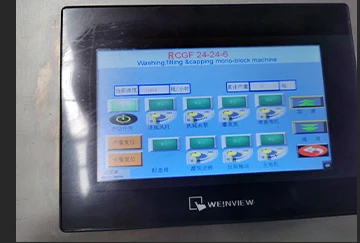

Simple operation panel,it can be customized in different kinds of language.
The visual working data makes it easier to test and adjust the machine helps to save time. We use imported operation panel which improves the product quality.
The visual working data makes it easier to test and adjust the machine helps to save time. We use imported operation panel which improves the product quality.

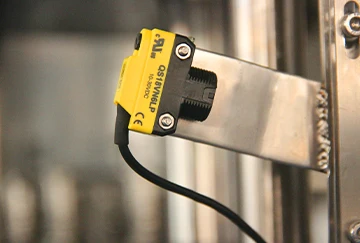

The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

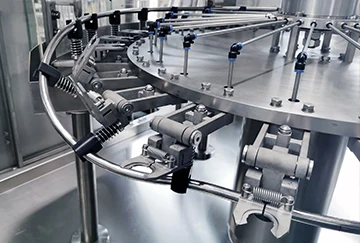

Into bottle way is air conveyor direct connection with bottle dial.All -304/316 stainless steel rinse heads,water spray style inject design, more save water consumption and more clean.
-304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.-304/316 stainless steel washing pump make the machine more durable.
-304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.-304/316 stainless steel washing pump make the machine more durable.

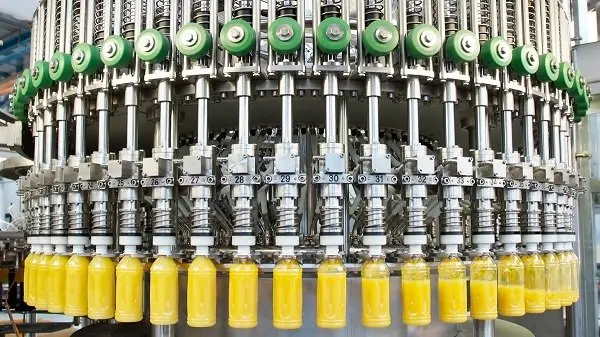

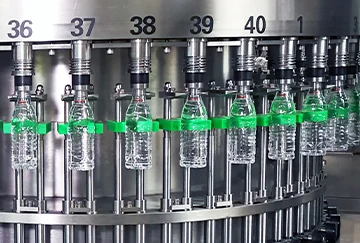

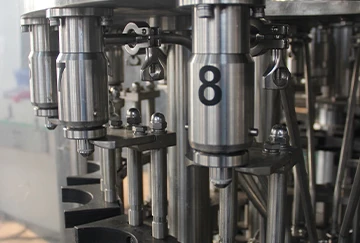

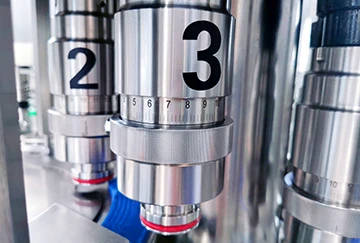

Filling Parts
- 304/316 Stainless steel high precision filling
nozzle
- Filling volume adjustable in fine rank, same
liquid level after filling
- All 304/316 stainless steel contact parts &
liquid tank, fine polish, no death corner, easy
to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and
save water for flushing
nozzle
- Filling volume adjustable in fine rank, same
liquid level after filling
- All 304/316 stainless steel contact parts &
liquid tank, fine polish, no death corner, easy
to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and
save water for flushing
- Place and capping system, electromagnetic
capping heads, with burden discharge
function, make sure minimum bottle crash
during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
capping heads, with burden discharge
function, make sure minimum bottle crash
during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Auxiliary Parts
The auxiliary(optional)equipment have
boottle rinsing water reflux tank,bottle-
feeding air conveyor,and bottle-outputting
chain. Besides,we will configure manual
bottle feeding platform (or bottlle unsrambler),automatic cap elecator and
so on.
boottle rinsing water reflux tank,bottle-
feeding air conveyor,and bottle-outputting
chain. Besides,we will configure manual
bottle feeding platform (or bottlle unsrambler),automatic cap elecator and
so on.
