C50 E3JK 5M Distance Infrared IR Photoelectric Photo Through Beam Sensor Switch Relay Output 5 Wires AC/DC 24 250V (IBEST)

Product Overview

Description

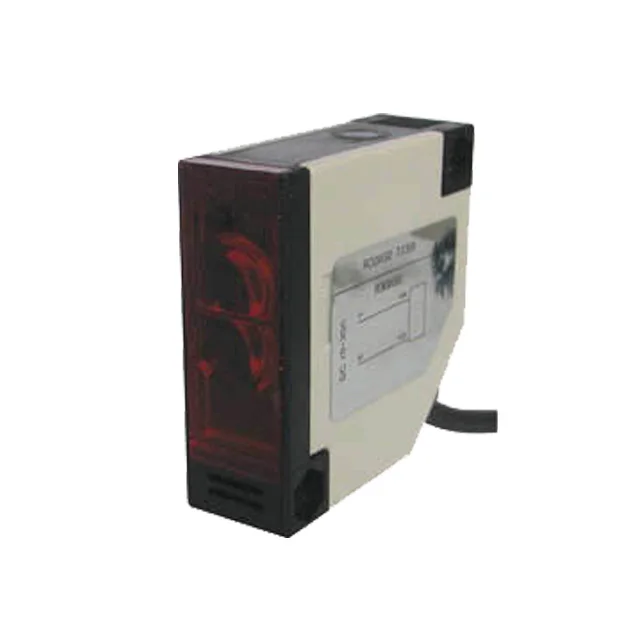

C50 Infared Through Beam Photo Sensor Switch

AC/DC 24-250V Universal Power Supply / 5 Wires / 0-5M



1.Features:

--     Through beam type, with one sender + one receiver.

--     Detect distance: 0-5 meters.
--    AC/DC 24-250V, NO+NC, relay output, 5 wires.
--     Light resource: Infrared LED
--     Strong anti-shock and anti-vibration.
--     Non-contact object detect: Avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.
--     Detect any objects with different materials: Detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.
--     Fast response: Max. 3ms
--     Identify object colors: According to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.
--     High precision: Precise electron circuit, can detect tiny objects with accurate position.

--    IP ratings: IP65 Dust proof.



2. Ordering Code:

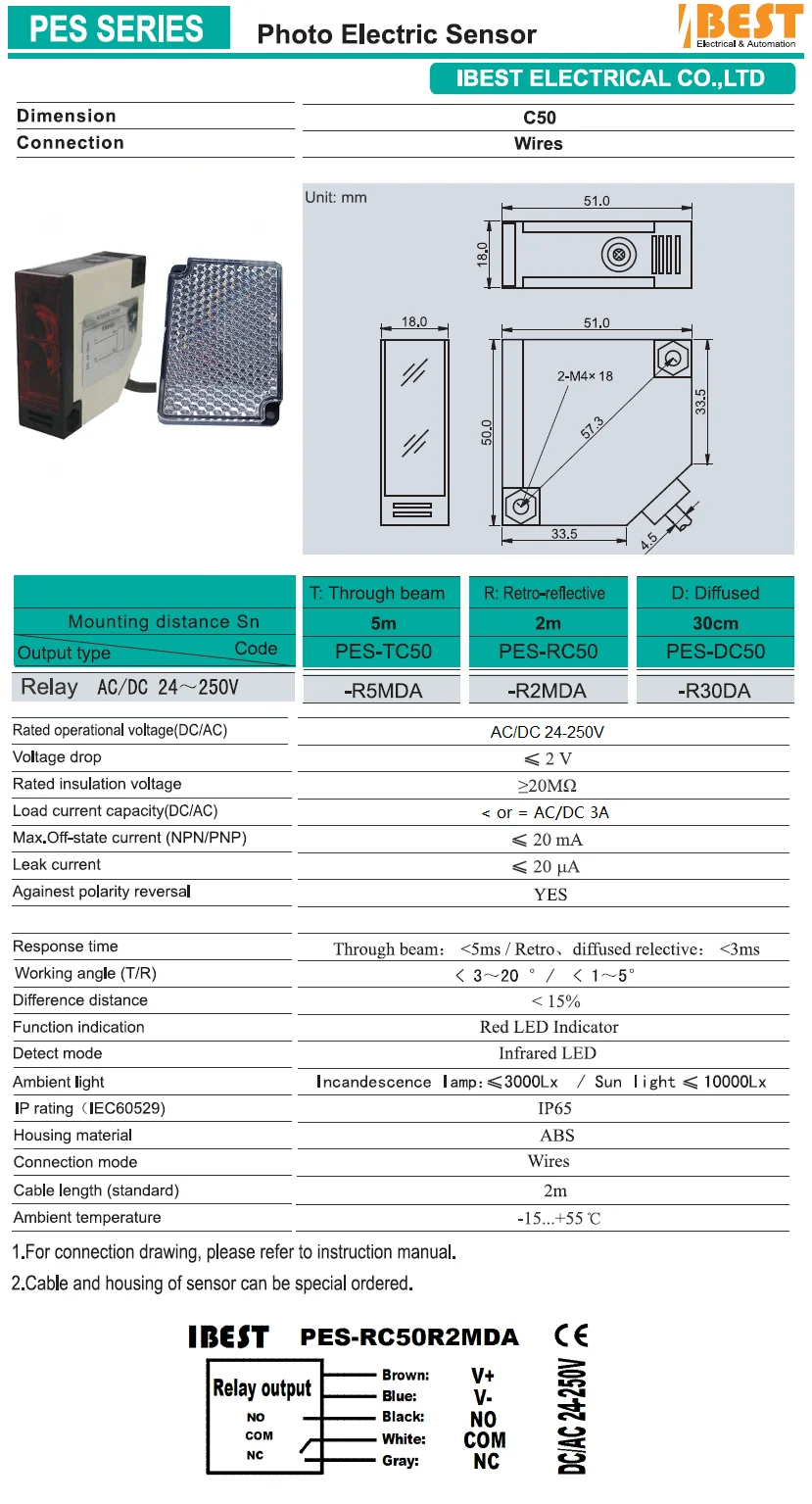

Model and Type	Detecing type	Out type	Detecting distance range	Current output	Power supply	Buy
PES-TC50R5MDA	Through-beam	Relay NO+NC	5M	≤3A AC/DC	AC/DC 24-250V

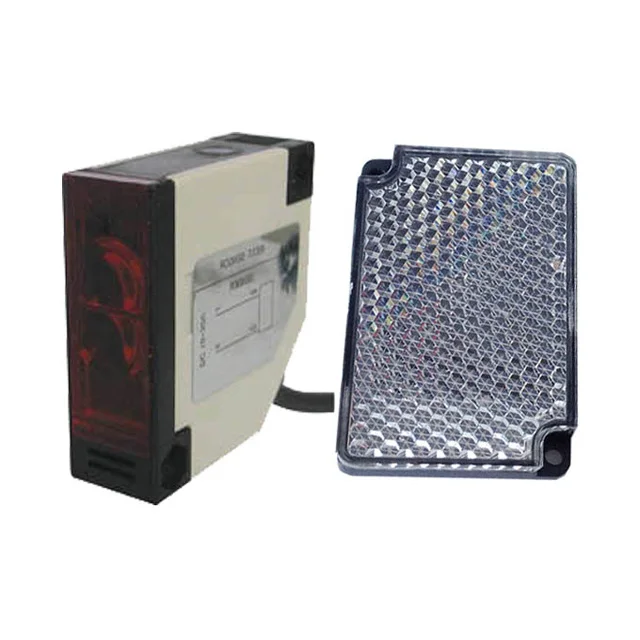

PES-RC50R2MDA	Retro-reflective	Relay NO+NC	2M	≤3A AC/DC	AC/DC 24-250V
PES-RC50R30DA	Diffused	Relay NO+NC	30CM	≤3A AC/DC	AC/DC 24-250V
