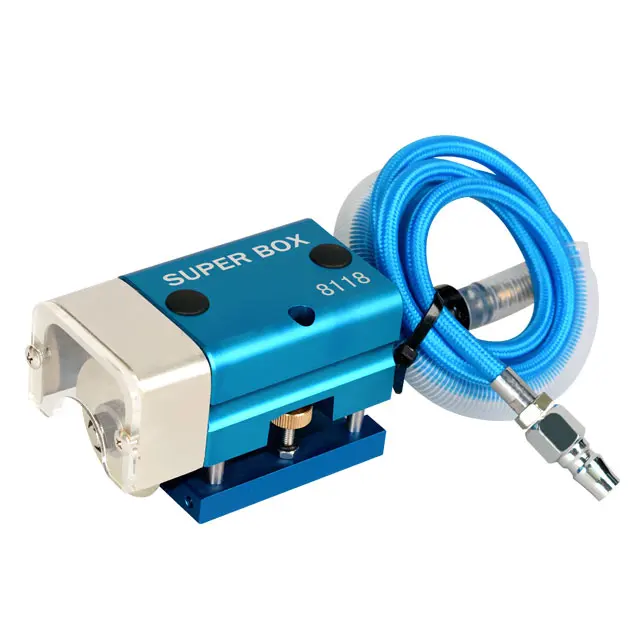

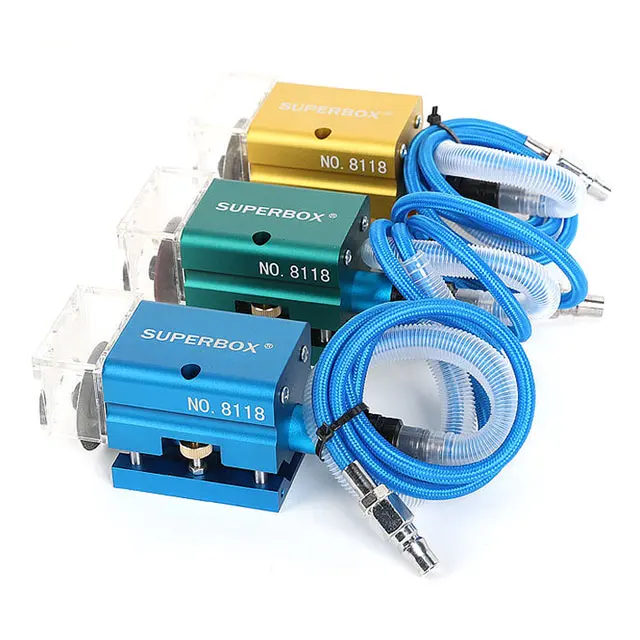

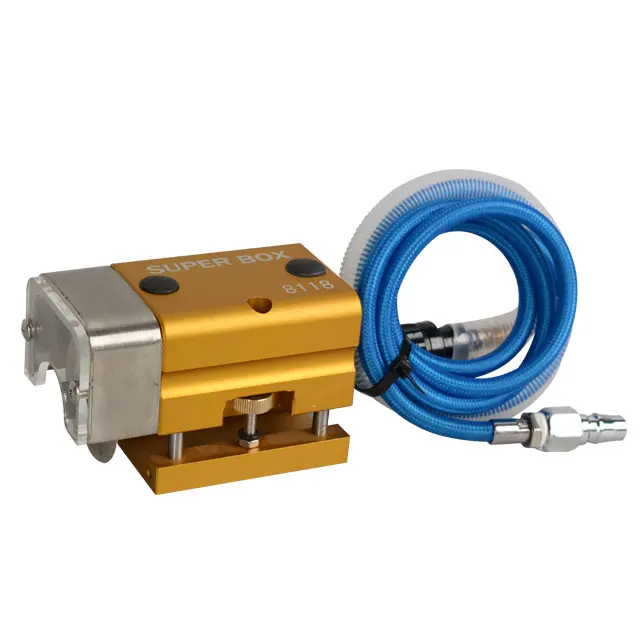

Portable Pneumatic Nick Grinder(Random color)
- Category: >>>
- Supplier: Shenzhen Gold Paddy Machinery Co. Ltd.
Share on (62189847065):
Product Overview
Description
Related Products
Product Description

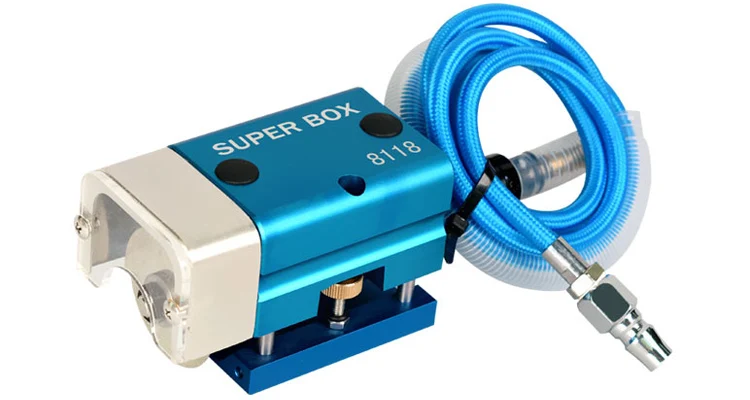

High Quality Mini Pneumatic Grinder Machine Portable Nick Grinder
1,The machine is used for cardboard, corrugated paper, color printing, knife mold line,to die cut various width,depth connection point. Precisely work in printing and die cutting industry, etc.
2,It replaces the traditional hammer tapping method, does not hurt the blade, no burrs, no deviation, convenient and fast, increases the service life of the knife die.
3, Four-corner V-shaped positioning, there will be no larger or smaller connection point.
4,The thickness of the grinding wheel can be replaced according to product requirements to achieve the perfect effect.
5,Simple operation, precisionly die cut connect point.
6.Please Note:Order without air pipe,you should prepair it yourself.
SPECIFICATIONS FOR NICK GRINDER | ||||||
Application | For plat die cutting | |||||
Function | The device is special designed for grinding "nick "with various widths and depths in solid board/ corrugated board cutting die. | |||||
Operation Way | Semi-automatic | |||||
Driven Type | Pneumatic | |||||
Speed | 35000RPM | |||||
Air Pressure | 6.5kg | |||||
Net Weight | 1.0kg | |||||
Detailed Images
Machine Parts
Description: Adjust the cut depth.Different depth of nicks can be obtained by adjusting the control screw.
Machine Parts
Description: Grinding wheel.1 nick grinder equip with 10 pieces of grinding wheels.(0.3mm*2;0.5mm*2;0.8mm*2;1.0mm*2;1.5mm*2)
Machine Parts
Description:Rotate the switch on the tail of the device can control the speed of motor,and it can control the motor start or stop as well.
Machine Parts
Description:Vent pipe. 1.2 meters length
Instruction for operation:
1. When installing the grinding wheel ,put it between two brass-sleeves on the transmission-shaft,then use spanner to fix the transmission-shaft and screw the nut.
2. Different depth of nicks can be obtained by adjusting the control screw:Turning the screw clockwise will reduce the depth of nick,contrary,the depth will increase.
3. The depth of nick should be determined by cutting-dies ,otherwise,will cause abnormal wear on the grinding wheel.
4. The switch on the tail of the device can control the speed of motor,and it can control the mothor start or stop as well.

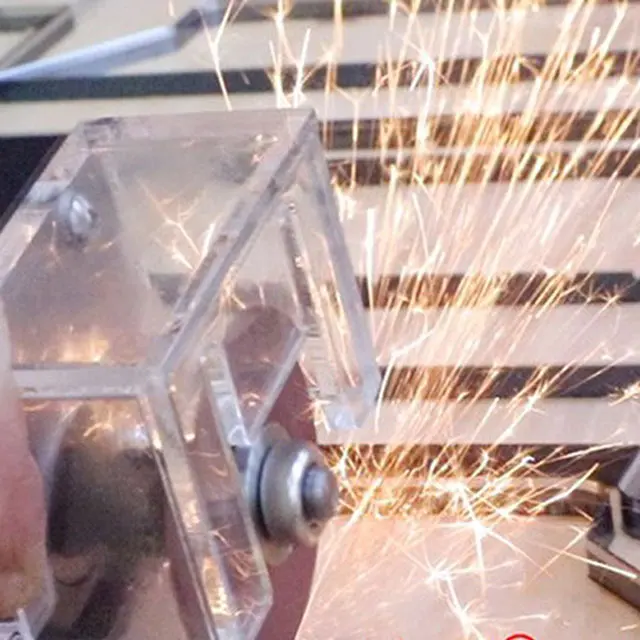

5. When grinding nicks,use locating-device to position the machine on the top of cutting rules,then press the grinding wheel towards the blade of cutting rules stably and quickly
2. Different depth of nicks can be obtained by adjusting the control screw:Turning the screw clockwise will reduce the depth of nick,contrary,the depth will increase.
3. The depth of nick should be determined by cutting-dies ,otherwise,will cause abnormal wear on the grinding wheel.
4. The switch on the tail of the device can control the speed of motor,and it can control the mothor start or stop as well.
5. When grinding nicks,use locating-device to position the machine on the top of cutting rules,then press the grinding wheel towards the blade of cutting rules stably and quickly
About us
Shenzhen Gold Paddy Machinery Co.Ltd is a manufacturer located in Shenzhen, Guangdong Province in China. We develop packaging machinery beginning from 2003.The main products are:carton waste stripper,strapping machine,grooving machine,magnet patch machine,carton puncher, etc.All of our products comply with international quality standards and greatly appreciated in variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact and visit us.
Certifications
Packing & Delivery
Packaging | ||
Size | 260 (L) * 130 (W) * 120 (D) | |
Weight | 3kg | |
Packaging Details | ||
FAQ
Q: Are you a factory or trading company?
A: We are manufacturer. Our factory is a professional manufacturer of many kinds of packaging machinery for about 15years ,and our machinery are high stable quality with more competitive price than others.
Q: Where is your company located? How can I visit there?
A: Our company is located in Shenzhen City,Guangdong Province,China. You can fly to Shenzhen air port directly and we will pick you up there.
Q: Do you have any working machine for us to visit?
A: Yes,we have running machine near our factory also in our city, we can arrange to visit.
Q: How is the warranty of the machine?
A: Our machines have half a year warranty.
Q:What is the terms of payment you accept?
A:We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
Q: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
IF you are interested in our product,please feel free to send us your inquiry, we promise to make the best quotation for you!
